MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

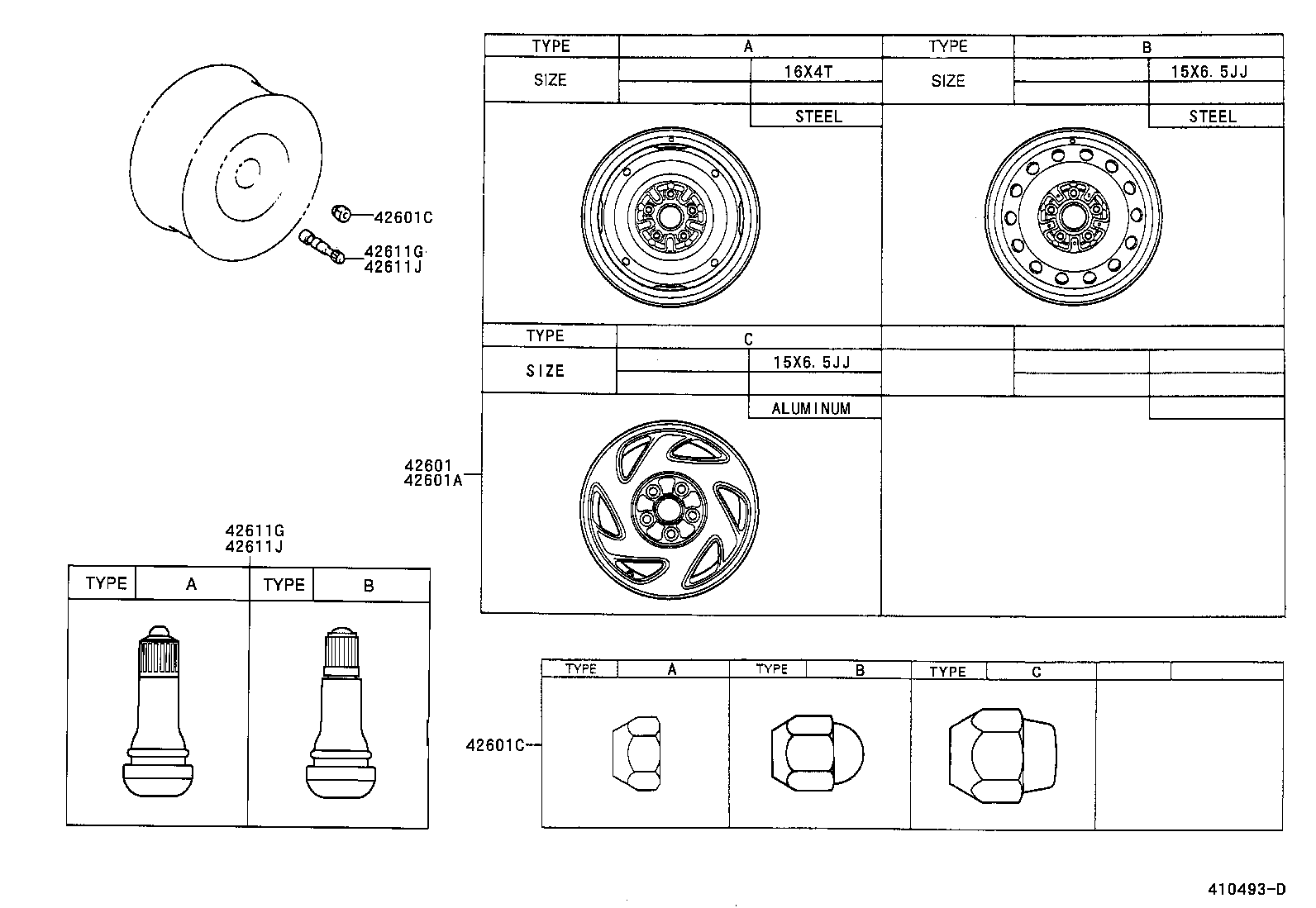

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42611G 42611G 42611J 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-08010

MCL10

15X6.5JJ,TYPE B:REFER TO ILLUSTRATION

 4
42611-AE010

MCL10..WG

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-06060

MCL10

16X4T,TYPE A:REFER TO ILLUSTRATION

 1
42611-08010

MCL10

15X6.5JJ,TYPE B:REFER TO ILLUSTRATION

 1
42601C - NUT, HUB (FOR AXLE)
90080-17097

MCL10..WG

TYPE B:REFER TO ILLUSTRATION,(L)

 20
90942-01104

MCL10

TYPE C:REFER TO ILLUSTRATION

 20
90942-01062

MCL10..WG

TYPE B:REFER TO ILLUSTRATION,(J)

 20
90080-17035

MCL10

TYPE A:REFER TO ILLUSTRATION

 20
42601C - NUT, HUB (FOR AXLE)
90080-17097

MCL10..WG

TYPE B:REFER TO ILLUSTRATION,(L)

 20
90942-01104

MCL10

TYPE C:REFER TO ILLUSTRATION

 20
90942-01062

MCL10..WG

TYPE B:REFER TO ILLUSTRATION,(J)

 20
90080-17035

MCL10

TYPE A:REFER TO ILLUSTRATION

 20
42611G - VALVE (FOR TUBELESS TIRE)
90080-45001

MCL10

TYPE A:REFER TO ILLUSTRATION

 4
90080-45006

MCL10

TYPE B:REFER TO ILLUSTRATION

 4
42611G - VALVE (FOR TUBELESS TIRE)
90080-45001

MCL10

TYPE A:REFER TO ILLUSTRATION

 4
90080-45006

MCL10

TYPE B:REFER TO ILLUSTRATION

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001

MCL10

TYPE A:REFER TO ILLUSTRATION

 1
90080-45006

MCL10

TYPE B:REFER TO ILLUSTRATION

 1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001

MCL10

TYPE A:REFER TO ILLUSTRATION

 1
90080-45006

MCL10

TYPE B:REFER TO ILLUSTRATION

 1

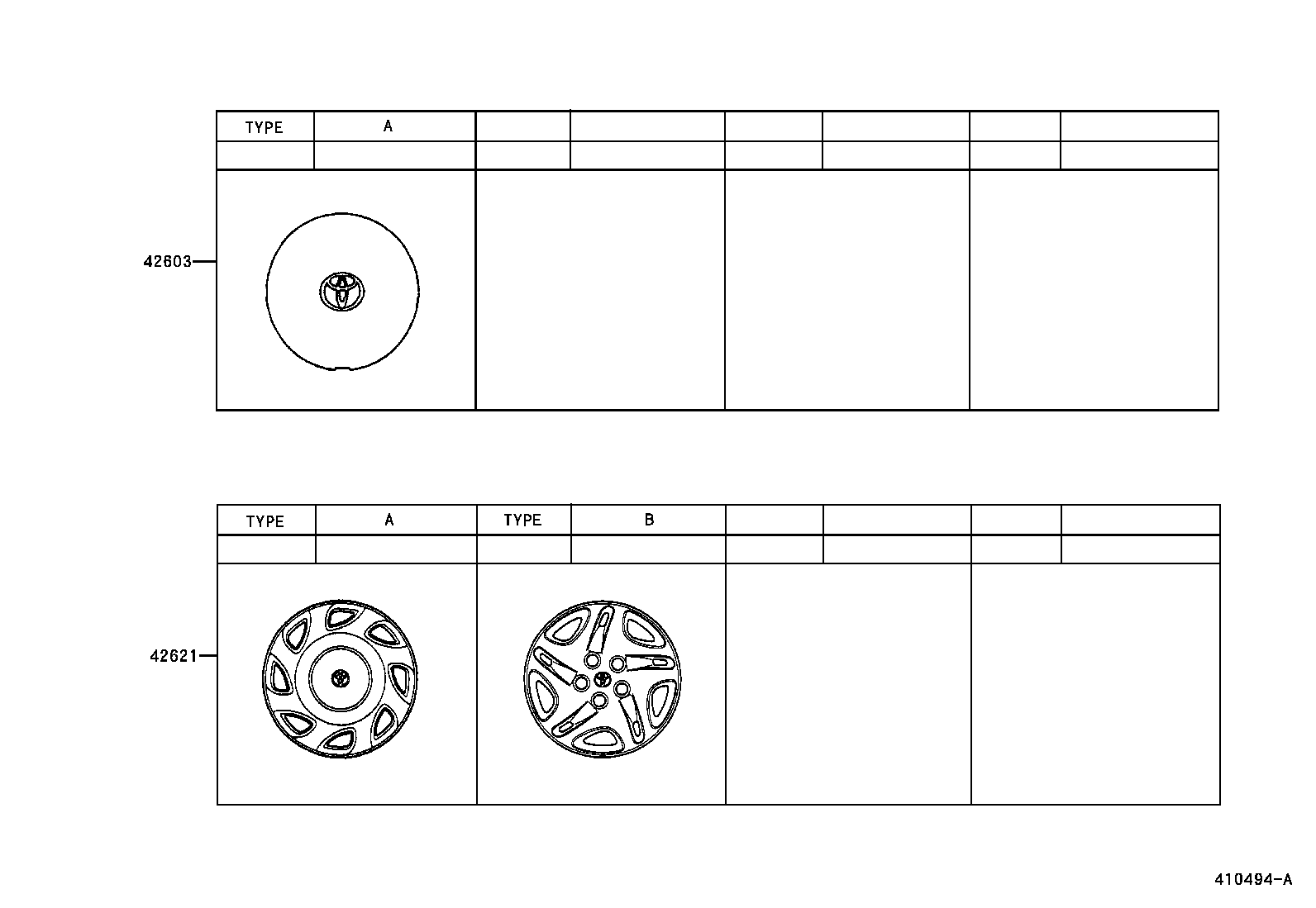

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-AE010

MCL10..WG

*STE,TYPE A:REFER TO ILLUSTRATION

 4
42621 - CAP, WHEEL
42621-AE020

MCL10

TYPE B:REFER TO ILLUSTRATION

 4
42621-AE010

MCL10

TYPE A:REFER TO ILLUSTRATION

 4

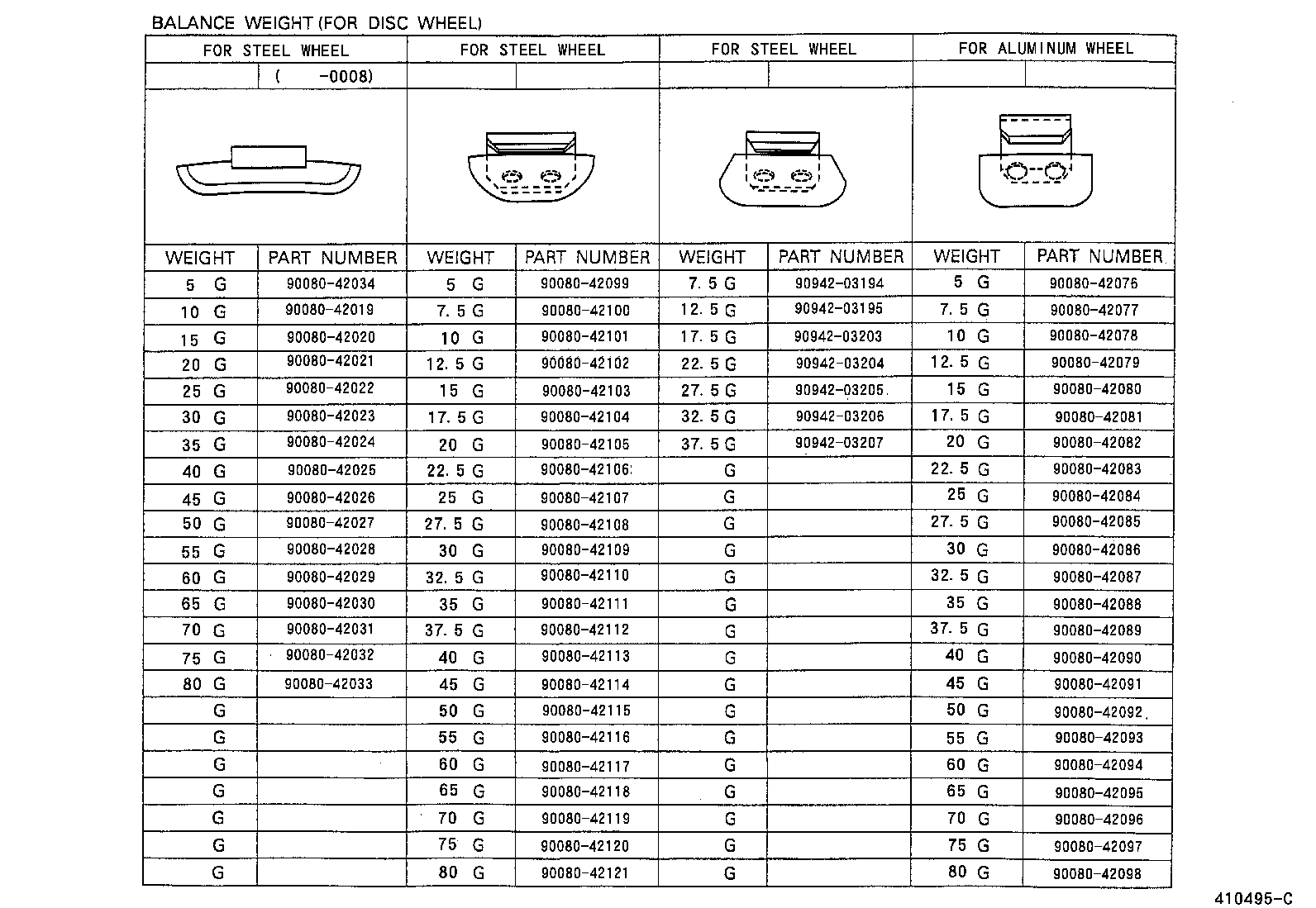

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

diagram 9008042019 9008042020 9008042021 9008042022 9008042023 9008042024 9008042025 9008042026 9008042027 9008042028 9008042029 9008042030 9008042031 9008042032 9008042033 9008042034 9008042076 9008042077 9008042078 9008042079 9008042080 9008042081 9008042082 9008042083 9008042084 9008042085 9008042086 9008042087 9008042088 9008042089 9008042090 9008042091 9008042092 9008042093 9008042094 9008042095 9008042096 9008042097 9008042098 9008042099 9008042100 9008042101 9008042102 9008042103 9008042104 9008042105 9008042106 9008042107 9008042108 9008042109 9008042110 9008042111 9008042112 9008042113 9008042114 9008042115 9008042116 9008042117 9008042118 9008042119 9008042120 9008042121 9094203194 9094203195 9094203203 9094203204 9094203205 9094203206 9094203207
Part # Description Qty Price
Common parts
90080-42019
90080-42020
90080-42021
90080-42022
90080-42023
90080-42024
90080-42025
90080-42026
90080-42027
90080-42028
90080-42029
90080-42030
90080-42031
90080-42032
90080-42033
90080-42034
90080-42076
90080-42077
90080-42078
90080-42079
90080-42080
90080-42081
90080-42082
90080-42083
90080-42084
90080-42085
90080-42086
90080-42087
90080-42088
90080-42089
90080-42090
90080-42091
90080-42092
90080-42093
90080-42094
90080-42095
90080-42096
90080-42097
90080-42098
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
