MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

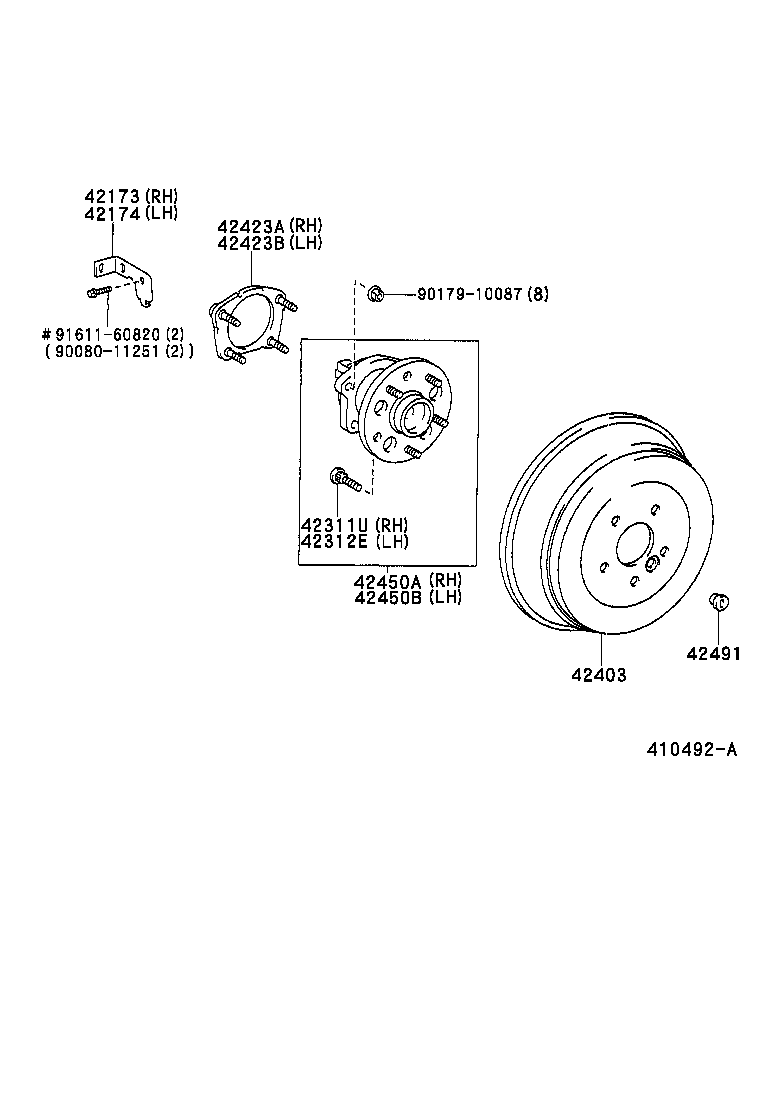

Click highlighted areas on diagram

diagram 42173 42174 42311U 42312E 42403 42423A 42423B 42450A 42450B 42491 9008011251 9017910087 9161160820
Part # Description Qty Price
42173 - BRACKET, REAR AXLE HARNESS, RH
42173-45010

MCL10

 1
42174 - BRACKET, REAR AXLE HARNESS, LH
42174-45010

MCL10

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047

MCL10

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047

MCL10

 5
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-08011

MCL10

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-44010

MCL10

 1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-44010

MCL10

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-08010

MCL10

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-08010

MCL10

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-14010

MCL10

 2
Common parts
90080-11251
90179-10087
91611-60820
