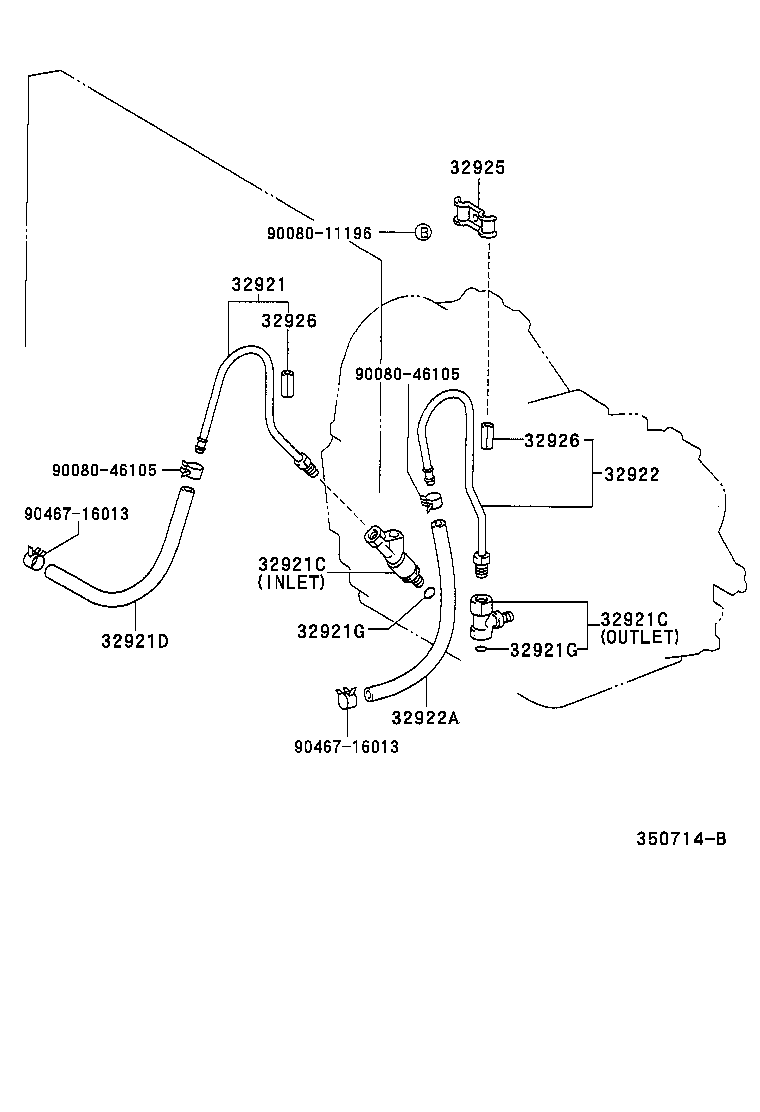

MCL10L-PFSDKA (1997)
Toyota Sienna
(9708-0008)
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-08010 |
MCL10 |
1 | ||
| 32921-06060 |
MCL10 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32918-45010 |
MCL10 INLET |
1 | ||
| 32901-32050 |
MCL10 OUTLET |
1 | ||
| 90404-16031 |
MCL10 INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32918-45010 |
MCL10 INLET |
1 | ||
| 32901-32050 |
MCL10 OUTLET |
1 | ||
| 90404-16031 |
MCL10 INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-06020 |
MCL10 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCL10 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCL10 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-06060 |
MCL10 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90080-44077 |
MCL10..WG AIR COOLING OIL COOLER |
1 | ||
| 90080-44029 |
MCL10 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12074 |
MCL10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| Common parts | ||||
| 90080-11196 | ||||
| 90080-46105 | ||||
| 90467-16013 | ||||

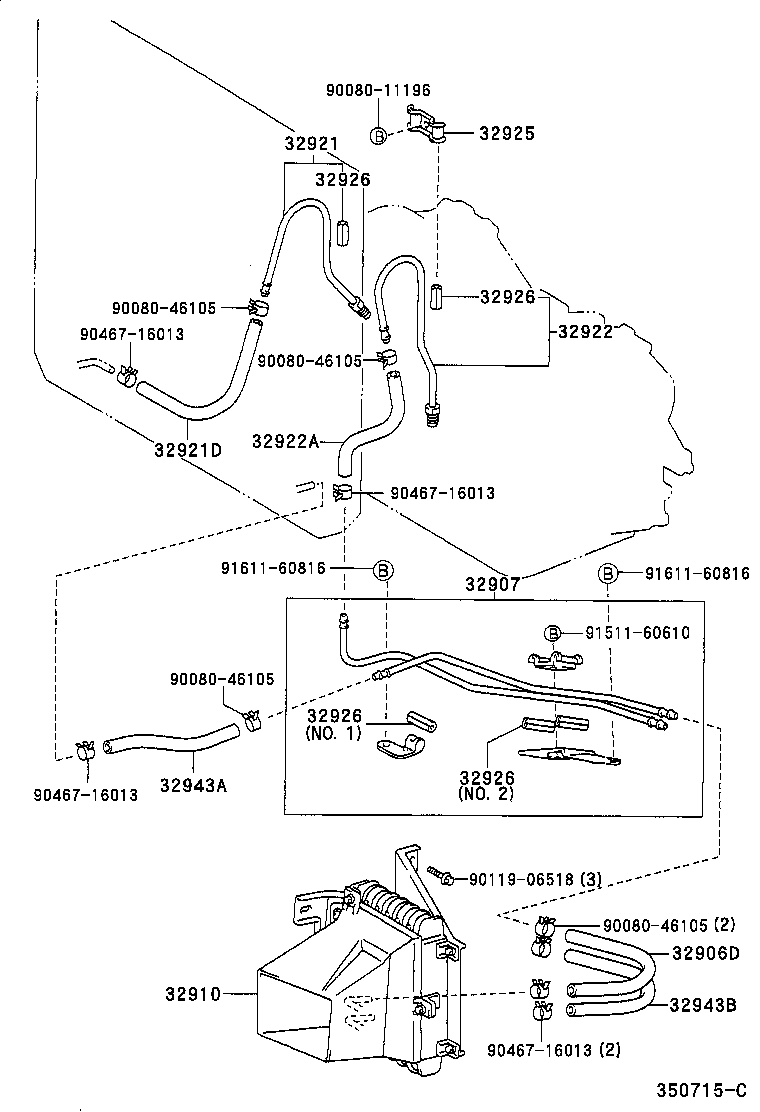

(9708-0008)WG
A540E;AIR COOLING OIL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906D - TUBE SUB-ASSY, OIL COOLER, NO.2 | ||||
| 90080-44089 |
MCL10..WG |
1 | ||
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-08010 |
MCL10..WG |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-45010 |
MCL10..WG |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-08010 |
MCL10 |
1 | ||
| 32921-06060 |
MCL10 |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-06020 |
MCL10 |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-06060 |
MCL10 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90080-44077 |
MCL10..WG AIR COOLING OIL COOLER |
1 | ||
| 90080-44029 |
MCL10 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12074 |
MCL10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90080-44078 |
MCL10..WG |
1 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 90080-44088 |
MCL10..WG |
1 | ||
| Common parts | ||||
| 90080-11196 | ||||
| 90080-46105 | ||||
| 90119-06518 | ||||
| 90467-16013 | ||||
| 91511-60610 | ||||
| 91611-60816 | ||||

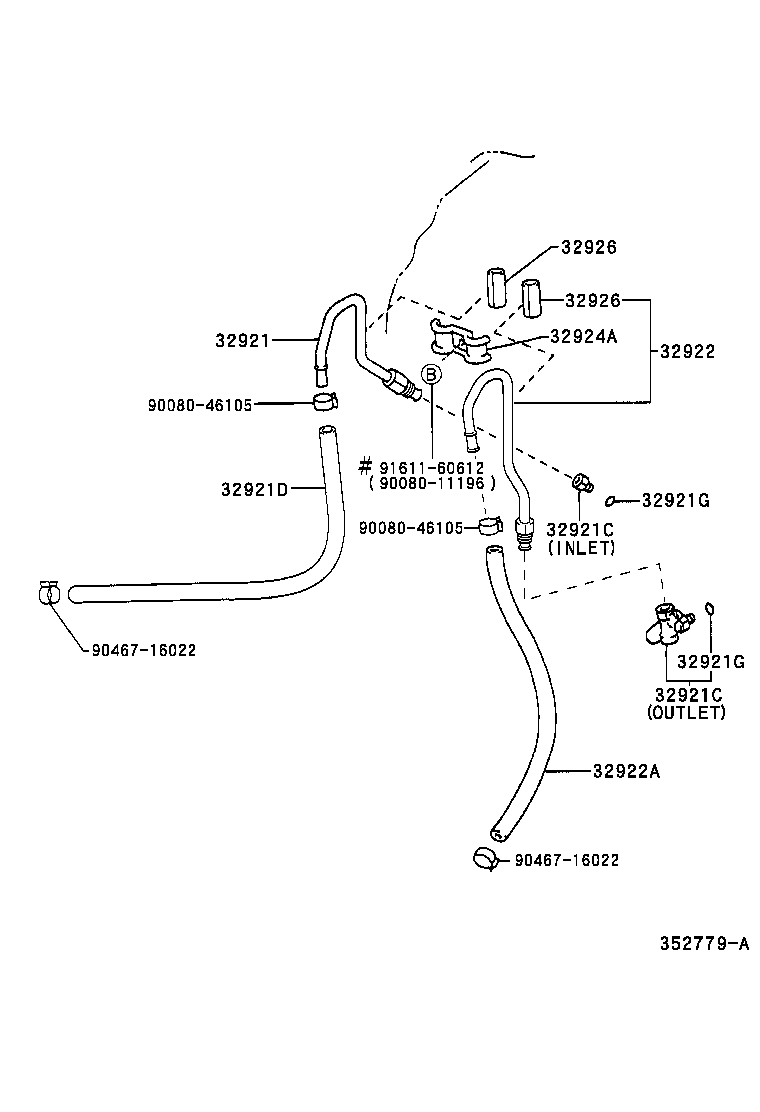

(0008- )
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-08010 |
MCL10 |
1 | ||
| 32921-06060 |
MCL10 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32918-45010 |
MCL10 INLET |
1 | ||
| 32901-32050 |
MCL10 OUTLET |
1 | ||
| 90404-16031 |
MCL10 INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32918-45010 |
MCL10 INLET |
1 | ||
| 32901-32050 |
MCL10 OUTLET |
1 | ||
| 90404-16031 |
MCL10 INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-06020 |
MCL10 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCL10 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCL10 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-06060 |
MCL10 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90080-44077 |
MCL10..WG AIR COOLING OIL COOLER |
1 | ||
| 90080-44029 |
MCL10 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12074 |
MCL10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-04010 |
MCL10..WG L=36,ID=10,AIR COOLING OIL COOLER,NO.1 |
3 | ||
| 32926-04010 |
MCL10 L=36,ID=10 |
2 | ||
| 32926-08010 |
MCL10..WG L=45,ID=10,AIR COOLING OIL COOLER,NO.2 |
2 | ||
| Common parts | ||||
| 90080-11196 | ||||
| 90080-46105 | ||||
| 90467-16022 | ||||
| 91611-60612 | ||||
