MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

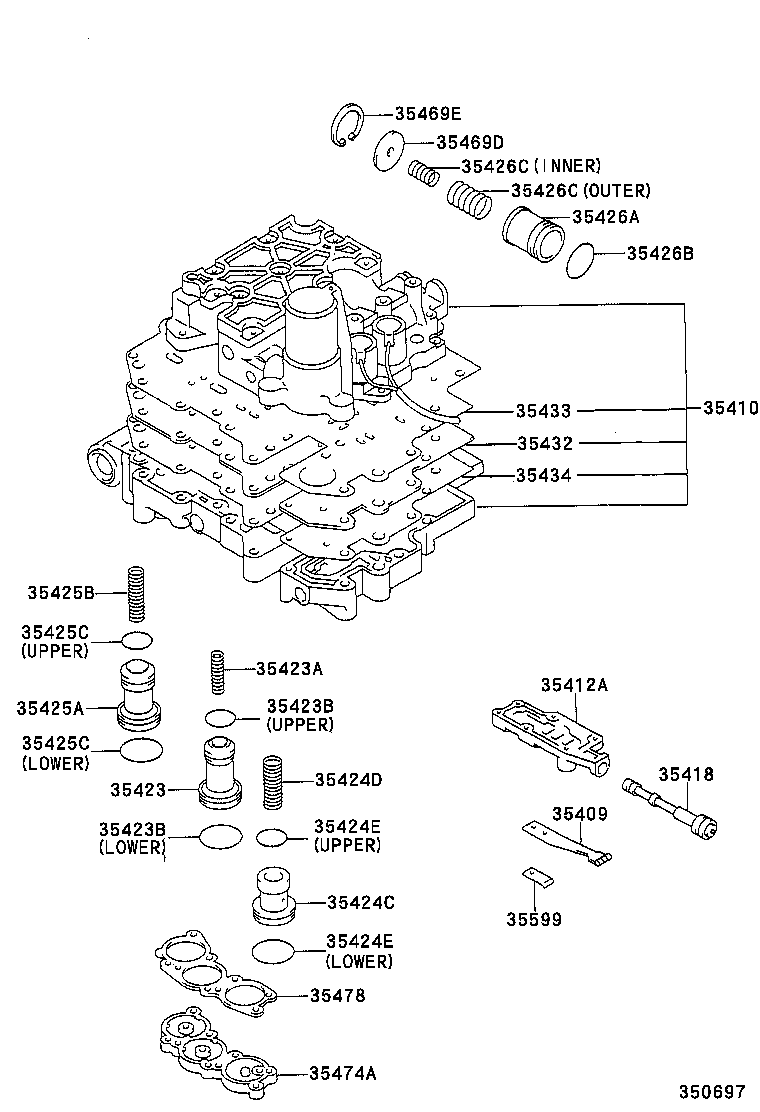

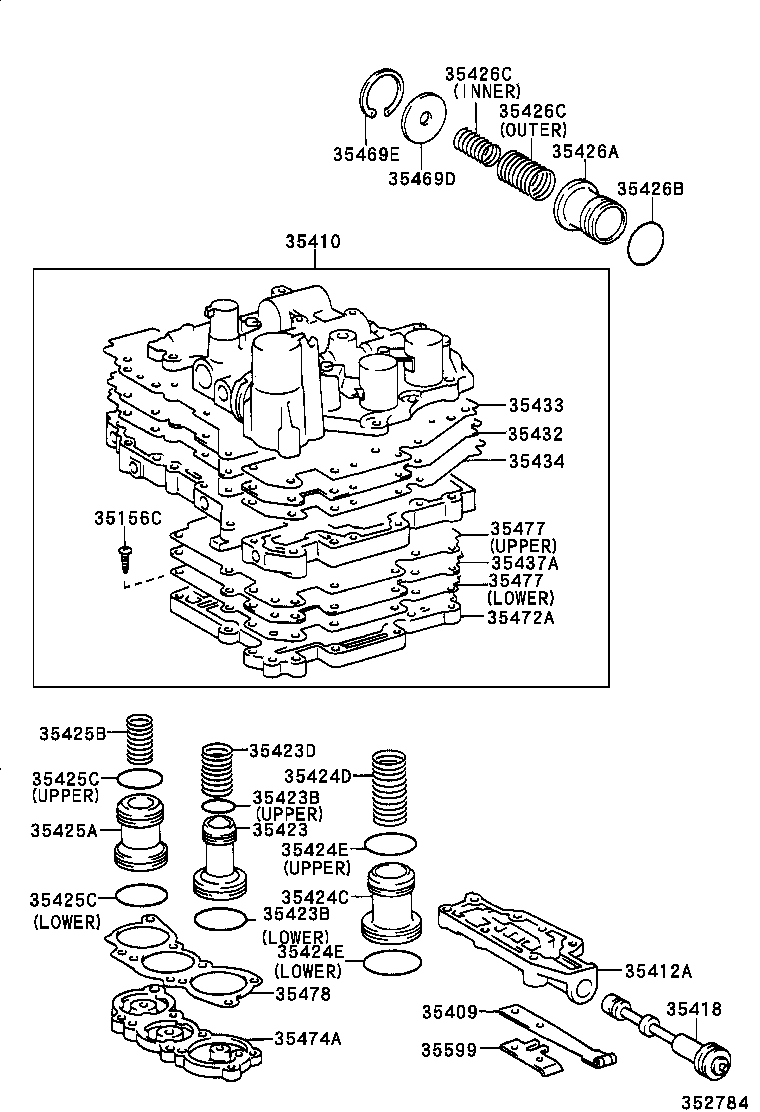

ILLUST NO. 1 OF 5(9708-0008)
Click highlighted areas on diagram
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32030 |
MCL10 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-45010 |
MCL10 |
1 | ||
| 35410-45020 |
MCL10 |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-32020 |
MCL10 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-32010 |
MCL10 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-33030 |
MCL10 |
1 | ||
| 35403-33010 |
MCL10 |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25031 |
MCL10 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21006 |
MCL10 UPPER |
1 | ||
| 90301-30005 |
MCL10 LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21006 |
MCL10 UPPER |
1 | ||
| 90301-30005 |
MCL10 LOWER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-32021 |
MCL10 |
1 | ||
| 35424-33010 |
MCL10 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-28018 |
MCL10 |
1 | ||
| 90501-27024 |
MCL10 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-36006 |
MCL10 LOWER |
1 | ||
| 90301-30005 |
MCL10 UPPER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-36006 |
MCL10 LOWER |
1 | ||
| 90301-30005 |
MCL10 UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-33021 |
MCL10 |
1 | ||
| 35405-32010 |
MCL10 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-21035 |
MCL10 |
1 | ||
| 90501-20153 |
MCL10 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 UPPER |
1 | ||
| 90301-26010 |
MCL10 UPPER |
1 | ||
| 90301-34007 |
MCL10 LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 UPPER |
1 | ||
| 90301-26010 |
MCL10 UPPER |
1 | ||
| 90301-34007 |
MCL10 LOWER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-32020 |
MCL10 |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
MCL10 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-26036 |
MCL10 INNER |
1 | ||
| 90501-29019 |
MCL10 OUTER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-26036 |
MCL10 INNER |
1 | ||
| 90501-29019 |
MCL10 OUTER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-33070 |
MCL10 |
1 | ||
| 35432-45020 |
MCL10 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-42010 |
MCL10 |
1 | ||
| 35433-33011 |
MCL10 |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-33012 |
MCL10 |
1 | ||
| 35434-42010 |
MCL10 |
1 | ||
| 35469D - SPACER (FOR C-0 ACCUMULATOR PISTON) | ||||
| 35469-32020 |
MCL10 |
1 | ||
| 35469-33010 |
MCL10 |
1 | ||
| 35469E - RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER) | ||||
| 96151-03700 |
MCL10 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-33011 |
MCL10 |
1 | ||
| 35474-32030 |
MCL10 |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32020 |
MCL10 |
1 | ||
| 35478-33010 |
MCL10 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32020 |
MCL10 |
1 | ||

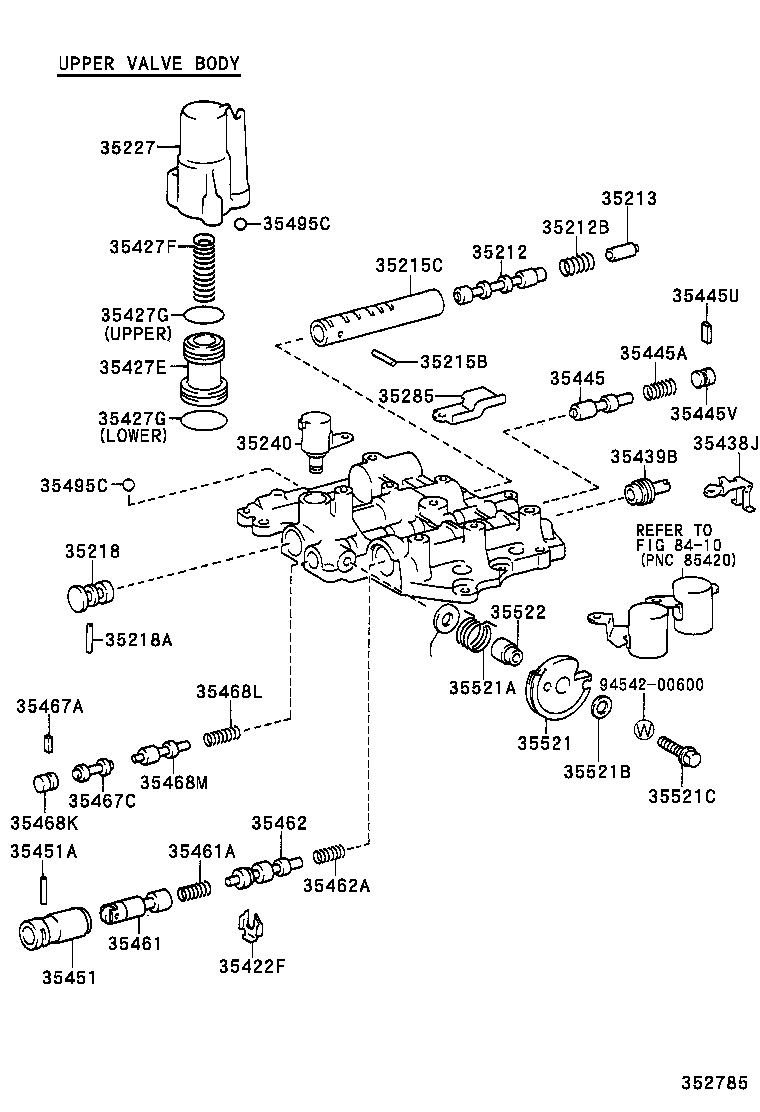

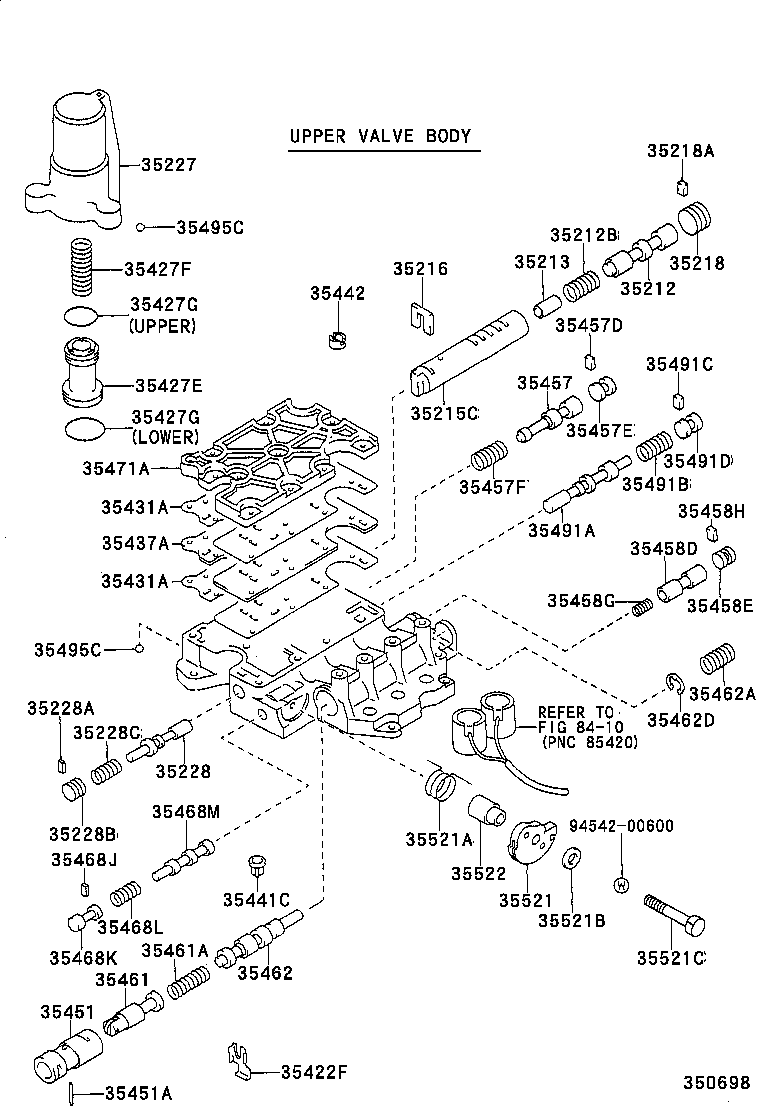

ILLUST NO. 2 OF 5(9708-0008)
Click highlighted areas on diagram
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-33010 |
MCL10 |
1 | ||
| 35212-32010 |
MCL10 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07023 |
MCL10 |
1 | ||
| 90501-08149 |
MCL10 |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-33010 |
MCL10 |
1 | ||
| 35213-32010 |
MCL10 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-32010 |
MCL10 |
1 | ||
| 35215-33011 |
MCL10 |
1 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-32020 |
MCL10 |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-32010 |
MCL10 |
1 | ||
| 35218-33020 |
MCL10 |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90250-03083 |
MCL10 |
1 | ||
| 90282-03011 |
MCL10 |
1 | ||
| 35227 - CYLINDER, B-0 ACCUMULATOR | ||||
| 35227-32011 |
MCL10 |
1 | ||
| 35227-33010 |
MCL10 |
1 | ||
| 35228 - VALVE, 2ND MODULATOR | ||||
| 35228-32010 |
MCL10 |
1 | ||
| 35228A - KEY, STRAIGHT (FOR 2ND MODULATOR VALVE) | ||||
| 90282-03018 |
MCL10 |
1 | ||
| 90282-03011 |
MCL10 |
1 | ||
| 35228B - PLUG (FOR 2ND MODULATOR VALVE) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 90339-04047 |
MCL10 |
1 | ||
| 35228C - SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE) | ||||
| 90501-09122 |
MCL10 |
1 | ||
| 90501-09127 |
MCL10 |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-33020 |
MCL10 |
1 | ||
| 35422-32020 |
MCL10 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35401-33020 |
MCL10 |
1 | ||
| 35401-32012 |
MCL10 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-17026 |
MCL10 |
1 | ||
| 90501-16148 |
MCL10 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 LOWER |
1 | ||
| 90301-20002 |
MCL10 UPPER |
1 | ||
| 90301-17010 |
MCL10 UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 LOWER |
1 | ||
| 90301-20002 |
MCL10 UPPER |
1 | ||
| 90301-17010 |
MCL10 UPPER |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32023 |
MCL10 |
2 | ||
| 35436-33010 |
MCL10 LOWER |
1 | ||
| 35435-33010 |
MCL10 UPPER |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32023 |
MCL10 |
2 | ||
| 35436-33010 |
MCL10 LOWER |
1 | ||
| 35435-33010 |
MCL10 UPPER |
1 | ||
| 35437A - PLATE, UPPER VALVE BODY COVER | ||||
| 35437-33030 |
MCL10 |
1 | ||
| 35437-32021 |
MCL10 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
MCL10 |
3 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32020 |
MCL10 |
1 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
MCL10 |
1 | ||
| 35451-33010 |
MCL10 |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03086 |
MCL10 |
1 | ||
| 90250-03036 |
MCL10 |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-32010 |
MCL10 |
1 | ||
| 35457D - KEY, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) | ||||
| 90339-04003 |
MCL10 |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09037 |
MCL10 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-33011 |
MCL10 |
1 | ||
| 35458-32010 |
MCL10 |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04028 |
MCL10 |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
MCL10 |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| 90282-03017 |
MCL10 |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
MCL10 |
1 | ||
| 35408-33010 |
MCL10 |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10190 |
MCL10 |
1 | ||
| 90501-10185 |
MCL10 |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-32010 |
MCL10 |
1 | ||
| 35462-33010 |
MCL10 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-08148 |
MCL10 |
1 | ||
| 90501-07022 |
MCL10 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
MCL10 |
1 | ||
| 35468J - KEY, STRAIGHT (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90282-03001 |
MCL10 |
1 | ||
| 35468K - PLUG (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90339-04022 |
MCL10 |
1 | ||
| 90339-04068 |
MCL10 |
1 | ||
| 35468L - SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08100 |
MCL10 |
1 | ||
| 35468M - VALVE, B-1 ORIFICE CONTROL | ||||
| 35468-32020 |
MCL10 |
1 | ||
| 35468-33030 |
MCL10 |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-33011 |
MCL10 |
1 | ||
| 35471-32020 |
MCL10 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-45020 |
MCL10 |
1 | ||
| 35491-33010 |
MCL10 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10172 |
MCL10 |
1 | ||
| 90501-10228 |
MCL10 |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCL10 |
9 | ||
| 35495-22020 |
MCL10 |
8 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCL10 |
9 | ||
| 35495-22020 |
MCL10 |
8 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-33020 |
MCL10 |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90949-03008 |
MCL10 |
1 | ||
| 90949-03069 |
MCL10 |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
MCL10 |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90101-06037 |
MCL10 |
1 | ||
| 90101-06026 |
MCL10 |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
MCL10 |
1 | ||
| 35522-33010 |
MCL10 |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||
| Linked diagrams | ||||
| 8410 | ||||

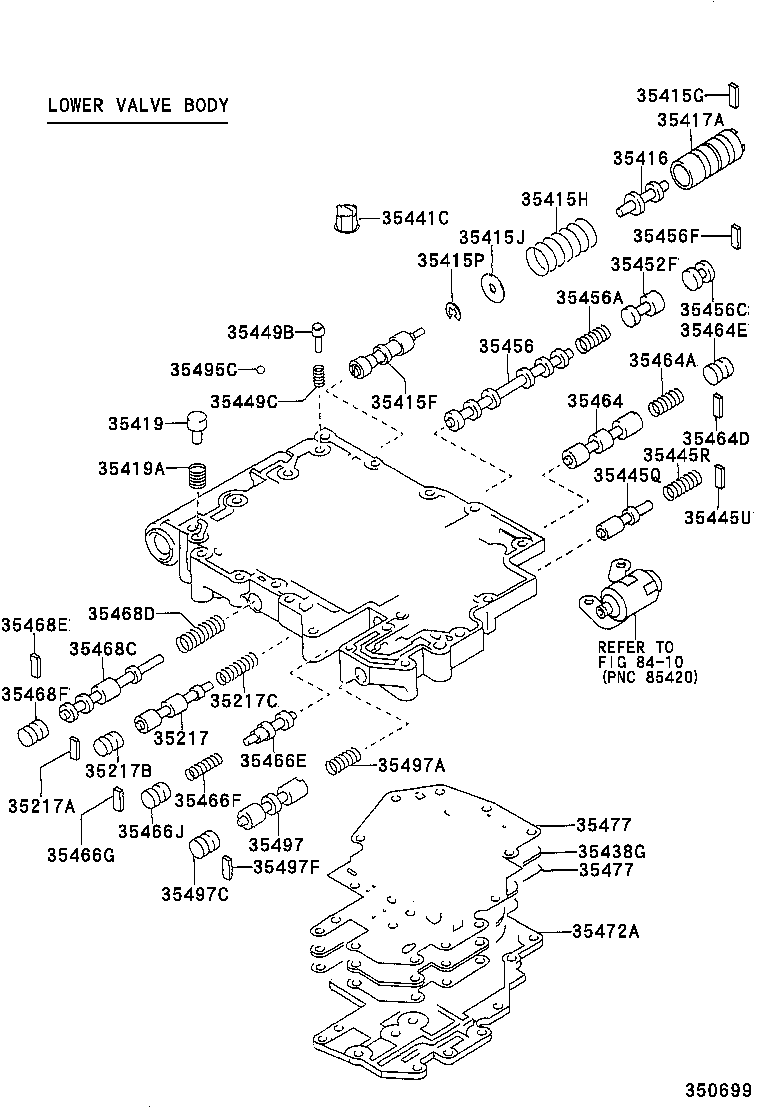

ILLUST NO. 3 OF 5(9708-0008)
Click highlighted areas on diagram
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35217 - VALVE, ACCUMULATOR CONTROL, NO.2 | ||||
| 35217-32010 |
MCL10 |
1 | ||
| 35217A - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.2) | ||||
| 90282-03017 |
MCL10 |
1 | ||
| 35217B - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.2) | ||||
| 90339-04003 |
MCL10 |
1 | ||
| 35217C - SPRING, COMPRESSION | ||||
| 90501-06034 |
MCL10 |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-32025 |
MCL10 |
1 | ||
| 35415-33010 |
MCL10 |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03017 |
MCL10 |
1 | ||
| 90250-03085 |
MCL10 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-13037 |
MCL10 |
1 | ||
| 90501-16120 |
MCL10 |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
MCL10 |
1 | ||
| 90201-06041 |
MCL10 |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
MCL10 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-32031 |
MCL10 |
1 | ||
| 35416-33020 |
MCL10 |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-32032 |
MCL10 |
1 | ||
| 35417-33021 |
MCL10 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
MCL10 |
1 | ||
| 35419-33010 |
MCL10 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
MCL10 |
1 | ||
| 35438G - PLATE, VALVE BODY, NO.2 | ||||
| 35438-33020 |
MCL10 |
1 | ||
| 35438-32012 |
MCL10 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
MCL10 |
3 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-32010 |
MCL10 |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09086 |
MCL10 |
1 | ||
| 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90282-03007 |
MCL10 |
1 | ||
| 90282-03002 |
MCL10 |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
MCL10 |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
MCL10 |
1 | ||
| 35452F - PLUG, 2-3 SHIFT VALVE | ||||
| 35452-32010 |
MCL10 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32030 |
MCL10 |
1 | ||
| 35456-33010 |
MCL10 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09088 |
MCL10 |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04026 |
MCL10 |
1 | ||
| 90339-05017 |
MCL10 |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03017 |
MCL10 |
1 | ||
| 90282-03028 |
MCL10 |
1 | ||
| 90282-03007 |
MCL10 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-32030 |
MCL10 |
1 | ||
| 35464-33010 |
MCL10 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09116 |
MCL10 |
1 | ||
| 90501-09083 |
MCL10 |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| 90282-03007 |
MCL10 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 90339-04026 |
MCL10 |
1 | ||
| 35466E - VALVE, 2ND LOCK | ||||
| 35466-33010 |
MCL10 |
1 | ||
| 35466-32010 |
MCL10 |
1 | ||
| 35466F - SPRING, COMPRESSION (FOR 2ND LOCK VALVE) | ||||
| 90501-07106 |
MCL10 |
1 | ||
| 90501-06047 |
MCL10 |
1 | ||
| 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) | ||||
| 90282-03002 |
MCL10 |
1 | ||
| 35466J - PLUG (FOR 2ND LOCK VALVE) | ||||
| 90339-04028 |
MCL10 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32031 |
MCL10 |
1 | ||
| 35468-33040 |
MCL10 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14115 |
MCL10 |
1 | ||
| 90501-14144 |
MCL10 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03014 |
MCL10 |
1 | ||
| 90282-03003 |
MCL10 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04047 |
MCL10 |
1 | ||
| 90339-04025 |
MCL10 |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-32060 |
MCL10 |
1 | ||
| 35472-33020 |
MCL10 |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35488-33010 |
MCL10 LOWER |
1 | ||
| 35477-32044 |
MCL10 |
2 | ||
| 35477-33021 |
MCL10 UPPER |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35488-33010 |
MCL10 LOWER |
1 | ||
| 35477-32044 |
MCL10 |
2 | ||
| 35477-33021 |
MCL10 UPPER |
1 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCL10 |
9 | ||
| 35495-22020 |
MCL10 |
8 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-33010 |
MCL10 |
1 | ||
| 35497-32030 |
MCL10 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09083 |
MCL10 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 90339-04026 |
MCL10 |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 4 OF 5(9708-0008)
Click highlighted areas on diagram
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

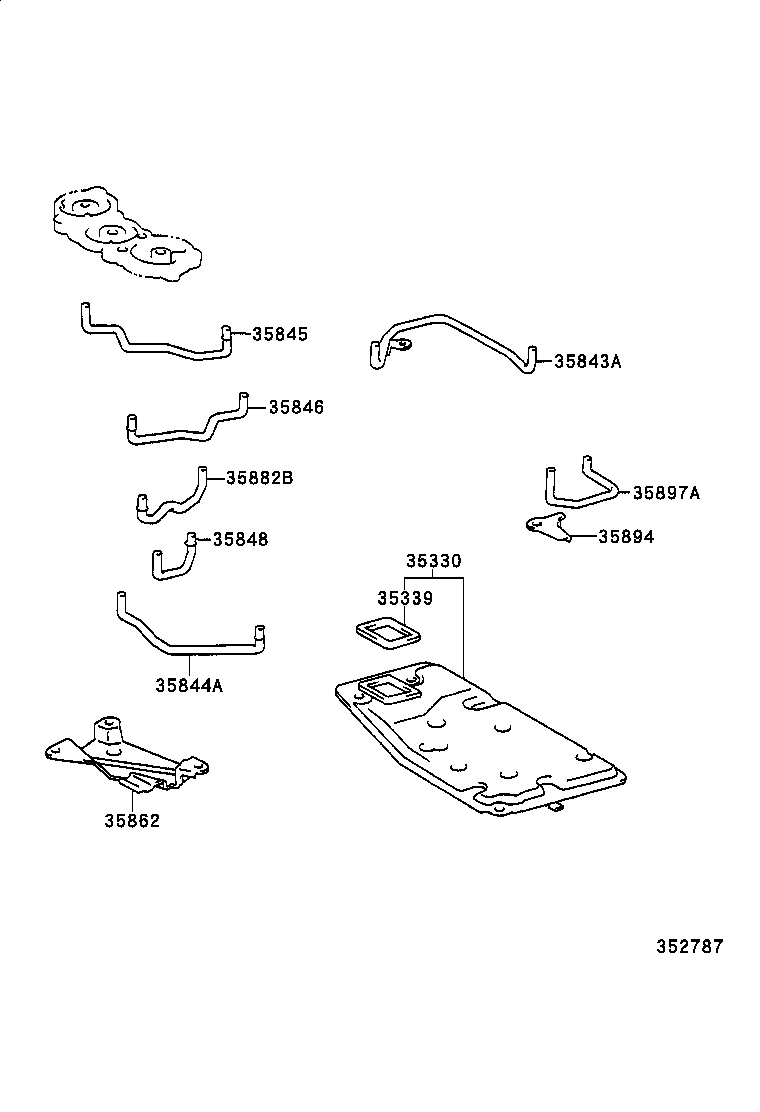

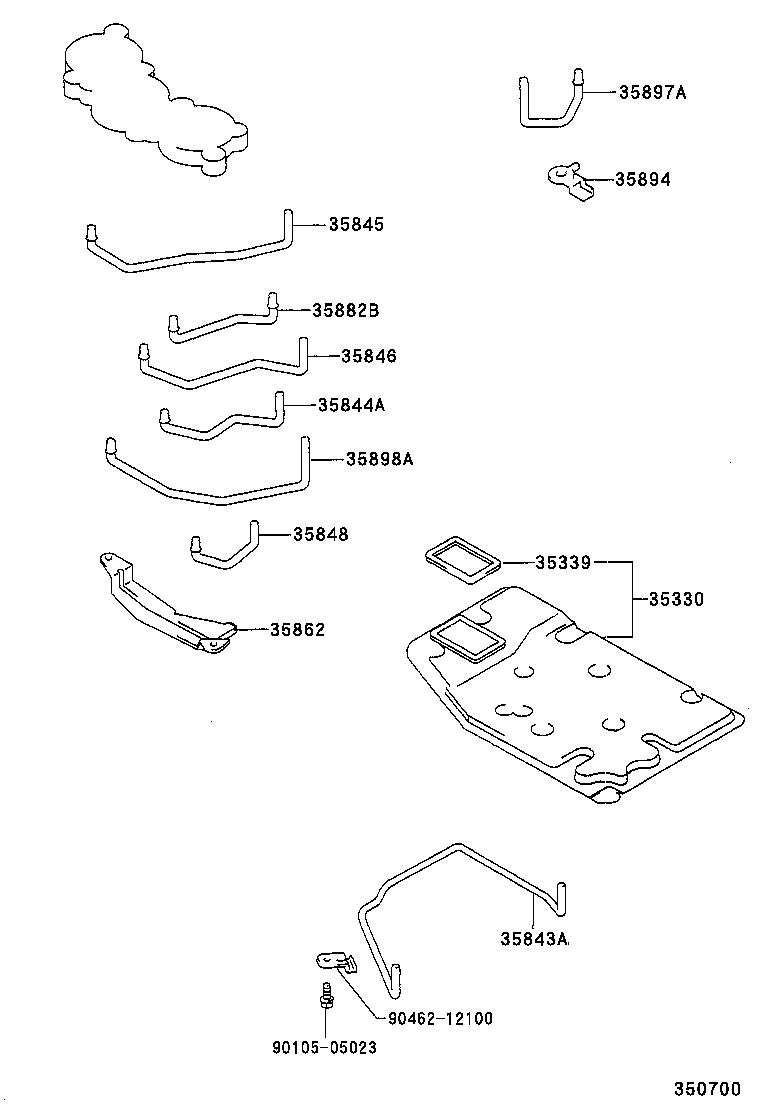

| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-33030 |
MCL10 |
1 | ||
| 35330-32031 |
MCL10 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-32020 |
MCL10 |
1 | ||
| 35339-33010 |
MCL10 |
1 | ||
| 35843A - TUBE, TRANSFER LUBRICATION APPLY | ||||
| 35843-33020 |
MCL10 |
1 | ||
| 35843-33010 |
MCL10 |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-33020 |
MCL10 |
1 | ||
| 35844-32030 |
MCL10 |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-32020 |
MCL10 |
1 | ||
| 35845-33010 |
MCL10 |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-33010 |
MCL10 |
1 | ||
| 35846-32030 |
MCL10 |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-33010 |
MCL10 |
1 | ||
| 35848-32020 |
MCL10 |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-33020 |
MCL10 |
1 | ||
| 35862-32020 |
MCL10 |
1 | ||
| 35882B - TUBE, REAR SERVO APPLY | ||||
| 35882-32010 |
MCL10 |
1 | ||
| 35882-33010 |
MCL10 |
1 | ||
| 35894 - SUPPORT, ACCUMULATOR TUBE | ||||
| 35894-33010 |
MCL10 |
1 | ||
| 35894-32010 |
MCL10 |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-32010 |
MCL10 |
1 | ||
| 35897-33010 |
MCL10 |
1 | ||
| 35898A - TUBE, ACCUMULATOR BACK PRESSURE, NO.2 | ||||
| 35898-32010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90462-12100 | ||||

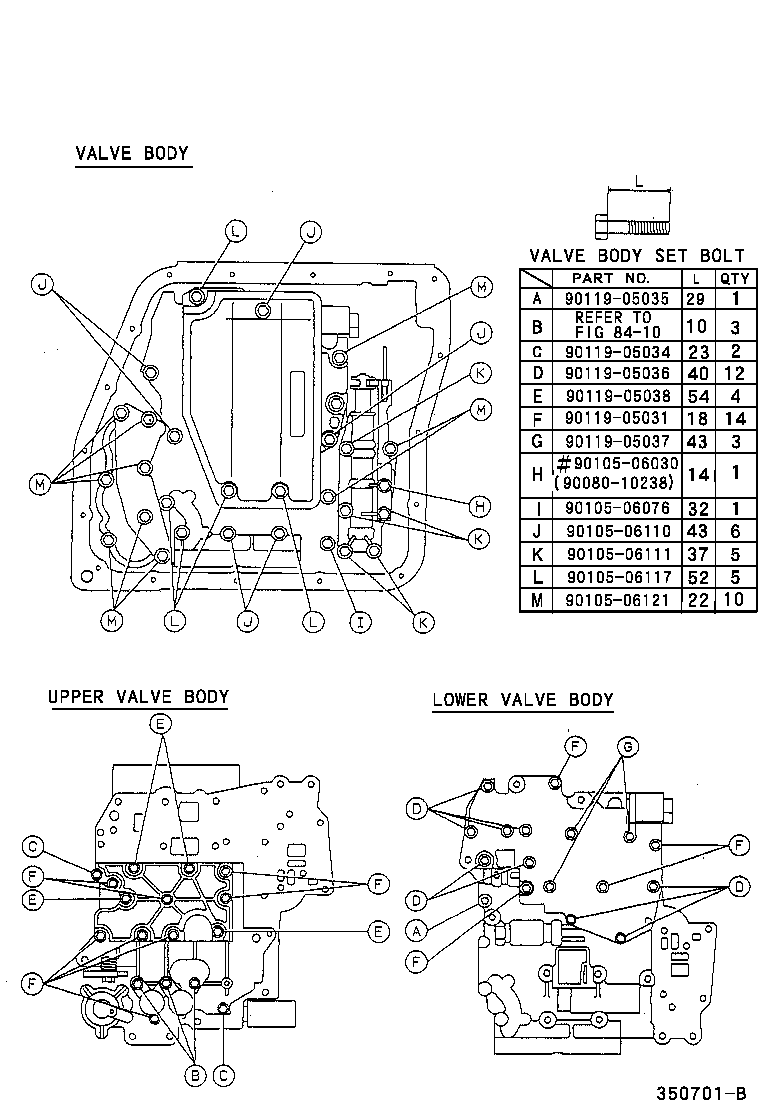

ILLUST NO. 5 OF 5(9708-0008)
Click highlighted areas on diagram
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-10238 | ||||
| 90105-06030 | ||||
| 90105-06076 | ||||
| 90105-06110 | ||||
| 90105-06111 | ||||
| 90105-06117 | ||||
| 90105-06121 | ||||
| 90119-05031 | ||||
| 90119-05034 | ||||
| 90119-05035 | ||||
| 90119-05036 | ||||
| 90119-05037 | ||||
| 90119-05038 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 1 OF 5(0008- )
Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-40030 |
MCL10 |
2 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-32030 |
MCL10 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-45010 |
MCL10 |
1 | ||
| 35410-45020 |
MCL10 |
1 | ||
| 35412A - BODY, MANUAL VALVE | ||||
| 35412-32020 |
MCL10 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-32010 |
MCL10 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-33030 |
MCL10 |
1 | ||
| 35403-33010 |
MCL10 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21006 |
MCL10 UPPER |
1 | ||
| 90301-30005 |
MCL10 LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-21006 |
MCL10 UPPER |
1 | ||
| 90301-30005 |
MCL10 LOWER |
1 | ||
| 35423D - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-23139 |
MCL10 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-32021 |
MCL10 |
1 | ||
| 35424-33010 |
MCL10 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-28018 |
MCL10 |
1 | ||
| 90501-27024 |
MCL10 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-36006 |
MCL10 LOWER |
1 | ||
| 90301-30005 |
MCL10 UPPER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-36006 |
MCL10 LOWER |
1 | ||
| 90301-30005 |
MCL10 UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-33021 |
MCL10 |
1 | ||
| 35405-32010 |
MCL10 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-21035 |
MCL10 |
1 | ||
| 90501-20153 |
MCL10 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 UPPER |
1 | ||
| 90301-26010 |
MCL10 UPPER |
1 | ||
| 90301-34007 |
MCL10 LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 UPPER |
1 | ||
| 90301-26010 |
MCL10 UPPER |
1 | ||
| 90301-34007 |
MCL10 LOWER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-32020 |
MCL10 |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-30005 |
MCL10 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-26036 |
MCL10 INNER |
1 | ||
| 90501-29019 |
MCL10 OUTER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-26036 |
MCL10 INNER |
1 | ||
| 90501-29019 |
MCL10 OUTER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-33070 |
MCL10 |
1 | ||
| 35432-45020 |
MCL10 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-42010 |
MCL10 |
1 | ||
| 35433-33011 |
MCL10 |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-33012 |
MCL10 |
1 | ||
| 35434-42010 |
MCL10 |
1 | ||
| 35437A - PLATE, UPPER VALVE BODY COVER | ||||
| 35437-33030 |
MCL10 |
1 | ||
| 35437-32021 |
MCL10 |
1 | ||
| 35469D - SPACER (FOR C-0 ACCUMULATOR PISTON) | ||||
| 35469-32020 |
MCL10 |
1 | ||
| 35469-33010 |
MCL10 |
1 | ||
| 35469E - RING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER) | ||||
| 96151-03700 |
MCL10 |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-32060 |
MCL10 |
1 | ||
| 35472-33020 |
MCL10 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-33011 |
MCL10 |
1 | ||
| 35474-32030 |
MCL10 |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35488-33010 |
MCL10 LOWER |
1 | ||
| 35477-32044 |
MCL10 |
2 | ||
| 35477-33021 |
MCL10 UPPER |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35488-33010 |
MCL10 LOWER |
1 | ||
| 35477-32044 |
MCL10 |
2 | ||
| 35477-33021 |
MCL10 UPPER |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32020 |
MCL10 |
1 | ||
| 35478-33010 |
MCL10 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-32020 |
MCL10 |
1 | ||
ILLUST NO. 2 OF 5(0008- )
Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-33010 |
MCL10 |
1 | ||
| 35212-32010 |
MCL10 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07023 |
MCL10 |
1 | ||
| 90501-08149 |
MCL10 |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-33010 |
MCL10 |
1 | ||
| 35213-32010 |
MCL10 |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04101 |
MCL10 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-32010 |
MCL10 |
1 | ||
| 35215-33011 |
MCL10 |
1 | ||
| 35218 - PLUG, LOCK UP RELAY VALVE | ||||
| 35218-32010 |
MCL10 |
1 | ||
| 35218-33020 |
MCL10 |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90250-03083 |
MCL10 |
1 | ||
| 90282-03011 |
MCL10 |
1 | ||
| 35227 - CYLINDER, B-0 ACCUMULATOR | ||||
| 35227-32011 |
MCL10 |
1 | ||
| 35227-33010 |
MCL10 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-33010 |
MCL10 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-33010 |
MCL10 |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-33020 |
MCL10 |
1 | ||
| 35422-32020 |
MCL10 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35401-33020 |
MCL10 |
1 | ||
| 35401-32012 |
MCL10 |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-17026 |
MCL10 |
1 | ||
| 90501-16148 |
MCL10 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 LOWER |
1 | ||
| 90301-20002 |
MCL10 UPPER |
1 | ||
| 90301-17010 |
MCL10 UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-25002 |
MCL10 LOWER |
1 | ||
| 90301-20002 |
MCL10 UPPER |
1 | ||
| 90301-17010 |
MCL10 UPPER |
1 | ||
| 35438J - SEAT, THROTTLE VALVE SPRING | ||||
| 35438-33030 |
MCL10 |
1 | ||
| 35439B - SCREW, THROTTLE VALVE | ||||
| 35439-33010 |
MCL10 |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-33020 |
MCL10 |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08154 |
MCL10 |
1 | ||
| 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90282-03007 |
MCL10 |
1 | ||
| 90282-03002 |
MCL10 |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04028 |
MCL10 |
1 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
MCL10 |
1 | ||
| 35451-33010 |
MCL10 |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03086 |
MCL10 |
1 | ||
| 90250-03036 |
MCL10 |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
MCL10 |
1 | ||
| 35408-33010 |
MCL10 |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10190 |
MCL10 |
1 | ||
| 90501-10185 |
MCL10 |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-32010 |
MCL10 |
1 | ||
| 35462-33010 |
MCL10 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-08148 |
MCL10 |
1 | ||
| 90501-07022 |
MCL10 |
1 | ||
| 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) | ||||
| 90282-03001 |
MCL10 |
1 | ||
| 35467C - PLUNGER, ORIFICE CONTROL VALVE | ||||
| 35467-33010 |
MCL10 |
1 | ||
| 35468K - PLUG (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90339-04022 |
MCL10 |
1 | ||
| 90339-04068 |
MCL10 |
1 | ||
| 35468L - SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08100 |
MCL10 |
1 | ||
| 35468M - VALVE, B-1 ORIFICE CONTROL | ||||
| 35468-32020 |
MCL10 |
1 | ||
| 35468-33030 |
MCL10 |
1 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCL10 |
9 | ||
| 35495-22020 |
MCL10 |
8 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCL10 |
9 | ||
| 35495-22020 |
MCL10 |
8 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-33020 |
MCL10 |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90949-03008 |
MCL10 |
1 | ||
| 90949-03069 |
MCL10 |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
MCL10 |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90101-06037 |
MCL10 |
1 | ||
| 90101-06026 |
MCL10 |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
MCL10 |
1 | ||
| 35522-33010 |
MCL10 |
1 | ||
| Common parts | ||||
| 94542-00600 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 3 OF 5(0008- )
Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90282-03001 |
MCL10 |
1 | ||
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-33010 |
MCL10 |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-33010 |
MCL10 |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03007 |
MCL10 |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-04003 |
MCL10 |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-10192 |
MCL10 |
1 | ||
| 35228 - VALVE, 2ND MODULATOR | ||||
| 35228-32010 |
MCL10 |
1 | ||
| 35228A - KEY, STRAIGHT (FOR 2ND MODULATOR VALVE) | ||||
| 90282-03018 |
MCL10 |
1 | ||
| 90282-03011 |
MCL10 |
1 | ||
| 35228B - PLUG (FOR 2ND MODULATOR VALVE) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 90339-04047 |
MCL10 |
1 | ||
| 35228C - SPRING, COMPRESSION (FOR 2ND MODULATOR VALVE) | ||||
| 90501-09122 |
MCL10 |
1 | ||
| 90501-09127 |
MCL10 |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-33011 |
MCL10 |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-33010 |
MCL10 |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12154 |
MCL10 |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04028 |
MCL10 |
1 | ||
| 35275C - KEY, STRAIGHT | ||||
| 90282-03007 |
MCL10 |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-32025 |
MCL10 |
1 | ||
| 35415-33010 |
MCL10 |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03017 |
MCL10 |
1 | ||
| 90250-03085 |
MCL10 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-13037 |
MCL10 |
1 | ||
| 90501-16120 |
MCL10 |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 94614-10600 |
MCL10 |
1 | ||
| 90201-06041 |
MCL10 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-32031 |
MCL10 |
1 | ||
| 35416-33020 |
MCL10 |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-32032 |
MCL10 |
1 | ||
| 35417-33021 |
MCL10 |
1 | ||
| 35417C - PLUG(FOR PRIMARY REGULATOR VALVE) | ||||
| 90339-06021 |
MCL10 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
MCL10 |
1 | ||
| 35419-33010 |
MCL10 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
MCL10 |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-10006 |
MCL10 |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-15013 |
MCL10 |
1 | ||
| 35422A - ST0PPER, VALVE VIBRATING | ||||
| 35422-33010 |
MCL10 |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-33030 |
MCL10 |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32023 |
MCL10 |
2 | ||
| 35436-33010 |
MCL10 LOWER |
1 | ||
| 35435-33010 |
MCL10 UPPER |
1 | ||
| 35431A - GASKET, UPPER VALVE BODY COVER | ||||
| 35431-32023 |
MCL10 |
2 | ||
| 35436-33010 |
MCL10 LOWER |
1 | ||
| 35435-33010 |
MCL10 UPPER |
1 | ||
| 35438G - PLATE, VALVE BODY, NO.2 | ||||
| 35438-33020 |
MCL10 |
1 | ||
| 35438-32012 |
MCL10 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
MCL10 |
3 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
MCL10 |
3 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-32020 |
MCL10 |
3 | ||
| 35447 - PLUNGER, ACCUMULATOR CONTROL VALVE | ||||
| 35447-33010 |
MCL10 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32030 |
MCL10 |
1 | ||
| 35456-33010 |
MCL10 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09088 |
MCL10 |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04026 |
MCL10 |
1 | ||
| 90339-05017 |
MCL10 |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03017 |
MCL10 |
1 | ||
| 90282-03028 |
MCL10 |
1 | ||
| 90282-03007 |
MCL10 |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-33011 |
MCL10 |
1 | ||
| 35458-32010 |
MCL10 |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04028 |
MCL10 |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
MCL10 |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| 90282-03017 |
MCL10 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-32030 |
MCL10 |
1 | ||
| 35464-33010 |
MCL10 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09116 |
MCL10 |
1 | ||
| 90501-09083 |
MCL10 |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| 90282-03007 |
MCL10 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 90339-04026 |
MCL10 |
1 | ||
| 35466E - VALVE, 2ND LOCK | ||||
| 35466-33010 |
MCL10 |
1 | ||
| 35466-32010 |
MCL10 |
1 | ||
| 35466F - SPRING, COMPRESSION (FOR 2ND LOCK VALVE) | ||||
| 90501-07106 |
MCL10 |
1 | ||
| 90501-06047 |
MCL10 |
1 | ||
| 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) | ||||
| 90282-03002 |
MCL10 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-32031 |
MCL10 |
1 | ||
| 35468-33040 |
MCL10 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14115 |
MCL10 |
1 | ||
| 90501-14144 |
MCL10 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03014 |
MCL10 |
1 | ||
| 90282-03003 |
MCL10 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04047 |
MCL10 |
1 | ||
| 90339-04025 |
MCL10 |
1 | ||
| 35471A - COVER, UPPER VALVE BODY | ||||
| 35471-33011 |
MCL10 |
1 | ||
| 35471-32020 |
MCL10 |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-33010 |
MCL10 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-45020 |
MCL10 |
1 | ||
| 35491-33010 |
MCL10 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-10172 |
MCL10 |
1 | ||
| 90501-10228 |
MCL10 |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-33011 |
MCL10 |
1 | ||
| 35492F - KEY, STRAIGHT (FOR COVER DRIVE EXHAUST VALVE) | ||||
| 90282-03007 |
MCL10 |
1 | ||
| 35495C - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
MCL10 |
9 | ||
| 35495-22020 |
MCL10 |
8 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-33010 |
MCL10 |
1 | ||
| 35497-32030 |
MCL10 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09083 |
MCL10 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04025 |
MCL10 |
1 | ||
| 90339-04026 |
MCL10 |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03011 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11494 | ||||
| 90119-05027 | ||||

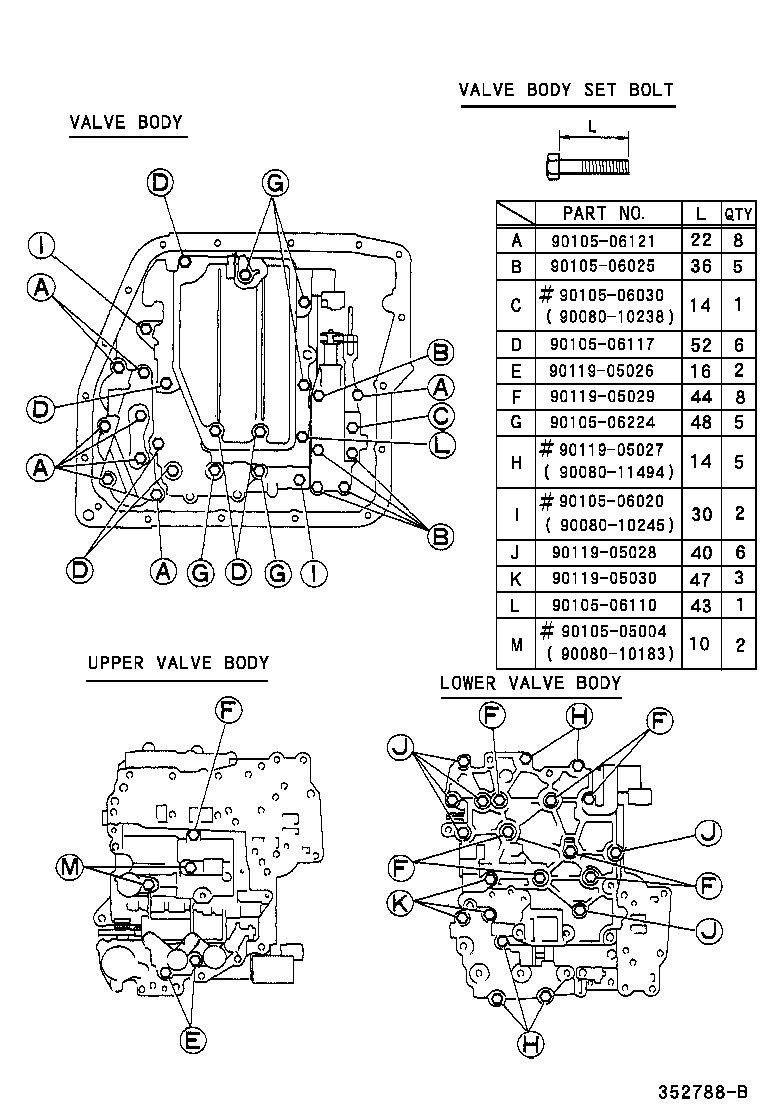

ILLUST NO. 4 OF 5(0008- )
Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-33030 |
MCL10 |
1 | ||
| 35330-32031 |
MCL10 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-32020 |
MCL10 |
1 | ||
| 35339-33010 |
MCL10 |
1 | ||
| 35843A - TUBE, TRANSFER LUBRICATION APPLY | ||||
| 35843-33020 |
MCL10 |
1 | ||
| 35843-33010 |
MCL10 |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-33020 |
MCL10 |
1 | ||
| 35844-32030 |
MCL10 |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-32020 |
MCL10 |
1 | ||
| 35845-33010 |
MCL10 |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-33010 |
MCL10 |
1 | ||
| 35846-32030 |
MCL10 |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-33010 |
MCL10 |
1 | ||
| 35848-32020 |
MCL10 |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-33020 |
MCL10 |
1 | ||
| 35862-32020 |
MCL10 |
1 | ||
| 35882B - TUBE, REAR SERVO APPLY | ||||
| 35882-32010 |
MCL10 |
1 | ||
| 35882-33010 |
MCL10 |
1 | ||
| 35894 - SUPPORT, ACCUMULATOR TUBE | ||||
| 35894-33010 |
MCL10 |
1 | ||
| 35894-32010 |
MCL10 |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-32010 |
MCL10 |
1 | ||
| 35897-33010 |
MCL10 |
1 | ||

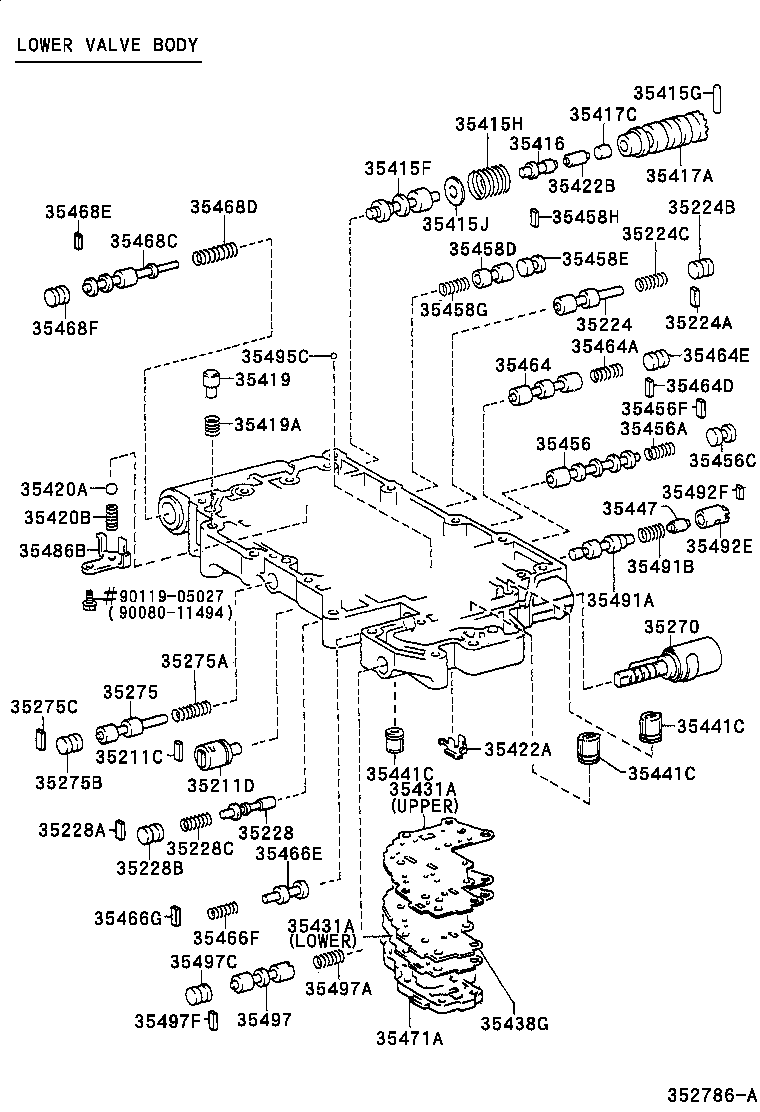

ILLUST NO. 5 OF 5(0008- )
Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-10183 | ||||
| 90080-10238 | ||||
| 90080-10245 | ||||
| 90080-11494 | ||||
| 90105-05004 | ||||
| 90105-06020 | ||||
| 90105-06025 | ||||
| 90105-06030 | ||||
| 90105-06110 | ||||
| 90105-06117 | ||||
| 90105-06121 | ||||
| 90105-06224 | ||||
| 90119-05026 | ||||
| 90119-05027 | ||||
| 90119-05028 | ||||
| 90119-05029 | ||||
| 90119-05030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
