MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0008)

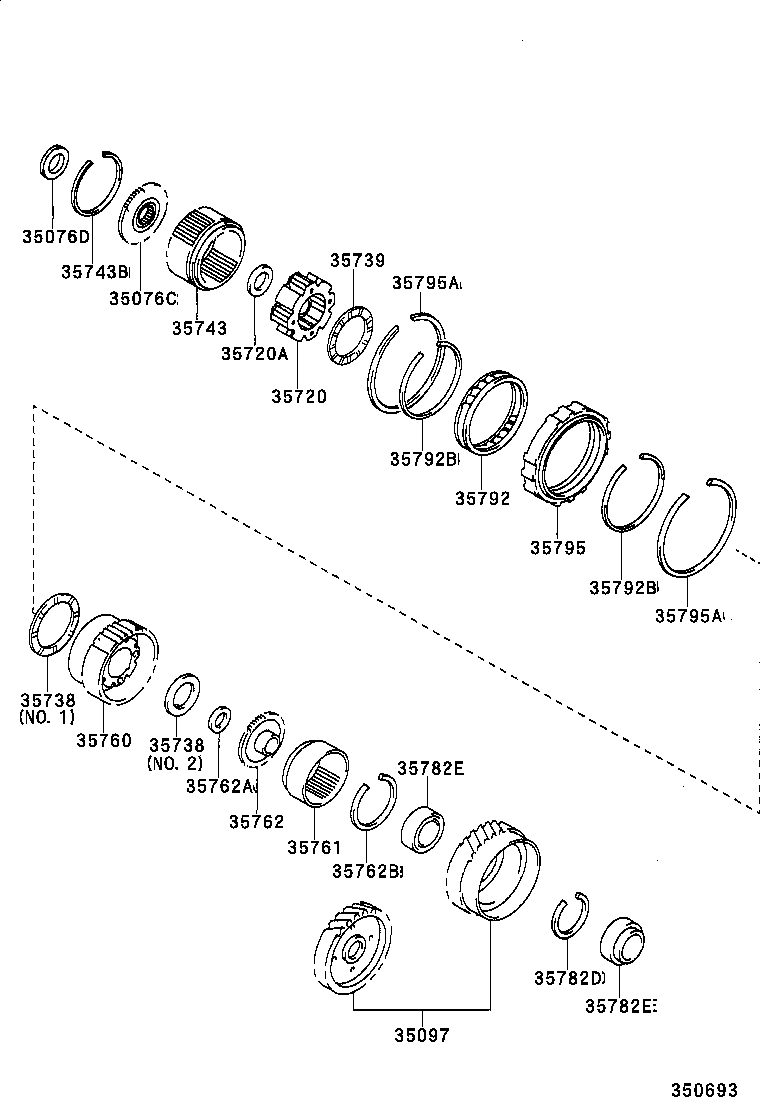

Click highlighted areas on diagram
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-32020 |
MCL10 |
1 | ||
| 35076-33011 |
MCL10 |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-31003 |
MCL10 |
1 | ||
| 90374-31001 |
MCL10 |
1 | ||
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-33010 |
MCL10 |
1 | ||
| 35097-32020 |
MCL10 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-32020 |
MCL10 |
1 | ||
| 35720-33010 |
MCL10 |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-30015 |
MCL10 |
1 | ||
| 90374-30014 |
MCL10 |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-32020 |
MCL10 NO.1 |
1 | ||
| 35738-33010 |
MCL10 NO.2 |
1 | ||
| 35738-33020 |
MCL10 |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-32020 |
MCL10 NO.1 |
1 | ||
| 35738-33010 |
MCL10 NO.2 |
1 | ||
| 35738-33020 |
MCL10 |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-32020 |
MCL10 |
1 | ||
| 35739-33010 |
MCL10 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-33020 |
MCL10 |
1 | ||
| 35743-33010 |
MCL10 |
1 | ||
| 35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90521-99014 |
MCL10 |
1 | ||
| 90520-90002 |
MCL10 |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-33020 |
MCL10 |
1 | ||
| 35760-33010 |
MCL10 |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-32020 |
MCL10 |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-32021 |
MCL10 |
1 | ||
| 35762-33010 |
MCL10 |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-22002 |
MCL10 |
1 | ||
| 90374-22006 |
MCL10 |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90521-90001 |
MCL10 |
1 | ||
| 90520-82002 |
MCL10 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90521-67001 |
MCL10 |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-40077 |
MCL10 |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-40077 |
MCL10 |
2 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-20020 |
MCL10 |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
MCL10 |
2 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
MCL10 |
2 | ||
| 35795 - RACE, 1 WAY CLUTCH OUTER | ||||
| 35795-32010 |
MCL10 |
1 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
MCL10 |
2 | ||
| 90520-99017 |
MCL10 |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
MCL10 |
2 | ||
| 90520-99017 |
MCL10 |
2 | ||
(0008- )

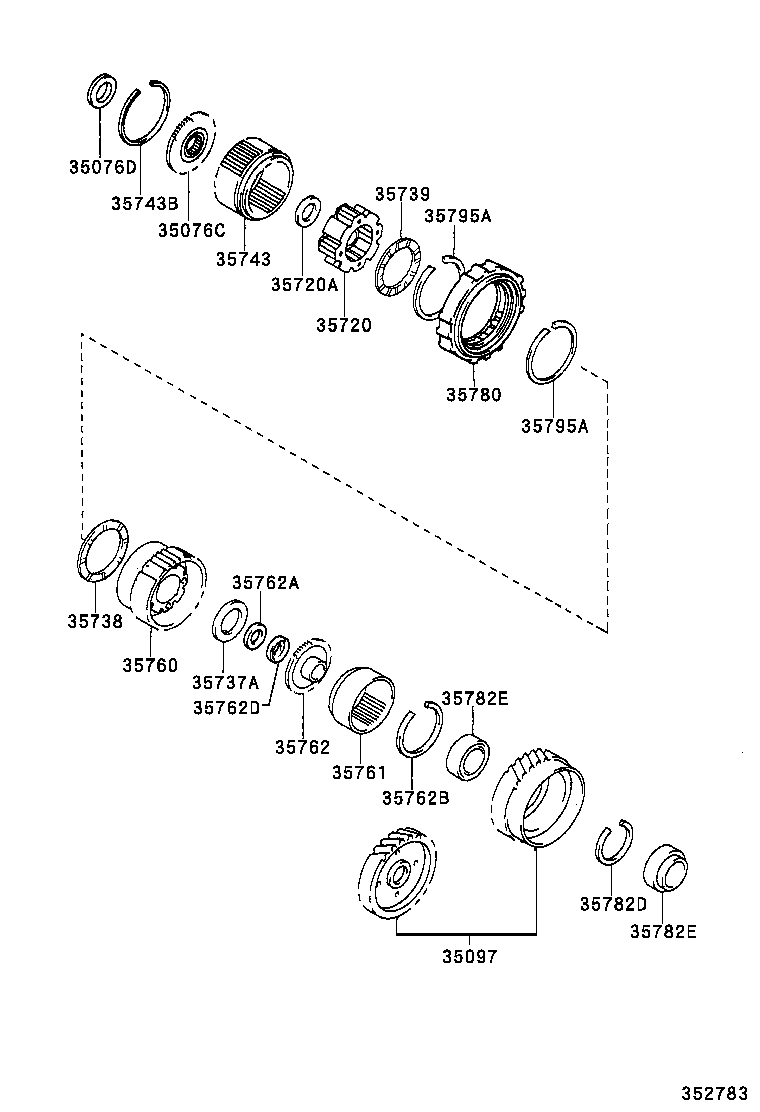

Click highlighted areas on diagram
A541E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-32020 |
MCL10 |
1 | ||
| 35076-33011 |
MCL10 |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-31003 |
MCL10 |
1 | ||
| 90374-31001 |
MCL10 |
1 | ||
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-33010 |
MCL10 |
1 | ||
| 35097-32020 |
MCL10 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-32020 |
MCL10 |
1 | ||
| 35720-33010 |
MCL10 |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-30015 |
MCL10 |
1 | ||
| 90374-30014 |
MCL10 |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35738-33010 |
MCL10 |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-32020 |
MCL10 NO.1 |
1 | ||
| 35738-33010 |
MCL10 NO.2 |
1 | ||
| 35738-33020 |
MCL10 |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-32020 |
MCL10 |
1 | ||
| 35739-33010 |
MCL10 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-33020 |
MCL10 |
1 | ||
| 35743-33010 |
MCL10 |
1 | ||
| 35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90521-99014 |
MCL10 |
1 | ||
| 90520-90002 |
MCL10 |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-33020 |
MCL10 |
1 | ||
| 35760-33010 |
MCL10 |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-32020 |
MCL10 |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-32021 |
MCL10 |
1 | ||
| 35762-33010 |
MCL10 |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-22002 |
MCL10 |
1 | ||
| 90374-22006 |
MCL10 |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90521-90001 |
MCL10 |
1 | ||
| 90520-82002 |
MCL10 |
1 | ||
| 35762D - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-33020 |
MCL10 |
1 | ||
| 35780 - CLUTCH ASSY, 1 WAY NO.2 | ||||
| 35780-33010 |
MCL10 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90521-67001 |
MCL10 |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-40077 |
MCL10 |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-40077 |
MCL10 |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
MCL10 |
2 | ||
| 90520-99017 |
MCL10 |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
MCL10 |
2 | ||
| 90520-99017 |
MCL10 |
2 | ||
