MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0008)

Click highlighted areas on diagram

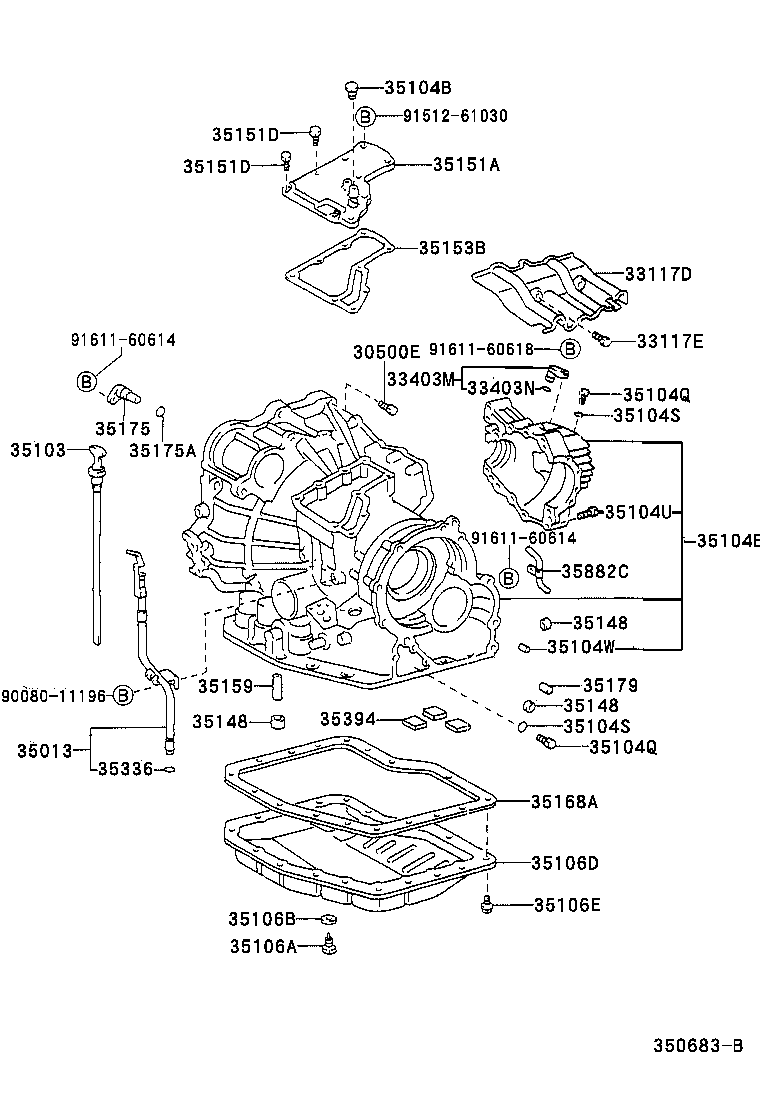

A540E

diagram 30500E 33117D 33117E 33403M 33403N 35013 35103 35104B 35104E 35104Q 35104Q 35104S 35104S 35104U 35104W 35106A 35106B 35106D 35106E 35148 35148 35148 35151A 35151D 35151D 35153B 35159 35168A 35175 35175A 35179 35336 35394 35882C 9008011196 9151261030 9161160614 9161160614 9161160618
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

MCL10

*12-1.25PX55-30

 4
90119-12168

MCL10

*12-1.25PX55-30,(J)

 4
91619-61265

MCL10

*12-1.25PX65-30

 1
90080-11310

MCL10

*12-1.25PX55-30,(L)

 4
92412-H1055

MCL10

*10-1.25PX55-30

 1
90080-11424

MCL10

*12-1.25PX65-30,(L)

 1
91619-61265

MCL10

*12-1.25PX65-30,(J)

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-07010

MCL10

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

MCL10

(J)

 2
90080-10083

MCL10

(L)

 2
90105-08040

MCL10

 2
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-20250

MCL10

 1
33403-20230

MCL10

 1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
90301-11008

MCL10

 1
96711-24018

MCL10

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-07010

MCL10

 1
35013-06040

MCL10

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-08010

MCL10

 1
35103-07020

MCL10

 1
35103-08020

MCL10

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03001

MCL10

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-45010

MCL10

 1
35104-33903

MCL10

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

MCL10

 3
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

MCL10

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

MCL10

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

MCL10

 3
35104U - BOLT (FOR TRANSAXLE CASE)
90105-10224

MCL10

*10-1.25PX100-30

 2
90105-10222

MCL10

*10-1.25PX65-30

 6
90105-10223

MCL10

*10-1.25PX75-30

 2
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10232

MCL10

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

MCL10

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

MCL10

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-33020

MCL10

 1
35106-32041

MCL10

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

MCL10

 17
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

MCL10

 4
35148-16010

MCL10

 2
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

MCL10

 4
35148-16010

MCL10

 2
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

MCL10

 4
35148-16010

MCL10

 2
35151A - COVER, TRANSAXLE CASE, UPPER
35151-45010

MCL10

 1
35151-33022

MCL10

 1
35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER)
90109-08235

MCL10

*10-1.25PX30-22

 1
90105-06113

MCL10

*6-1.00PX20-18

 8
90105-08174

MCL10

*8-1.25PX28-18

 1
90105-06113

MCL10

*6-1.00PX20-18

 7
35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER)
90109-08235

MCL10

*10-1.25PX30-22

 1
90105-06113

MCL10

*6-1.00PX20-18

 8
90105-08174

MCL10

*8-1.25PX28-18

 1
90105-06113

MCL10

*6-1.00PX20-18

 7
35153B - GASKET, TRANSAXLE CASE UPPER COVER
35153-33020

MCL10

 1
35153-32010

MCL10

 1
35159 - GASKET, BRAKE DRUM
35159-32011

MCL10

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-33031

MCL10

 1
35168-33020

MCL10

 1
35168-33030

MCL10

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

MCL10

 1
35175-33010

MCL10

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-16006

MCL10

 1
90301-21002

MCL10

 1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010

MCL10

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

MCL10

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

MCL10

 3
35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-33020

MCL10

 1
Common parts
90080-11196
91512-61030
91611-60614
91611-60618

(0008- )

Click highlighted areas on diagram

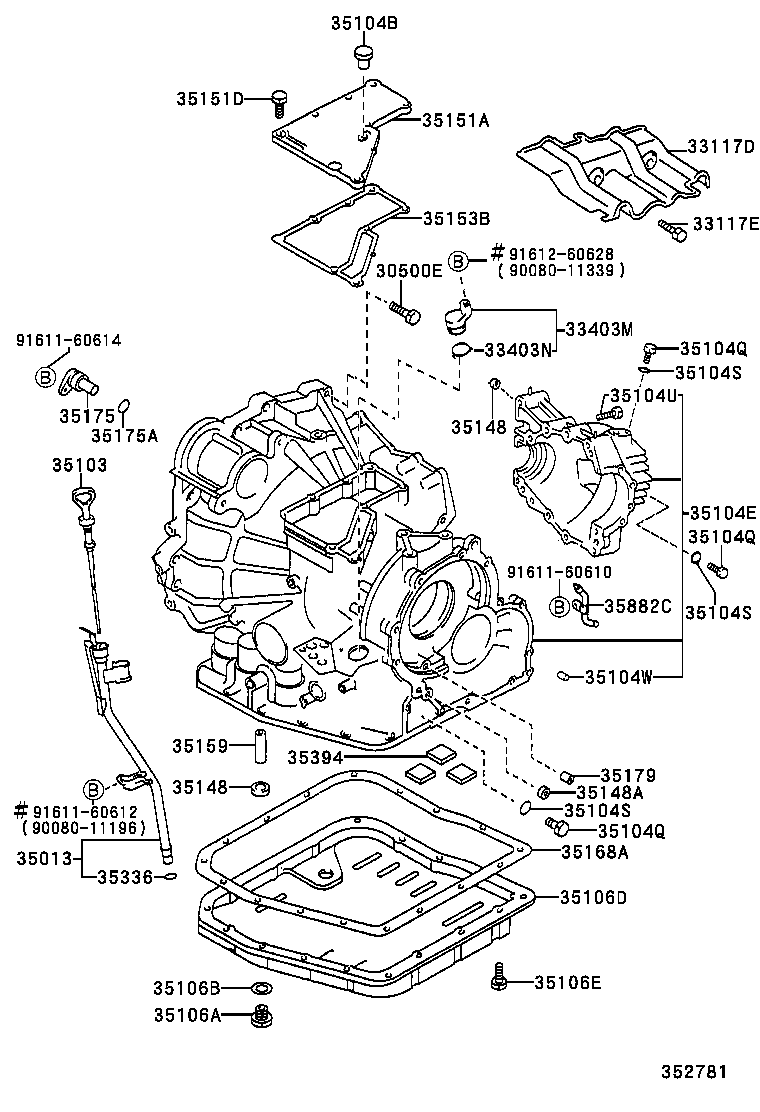

A541E

diagram 30500E 33117D 33117E 33403M 33403N 35013 35103 35104B 35104E 35104Q 35104Q 35104Q 35104S 35104S 35104S 35104U 35104W 35106A 35106B 35106D 35106E 35148 35148 35148A 35151A 35151D 35153B 35159 35168A 35175 35175A 35179 35336 35394 35882C 9008011196 9008011339 9161160610 9161160612 9161160614 9161260628
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

MCL10

*12-1.25PX55-30

 4
90119-12168

MCL10

*12-1.25PX55-30,(J)

 4
91619-61265

MCL10

*12-1.25PX65-30

 1
90080-11310

MCL10

*12-1.25PX55-30,(L)

 4
92412-H1055

MCL10

*10-1.25PX55-30

 1
90080-11424

MCL10

*12-1.25PX65-30,(L)

 1
91619-61265

MCL10

*12-1.25PX65-30,(J)

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-07010

MCL10

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

MCL10

(J)

 2
90080-10083

MCL10

(L)

 2
90105-08040

MCL10

 2
33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403-20250

MCL10

 1
33403-20230

MCL10

 1
33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
90301-11008

MCL10

 1
96711-24018

MCL10

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-07010

MCL10

 1
35013-06040

MCL10

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-08010

MCL10

 1
35103-07020

MCL10

 1
35103-08020

MCL10

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03001

MCL10

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-45010

MCL10

 1
35104-33903

MCL10

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

MCL10

 3
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

MCL10

 3
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

MCL10

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

MCL10

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

MCL10

 3
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

MCL10

 3
35104U - BOLT (FOR TRANSAXLE CASE)
90105-10224

MCL10

*10-1.25PX100-30

 2
90105-10222

MCL10

*10-1.25PX65-30

 6
90105-10223

MCL10

*10-1.25PX75-30

 2
35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE)
90250-10232

MCL10

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

MCL10

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

MCL10

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-33020

MCL10

 1
35106-32041

MCL10

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

MCL10

 17
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

MCL10

 4
35148-16010

MCL10

 2
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

MCL10

 4
35148-16010

MCL10

 2
35148A - GASKET, GOVERNOR APPLY, NO.2
35148-16010

MCL10

 1
35151A - COVER, TRANSAXLE CASE, UPPER
35151-45010

MCL10

 1
35151-33022

MCL10

 1
35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER)
90109-08235

MCL10

*10-1.25PX30-22

 1
90105-06113

MCL10

*6-1.00PX20-18

 8
90105-08174

MCL10

*8-1.25PX28-18

 1
90105-06113

MCL10

*6-1.00PX20-18

 7
35153B - GASKET, TRANSAXLE CASE UPPER COVER
35153-33020

MCL10

 1
35153-32010

MCL10

 1
35159 - GASKET, BRAKE DRUM
35159-32011

MCL10

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-33031

MCL10

 1
35168-33020

MCL10

 1
35168-33030

MCL10

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

MCL10

 1
35175-33010

MCL10

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-16006

MCL10

 1
90301-21002

MCL10

 1
35179 - GASKET, OVERDRIVE BRAKE
35179-32010

MCL10

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

MCL10

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

MCL10

 3
35882C - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-33020

MCL10

 1
Common parts
90080-11196
90080-11339
91611-60610
91611-60612
91611-60614
