MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

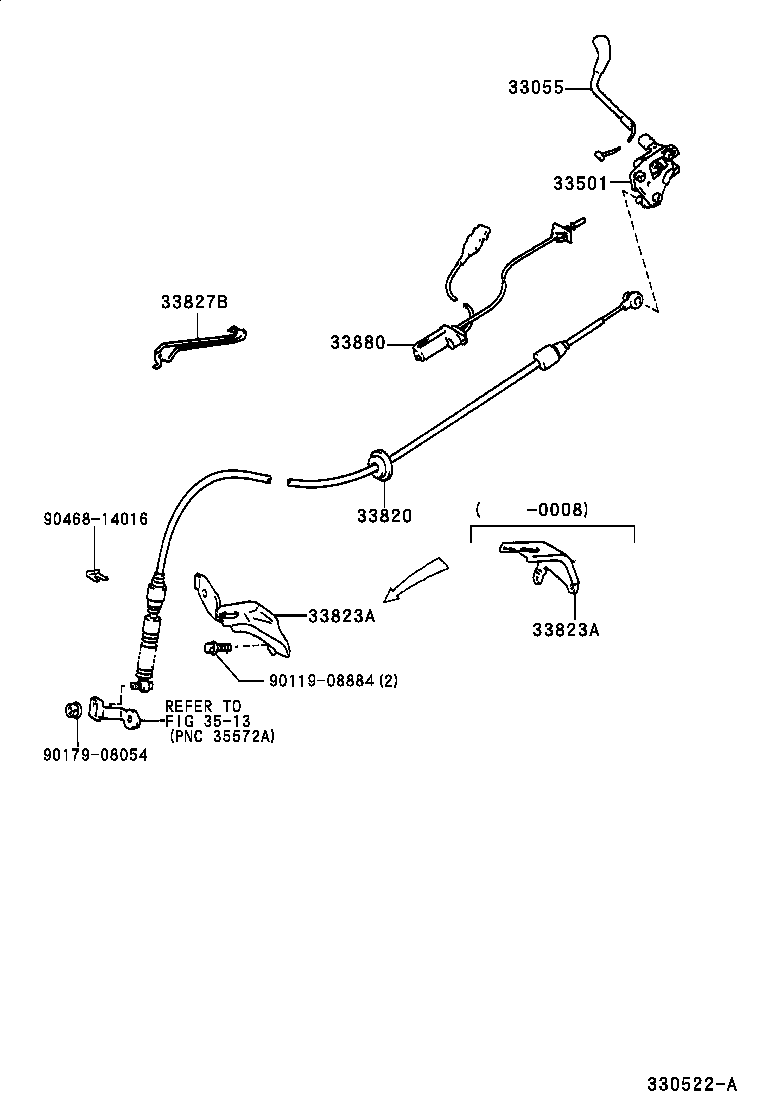

Click highlighted areas on diagram

diagram 33055 33501 33820 33823A 33823A 33827B 33880 3513 9011908884 9017908054 9046814016
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-08011

MCL10

 1
33055-08010

MCL10

 1
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-08010

MCL10

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-08010

MCL10

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-45010

MCL10

 1
33823-33030

MCL10

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-45010

MCL10

 1
33823-33030

MCL10

 1
33827B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-08010

MCL10

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-08010

MCL10

 1
Common parts
90119-08884
90179-08054
90468-14016
Linked diagrams
3513
