MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

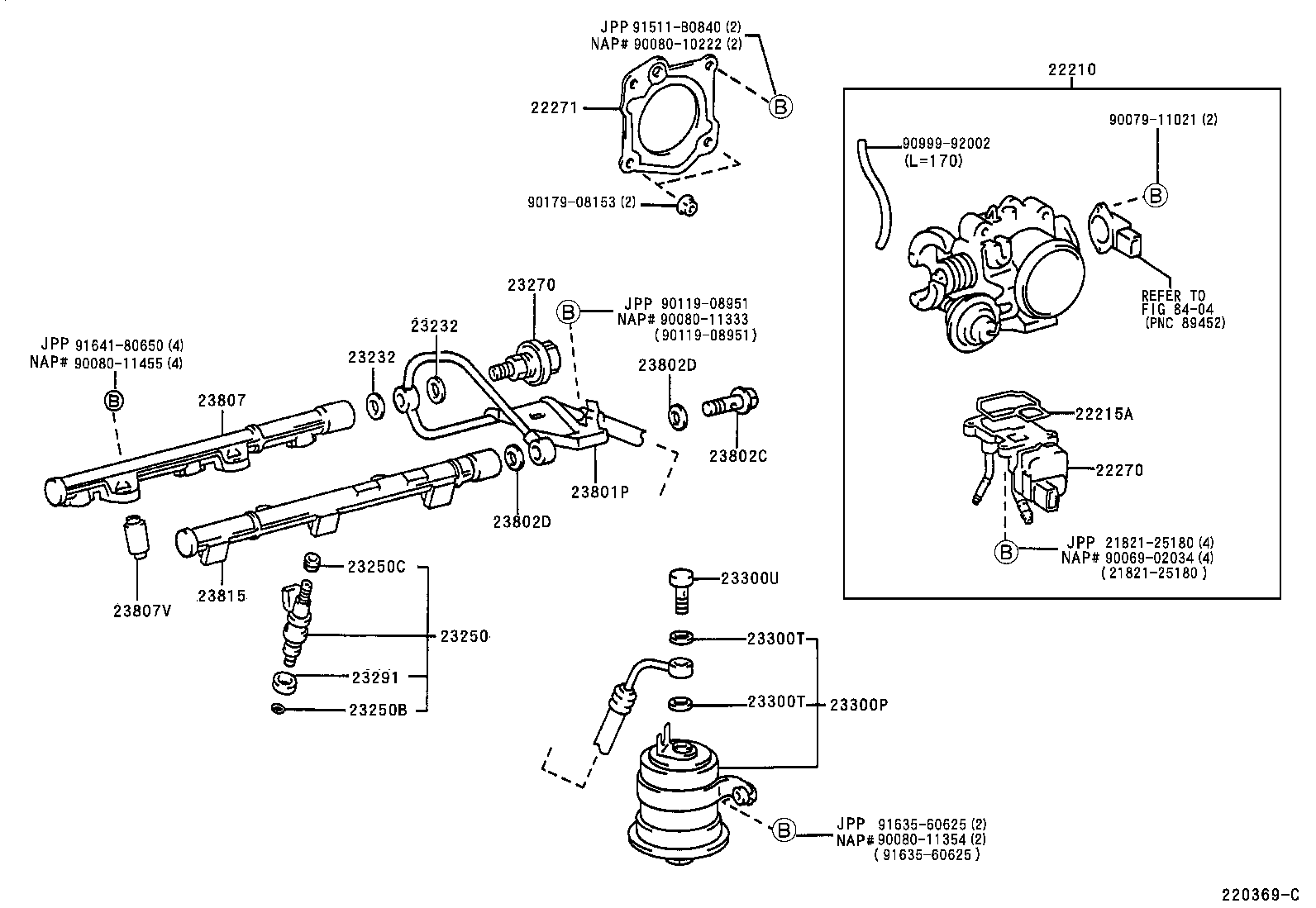

ILLUST NO. 1 OF 2(9708-0008)

Click highlighted areas on diagram

diagram 2182125180 2182125180 22210 22215A 22270 22271 23232 23232 23250 23250B 23250C 23270 23291 23300P 23300T 23300T 23300U 23801P 23802C 23802D 23802D 23807 23807V 23815 8404 9006902034 9007911021 9008010222 9008011333 9008011354 9008011455 9011908951 9011908951 9017908153 9099992002 91511B0840 9163560625 9163560625 9164180650
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-0A080

1MZFE..MCL10

 1
22210-0A140

1MZFE..MCL10

 1
22215A - GASKET, IDLE SPEED CONTROL VALVE
22215-0A010

1MZFE..MCL10

(L)

 1
22215-20010

1MZFE..MCL10

(J)

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-20060

1MZFE..MCL10

(J)

 1
22270-0A040

1MZFE..MCL10

(L)

 1
22270-0A060

1MZFE..MCL10

(L)

 1
22270-20040

1MZFE..MCL10

(J)

 1
22271 - GASKET, THROTTLE BODY
22271-0A020

1MZFE..MCL10

 1
22271-0A010

1MZFE..MCL10

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCL10

 2
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCL10

 2
23250 - INJECTOR ASSY, FUEL
23209-0A010

1MZFE..MCL10..USA

CALIFORNIA SPEC,(L)

 6
23209-0A010

1MZFE..MCL10

(L)

 6
23209-20010

1MZFE..MCL10

 6
23209-20020

1MZFE..MCL10..USA

CALIFORNIA SPEC,(J)

 6
23209-20020

1MZFE..MCL10

(J)

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1MZFE..MCL10

 12
90301-07024

1MZFE..MCL10..USA

CALIFORNIA SPEC

 12
90301-07024

1MZFE..MCL10

 12
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1MZFE..MCL10

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-62010

1MZFE..MCL10

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-20010

1MZFE..MCL10

 6
23291-62010

1MZFE..MCL10

 6
23291-20010

1MZFE..MCL10..USA

CALIFORNIA SPEC

 6
23300P - FILTER, FUEL(FOR EFI)
23300-29065

1MZFE..MCL10

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1MZFE..MCL10

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1MZFE..MCL10

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12029

1MZFE..MCL10

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-20110

1MZFE..MCL10

 1
23801-20051

1MZFE..MCL10

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12015

1MZFE..MCL10

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCL10

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCL10

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-20020

1MZFE..MCL10

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

1MZFE..MCL10

 4
23815 - PIPE, FUEL DELIVERY, NO.2
23815-20020

1MZFE..MCL10

 1
Common parts
21821-25180
90069-02034
90079-11021
90080-10222
90080-11333
90080-11354
90080-11455
90119-08951
90179-08153
90999-92002
91511-B0840
91635-60625
91641-80650
Linked diagrams
8404

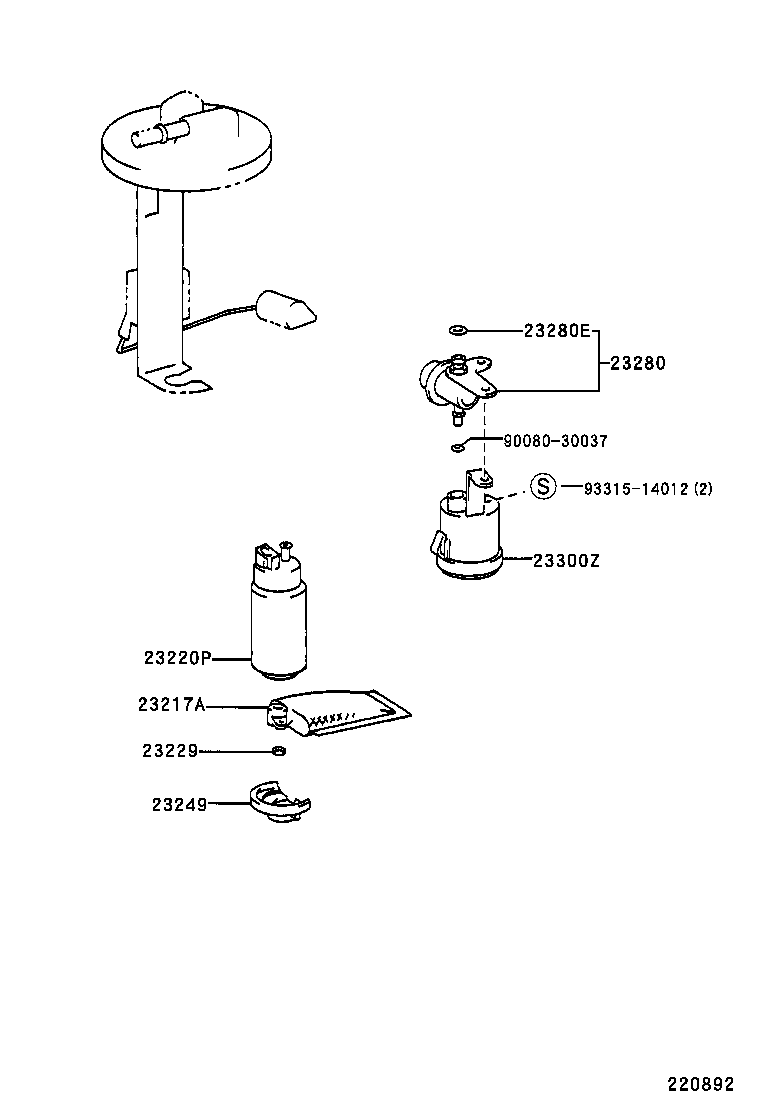

ILLUST NO. 2 OF 2(9708-0008)

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23249 23280 23280E 23300Z 9008030037 9331514012
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-03030

1MZFE..MCL10

 1
23220P - PUMP ASSY, FUEL
23221-03040

1MZFE..MCL10

 1
23221-0A020

1MZFE..MCL10

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23219-03010

1MZFE..MCL10

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23218-0C010

1MZFE..MCL10

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010

1MZFE..MCL10

 1
23280-74170

1MZFE..MCL10

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020

1MZFE..MCL10

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-74280

1MZFE..MCL10

 1
23300-0D010

1MZFE..MCL10

 1
Common parts
90080-30037
93315-14012

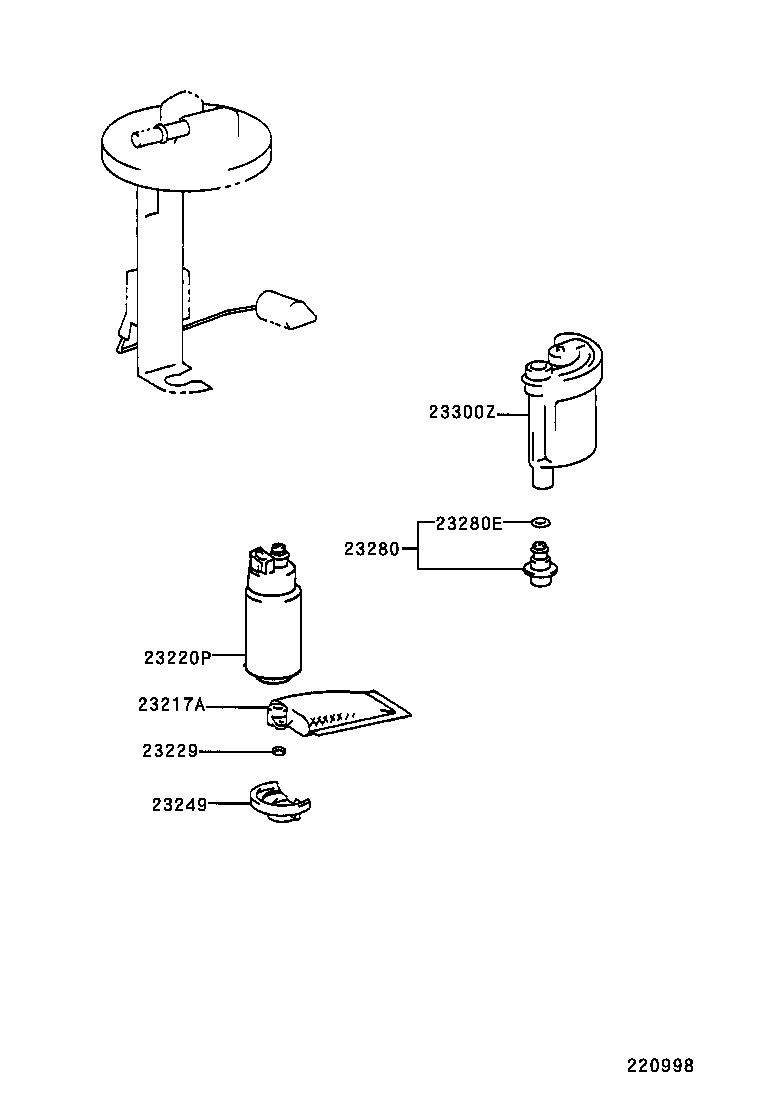

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23249 23280 23280E 23300Z
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-03030

1MZFE..MCL10

 1
23220P - PUMP ASSY, FUEL
23221-03040

1MZFE..MCL10

 1
23221-0A020

1MZFE..MCL10

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23219-03010

1MZFE..MCL10

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23218-0C010

1MZFE..MCL10

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-22010

1MZFE..MCL10

 1
23280-74170

1MZFE..MCL10

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07020

1MZFE..MCL10

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-74280

1MZFE..MCL10

 1
23300-0D010

1MZFE..MCL10

 1

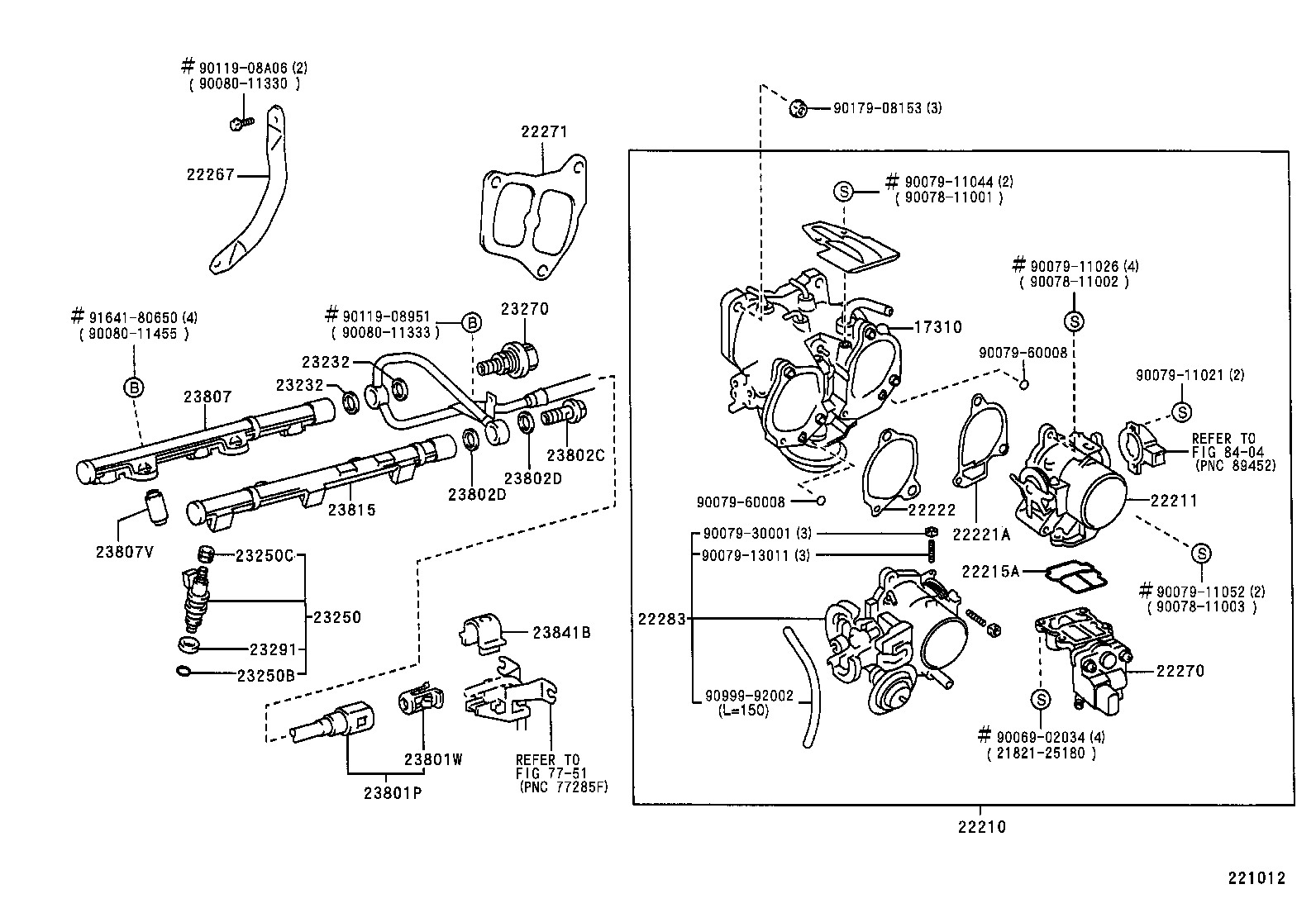

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 17310 2182125180 22210 22211 22215A 22221A 22222 22267 22270 22271 22283 23232 23232 23250 23250B 23250C 23270 23291 23801P 23801W 23802C 23802D 23802D 23807 23807V 23815 23841B 7751 8404 9006902034 9007811001 9007811002 9007811003 9007911021 9007911026 9007911044 9007911052 9007913011 9007930001 9007960008 9007960008 9008011330 9008011333 9008011455 9011908951 9011908A06 9017908153 9099992002 9164180650
Part # Description Qty Price
17310 - VALVE ASSY, INTAKE AIR CONTROL, NO.1
17310-0A030

1MZFE..MCL10

 1
22210 - BODY ASSY, THROTTLE
22210-0A080

1MZFE..MCL10

 1
22210-0A140

1MZFE..MCL10

 1
22211 - BODY, THROTTLE
22211-0A110

1MZFE..MCL10

 1
22215A - GASKET, IDLE SPEED CONTROL VALVE
22215-0A010

1MZFE..MCL10

(L)

 1
22215-20010

1MZFE..MCL10

(J)

 1
22221A - GASKET, INTAKE AIR CONTROL VALVE, NO.1
22221-20132

1MZFE..MCL10

(J)

 1
22221-0A110

1MZFE..MCL10

(L)

 1
22222 - GASKET, INTAKE AIR CONTROL VALVE, NO.2
22222-0A110

1MZFE..MCL10

(L)

 1
22222-20132

1MZFE..MCL10

(J)

 1
22267 - BRACKET, THROTTLE BODY
22267-0A010

1MZFE..MCL10

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-20060

1MZFE..MCL10

(J)

 1
22270-0A040

1MZFE..MCL10

(L)

 1
22270-0A060

1MZFE..MCL10

(L)

 1
22270-20040

1MZFE..MCL10

(J)

 1
22271 - GASKET, THROTTLE BODY
22271-0A020

1MZFE..MCL10

 1
22271-0A010

1MZFE..MCL10

 1
22283 - BODY, THROTTLE, NO.2
22283-0A110

1MZFE..MCL10

 1
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCL10

 2
23232 - GASKET(FOR FUEL PUMP HOSE)
23232-41081

1MZFE..MCL10

 2
23250 - INJECTOR ASSY, FUEL
23209-0A010

1MZFE..MCL10..USA

CALIFORNIA SPEC,(L)

 6
23209-0A010

1MZFE..MCL10

(L)

 6
23209-20010

1MZFE..MCL10

 6
23209-20020

1MZFE..MCL10..USA

CALIFORNIA SPEC,(J)

 6
23209-20020

1MZFE..MCL10

(J)

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1MZFE..MCL10

 12
90301-07024

1MZFE..MCL10..USA

CALIFORNIA SPEC

 12
90301-07024

1MZFE..MCL10

 12
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1MZFE..MCL10

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-62010

1MZFE..MCL10

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-20010

1MZFE..MCL10

 6
23291-62010

1MZFE..MCL10

 6
23291-20010

1MZFE..MCL10..USA

CALIFORNIA SPEC

 6
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-20110

1MZFE..MCL10

 1
23801-20051

1MZFE..MCL10

 1
23801W - CLIP, FUEL TUBE CONNECTOR
90923-07010

1MZFE..MCL10

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12015

1MZFE..MCL10

 1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCL10

 2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-12026

1MZFE..MCL10

 2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-20020

1MZFE..MCL10

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

1MZFE..MCL10

 4
23815 - PIPE, FUEL DELIVERY, NO.2
23815-20020

1MZFE..MCL10

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-20020

1MZFE..MCL10

 1
Common parts
21821-25180
90069-02034
90078-11001
90078-11002
90078-11003
90079-11021
90079-11026
90079-11044
90079-11052
90079-13011
90079-30001
90079-60008
90080-11330
90080-11333
90080-11455
90119-08951
90119-08A06
90179-08153
90999-92002
91641-80650
Linked diagrams
7751
8404
