MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

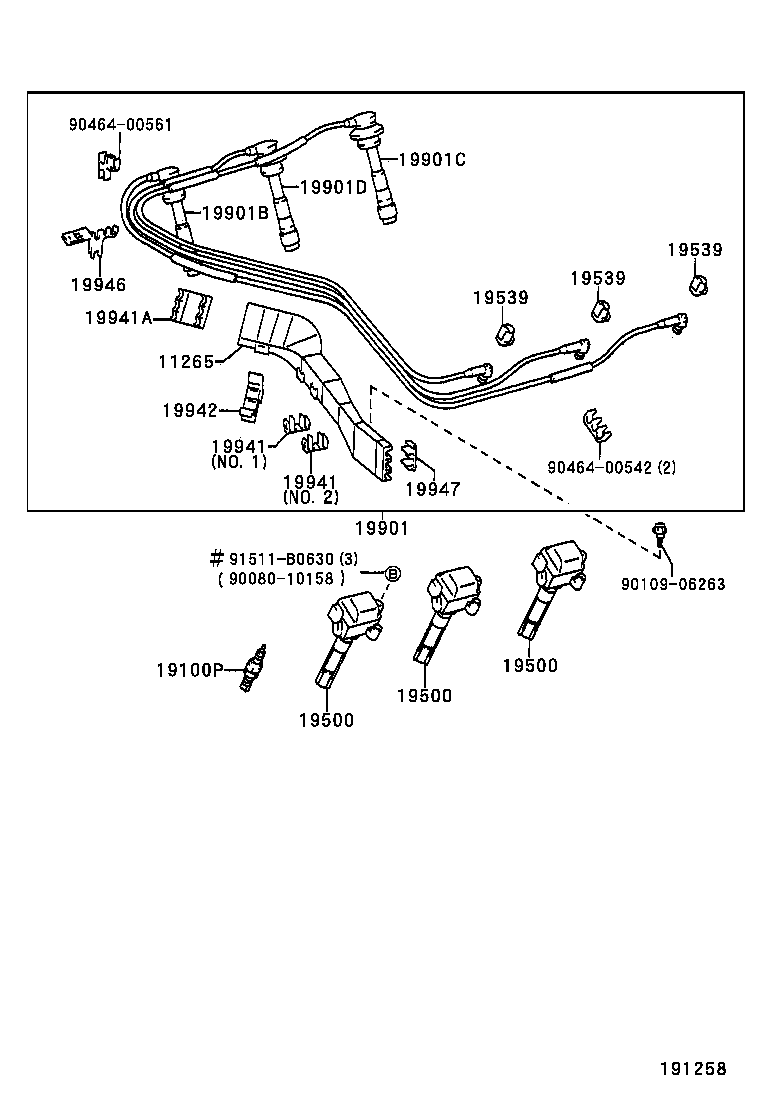

(9708-0008)

Click highlighted areas on diagram

diagram 11265 19100P 19100P 19500 19500 19500 19539 19539 19539 19901 19901B 19901C 19901D 19941 19941 19941A 19942 19946 19947 9008010158 9010906263 9046400542 9046400561 91511B0630
Part # Description Qty Price
11265 - COVER, COIL & RESISTIVE CORD, UPR
11265-20020

1MZFE..MCL10

 1
19100P - PLUG, SPARK
90080-91116

1MZFE..MCL10

PK20TR11,(L)

 6
90919-01195

1MZFE..MCL10

BKR6EKPB11

 6
90080-91180

1MZFE..MCL10

SK20R11,(L)

 6
90919-01194

1MZFE..MCL10

PK20TR11,(J)

 6
90919-01210

1MZFE..MCL10

SK20R11,(J)

 6
19100P - PLUG, SPARK
90080-91116

1MZFE..MCL10

PK20TR11,(L)

 6
90919-01195

1MZFE..MCL10

BKR6EKPB11

 6
90080-91180

1MZFE..MCL10

SK20R11,(L)

 6
90919-01194

1MZFE..MCL10

PK20TR11,(J)

 6
90919-01210

1MZFE..MCL10

SK20R11,(J)

 6
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11040

1MZFE..MCL10

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11040

1MZFE..MCL10

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11040

1MZFE..MCL10

 3
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
19037-20011

1MZFE..MCL10

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15308

1MZFE..MCL10

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15309

1MZFE..MCL10

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15310

1MZFE..MCL10

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-20010

1MZFE..MCL10

NO.1

 1
19941-20020

1MZFE..MCL10

NO.2

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-20010

1MZFE..MCL10

NO.1

 1
19941-20020

1MZFE..MCL10

NO.2

 1
19941A - CLAMP(FOR RESISTIVE CORD)
19941-65040

1MZFE..MCL10

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
19942-20010

1MZFE..MCL10

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-20010

1MZFE..MCL10

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
19947-20010

1MZFE..MCL10

 1
Common parts
90080-10158
90109-06263
90464-00542
90464-00561
91511-B0630

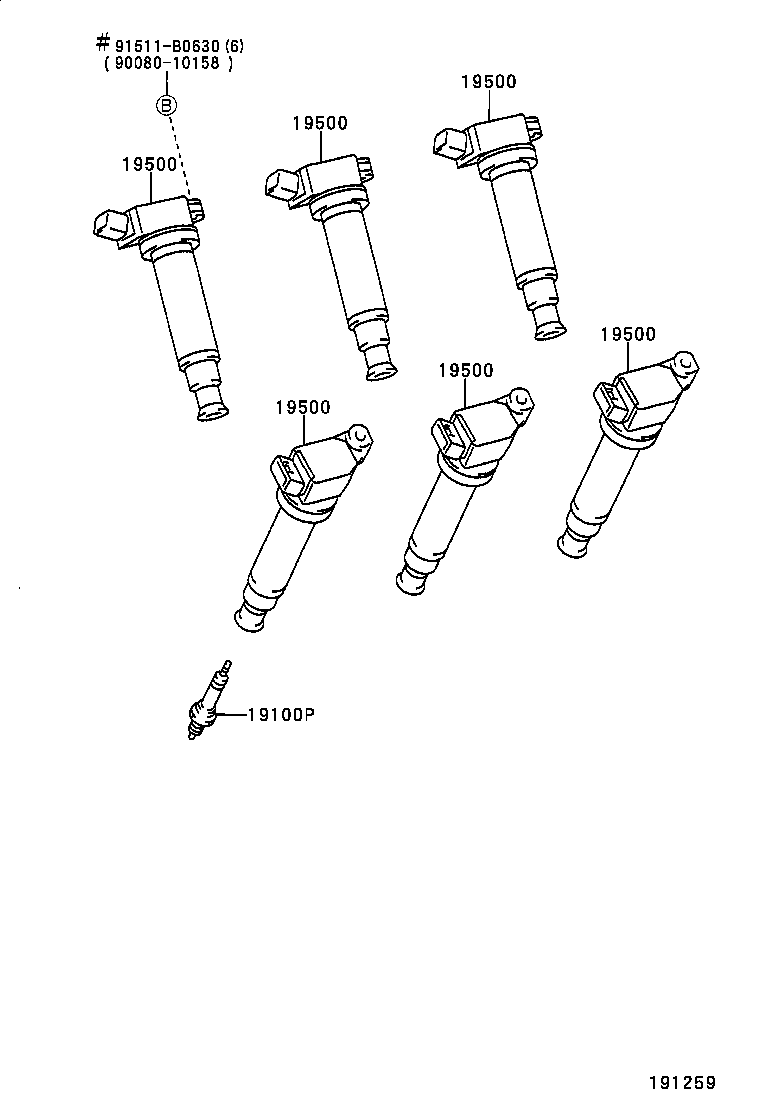

(0008- )

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 19500 19500 9008010158 91511B0630
Part # Description Qty Price
19100P - PLUG, SPARK
90080-91116

1MZFE..MCL10

PK20TR11,(L)

 6
90919-01195

1MZFE..MCL10

BKR6EKPB11

 6
90080-91180

1MZFE..MCL10

SK20R11,(L)

 6
90919-01194

1MZFE..MCL10

PK20TR11,(J)

 6
90919-01210

1MZFE..MCL10

SK20R11,(J)

 6
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
19500 - COIL ASSY, IGNITION
90919-02215

1MZFE..MCL10

(J)

 3
90080-19016

1MZFE..MCL10

(L)

 6
90919-02234

1MZFE..MCL10

(J)

 6
90080-19012

1MZFE..MCL10

(L)

 3
Common parts
90080-10158
91511-B0630
