MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0008)

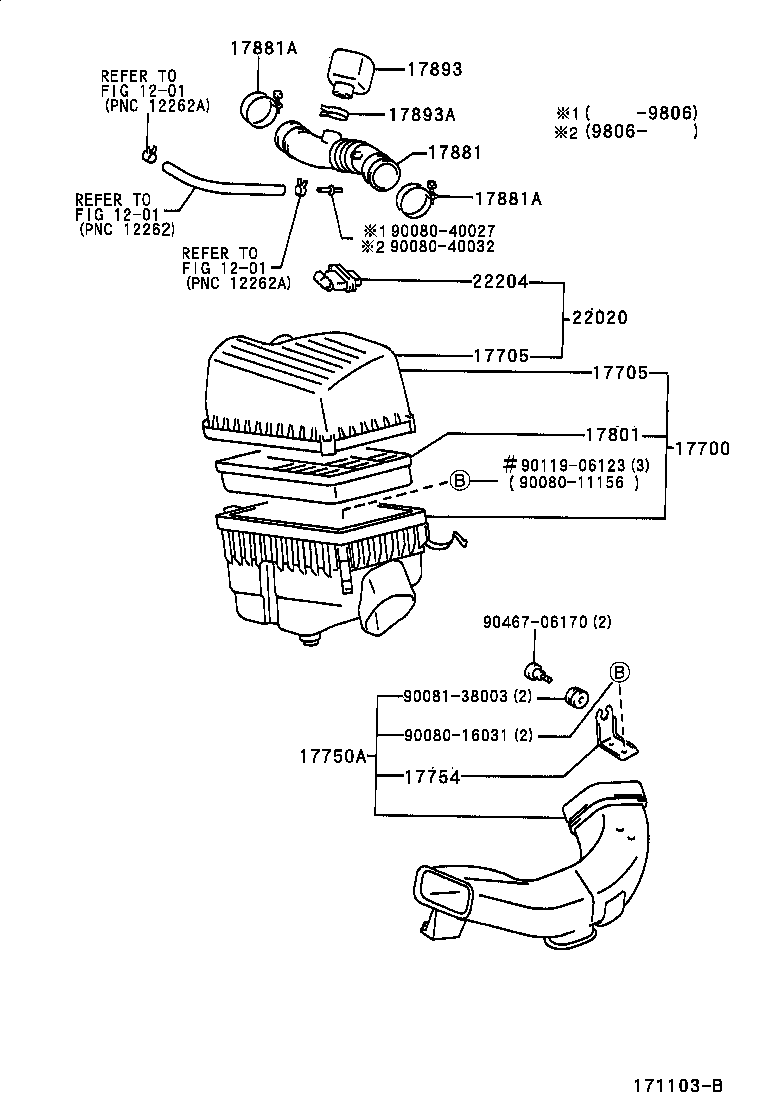

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0A070 |
1MZFE..MCL10 |
1 | ||
| 17700-0A170 |
1MZFE..MCL10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0A130 |
1MZFE..MCL10 |
1 | ||
| 17705-0A050 |
1MZFE..MCL10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0A130 |
1MZFE..MCL10 |
1 | ||
| 17705-0A050 |
1MZFE..MCL10 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0A020 |
1MZFE..MCL10 |
1 | ||
| 17754 - STAY, AIR CLEANER INLET | ||||
| 17754-0A010 |
1MZFE..MCL10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-03010 |
1MZFE..MCL10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0A040 |
1MZFE..MCL10 |
1 | ||
| 17881-0A041 |
1MZFE..MCL10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCL10 |
1 | ||
| 96111-10830 |
1MZFE..MCL10 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCL10 |
1 | ||
| 96111-10830 |
1MZFE..MCL10 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0A010 |
1MZFE..MCL10 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 90467-38002 |
1MZFE..MCL10 |
1 | ||
| 22020 - METER ASSY, AIR FLOW W/AIR CLEANER | ||||
| 22020-0A160 |
1MZFE..MCL10 |
1 | ||
| 22020-0A070 |
1MZFE..MCL10 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-07010 |
1MZFE..MCL10 |
1 | ||
| 22204-20010 |
1MZFE..MCL10 |
1 | ||
| Common parts | ||||
| 90080-11156 | ||||
| 90080-16031 | ||||
| 90080-40027 | ||||
| 90080-40032 | ||||
| 90081-38003 | ||||
| 90119-06123 | ||||
| 90467-06170 | ||||
| Linked diagrams | ||||
| 1201 | ||||
(0008- )

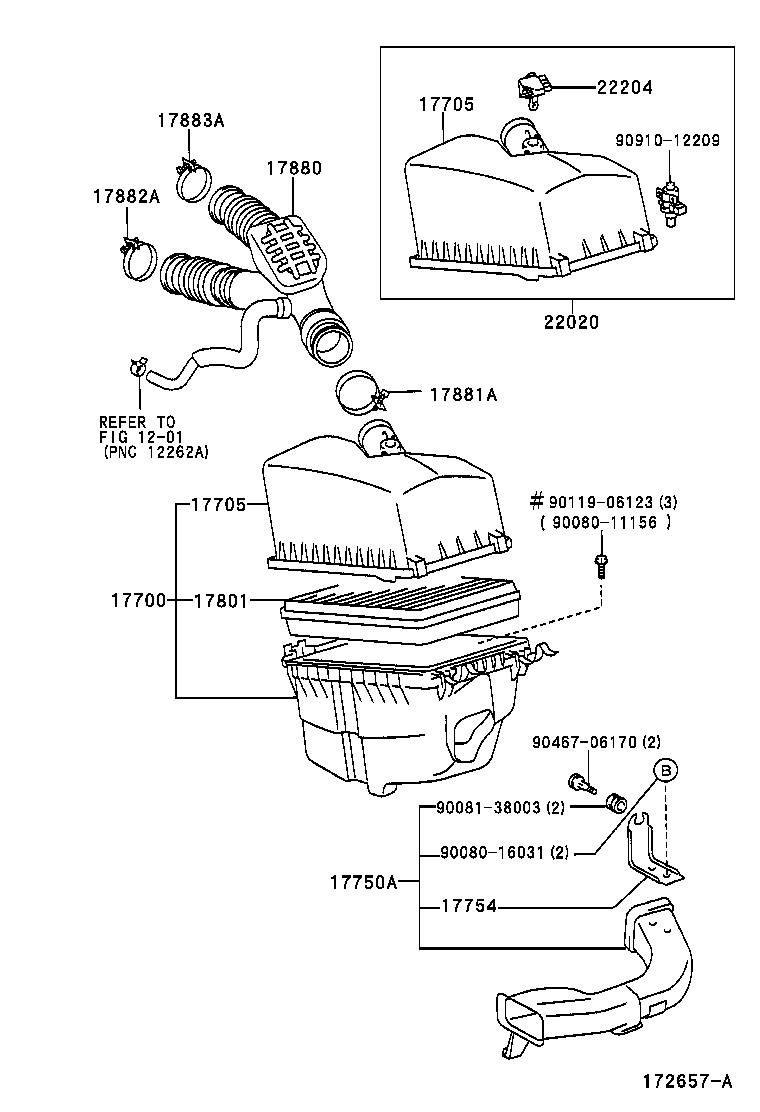

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0A070 |
1MZFE..MCL10 |
1 | ||
| 17700-0A170 |
1MZFE..MCL10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0A130 |
1MZFE..MCL10 |
1 | ||
| 17705-0A050 |
1MZFE..MCL10 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0A130 |
1MZFE..MCL10 |
1 | ||
| 17705-0A050 |
1MZFE..MCL10 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0A020 |
1MZFE..MCL10 |
1 | ||
| 17754 - STAY, AIR CLEANER INLET | ||||
| 17754-0A010 |
1MZFE..MCL10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-03010 |
1MZFE..MCL10 |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-0A080 |
1MZFE..MCL10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
1MZFE..MCL10 |
1 | ||
| 96111-10830 |
1MZFE..MCL10 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10630 |
1MZFE..MCL10 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10630 |
1MZFE..MCL10 |
1 | ||
| 22020 - METER ASSY, AIR FLOW W/AIR CLEANER | ||||
| 22020-0A160 |
1MZFE..MCL10 |
1 | ||
| 22020-0A070 |
1MZFE..MCL10 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-07010 |
1MZFE..MCL10 |
1 | ||
| 22204-20010 |
1MZFE..MCL10 |
1 | ||
| Common parts | ||||
| 90080-11156 | ||||
| 90080-16031 | ||||
| 90081-38003 | ||||
| 90119-06123 | ||||
| 90467-06170 | ||||
| 90910-12209 | ||||
| Linked diagrams | ||||
| 1201 | ||||
