MCL10L-PFSDKA (1997)
Toyota Sienna

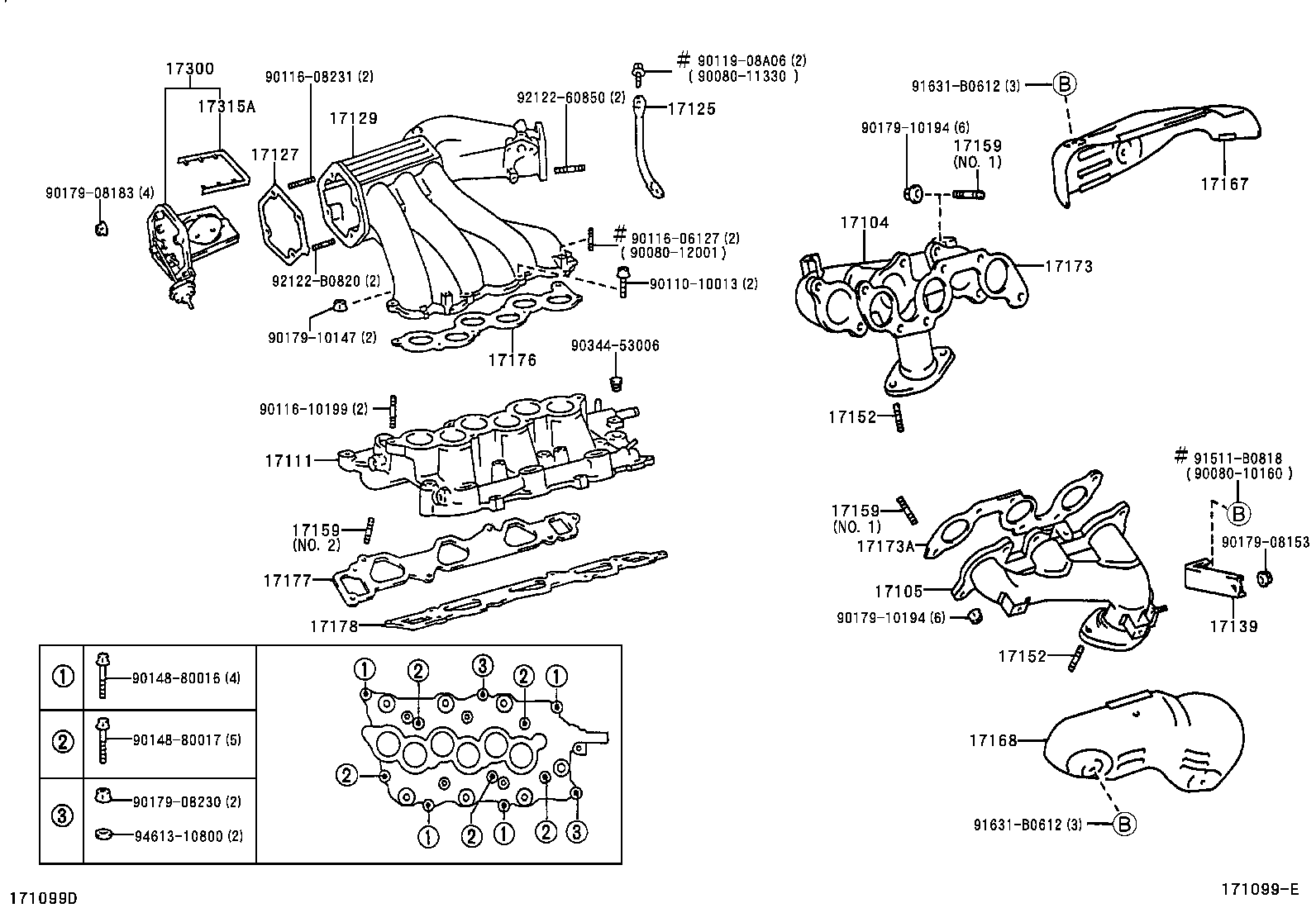

(9708-0008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17141-20060 |
1MZFE..MCL10 |
1 | ||
| 17104-20010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17104-20030 |
1MZFE..MCL10 |
1 | ||
| 17104-20030 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17142-20050 |
1MZFE..MCL10 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0A030 |
1MZFE..MCL10 (L) |
1 | ||
| 17101-0A010 |
1MZFE..MCL10 (L) |
1 | ||
| 17101-20010 |
1MZFE..MCL10 (J) |
1 | ||
| 17101-20031 |
1MZFE..MCL10 (J) |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-0A010 |
1MZFE..MCL10 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-0A010 |
1MZFE..MCL10 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-0A030 |
1MZFE..MCL10 |
1 | ||
| 17109-20071 |
1MZFE..MCL10 (J) |
1 | ||
| 17109-0A040 |
1MZFE..MCL10 (L) |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-20020 |
1MZFE..MCL10 |
1 | ||
| 17139-20020 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17139-0A010 |
1MZFE..MCL10 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MCL10 |
2 | ||
| 90116-10149 |
1MZFE..MCL10 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MCL10 |
2 | ||
| 90116-10149 |
1MZFE..MCL10 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-20060 |
1MZFE..MCL10 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-20050 |
1MZFE..MCL10 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0A010 |
1MZFE..MCL10 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-0A010 |
1MZFE..MCL10 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-62030 |
1MZFE..MCL10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-20010 |
1MZFE..MCL10 |
1 | ||
| 17177-20020 |
1MZFE..MCL10 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-20020 |
1MZFE..MCL10 |
1 | ||
| 17178-20010 |
1MZFE..MCL10 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-20020 |
1MZFE..MCL10 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-62020 |
1MZFE..MCL10 |
1 | ||
| Common parts | ||||
| 90080-10160 | ||||
| 90080-11330 | ||||
| 90080-12001 | ||||
| 90110-10013 | ||||
| 90116-06127 | ||||
| 90116-08231 | ||||
| 90116-10199 | ||||
| 90119-08A06 | ||||
| 90148-80016 | ||||
| 90148-80017 | ||||
| 90179-08153 | ||||
| 90179-08183 | ||||
| 90179-08230 | ||||
| 90179-10147 | ||||
| 90179-10194 | ||||
| 90344-53006 | ||||
| 91511-B0818 | ||||
| 91631-B0612 | ||||
| 92122-60850 | ||||
| 92122-B0820 | ||||
| 94613-10800 | ||||

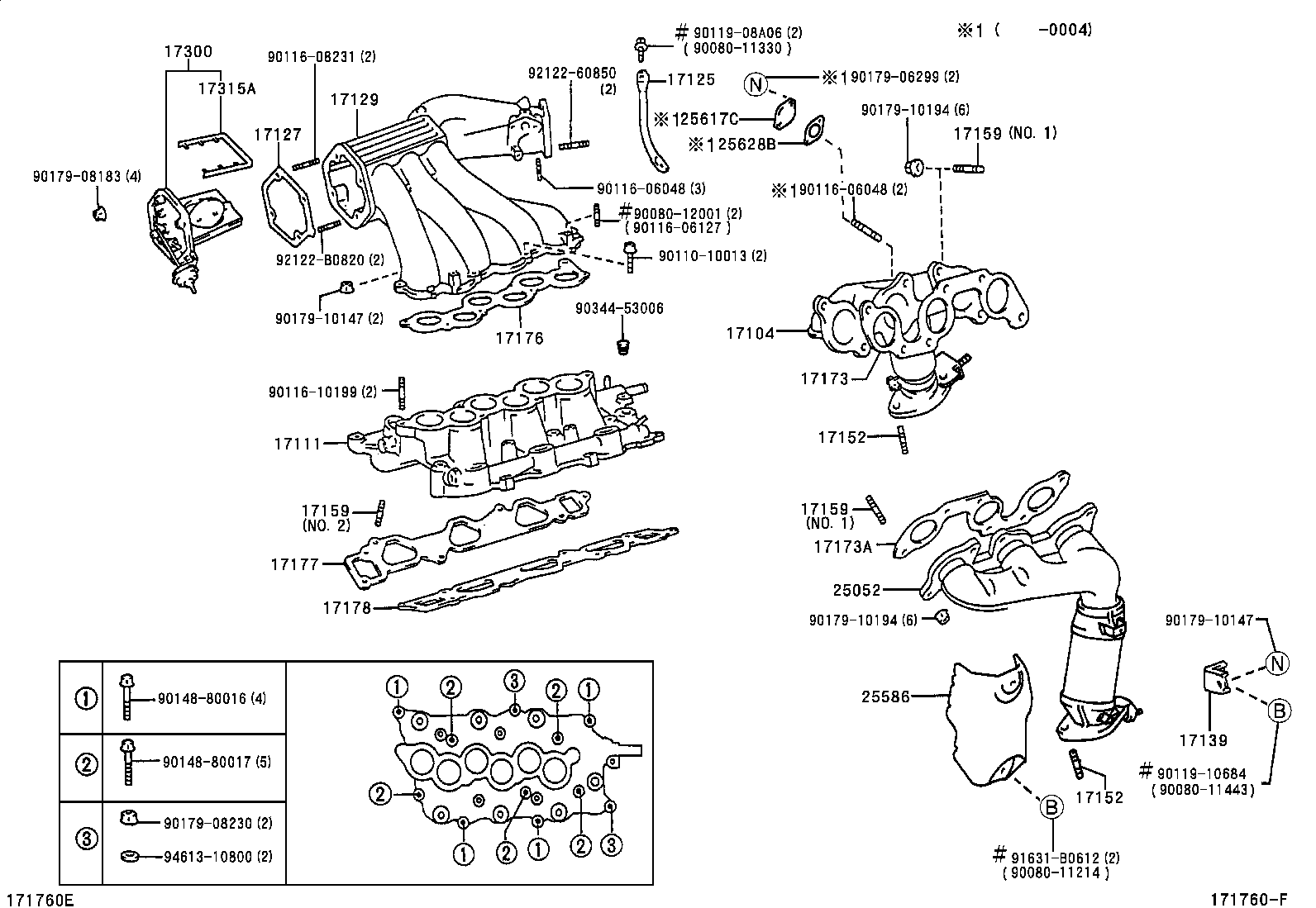

(9808-0008)1MZFE..USA
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17141-20060 |
1MZFE..MCL10 |
1 | ||
| 17104-20010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17104-20030 |
1MZFE..MCL10 |
1 | ||
| 17104-20030 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0A030 |
1MZFE..MCL10 (L) |
1 | ||
| 17101-0A010 |
1MZFE..MCL10 (L) |
1 | ||
| 17101-20010 |
1MZFE..MCL10 (J) |
1 | ||
| 17101-20031 |
1MZFE..MCL10 (J) |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-0A010 |
1MZFE..MCL10 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-0A010 |
1MZFE..MCL10 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-0A030 |
1MZFE..MCL10 |
1 | ||
| 17109-20071 |
1MZFE..MCL10 (J) |
1 | ||
| 17109-0A040 |
1MZFE..MCL10 (L) |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-20020 |
1MZFE..MCL10 |
1 | ||
| 17139-20020 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17139-0A010 |
1MZFE..MCL10 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MCL10 |
2 | ||
| 90116-10149 |
1MZFE..MCL10 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MCL10 |
2 | ||
| 90116-10149 |
1MZFE..MCL10 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0A010 |
1MZFE..MCL10 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-0A010 |
1MZFE..MCL10 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-62030 |
1MZFE..MCL10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-20010 |
1MZFE..MCL10 |
1 | ||
| 17177-20020 |
1MZFE..MCL10 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-20020 |
1MZFE..MCL10 |
1 | ||
| 17178-20010 |
1MZFE..MCL10 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-20020 |
1MZFE..MCL10 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-62020 |
1MZFE..MCL10 |
1 | ||
| 25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2 | ||||
| 25052-20100 |
1MZFE..MCL10 MARK 20100 |
1 | ||
| 25052-20020 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 25052-20110 |
1MZFE..MCL10 |
1 | ||
| 25052-20110 |
1MZFE..MCL10 MARK 20110 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-20010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 25586-20010 |
1MZFE..MCL10 |
1 | ||
| 25617C - PLATE, EGR HOLE COVER | ||||
| 25617-20010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-0A010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| Common parts | ||||
| 90080-11214 | ||||
| 90080-11330 | ||||
| 90080-11443 | ||||
| 90080-12001 | ||||
| 90110-10013 | ||||
| 90116-06048 | ||||
| 90116-06127 | ||||
| 90116-08231 | ||||
| 90116-10199 | ||||
| 90119-08A06 | ||||
| 90119-10684 | ||||
| 90148-80016 | ||||
| 90148-80017 | ||||
| 90179-06299 | ||||
| 90179-08183 | ||||
| 90179-08230 | ||||
| 90179-10147 | ||||
| 90179-10194 | ||||
| 90344-53006 | ||||
| 91631-B0612 | ||||
| 92122-60850 | ||||
| 92122-B0820 | ||||
| 94613-10800 | ||||

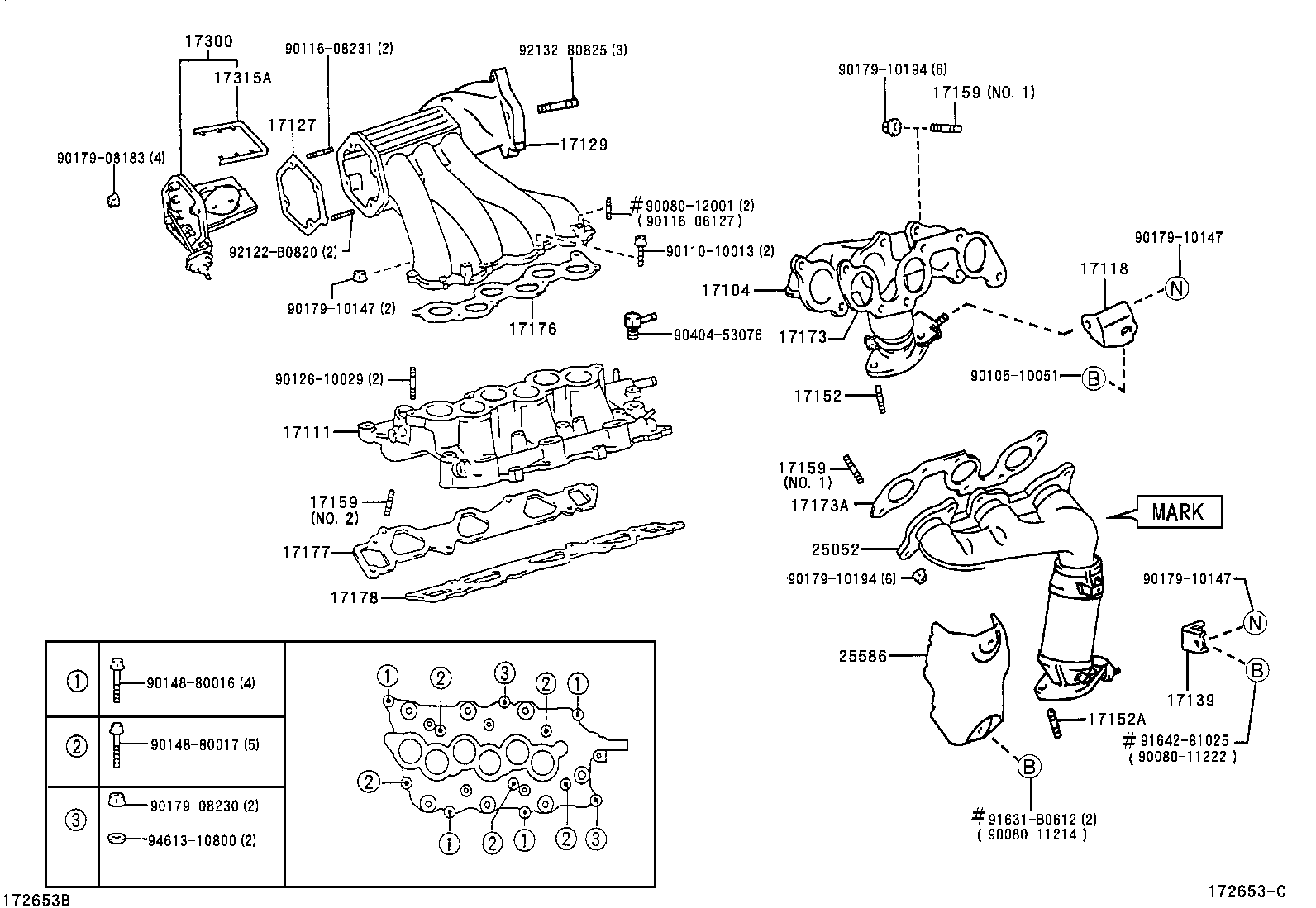

(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17141-20060 |
1MZFE..MCL10 |
1 | ||
| 17104-20010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17104-20030 |
1MZFE..MCL10 |
1 | ||
| 17104-20030 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0A030 |
1MZFE..MCL10 (L) |
1 | ||
| 17101-0A010 |
1MZFE..MCL10 (L) |
1 | ||
| 17101-20010 |
1MZFE..MCL10 (J) |
1 | ||
| 17101-20031 |
1MZFE..MCL10 (J) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-20020 |
1MZFE..MCL10 |
1 | ||
| 17127 - GASKET, SURGE TANK COVER | ||||
| 17127-0A010 |
1MZFE..MCL10 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-0A030 |
1MZFE..MCL10 |
1 | ||
| 17109-20071 |
1MZFE..MCL10 (J) |
1 | ||
| 17109-0A040 |
1MZFE..MCL10 (L) |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-20020 |
1MZFE..MCL10 |
1 | ||
| 17139-20020 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 17139-0A010 |
1MZFE..MCL10 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MCL10 |
2 | ||
| 90116-10149 |
1MZFE..MCL10 |
4 | ||
| 17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10149 |
1MZFE..MCL10 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10169 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-10030 |
1MZFE..MCL10 NO.1 |
12 | ||
| 90126-08013 |
1MZFE..MCL10 NO.2 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0A010 |
1MZFE..MCL10 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-0A010 |
1MZFE..MCL10 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-62030 |
1MZFE..MCL10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-20010 |
1MZFE..MCL10 |
1 | ||
| 17177-20020 |
1MZFE..MCL10 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-20020 |
1MZFE..MCL10 |
1 | ||
| 17178-20010 |
1MZFE..MCL10 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-20020 |
1MZFE..MCL10 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-62020 |
1MZFE..MCL10 |
1 | ||
| 25052 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2 | ||||
| 25052-20100 |
1MZFE..MCL10 MARK 20100 |
1 | ||
| 25052-20020 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 25052-20110 |
1MZFE..MCL10 |
1 | ||
| 25052-20110 |
1MZFE..MCL10 MARK 20110 |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-20010 |
1MZFE..MCL10..USA CALIFORNIA SPEC |
1 | ||
| 25586-20010 |
1MZFE..MCL10 |
1 | ||
| Common parts | ||||
| 90080-11214 | ||||
| 90080-11222 | ||||
| 90080-12001 | ||||
| 90105-10051 | ||||
| 90110-10013 | ||||
| 90116-06127 | ||||
| 90116-08231 | ||||
| 90126-10029 | ||||
| 90148-80016 | ||||
| 90148-80017 | ||||
| 90179-08183 | ||||
| 90179-08230 | ||||
| 90179-10147 | ||||
| 90179-10194 | ||||
| 90404-53076 | ||||
| 91631-B0612 | ||||
| 91642-81025 | ||||
| 92122-B0820 | ||||
| 92132-80825 | ||||
| 94613-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
