MCL10L-GFSGKA (1997)
Toyota Sienna
Production
Aug 1997
-
Aug 2000
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

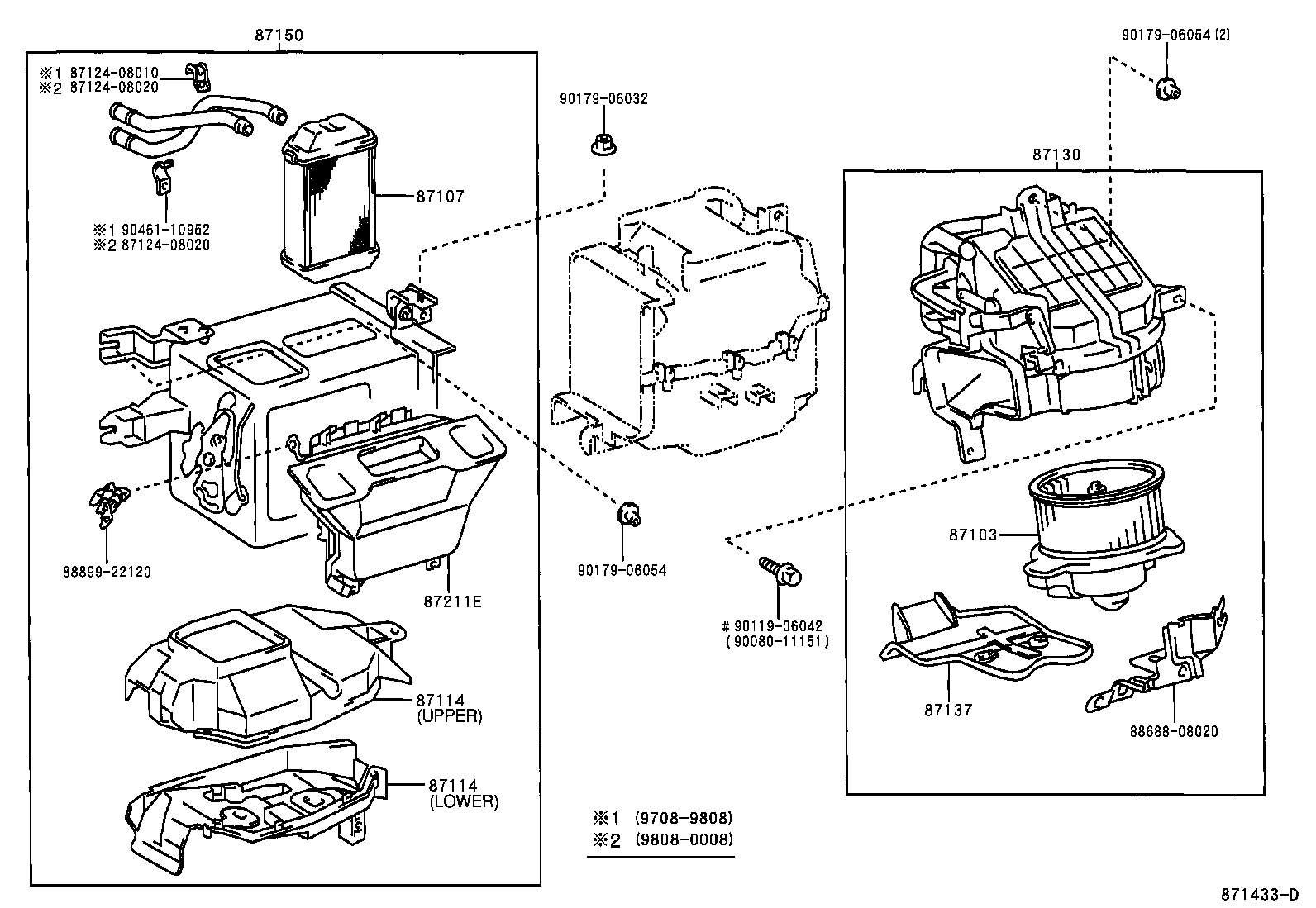

ILLUST NO. 1 OF 2(9708-0008)
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-08020 |
MCL10 |
1 | ||
| 87103-08010 |
MCL10 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-08010 |
MCL10 |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-08010 |
MCL10 UPPER |
1 | ||
| 87114-08040 |
MCL10 LOWER |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-08010 |
MCL10 UPPER |
1 | ||
| 87114-08040 |
MCL10 LOWER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-08010 |
MCL10 |
1 | ||
| 87137 - COVER, HEATER BLOWER | ||||
| 87137-08010 |
MCL10 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-08010 |
MCL10 |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87201-08020 |
MCL10 |
1 | ||
| Common parts | ||||
| 87124-08010 | ||||
| 87124-08020 | ||||
| 88688-08020 | ||||
| 88899-22120 | ||||
| 90080-11151 | ||||
| 90119-06042 | ||||
| 90179-06032 | ||||
| 90179-06054 | ||||
| 90461-10952 | ||||

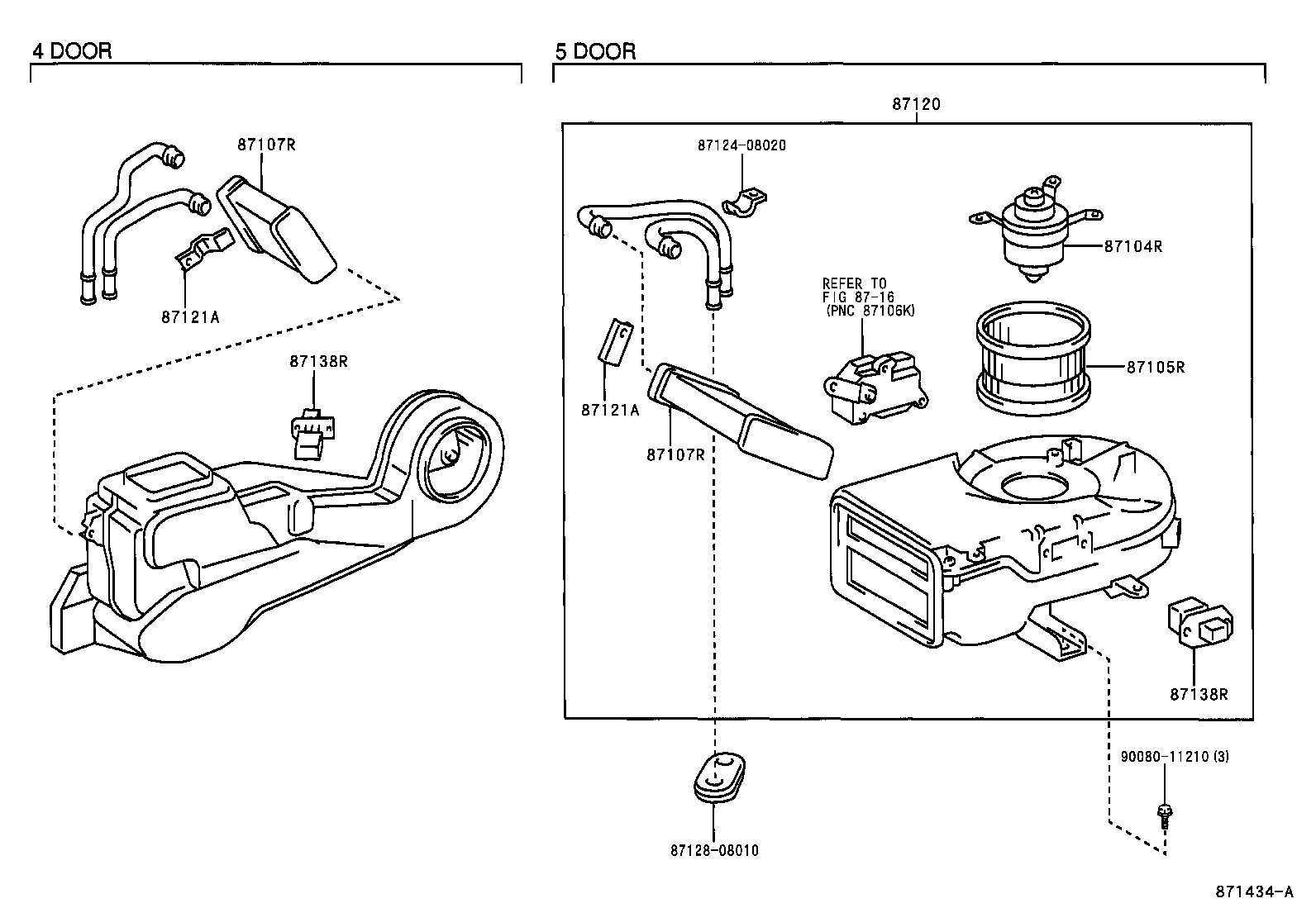

ILLUST NO. 2 OF 2(9708-0008)
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-08030 |
MCL10..WG..4D |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-08030 |
MCL10..WG..4D |
1 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-08020 |
MCL10..WG..4D |
1 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-08020 |
MCL10..WG..4D |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-08020 |
MCL10..WG..4D |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-08020 |
MCL10..WG..4D |
1 | ||
| Common parts | ||||
| 87124-08020 | ||||
| 87128-08010 | ||||
| 90080-11210 | ||||
| Linked diagrams | ||||
| 8716 | ||||
