MCL10L-GFSDKK (1997)

Toyota Sienna

Production Aug 1997 - Aug 2000
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

O-RING

diagram 9006814009 9006814009 9006814010 9006814011 9006908007 9006908007 9006908009 9006908011 9006908012 9009914119 9009914120 9009914121 9009914122 9009914122
Part # Description Qty Price
Common parts
90068-14009
90068-14010
90068-14011
90069-08007
90069-08009
90069-08011
90069-08012
90099-14119
90099-14120
90099-14121
90099-14122

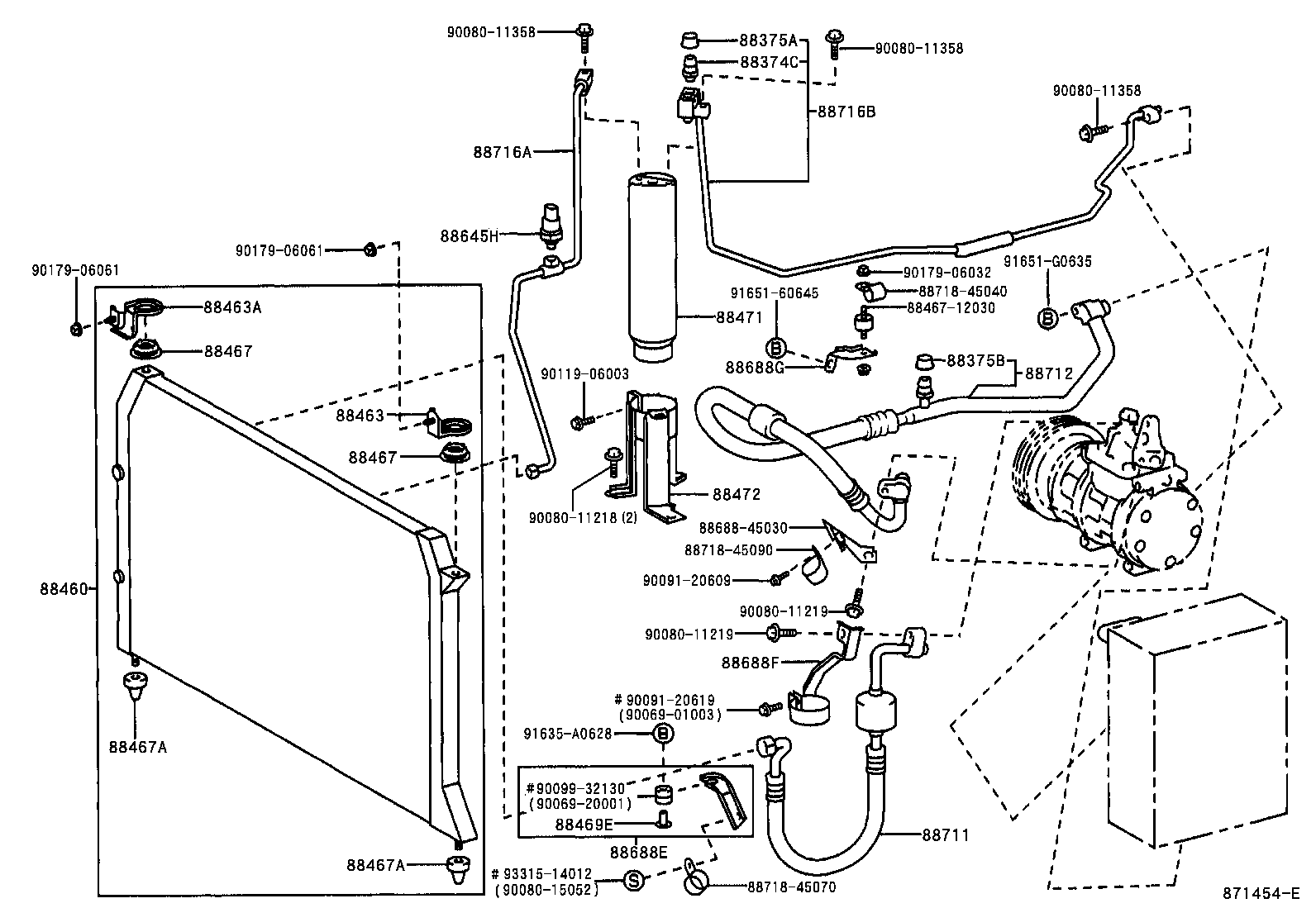

ILLUST NO. 1 OF 3(9708-0008)4D

Click highlighted areas on diagram

FRONT(SINGLE AIR CONDITIONER)

diagram 88374C 88375A 88375B 88460 88463 88463A 88467 88467 8846712030 88467A 88467A 88469E 88471 88472 88645H 8868845030 88688E 88688F 88688G 88711 88712 88716A 88716B 8871845040 8871845070 8871845090 9006901003 9006920001 9008011218 9008011219 9008011219 9008011358 9008011358 9008011358 9008015052 9009120609 9009120619 9009932130 9011906003 9017906032 9017906061 9017906061 91635A0628 9165160645 91651G0635 9331514012
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

MCL10

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

MCL10

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

MCL10

 1
88460 - CONDENSER ASSY, COOLER
88460-08010

MCL10

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-45040

MCL10

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-45050

MCL10

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-45020

MCL10

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-45020

MCL10

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-24050

MCL10

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-24050

MCL10

 2
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

MCL10

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28100

MCL10

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-08010

MCL10

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

MCL10

 1
88645-60030

MCL10

TOWING PACKAGE

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-45020

MCL10

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-45060

MCL10

 1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-45030

MCL10..4D..CE

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-08010

MCL10

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-08020

MCL10..4D..CE

 1
88712-08060

MCL10..4D

DUAL AIR CONDITIONER

 1
88712-08050

MCL10..4D

DUAL AIR CONDITIONER

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-08050

MCL10

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88706-08010

MCL10..4D..CE

W(SINGLE AIR CONDITIONER)

 1
88706-08020

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
Common parts
88467-12030
88688-45030
88718-45040
88718-45070
88718-45090
90069-01003
90069-20001
90080-11218
90080-11219
90080-11358
90080-15052
90091-20609
90091-20619
90099-32130
90119-06003
90179-06032
90179-06061
91635-A0628
91651-60645
91651-G0635
93315-14012

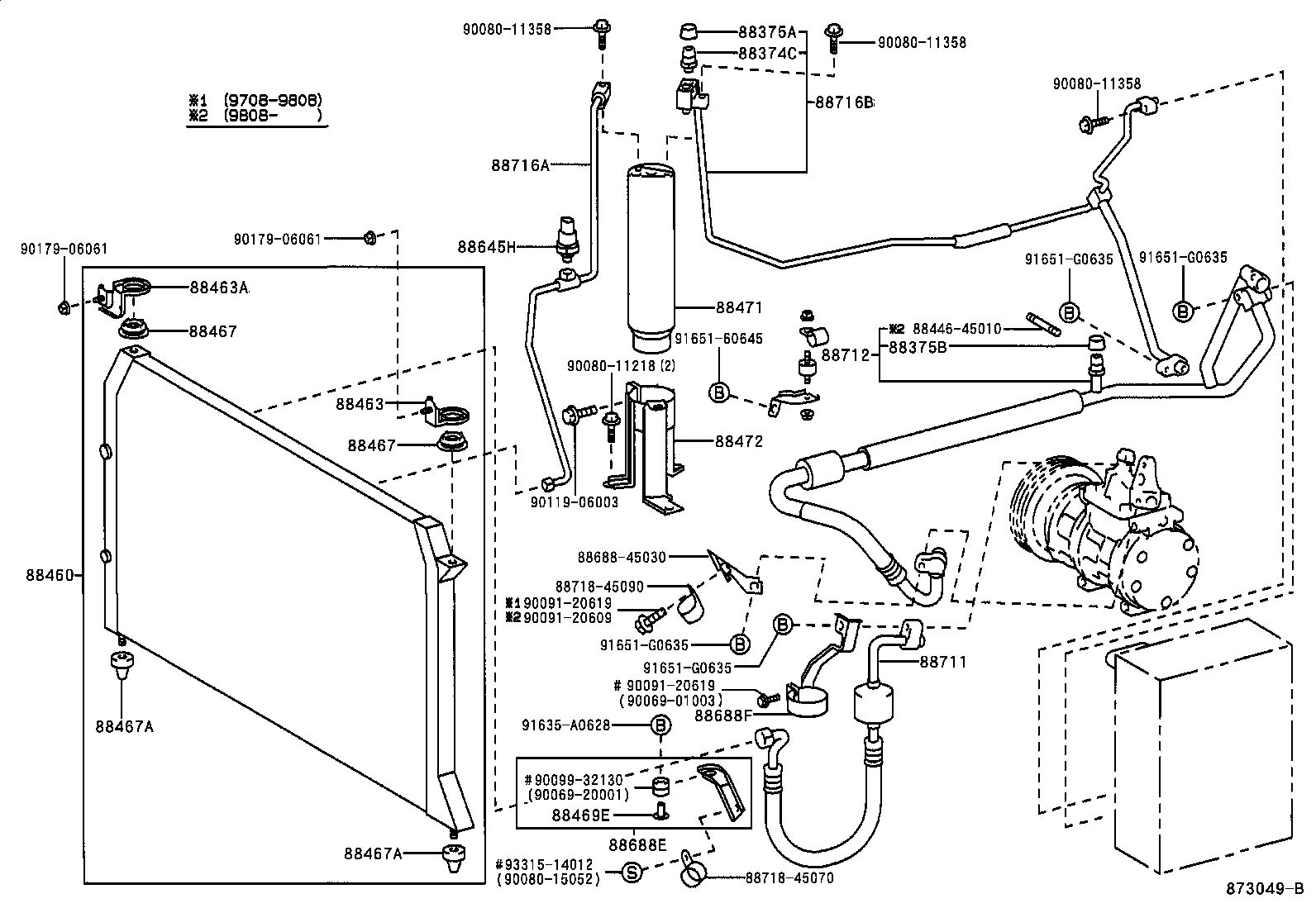

ILLUST NO. 1 OF 3(9708-0008)4D

Click highlighted areas on diagram

FRONT(DUAL AIR CONDITIONER)

diagram 88374C 88375A 88375B 8844645010 88460 88463 88463A 88467 88467 88467A 88467A 88469E 88471 88472 88645H 8868845030 88688E 88688F 88711 88712 88716A 88716B 8871845070 8871845090 9006901003 9006920001 9008011218 9008011358 9008011358 9008011358 9008015052 9009120609 9009120619 9009120619 9009932130 9011906003 9017906061 9017906061 91635A0628 9165160645 91651G0635 91651G0635 91651G0635 91651G0635 9331514012
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

MCL10

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

MCL10

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

MCL10

 1
88460 - CONDENSER ASSY, COOLER
88460-08010

MCL10

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88688-45040

MCL10

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88688-45050

MCL10

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-45020

MCL10

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-45020

MCL10

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-24050

MCL10

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-24050

MCL10

 2
88469E - COLLAR, CONDENSER BRACKET, NO.2
88469-28010

MCL10

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-28100

MCL10

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-08010

MCL10

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

MCL10

 1
88645-60030

MCL10

TOWING PACKAGE

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-45020

MCL10

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-45060

MCL10

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-08010

MCL10

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-08020

MCL10..4D..CE

 1
88712-08060

MCL10..4D

DUAL AIR CONDITIONER

 1
88712-08050

MCL10..4D

DUAL AIR CONDITIONER

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-08050

MCL10

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88706-08010

MCL10..4D..CE

W(SINGLE AIR CONDITIONER)

 1
88706-08020

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
Common parts
88446-45010
88688-45030
88718-45070
88718-45090
90069-01003
90069-20001
90080-11218
90080-11358
90080-15052
90091-20609
90091-20619
90099-32130
90119-06003
90179-06061
91635-A0628
91651-60645
91651-G0635
93315-14012

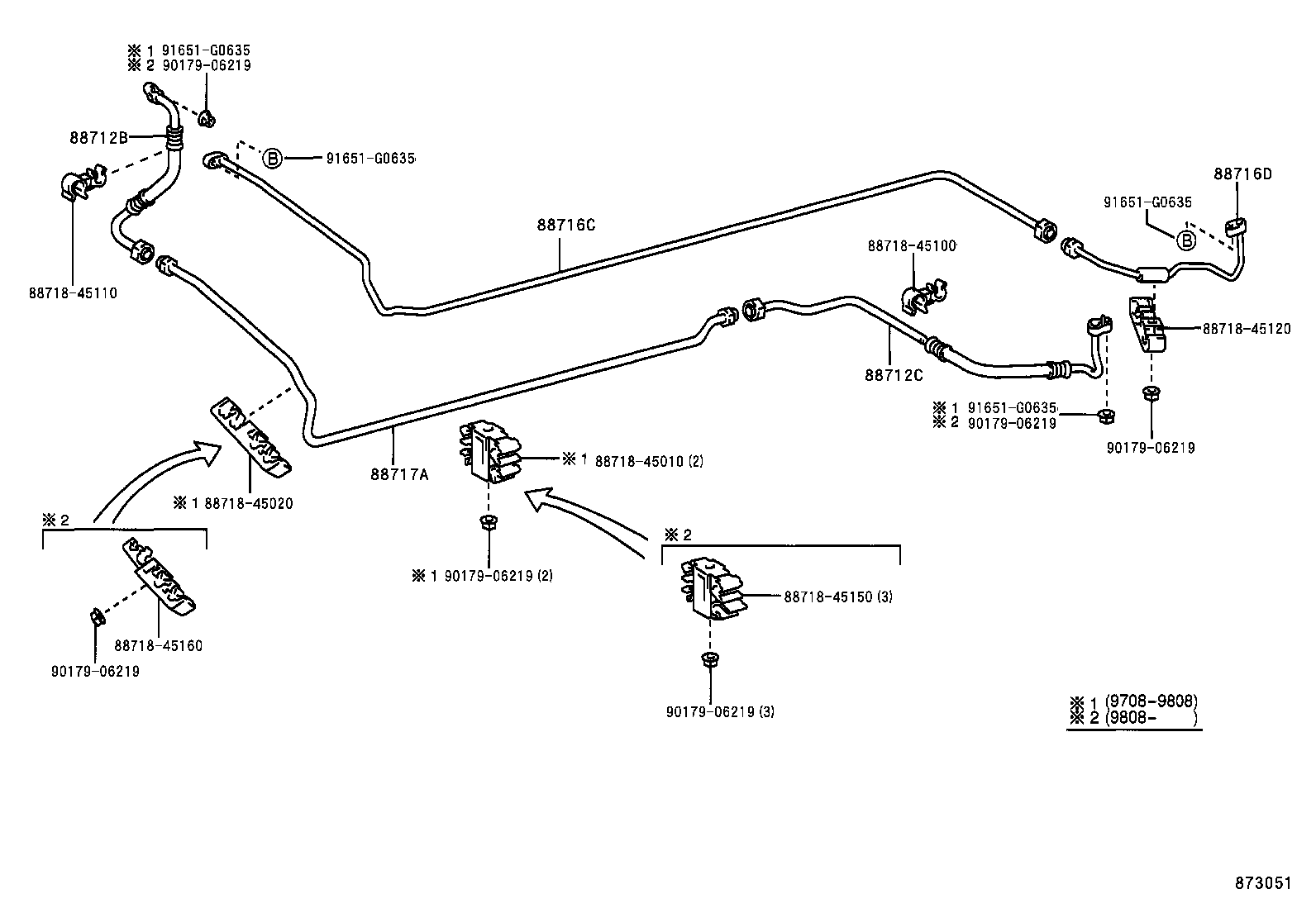

ILLUST NO. 2 OF 3(9708-0008)4D

Click highlighted areas on diagram

REAR(DUAL AIR CONDITIONER)

diagram 88712B 88712C 88716C 88716D 88717A 8871845010 8871845020 8871845100 8871845110 8871845120 8871845150 8871845160 9017906219 9017906219 9017906219 9017906219 9017906219 9017906219 91651G0635 91651G0635 91651G0635 91651G0635
Part # Description Qty Price
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-45020

MCL10..WG

 1
88712C - HOSE, SUCTION
88712-45030

MCL10..WG..4D

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88715-08080

MCL10..WG..4D

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-08110

MCL10..WG..4D

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-08260

MCL10..WG..4D

 1
88717-08200

MCL10..WG..4D

 1
Common parts
88718-45010
88718-45020
88718-45100
88718-45110
88718-45120
88718-45150
88718-45160
90179-06219
91651-G0635
