MCL10L-GFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Aug 2000
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

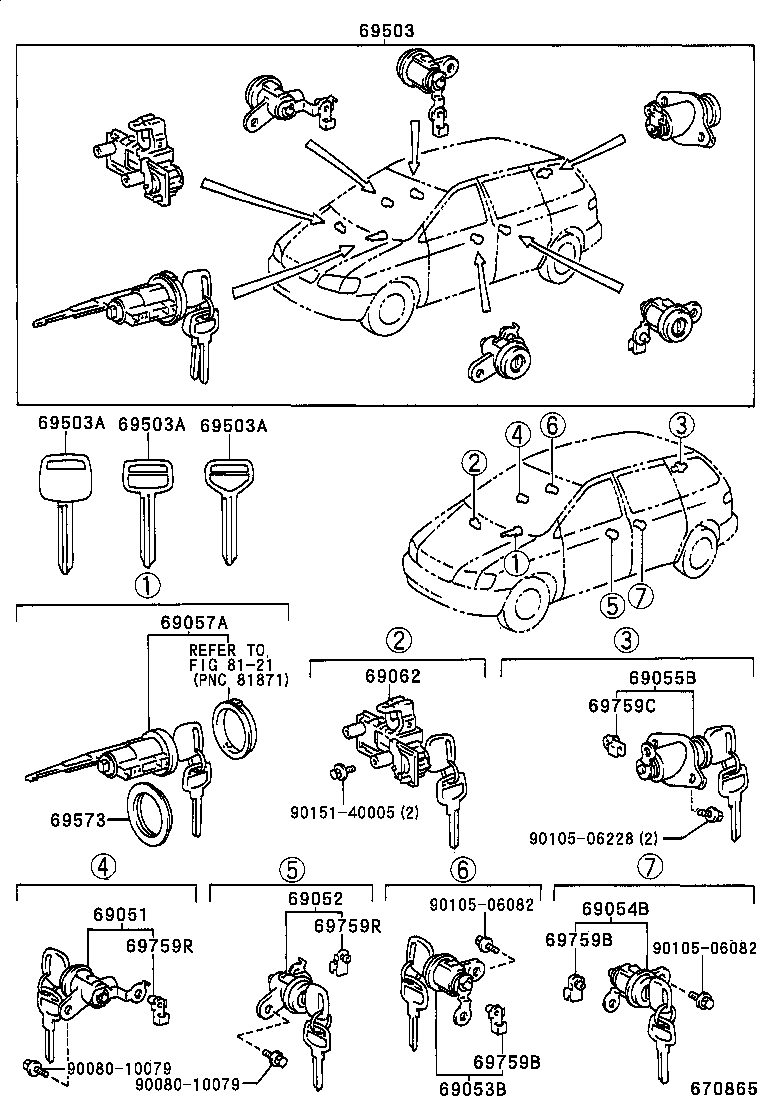

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-45010 |
MCL10 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-45010 |
MCL10 |
1 | ||
| 69053B - CYLINDER & KEY SET, SLIDE DOOR LOCK, RH | ||||
| 69053-45010 |
MCL10..CE |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-45010 |
MCL10..CE |
1 | ||
| 69055-45020 |
MCL10..WG W(SECURITY SYSTEM) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-45010 |
MCL10 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-45010 |
MCL10 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-45010 |
MCL10..4D..CE |
1 | ||
| 69005-45030 |
MCL10..WG..CE W(POWER WINDOW) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
MCL10 SUB KEY |
1 | ||
| 90999-00186 |
MCL10 MASTER KEY |
1 | ||
| 90999-00185 |
MCL10 MASTER KEY,W(*68) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
MCL10 SUB KEY |
1 | ||
| 90999-00186 |
MCL10 MASTER KEY |
1 | ||
| 90999-00185 |
MCL10 MASTER KEY,W(*68) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
MCL10 SUB KEY |
1 | ||
| 90999-00186 |
MCL10 MASTER KEY |
1 | ||
| 90999-00185 |
MCL10 MASTER KEY,W(*68) |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12030 |
MCL10 |
1 | ||
| 69573-45020 |
MCL10 W(POWER WINDOW) |
1 | ||
| 69759B - SNAP, REAR DOOR LOCK CYLINDER | ||||
| 69759-22080 |
MCL10..4D..CE |
1 | ||
| 69759B - SNAP, REAR DOOR LOCK CYLINDER | ||||
| 69759-22080 |
MCL10..4D..CE |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24090 |
MCL10 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-45010 |
MCL10 RH |
1 | ||
| 69759-45020 |
MCL10 LH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-45010 |
MCL10 RH |
1 | ||
| 69759-45020 |
MCL10 LH |
1 | ||
| Common parts | ||||
| 90080-10079 | ||||
| 90105-06082 | ||||
| 90105-06228 | ||||
| 90151-40005 | ||||
| Linked diagrams | ||||
| 8121 | ||||
