MCL10L-GFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Aug 2000
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

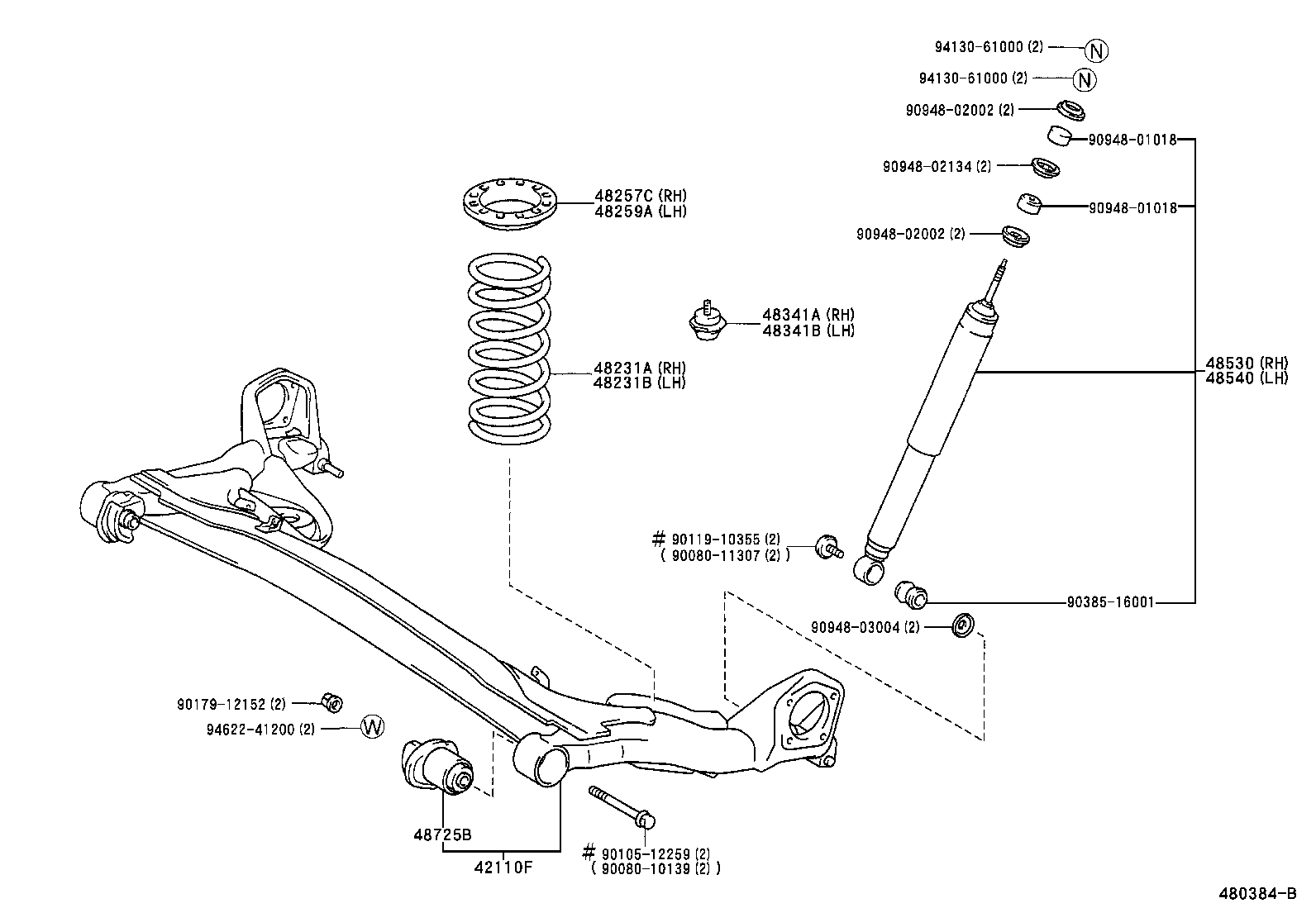

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-08010 |
MCL10 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-AE020 |
MCL10..WG..4D |
1 | ||
| 48231-AE021 |
MCL10..WG..4D |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-AE020 |
MCL10..WG..4D |
1 | ||
| 48231-AE021 |
MCL10..WG..4D |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-08010 |
MCL10 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-08010 |
MCL10 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-08020 |
MCL10 |
1 | ||
| 48341-08010 |
MCL10 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-08020 |
MCL10 |
1 | ||
| 48341-08010 |
MCL10 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-A9014 |
MCL10 MARK 48531-AE014 |
1 | ||
| 48531-A9013 |
MCL10 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-A9013 |
MCL10 |
1 | ||
| 48531-A9014 |
MCL10 MARK 48531-AE014 |
1 | ||
| 48725B - BUSH, REAR SUSPENSION ARM, NO.1 | ||||
| 48725-08010 |
MCL10 |
2 | ||
| Common parts | ||||
| 90080-10139 | ||||
| 90080-11307 | ||||
| 90105-12259 | ||||
| 90119-10355 | ||||
| 90179-12152 | ||||
| 90385-16001 | ||||
| 90948-01018 | ||||
| 90948-02002 | ||||
| 90948-02134 | ||||
| 90948-03004 | ||||
| 94130-61000 | ||||
| 94622-41200 | ||||
