MCL10L-GFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Aug 2000
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0207)

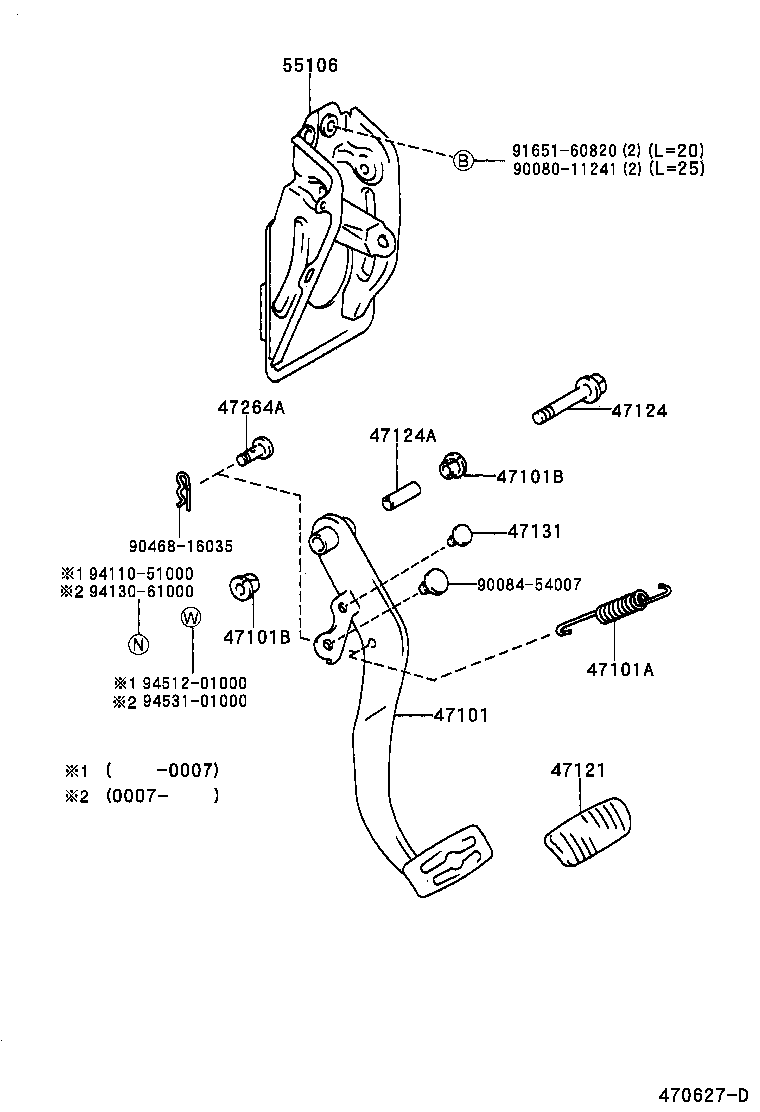

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-AE010 |
MCL10 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90084-50019 |
MCL10 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
MCL10 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
MCL10 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-AC010 |
MCL10 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 91121-51070 |
MCL10 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10004 |
MCL10 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
MCL10 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
MCL10 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-45010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11241 | ||||
| 90084-54007 | ||||
| 90468-16035 | ||||
| 91651-60820 | ||||
| 94110-51000 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
