MCL10L-GFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Aug 2000
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

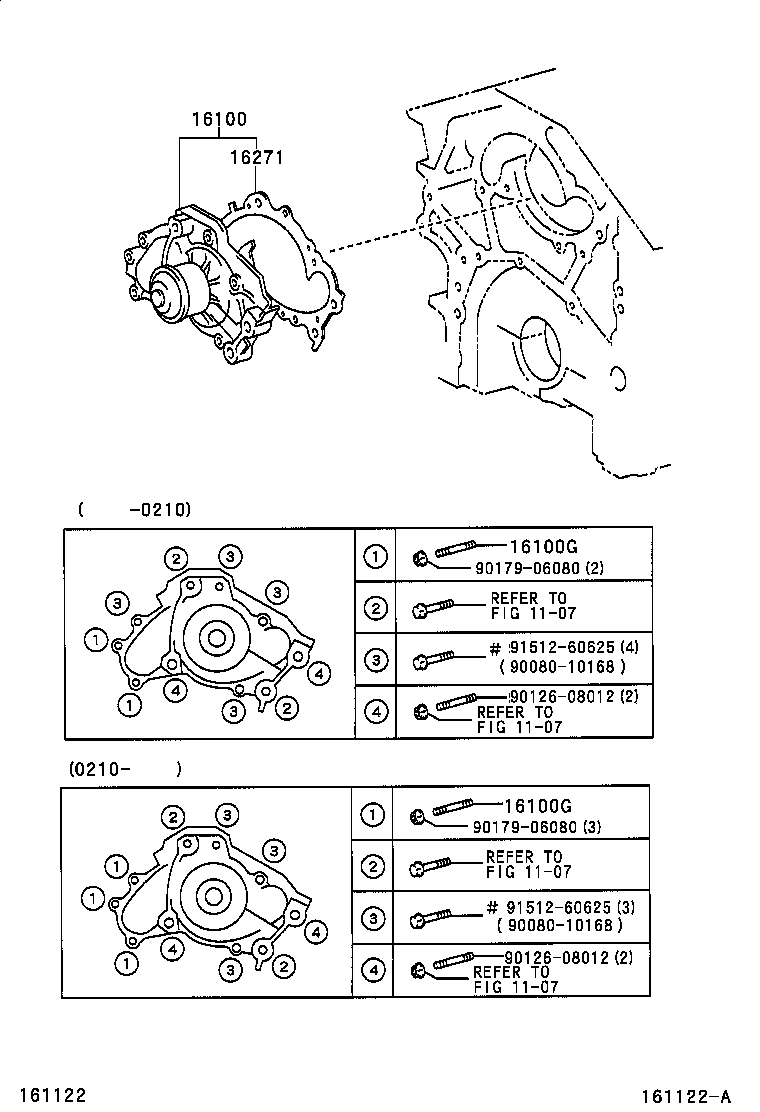

Click highlighted areas on diagram

diagram 1107 1107 1107 1107 16100 16100G 16100G 16271 9008010168 9008010168 9012608012 9012608012 9017906080 9017906080 9151260625 9151260625
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09070

1MZFE..MCL10

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-06144

1MZFE..MCL10

 2
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-06144

1MZFE..MCL10

 2
16271 - GASKET, WATER PUMP
16271-20020

1MZFE..MCL10

 1
Common parts
90080-10168
90126-08012
90179-06080
91512-60625
Linked diagrams
1107
