GSL35L-PFZSHA (2018)

Toyota Sienna

Production Aug 2018 - Sep 2020
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1001- )

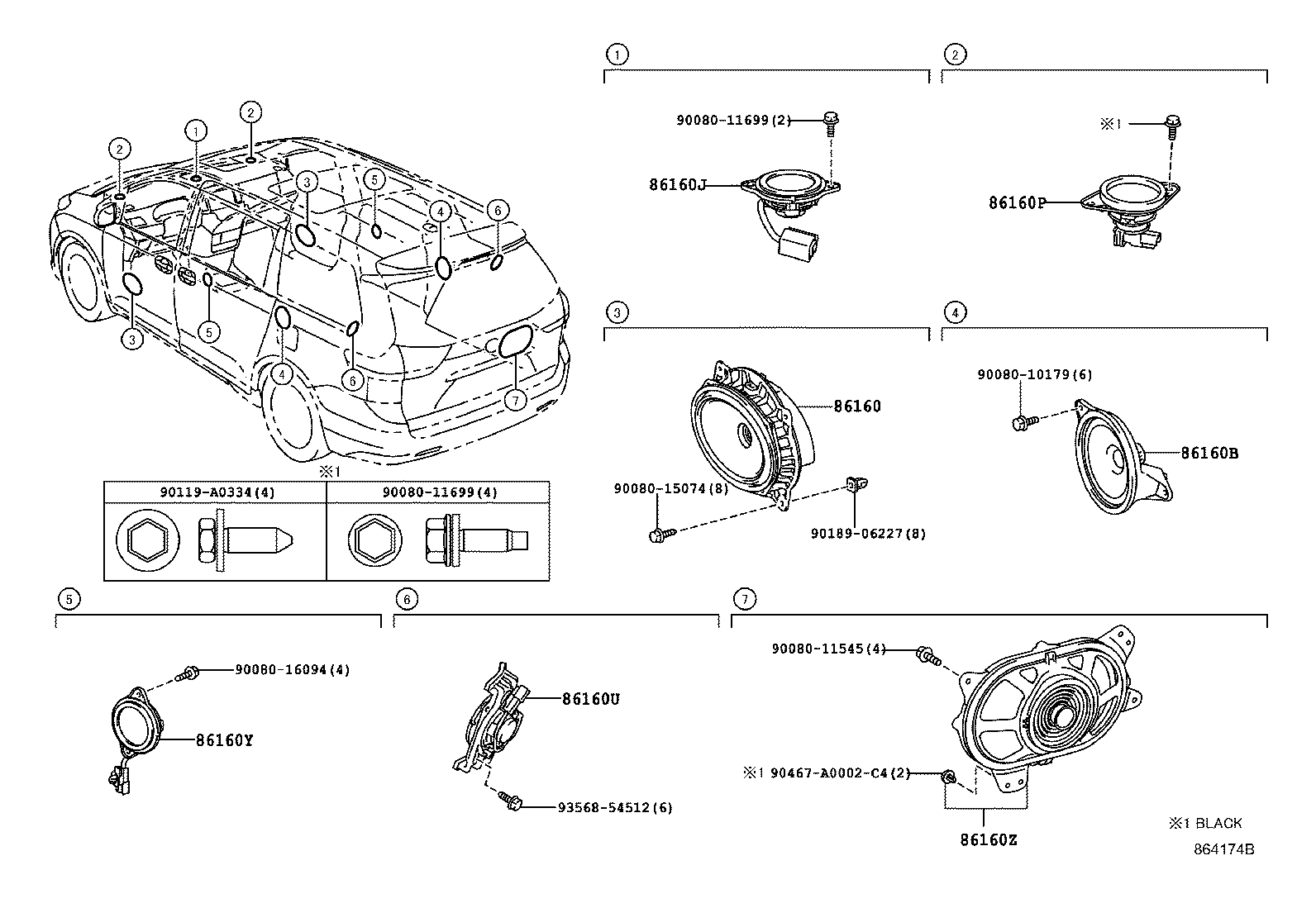

Click highlighted areas on diagram

diagram 86160 86160B 86160J 86160P 86160U 86160Y 86160Z 9008010179 9008011545 9008011699 9008011699 9008015074 9008016094 90119A0334 9018906227 90467A0002C4 9356854512
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-0T010

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-0C070

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WF61

GSL30,35..LE,SE,XLE

 2
86160-08220

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON,RH

 1
86160-08210

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON,LH

 1
86160U - SPEAKER ASSY, QUARTER SIDE
86160-08190

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON,LH

 1
86160-08200

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON,RH

 1
86160Y - SPEAKER ASSY, REAR NO.2
86160-08150

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON

 2
86160Z - SPEAKER ASSY, REAR NO.3
86160-08160

GSL30,35..SE

STARTING SYSTEM-PUSH BUTTON

 1
Common parts
90080-10179
90080-11545
90080-11699
90080-15074
90080-16094
90119-A0334
90189-06227
90467-A0002C4
93568-54512
