Toyota Sienna GSL35 WIRING & CLAMP

GSL35L-PFZSHA (2018)

Toyota Sienna

Production Aug 2018 - Sep 2020

Engine 2GRFKS

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF14(1001- )

Click highlighted areas on diagram

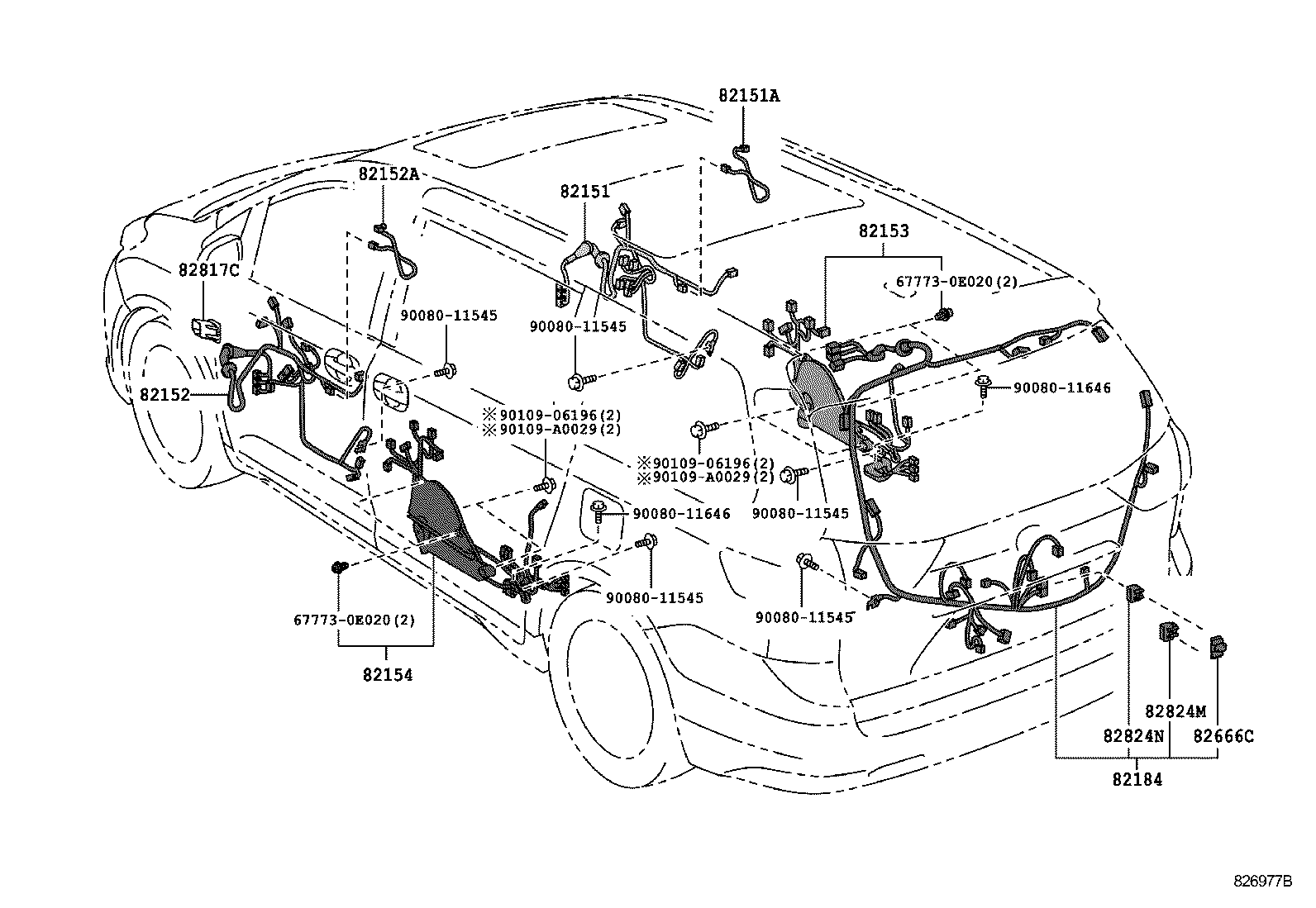

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-08110	ASL30,GSL30,35..LE,SE	01/2010 - 08/2012	1
82151-08251	GSL35..LE,SE;GSL30..08S..(LE,SE) STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
82151-08271	GSL30,35..LE,SE	08/2018 - 09/2020	1
82152 - WIRE, FRONT DOOR, LH
82152-08150	ASL30,GSL30,35..LE,SE	01/2010 - 08/2012	1
82152-08291	GSL35..LE,SE;GSL30..08S..(LE,SE) STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
82152-08301	GSL30,35..LE,SE	08/2018 - 09/2020	1
82153 - WIRE, REAR DOOR, NO.1
82053-08050	GSL30,35..LE,SE,XLE	01/2010 - 09/2014	1
82153-08121	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	12/2018 - 09/2020	1
82153-08041	GSL30,35..LE,SE	12/2018 - 09/2020	1
82053-08121	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 12/2018	1
82154 - WIRE, REAR DOOR, NO.2
82054-08070	GSL30,35..LE,SE,XLE	01/2010 - 09/2014	1
82154-08051	GSL30,35..LE,SE	12/2018 - 09/2020	1
82054-08131	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 12/2018	1
82154-08131	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	12/2018 - 09/2020	1
82184 - WIRE, BACK DOOR, NO.1
82184-08190	GSL30,35..LE,SE	01/2010 - 09/2014	1
82184-08461	GSL30,35..SE BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR)	08/2018 - 09/2020	1
82184-08590	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(WIDE ANGLE BACK MONITOR)	08/2018 - 09/2020	1
82184-08580	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
Common parts
67773-0E020
90080-11545
90080-11646
90109-06196
90109-A0029

ILLUST NO. 6 OF14(1001- )

Click highlighted areas on diagram

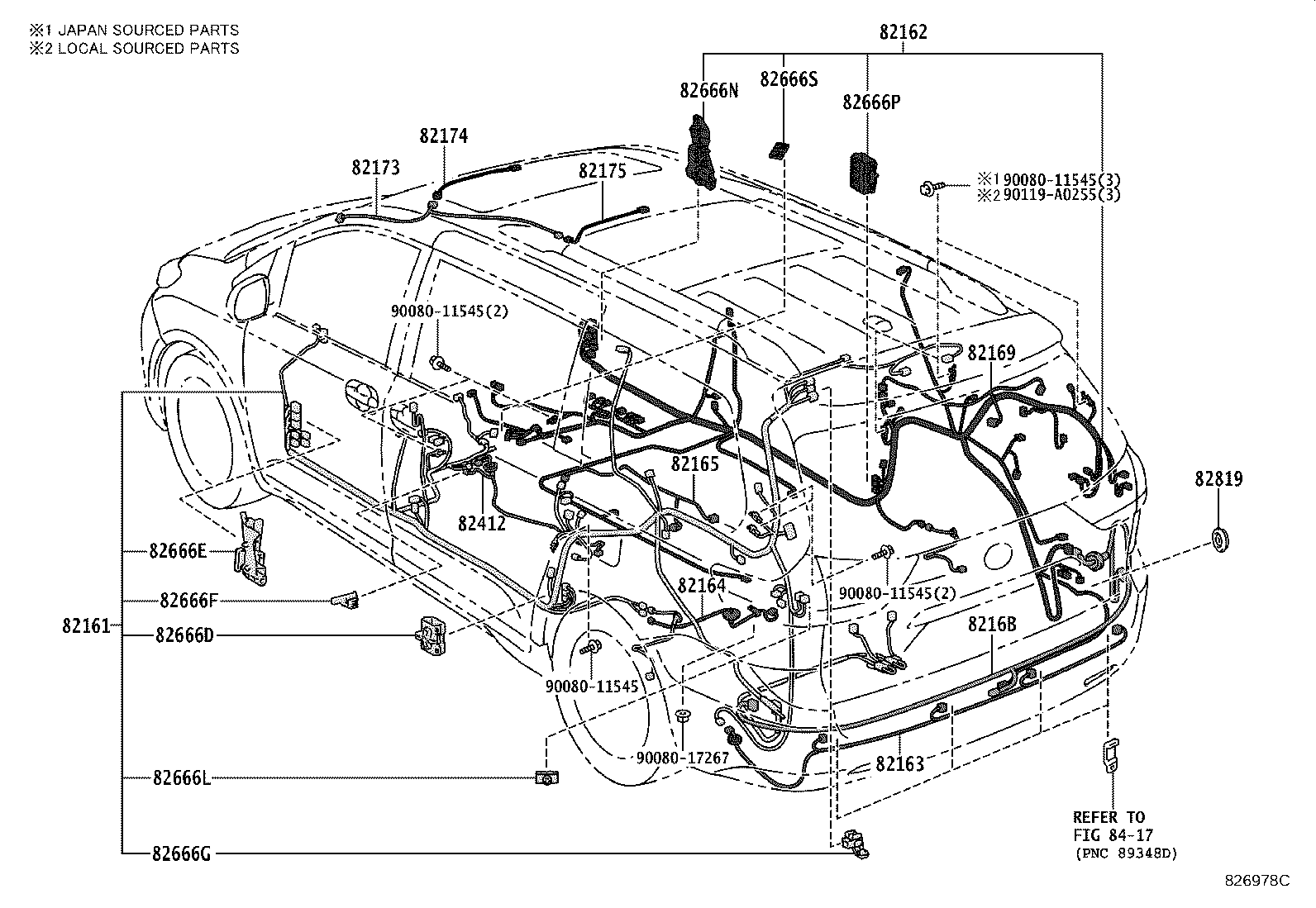

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-08C81	GSL35..SE	08/2018 - 09/2020	1
82162 - WIRE, FLOOR, NO.2
82162-08B01	GSL30,35..SE LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	08/2018 - 09/2020	1
82162-08E10	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	08/2018 - 09/2020	1
82162-08E10	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
82162-08A41	GSL30,35..SE	08/2018 - 09/2020	1
82163 - WIRE, FLOOR, NO.3
82163-08070	GSL30,35..SE CLEARANCE & BACK SONAR-WITH(REAR ONLY)	08/2018 - 09/2020	1
82165 - WIRE, FRAME, NO.2
82165-08060	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
82165-08070	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON&TELEVISION & DVD PLAYER-WITH	08/2018 - 09/2020	1
82169 - WIRE FRAME, NO.3
82169-08030	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
82169-08020	GSL30,35..SE STARTING SYSTEM-PUSH BUTTON&TELEVISION & DVD PLAYER-WITH	08/2018 - 09/2020	1
8216B - WIRE, FLOOR NO.8
8216B-08070	GSL35..LE,SE;GSL30..08S..(LE,SE) STARTING SYSTEM-PUSH BUTTON&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	08/2018 - 09/2020	1
8216B-08080	GSL35..LE,SE;GSL30..08S..(LE,SE) STARTING SYSTEM-PUSH BUTTON	08/2018 - 09/2020	1
8216B-08090	GSL35..LE,SE;GSL30..08S..(LE,SE) LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)	08/2018 - 09/2020	1
82173 - WIRE, ROOF, NO.3
82173-08040	GSL30,35..LE,SE MOON ROOF-WITH(FRONT ONLY)	01/2010 - 09/2014	1
82174 - WIRE, ROOF, NO.4
82174-08030	GSL30,35..LE,SE MOON ROOF-WITH(FRONT ONLY)	01/2010 - 09/2014	1
82412 - WIRE, FUEL GAGE
82412-08071	GSL3#	08/2018 - 09/2020	1
82819 - GROMMET, WIRING HARNESS
82819-28640	ASL30,GSL33;GSL30,35..SE,STD,XLE	01/2010 - 08/2012	1
Common parts
90080-11545
90080-17267
90119-A0255
Linked diagrams
8417

ILLUST NO. 7 OF14(1001- )

Click highlighted areas on diagram

FRONT SEAT

Part #	Description	Period	Qty
82192 - WIRE, FRONT SEAT, LH
82192-08050	GSL30,35..LE,SE	01/2010 - 09/2014	1
8219B - WIRE, FRONT SEAT, LH NO.2
8219B-08010	GSL30,35..LE,SE,XLE	01/2010 - 09/2014	1

ILLUST NO.12 OF14(1001- )

Click highlighted areas on diagram

CONNECTOR 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10795
90980-10906
90980-10908
90980-11016
90980-11020
90980-11148
90980-11149
90980-11156
90980-11162
90980-11292
90980-11349
90980-11659
90980-11950
90980-AA017

ILLUST NO.13 OF14(1001- )

Click highlighted areas on diagram

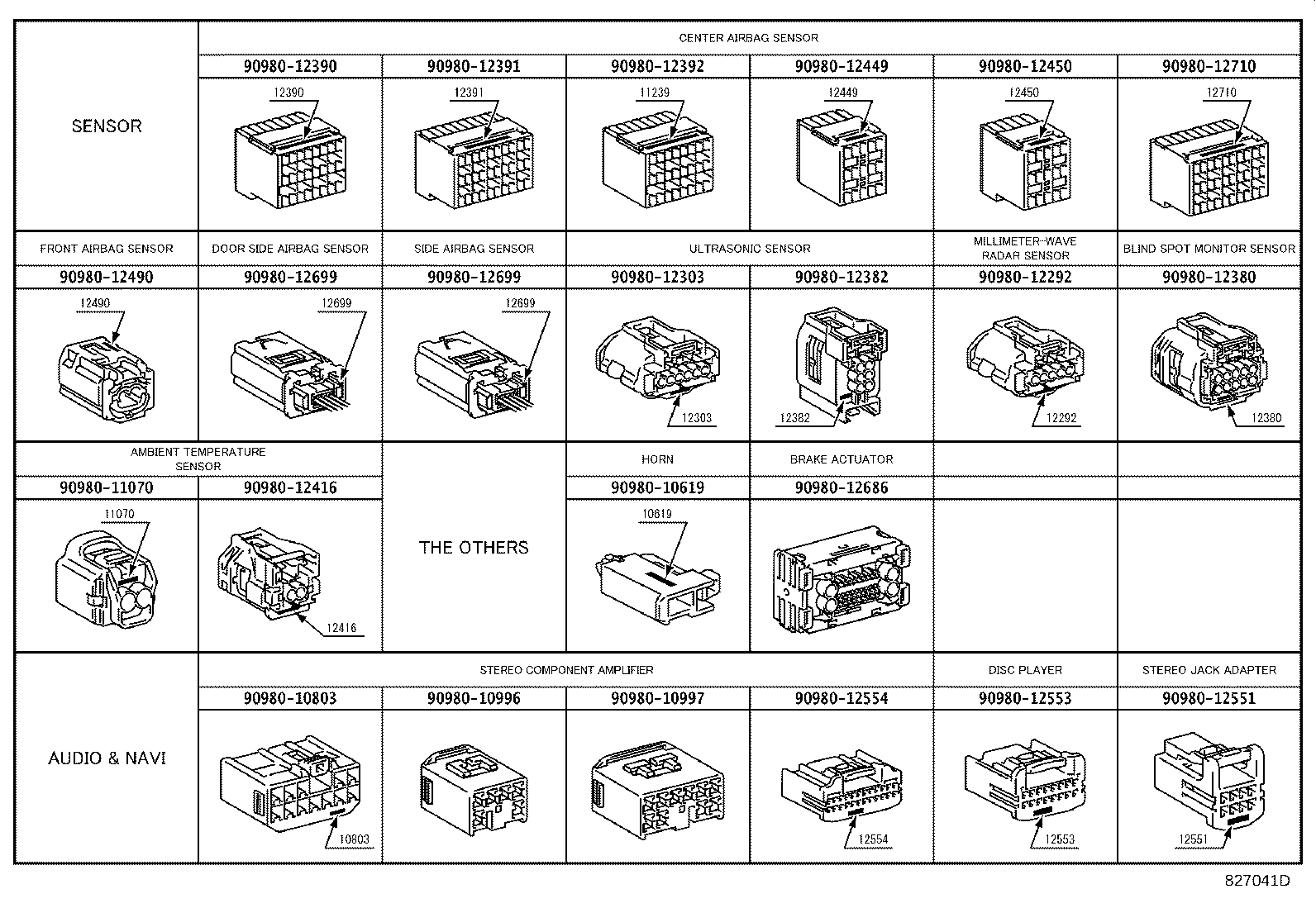

CONNECTOR 2/3

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10803
90980-10996
90980-10997
90980-11070
90980-12292
90980-12303
90980-12380
90980-12382
90980-12390
90980-12391
90980-12392
90980-12416
90980-12449
90980-12450
90980-12490
90980-12551
90980-12553
90980-12554
90980-12686
90980-12699
90980-12710

ILLUST NO. 4 OF14(1001- )

Click highlighted areas on diagram

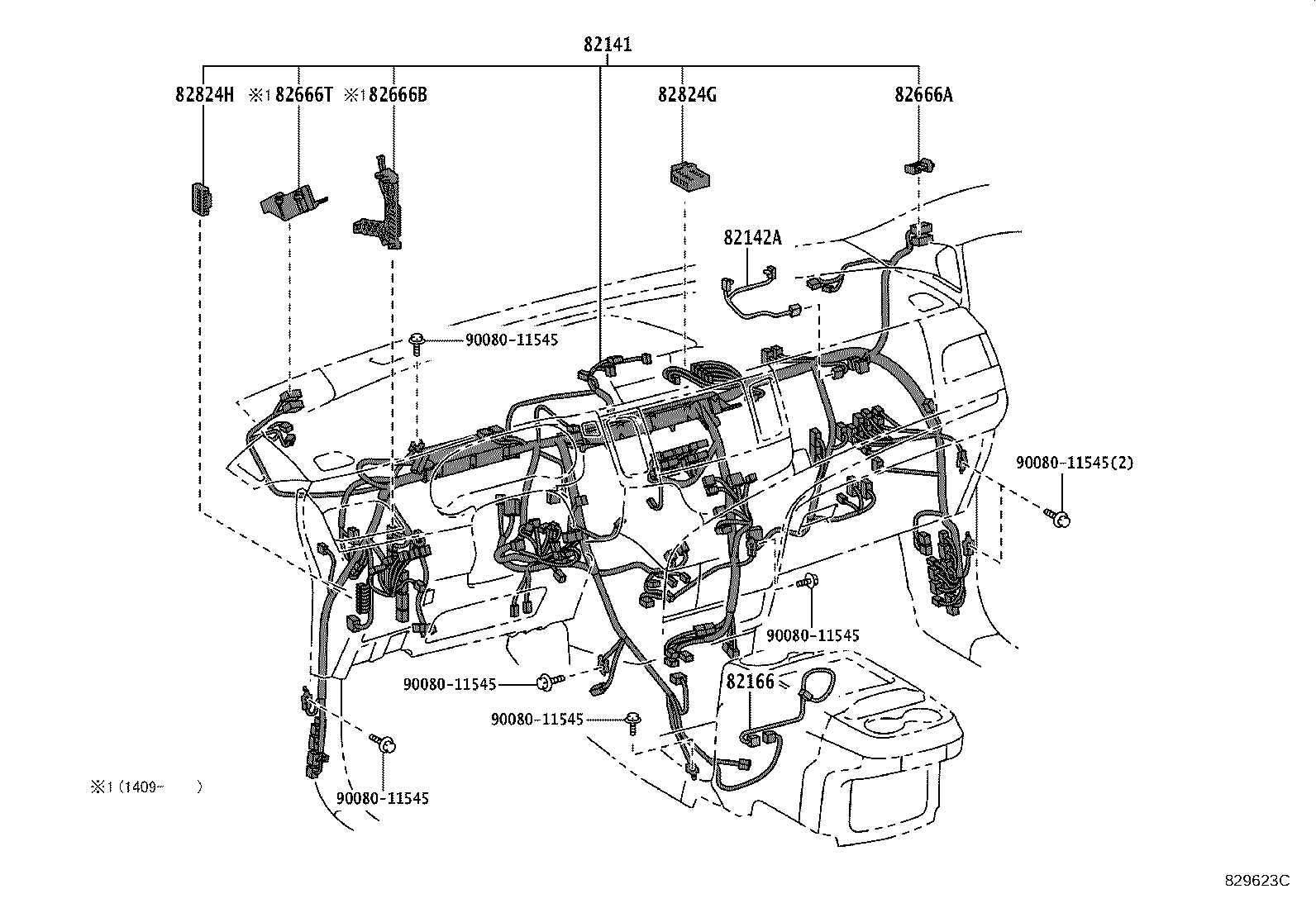

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-08850	GSL30,35..LE,SE MAYDAY SYSTEM-WITH(AIR BAG BEACON)	01/2010 - 09/2011	1
82141-08850	GSL30,35..LE,SE	01/2010 - 09/2011	1
82141-08K81	GSL30,35..LE,SE	08/2018 - 04/2019	1
82141-08P20	GSL35..SE STARTING SYSTEM-PUSH BUTTON	08/2018 - 04/2019	1
82141-08K82	GSL30,35..LE,SE	04/2019 - 09/2020	1
82141-08P21	GSL35..SE STARTING SYSTEM-PUSH BUTTON	04/2019 - 09/2020	1
82166 - WIRE, CONSOLE BOX
82166-08030	GSL30,35..LE,SE FRONT CONSOLE BOX-FIXED(BLACK)	01/2010 - 09/2014	1
Common parts
90080-11545

ILLUST NO.14 OF14(1001- )

Click highlighted areas on diagram

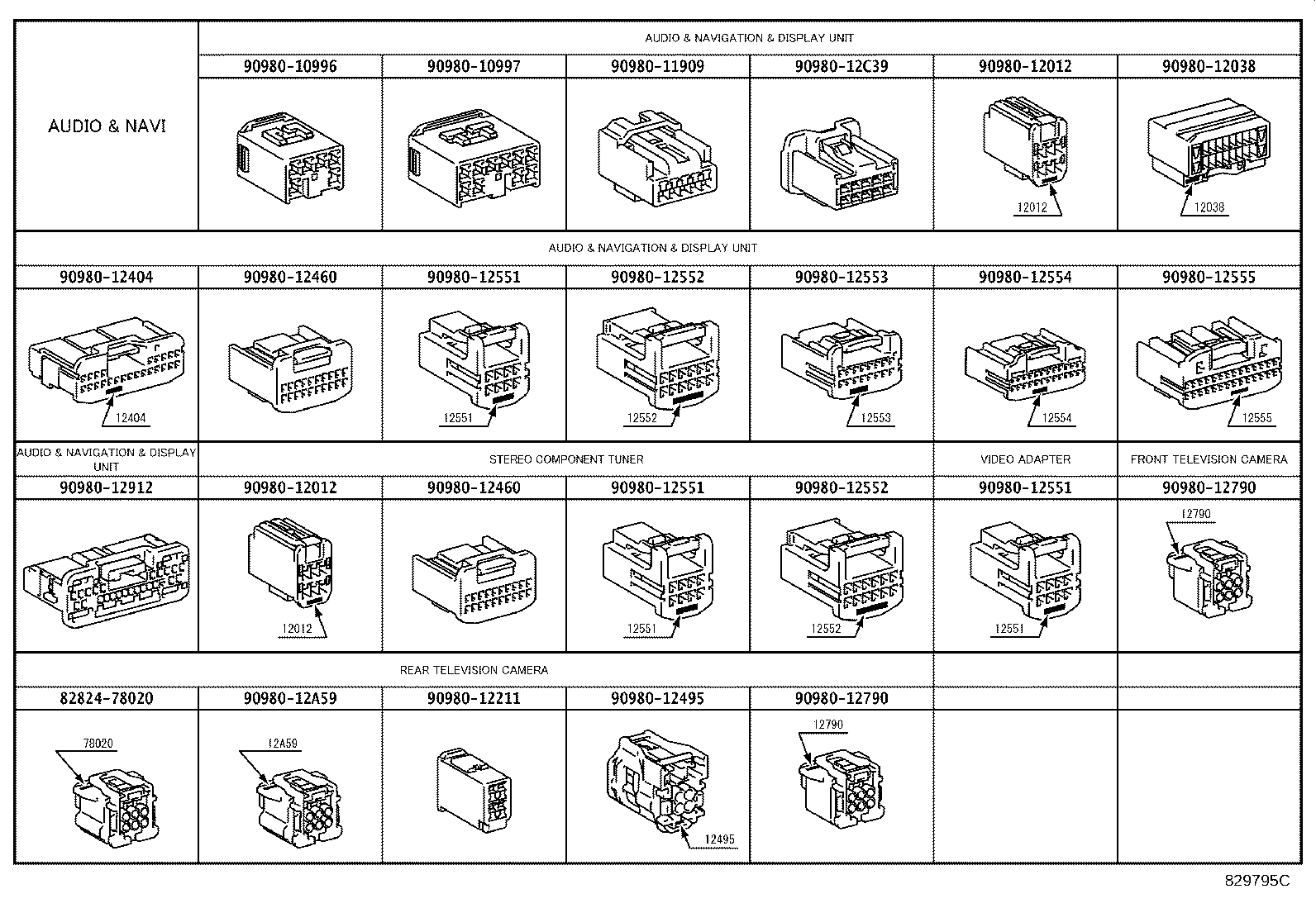

CONNECTOR 3/3

Part #	Description	Period	Qty	Price
Common parts
82824-78020
90980-10996
90980-10997
90980-11909
90980-12012
90980-12038
90980-12211
90980-12404
90980-12460
90980-12495
90980-12551
90980-12552
90980-12553
90980-12554
90980-12555
90980-12790
90980-12912
90980-12A59
90980-12C39
