GSL35L-PFZSHA (2018)

Toyota Sienna

Production Aug 2018 - Sep 2020
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

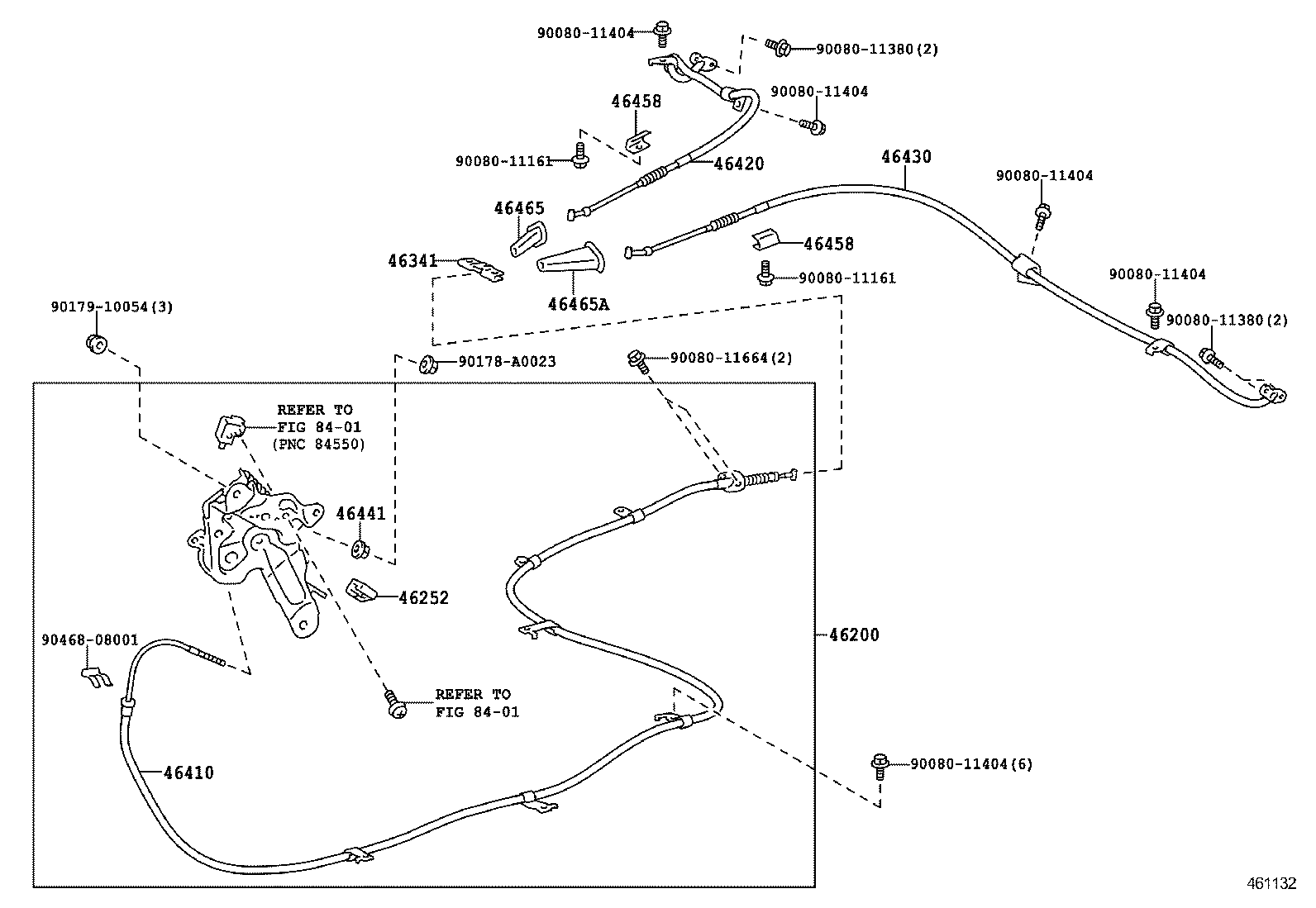

ILLUST NO. 1 OF 2(1001- )

Click highlighted areas on diagram

diagram 46200 46252 46341 46410 46420 46430 46441 46458 46458 46465 46465A 8401 8401 9008011161 9008011161 9008011380 9008011380 9008011404 9008011404 9008011404 9008011404 9008011404 9008011664 90178A0023 9017910054 9046808001
Part # Description Qty Price
Common parts
90080-11161
90080-11380
90080-11404
90080-11664
90178-A0023
90179-10054
90468-08001
Linked diagrams
8401

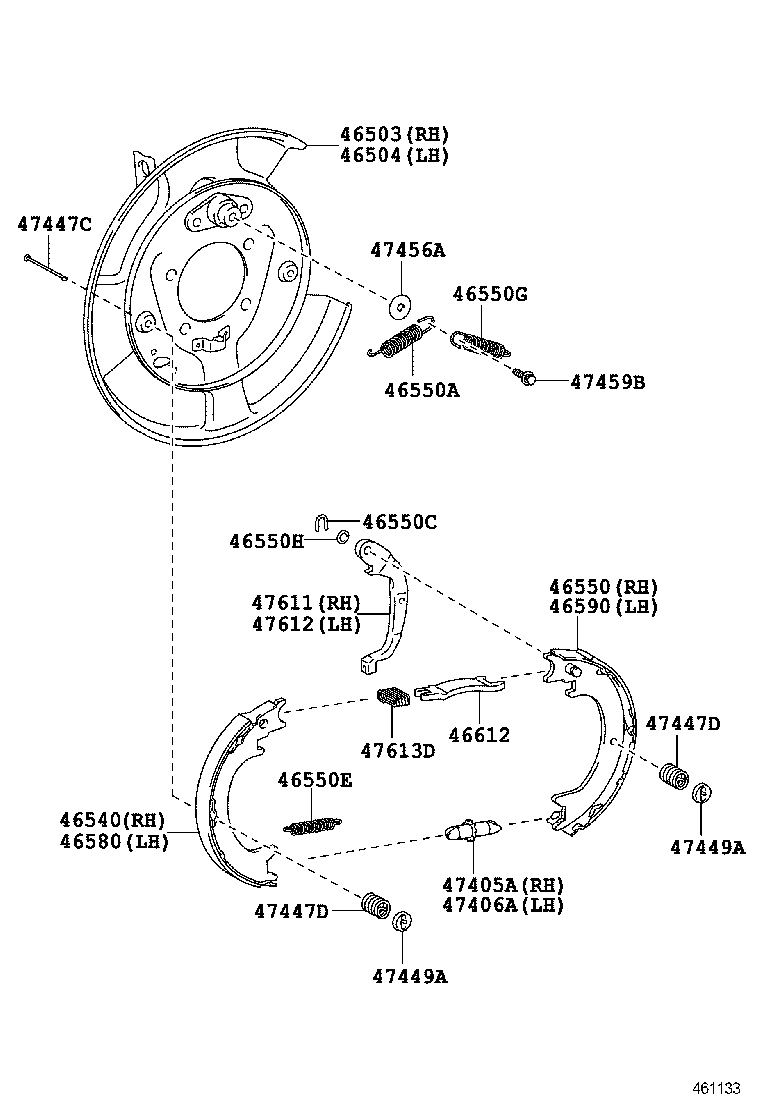

ILLUST NO. 2 OF 2(1001- )

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550C 46550E 46550G 46550H 46580 46590 46612 47405A 47406A 47447C 47447D 47447D 47449A 47449A 47456A 47459B 47611 47612 47613D
Part # Description Qty Price
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-48040

ASL30,GSL3#

 1
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-48040

ASL30,GSL3#

 1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-60010

GSL3#

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-60010

GSL3#

 1
