GSL35L-PFZSHA (2018)
Toyota Sienna
Production
Aug 2018
-
Sep 2020
Engine
2GRFKS
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

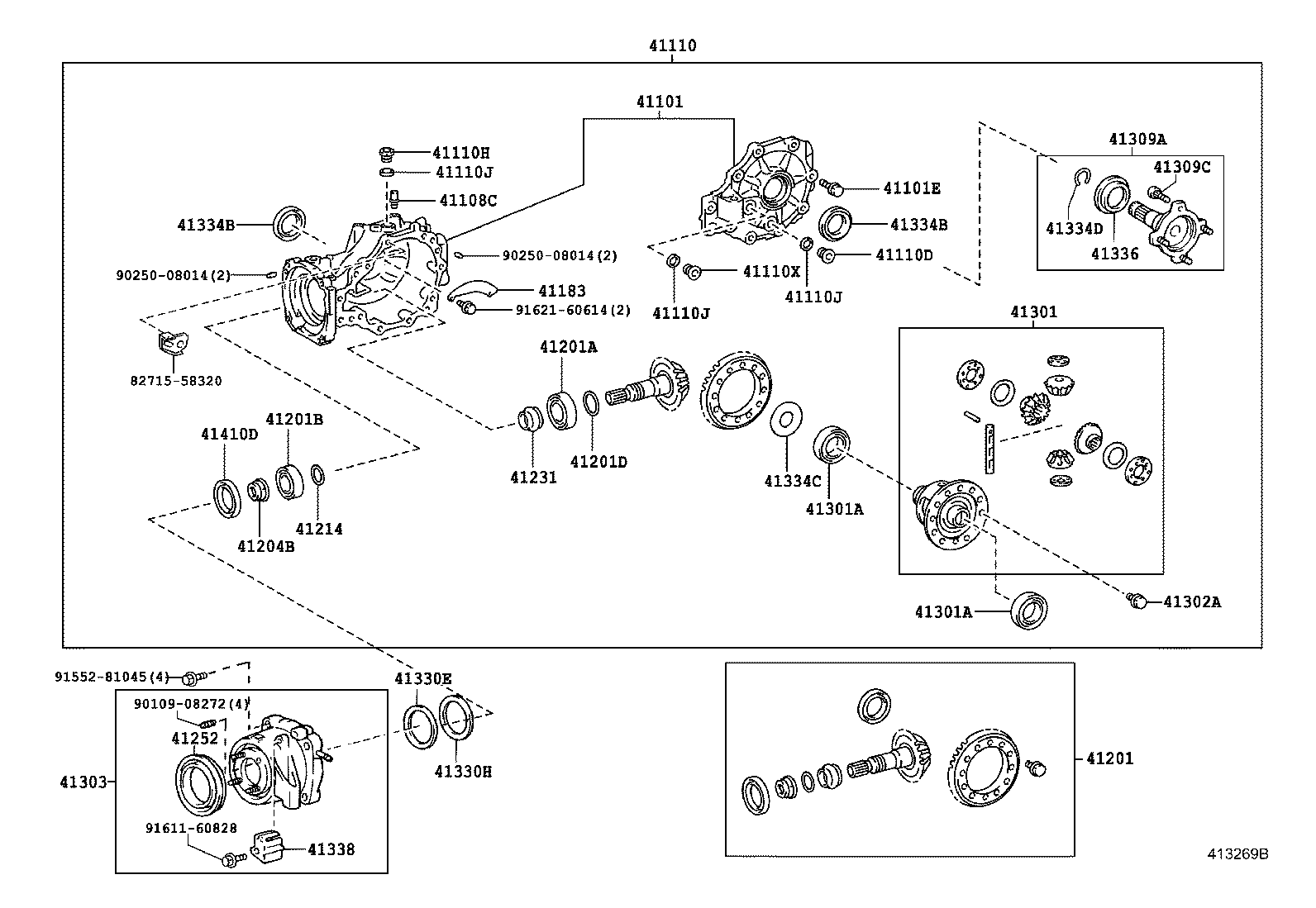

ILLUST NO. 1 OF 2(1001- )GSL35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-45020 |
GSL35 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-45010 |
GSL35 *FGR=41:18=2.277 |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18006 |
GSL35 |
1 | ||
| 41110X - PLUG (FOR DIFFERENTIAL INSPECTION) | ||||
| 90341-18069 |
GSL35 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-49166 |
GSL35 *FGR=41:18=2.277 |
1 | ||
| 41303 - COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL | ||||
| 41303-28011 |
GSL35 |
1 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-45010 |
GSL35 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-42044 |
GSL35 |
2 | ||
| 90311-42062 |
GSL35 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-42044 |
GSL35 |
2 | ||
| 90311-42062 |
GSL35 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-45010 |
GSL35 |
2 | ||
| Common parts | ||||
| 82715-58320 | ||||
| 90109-08272 | ||||
| 90250-08014 | ||||
| 91552-81045 | ||||
| 91611-60828 | ||||
| 91621-60614 | ||||

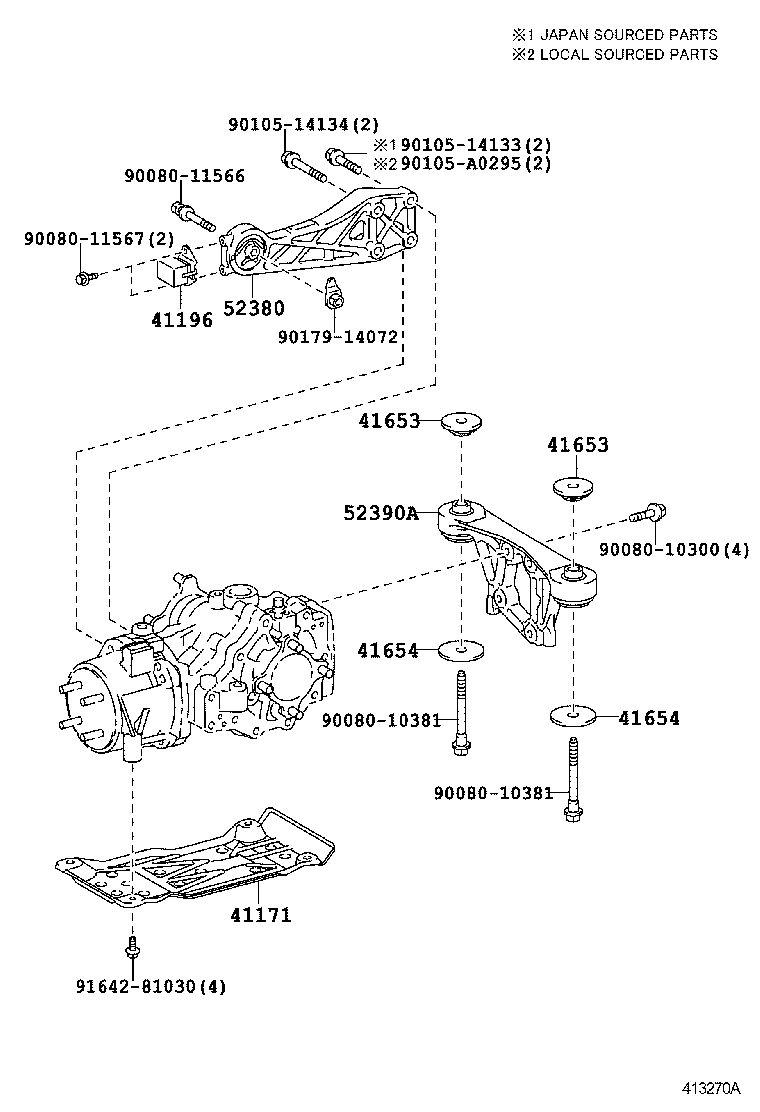

ILLUST NO. 2 OF 2(1001- )GSL35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41171 - PROTECTOR, DIFFERENTIAL, REAR | ||||
| 41171-28030 |
GSL35 |
1 | ||
| Common parts | ||||
| 90080-10300 | ||||
| 90080-10381 | ||||
| 90080-11566 | ||||
| 90080-11567 | ||||
| 90105-14133 | ||||
| 90105-14134 | ||||
| 90105-A0295 | ||||
| 90179-14072 | ||||
| 91642-81030 | ||||
