GSL35L-PFTQKA (2014)
Toyota Sienna

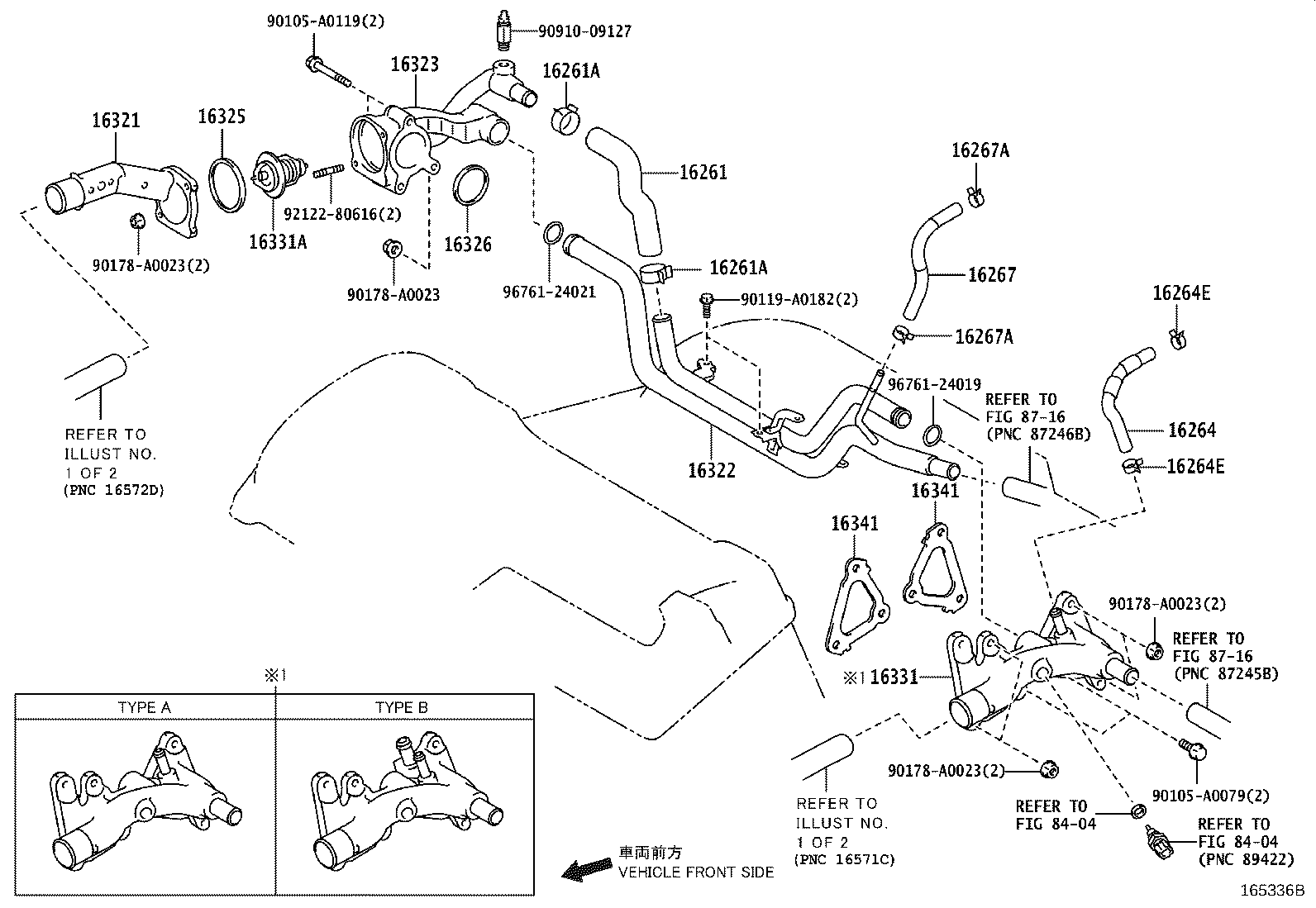

ILLUST NO. 2 OF 2(1001-1608)2GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0P030 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16261-0P030 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16261-0P030 |
2GRFE..GSL3# |
1 | ||
| 16261-0P030 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE (J) |
2 | ||
| 96136-42701 |
2GRFE..GSL3# (J) |
2 | ||
| 90466-A0015 |
2GRFE..GSL3# (L) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE (J) |
2 | ||
| 96136-42701 |
2GRFE..GSL3# (J) |
2 | ||
| 90466-A0015 |
2GRFE..GSL3# (L) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0P031 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16264-0P031 |
2GRFE..GSL3# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSL3# (J) |
2 | ||
| 90466-A0017 |
2GRFE..GSL3# (L) |
2 | ||
| 96137-41501 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2GRFE..GSL3# (J) |
2 | ||
| 90466-A0017 |
2GRFE..GSL3# (L) |
2 | ||
| 96137-41501 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0P020 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16267-0P020 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16267-0P020 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16267-0P020 |
2GRFE..GSL3# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSL3# (J) |
1 | ||
| 90466-A0017 |
2GRFE..GSL3# (L) |
1 | ||
| 96137-41501 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE (J) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96137-41501 |
2GRFE..GSL3# (J) |
1 | ||
| 90466-A0017 |
2GRFE..GSL3# (L) |
1 | ||
| 96137-41501 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE (J) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0P010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16321-0P010 |
2GRFE..GSL3# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-0P010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE (L) |
1 | ||
| 16322-31010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE (J) |
1 | ||
| 16322-0P010 |
2GRFE..GSL3# (L) |
1 | ||
| 16322-31010 |
2GRFE..GSL3# (J) |
1 | ||
| 16322-0P020 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16322-0P020 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0P030 |
2GRFE..GSL3# (L) |
1 | ||
| 16323-31040 |
2GRFE..GSL3# (J) |
1 | ||
| 16323-0P030 |
2GRFE..GSL3# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16325-62010 |
2GRFE..GSL3# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0P020 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16325-0P020 |
2GRFE..GSL3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31150 |
2GRFE..GSL30,35 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16331-31140 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16331-31140 |
2GRFE..GSL3# |
1 | ||
| 16331-31200 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS,TYPE B:REFER ILLUST. |
1 | ||
| 16331-31150 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS,TYPE A:REFER ILLUST. |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03140 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE *WAX 82-95,(J) |
1 | ||
| 90916-A3002 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE *WAX 82-95,(L) |
1 | ||
| 90916-A3002 |
2GRFE..GSL3# *WAX 82-95,(L) |
1 | ||
| 90916-03140 |
2GRFE..GSL3# *WAX 82-95,(J) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-AD010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16341-AD010 |
2GRFE..GSL3# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-AD010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16341-AD010 |
2GRFE..GSL3# |
2 | ||
| Common parts | ||||
| 90105-A0079 | ||||
| 90105-A0119 | ||||
| 90119-A0182 | ||||
| 90178-A0023 | ||||
| 90910-09127 | ||||
| 92122-80616 | ||||
| 96761-24019 | ||||
| 96761-24021 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||

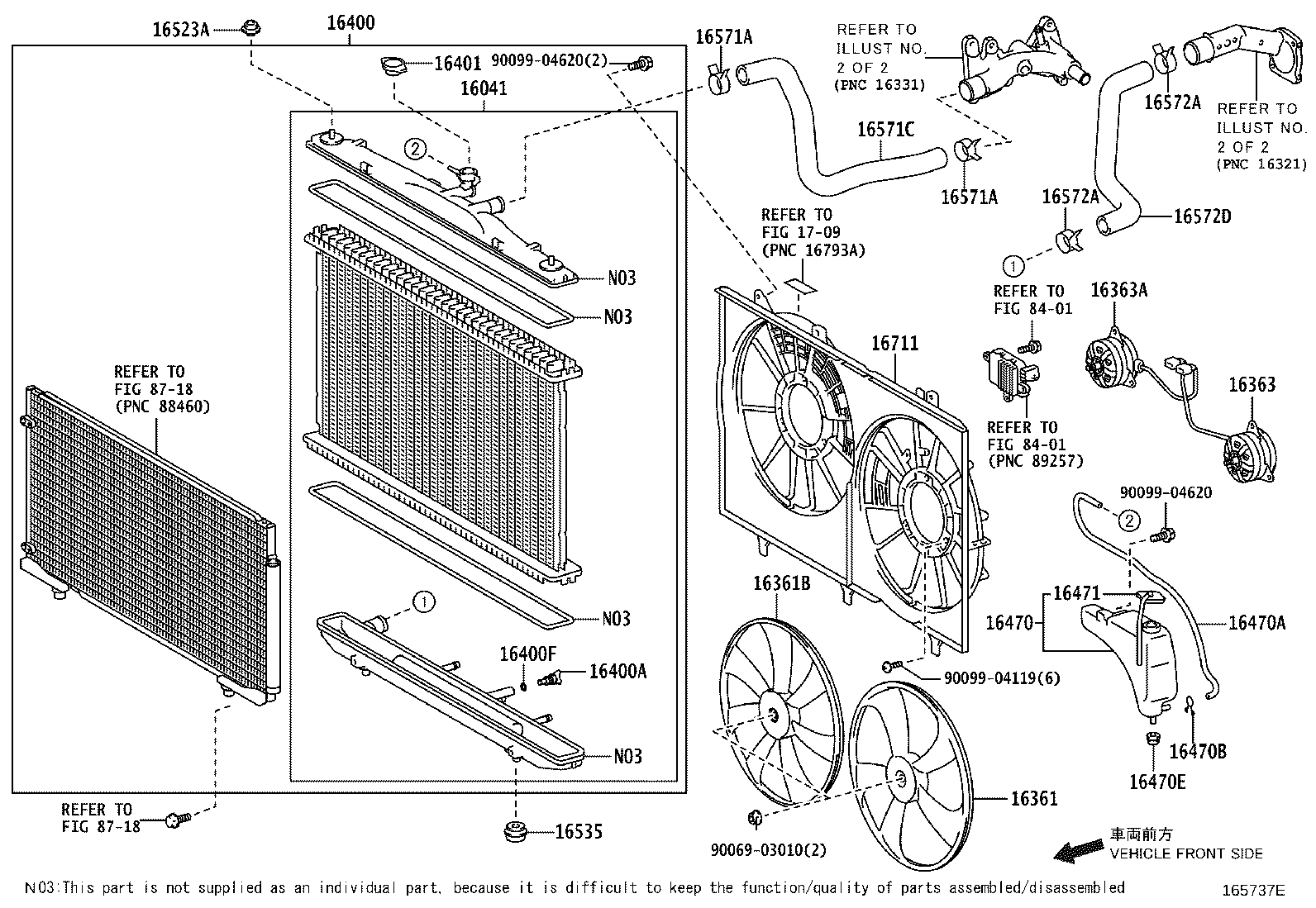

ILLUST NO. 1 OF 2(1409-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-0P270 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0P260 |
2GRFE..GSL3# |
1 | ||
| 16041-0P260 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16041-0P270 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361 - FAN | ||||
| 16361-0P150 |
2GRFE..GSL3# |
1 | ||
| 16361-0P170 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361-0P150 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16361-0P170 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0P160 |
2GRFE..GSL3# |
1 | ||
| 16361-0P160 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16361-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0P190 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0P190 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0P250 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16363-0P250 |
2GRFE..GSL3# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0P100 |
2GRFE..GSL3# |
1 | ||
| 16363-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0P100 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16363-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P300 |
2GRFE..GSL3# |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-21280 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16417-0C180 |
2GRFE..GSL3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSL3# |
1 | ||
| 16492-21050 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31480 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16401-31480 |
2GRFE..GSL3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0P040 |
2GRFE..GSL3# |
1 | ||
| 16470-0P040 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0P090 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16377-0P090 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16377-0P090 |
2GRFE..GSL3# |
1 | ||
| 16377-0P090 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 90068-35004 |
2GRFE..GSL3# |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-17028 |
2GRFE..GSL3# |
1 | ||
| 90480-17028 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P040 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16405-0P040 |
2GRFE..GSL3# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-AD010 |
2GRFE..GSL3# |
2 | ||
| 16523-AD010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSL3# |
2 | ||
| 16535-20030 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P230 |
2GRFE..GSL3# |
1 | ||
| 16571-0P230 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P240 |
2GRFE..GSL3# |
1 | ||
| 16572-0P240 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P150 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16711-0P150 |
2GRFE..GSL3# |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90099-04119 | ||||
| 90099-04620 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||

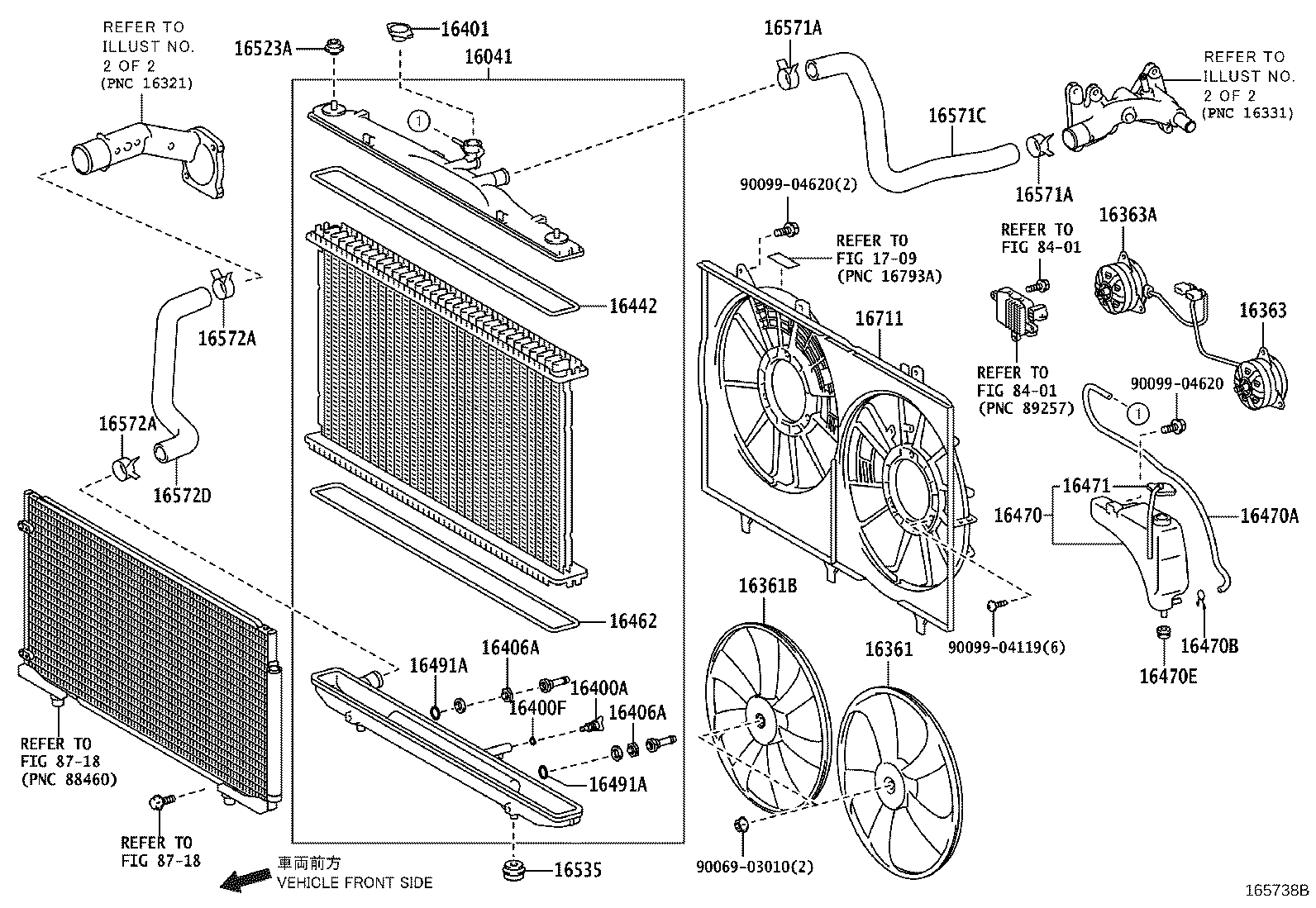

ILLUST NO. 1 OF 2(1409-1608)
W(TOWING PACKAGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16041 - RADIATOR ASSY, NO.2 | ||||
| 16041-0P270 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0P260 |
2GRFE..GSL3# |
1 | ||
| 16041-0P260 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16041-0P270 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361 - FAN | ||||
| 16361-0P150 |
2GRFE..GSL3# |
1 | ||
| 16361-0P170 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361-0P150 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16361-0P170 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0P160 |
2GRFE..GSL3# |
1 | ||
| 16361-0P160 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16361-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16361-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0P190 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0P190 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0P250 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16363-0P250 |
2GRFE..GSL3# |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0P100 |
2GRFE..GSL3# |
1 | ||
| 16363-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0P100 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16363-0P180 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-21280 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16417-0C180 |
2GRFE..GSL3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2GRFE..GSL3# |
1 | ||
| 16492-21050 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31480 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16401-31480 |
2GRFE..GSL3# |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-0A230 |
2GRFE..GSL3# |
2 | ||
| 16406-0A230 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-0A230 |
2GRFE..GSL3# |
2 | ||
| 16406-0A230 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-AD020 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-AD020 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0P040 |
2GRFE..GSL3# |
1 | ||
| 16470-0P040 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0P090 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16377-0P090 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16377-0P090 |
2GRFE..GSL3# |
1 | ||
| 16377-0P090 |
2GRFE..GSL30;2GRFE..GSL35..LE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 90068-35004 |
2GRFE..GSL3# |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-17028 |
2GRFE..GSL3# |
1 | ||
| 90480-17028 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P040 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16405-0P040 |
2GRFE..GSL3# |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-07120 |
2GRFE..GSL3# |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-07120 |
2GRFE..GSL3# |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-AD010 |
2GRFE..GSL3# |
2 | ||
| 16523-AD010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
2GRFE..GSL3# |
2 | ||
| 16535-20030 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P230 |
2GRFE..GSL3# |
1 | ||
| 16571-0P230 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90080-46344 |
2GRFE..GSL3# |
2 | ||
| 90466-A0020 |
2GRFE..GSL3# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P240 |
2GRFE..GSL3# |
1 | ||
| 16572-0P240 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P150 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 16711-0P150 |
2GRFE..GSL3# |
1 | ||
| Common parts | ||||
| 90069-03010 | ||||
| 90099-04119 | ||||
| 90099-04620 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
