GSL35L-PFTQKA (2014)

Toyota Sienna

Production Sep 2014 - Aug 2016
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1001-1608)2GRFE

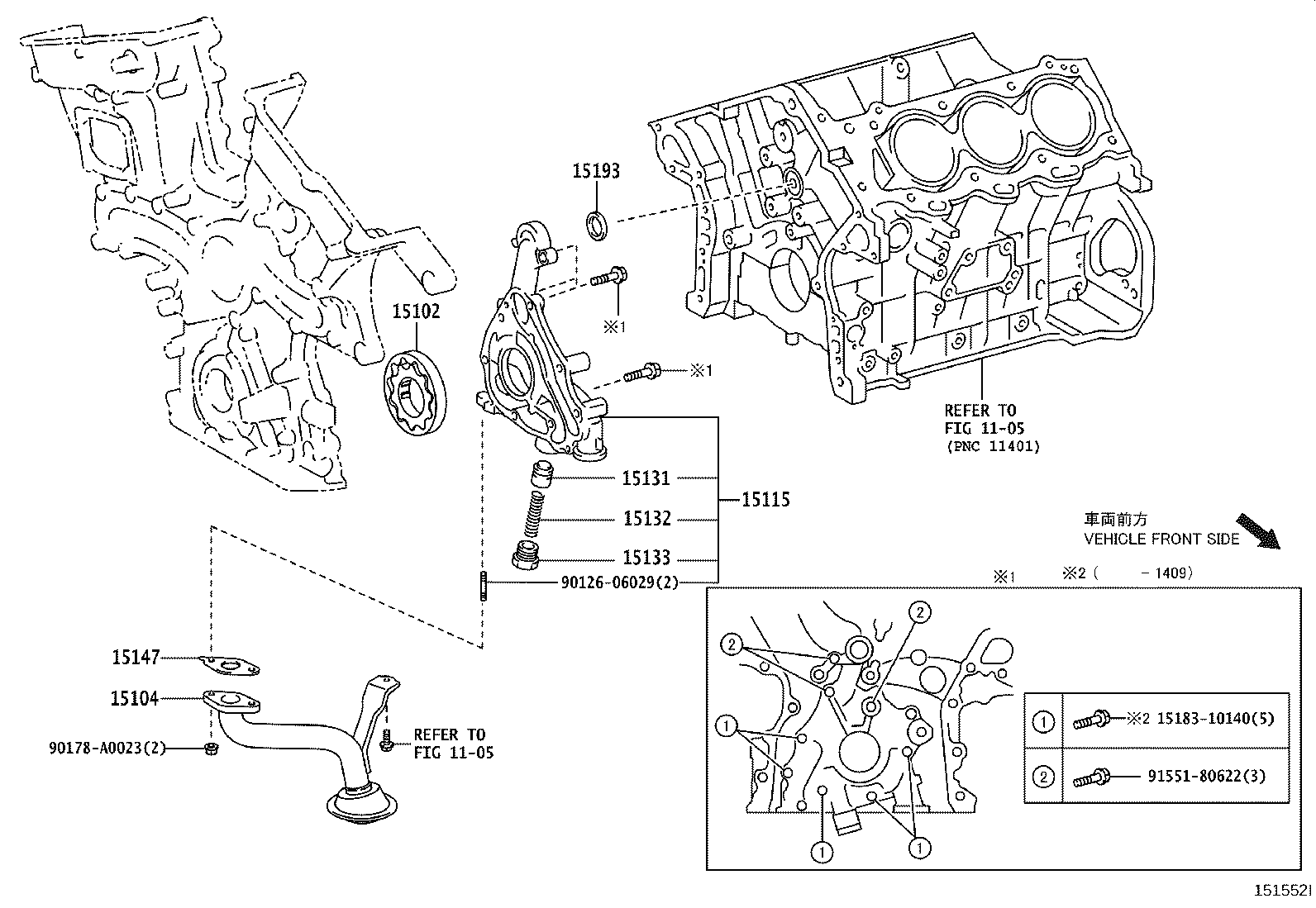

Click highlighted areas on diagram

diagram 1105 1105 15102 15104 15115 15131 15132 15133 15147 1518310140 15193 9012606029 90178A0023 9155180622
Part # Description Qty Price
15102 - ROTOR SET, OIL PUMP
15103-0P010

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

(L)

 1
15103-31050

2GRFE..GSL3#

(J)

 1
15103-0P010

2GRFE..GSL3#

(L)

 1
15104 - STRAINER SUB-ASSY, OIL
15104-31190

2GRFE..GSL3#

 1
15104-31120

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
15104-31120

2GRFE..GSL3#

 1
15115 - COVER, OIL PUMP
15115-0P030

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

(L)

 1
15115-31040

2GRFE..GSL3#

(J)

 1
15115-0P030

2GRFE..GSL3#

(L)

 1
15131 - VALVE, OIL PUMP RELIEF
15131-17010

2GRFE..GSL3#

 1
15131-17010

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-0A020

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

(L)

 1
15132-0A020

2GRFE..GSL3#

(L)

 1
15132-46020

2GRFE..GSL3#

(J)

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-28020

2GRFE..GSL3#

 1
15133-28020

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
15147 - GASKET, OIL STRAINER
15147-0P020

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
15147-0P020

2GRFE..GSL3#

 1
15193 - GASKET, OIL PUMP
15193-0P010

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
15193-0P010

2GRFE..GSL3#

 1
Common parts
15183-10140
90126-06029
90178-A0023
91551-80622
Linked diagrams
1105
