GSL35L-PFTQKA (2010)
Toyota Sienna

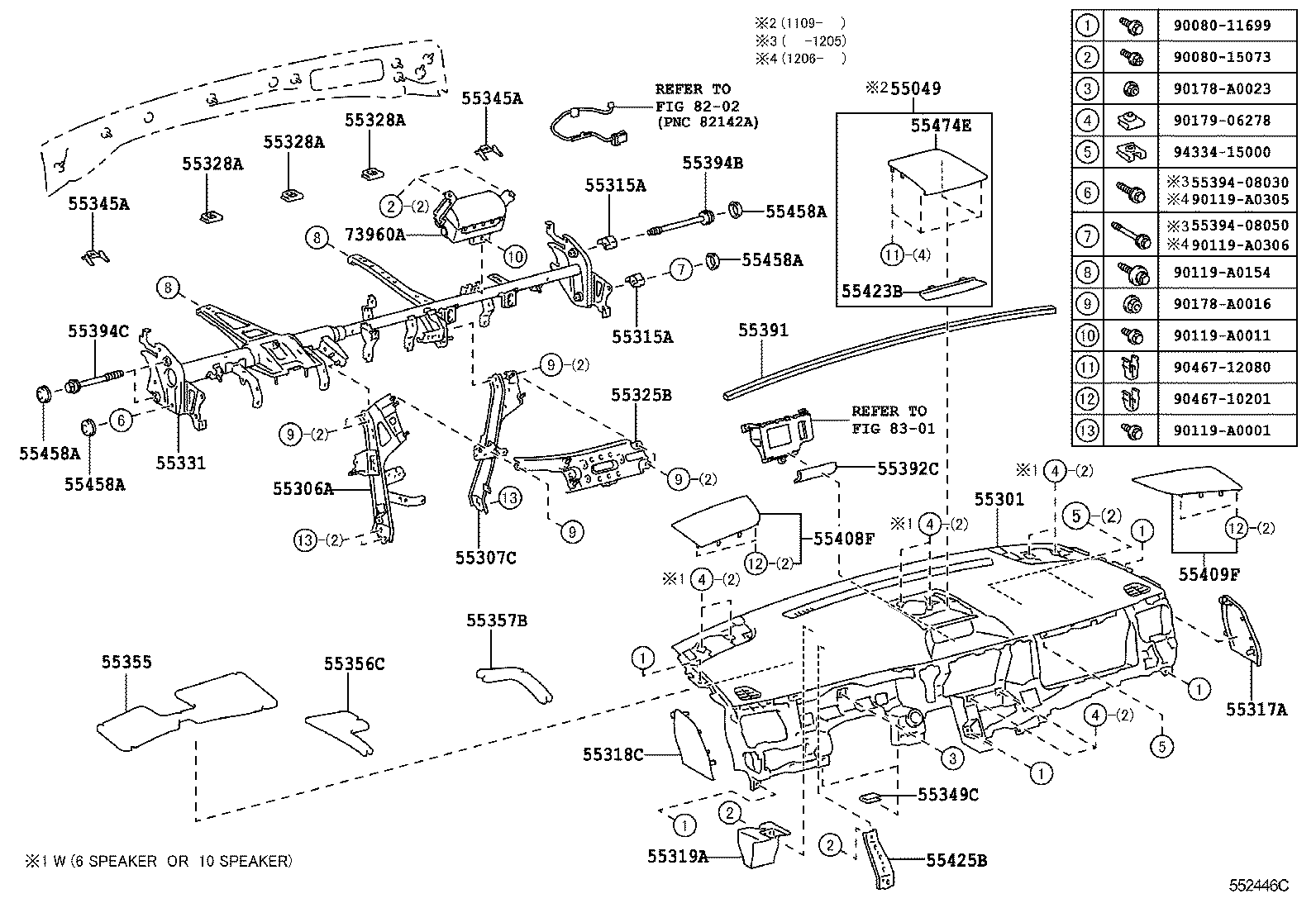

ILLUST NO. 1 OF 2(1001-1409)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55049 - PLATE SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55049-08011C0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-08031C0 |
ASL30,GSL3#..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55301-08032C0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55301-08030C0 |
ASL30,GSL3#..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55317-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55318-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55319A - EXTENSION, INSTRUMENT PANEL, NO.2 | ||||
| 55319-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-50170 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 55328-08090 |
GSL3# |
3 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-50170 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 55328-08090 |
GSL3# |
3 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-50170 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 55328-08090 |
GSL3# |
3 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-08030 |
ASL30,GSL3# |
1 | ||
| 55330-08031 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-0C020 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-0C020 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0C040 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55391-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55392C - CUSHION, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55391-08020 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 55391-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-08070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-08060 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-08010C0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-08010C0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-08010C0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 55425B - REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55425-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-45010 |
GSL30,33;GSL35..LE,XLE |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-45010 |
GSL30,33;GSL35..LE,XLE |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-45010 |
GSL30,33;GSL35..LE,XLE |
5 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-45010 |
GSL30,33;GSL35..LE,XLE |
5 | ||
| 55474E - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3 | ||||
| 55474-08010C0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE BLACK,TRIM1#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-08060 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 73960-08050 |
ASL30,GSL3# |
1 | ||
| Common parts | ||||
| 55394-08030 | ||||
| 55394-08050 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90119-A0001 | ||||
| 90119-A0011 | ||||
| 90119-A0154 | ||||
| 90119-A0305 | ||||
| 90119-A0306 | ||||
| 90178-A0016 | ||||
| 90178-A0023 | ||||
| 90179-06278 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 94334-15000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8301 | ||||

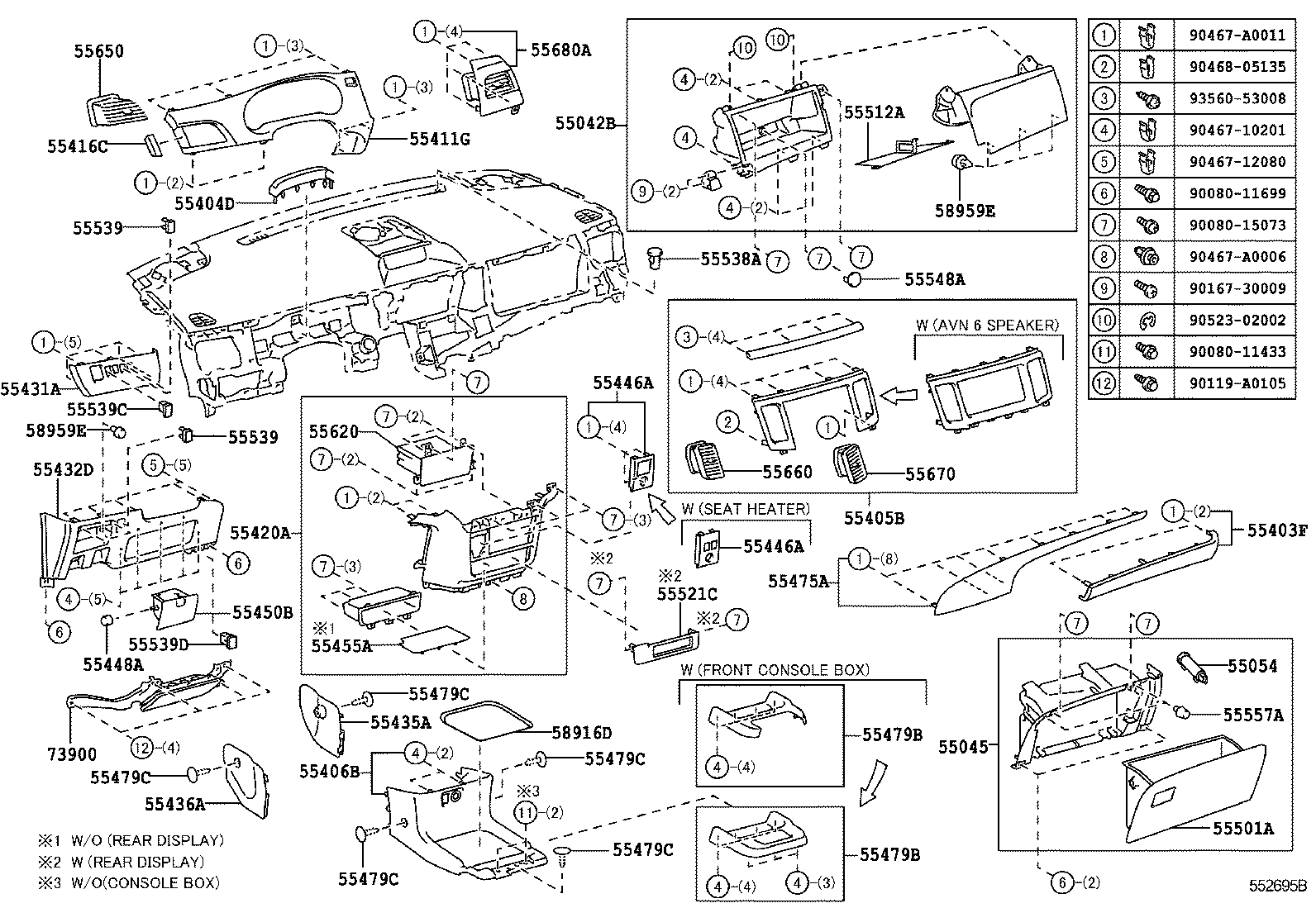

ILLUST NO. 2 OF 2(1001-1104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-08010B0 |
ASL30,GSL3# LT.GRAY,TRIM1# |
1 | ||
| 55042-08010E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55042-08011B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55042-08011E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55045-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55403-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-08030B0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55405-08020E0 |
ASL30,GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 55405-08030E0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08020B0 |
ASL30,GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55405-08030E0 |
GSL30,35..LE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08031B0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55405-08031E0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08021B0 |
GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55405-08030B0 |
GSL30,35..LE,SE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55405-08021E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 55405-08031E0 |
GSL30,35..LE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08031B0 |
GSL30,35..LE,SE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55406-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-08040B0 |
ASL30,GSL3# LT.GRAY,TRIM1# |
1 | ||
| 55411-08040E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55411-08050B0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,LT.GRAY,TRIM1# |
1 | ||
| 55411-08051E0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM4# |
1 | ||
| 55411-08041E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55411-08051B0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,LT.GRAY,TRIM1# |
1 | ||
| 55411-08050E0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM4# |
1 | ||
| 55411-08041B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-08040E0 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55420-08020B2 |
GSL30,35..LE LT.GRAY,TRIM1# |
1 | ||
| 55420-08050B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 55420-08040B0 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55420-08020E2 |
GSL30,35..LE GREGE,TRIM4# |
1 | ||
| 55420-08050B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 55420-08050E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
1 | ||
| 55420-08040E0 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55420-08020E2 |
GSL30,35..LE GREGE,TRIM4# |
1 | ||
| 55420-08040B0 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55420-08050E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
1 | ||
| 55420-08020B2 |
GSL30,35..LE LT.GRAY,TRIM1# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55431-08030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55431-08020B0 |
ASL30,GSL3# LT.GRAY,TRIM1# |
1 | ||
| 55431-08020E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55432-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55435-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55436-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-08040C1 |
GSL35..LE;GSL30,33..LE,STD BLACK,TRIM1#,4# |
1 | ||
| 55446-08061E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55446-08060E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-08040C1 |
GSL35..LE;GSL30,33..LE,STD BLACK,TRIM1#,4# |
1 | ||
| 55446-08061E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55446-08060E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55450-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55455A - PAD, INSTRUMENT, LOWER CENTER | ||||
| 55455-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55455-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-08010C1 |
GSL30,35..LE DE-CONTENT PACKAGE,BLACK,TRIM1#,4# |
1 | ||
| 55475-08020C1 |
GSL30,35..LE BLACK,TRIM1#,4# |
1 | ||
| 55475-08030E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-08010B1 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 55479-08020B1 |
GSL30,35..LE,SE FRONT CONSOLE BOX-FIXED(BLACK),LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55479-08010E1 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 55479-08020B1 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..LE FRONT CONSOLE BOX-FIXED(BLACK),GREGE,TRIM4# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-08010B1 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 55479-08020B1 |
GSL30,35..LE,SE FRONT CONSOLE BOX-FIXED(BLACK),LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55479-08010E1 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 55479-08020B1 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..LE FRONT CONSOLE BOX-FIXED(BLACK),GREGE,TRIM4# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55501-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-08010 |
ASL30,GSL3# |
1 | ||
| 55512-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55512-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-08010 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY) |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-0C010 |
GSL30,35..LE |
1 | ||
| 55538-0C010 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B3 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55539-52060E4 |
GSL30,35..LE DE-CONTENT PACKAGE,ASH BROWN,TRIM4# |
1 | ||
| 55539-52060B2 |
GSL30,35..LE DE-CONTENT PACKAGE,GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B3 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55539-52060E4 |
GSL30,35..LE DE-CONTENT PACKAGE,ASH BROWN,TRIM4# |
1 | ||
| 55539-52060B2 |
GSL30,35..LE DE-CONTENT PACKAGE,GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-08040B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 55539-08040E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-45010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55548-45010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30080 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-08020C1 |
GSL30,35..LE BLACK,TRIM1#,4# |
1 | ||
| 55620-08030E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55620-08020C1 |
GSL30,35..LE BLACK,TRIM1#,4# |
1 | ||
| 55620-08030E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-08040 |
GSL30,35..LE,SE,XLE |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-08040 |
GSL30,35..LE,SE,XLE |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-08030 |
GSL30,35..LE,SE,XLE |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-08021B0 |
GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55680-08020B0 |
ASL30,GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55680-08020E0 |
ASL30,GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 55680-08021E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-08030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 58916-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73900-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-11433 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90119-A0105 | ||||
| 90167-30009 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 90467-A0006 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 90523-02002 | ||||
| 93560-53008 | ||||
ILLUST NO. 2 OF 2(1104-1409)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-08010B0 |
ASL30,GSL3# LT.GRAY,TRIM1# |
1 | ||
| 55042-08010E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55042-08011B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55042-08011E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55045-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55403-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-08030B0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55405-08020E0 |
ASL30,GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 55405-08030E0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08020B0 |
ASL30,GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55405-08030E0 |
GSL30,35..LE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08031B0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55405-08031E0 |
GSL30,35..LE AUDIO-AVN 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08021B0 |
GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55405-08030B0 |
GSL30,35..LE,SE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55405-08021E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 55405-08031E0 |
GSL30,35..LE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,GREGE,TRIM4# |
1 | ||
| 55405-08031B0 |
GSL30,35..LE,SE,XLE AUDIO-ACCESSORY AUDIO 6SPEAKER,LT.GRAY,TRIM1# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55406-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-08040B0 |
ASL30,GSL3# LT.GRAY,TRIM1# |
1 | ||
| 55411-08040E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55411-08050B0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,LT.GRAY,TRIM1# |
1 | ||
| 55411-08051E0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM4# |
1 | ||
| 55411-08041E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55411-08051B0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,LT.GRAY,TRIM1# |
1 | ||
| 55411-08050E0 |
GSL30,35..XLE STARTING SYSTEM-PUSH BUTTON,GREGE,TRIM4# |
1 | ||
| 55411-08041B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-08040E0 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55420-08020B2 |
GSL30,35..LE LT.GRAY,TRIM1# |
1 | ||
| 55420-08050B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 55420-08040B0 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55420-08020E2 |
GSL30,35..LE GREGE,TRIM4# |
1 | ||
| 55420-08050B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 55420-08050E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
1 | ||
| 55420-08040E0 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55420-08020E2 |
GSL30,35..LE GREGE,TRIM4# |
1 | ||
| 55420-08040B0 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55420-08050E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
1 | ||
| 55420-08020B2 |
GSL30,35..LE LT.GRAY,TRIM1# |
1 | ||
| 55431A - PANEL, INSTRUMENT PANEL FINISH | ||||
| 55431-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55431-08030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55431-08020B0 |
ASL30,GSL3# LT.GRAY,TRIM1# |
1 | ||
| 55431-08020E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55432-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55435-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55436-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-08040C1 |
GSL35..LE;GSL30,33..LE,STD BLACK,TRIM1#,4# |
1 | ||
| 55446-08061E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55446-08060E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-08040C1 |
GSL35..LE;GSL30,33..LE,STD BLACK,TRIM1#,4# |
1 | ||
| 55446-08061E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55446-08060E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55450-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55455A - PAD, INSTRUMENT, LOWER CENTER | ||||
| 55455-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55455-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-08010C1 |
GSL30,35..LE DE-CONTENT PACKAGE,BLACK,TRIM1#,4# |
1 | ||
| 55475-08020C1 |
GSL30,35..LE BLACK,TRIM1#,4# |
1 | ||
| 55475-08030E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-08010B1 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 55479-08020B1 |
GSL30,35..LE,SE FRONT CONSOLE BOX-FIXED(BLACK),LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55479-08010E1 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 55479-08020B1 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..LE FRONT CONSOLE BOX-FIXED(BLACK),GREGE,TRIM4# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-08010B1 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 55479-08020B1 |
GSL30,35..LE,SE FRONT CONSOLE BOX-FIXED(BLACK),LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..XLE GREGE,TRIM4# |
1 | ||
| 55479-08010E1 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 55479-08020B1 |
GSL30,35..XLE LT.GRAY,TRIM1# |
1 | ||
| 55479-08020E1 |
GSL30,35..LE FRONT CONSOLE BOX-FIXED(BLACK),GREGE,TRIM4# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-A0002B0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY),GREGE,TRIM4# |
3 | ||
| 90467-A0002B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
3 | ||
| 90467-A0002E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
3 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 55501-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-08010 |
ASL30,GSL3# |
1 | ||
| 55512-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55512-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-08010 |
GSL30,35..XLE TELEVISION & DVD PLAYER-WITH(REAR DISPLAY) |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-0C010 |
GSL30,35..LE |
1 | ||
| 55538-0C010 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B3 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55539-52060E4 |
GSL30,35..LE DE-CONTENT PACKAGE,ASH BROWN,TRIM4# |
1 | ||
| 55539-52060B2 |
GSL30,35..LE DE-CONTENT PACKAGE,GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060B3 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55539-52060E4 |
GSL30,35..LE DE-CONTENT PACKAGE,ASH BROWN,TRIM4# |
1 | ||
| 55539-52060B2 |
GSL30,35..LE DE-CONTENT PACKAGE,GRAY,TRIM1# |
1 | ||
| 55539-52060E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-08040B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 55539-08040E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0E010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-45010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 55548-45010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30080 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-08020C1 |
GSL30,35..LE BLACK,TRIM1#,4# |
1 | ||
| 55620-08030E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55620-08020C1 |
GSL30,35..LE BLACK,TRIM1#,4# |
1 | ||
| 55620-08030E0 |
GSL30,35..XLE DARK BROWN,TRIM1#,4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-08040 |
GSL30,35..LE,SE,XLE |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-08040 |
GSL30,35..LE,SE,XLE |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-08030 |
GSL30,35..LE,SE,XLE |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-08020B0 |
ASL30,GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55680-08020E0 |
ASL30,GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 55680-08021B0 |
GSL30,35..LE,SE,XLE LT.GRAY,TRIM1# |
1 | ||
| 55680-08021E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 58916D - MAT, BOX BOTTOM | ||||
| 58916-08030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 58916-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73900-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-11433 | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90119-A0105 | ||||
| 90167-30009 | ||||
| 90467-10201 | ||||
| 90467-12080 | ||||
| 90467-A0006 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 90523-02002 | ||||
| 93560-53008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
