GSL35L-PFTEKA (2010)
Toyota Sienna
ILLUST NO. 1 OF 2(1001- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742H - PROTECTOR, SLIDE DOOR, LH | ||||
| 58743-28010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58743D - PROTECTOR, SLIDE DOOR PANEL, RH | ||||
| 58743-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58744E - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58744-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 62149V - TAPE, REAR SIDE WINDOW FRAME | ||||
| 62149-08010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-10040 |
GSL30,33;GSL35..LE,XLE |
4 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-10040 |
GSL30,33;GSL35..LE,XLE |
4 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-08130 |
GSL30,35..LE,SE,XLE |
1 | ||
| 67003-08140 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-08130 |
GSL30,35..LE,SE,XLE |
1 | ||
| 67004-08140 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 67113A - PANEL, SLIDE DOOR, OUTER RH | ||||
| 67113-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67114A - PANEL, SLIDE DOOR, OUTER LH | ||||
| 67114-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67259B - REFLECTOR, SLIDE DOOR | ||||
| 67259-AE010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67865D - WEATHERSTRIP, CENTER PILLAR UPPER END, RH | ||||
| 67865-08010 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 67866E - WEATHERSTRIP, CENTER PILLAR UPPER END, LH | ||||
| 67866-08010 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-08030B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 67871-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-08030B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 67872-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 67927A - CUSHION, REAR DOOR STIFFENER, RH | ||||
| 67927-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67928A - CUSHION, REAR DOOR STIFFENER, LH | ||||
| 67928-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 62750-08050 |
ASL30,GSL30,35..LE,SE,XLE *TEM,T=4.0,PRIVACY |
1 | ||
| 62750-08051 |
GSL30,35..LE,SE,XLE *TEM,T=4.0,PRIVACY |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 62760-08050 |
ASL30,GSL30,35..LE,SE,XLE *TEM,T=4.0,PRIVACY |
1 | ||
| 62760-08051 |
GSL30,35..LE,SE,XLE *TEM,T=4.0,PRIVACY |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-08070 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 84250-08070 |
GSL30,35..LE,SE,XLE |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-08050 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 84260-08050 |
GSL30,35..LE,SE,XLE |
1 | ||
| Common parts | ||||
| 90080-11247 | ||||
| 90119-06956 | ||||
| 90333-30008 | ||||
| 90387-08171 | ||||
| 90950-01871 | ||||
| 90950-01A05 | ||||
| 90950-06089 | ||||
| 91631-B0618 | ||||

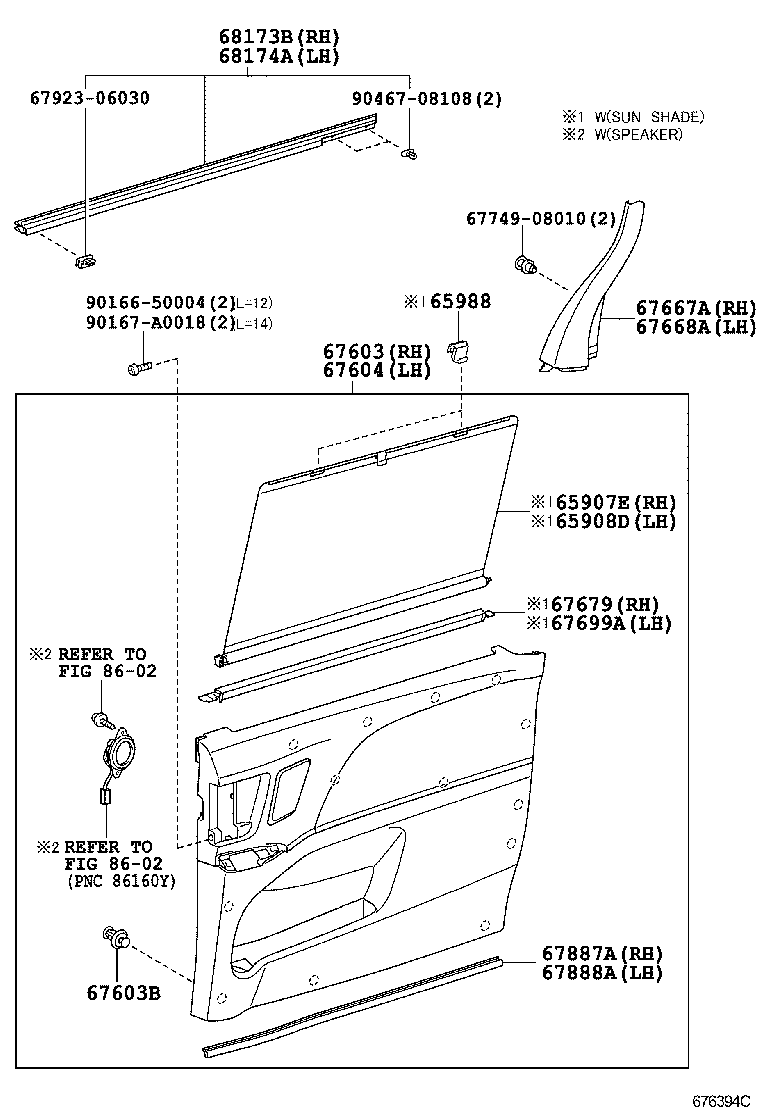

ILLUST NO. 2 OF 2(1001-1110)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
1 | ||
| 65988 - HOOK, SUNSHADE | ||||
| 65988-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
4 | ||
| 65988-08021 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-08200B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08200E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08220B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67680-08220E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08201E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08202B0 |
GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08221E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08202E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08201B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08221B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67680-08222E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08222B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67773-0E020 |
GSL30,33;GSL35..LE,XLE |
22 | ||
| 67773-0E020 |
ASL30,GSL3# |
26 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-08200E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08200B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08220B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67690-08220E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08201B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08201E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08202B0 |
GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08221B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67690-08221E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08222E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08202E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08222B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67679 - BEZEL, SUNSHADE, RH | ||||
| 67679-08020E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67679-08020B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67699A - BEZEL, SUNSHADE, LH | ||||
| 67699-08020E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67699-08020B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 67749-08010 | ||||
| 67923-06030 | ||||
| 90166-50004 | ||||
| 90167-A0018 | ||||
| 90467-08108 | ||||
| Linked diagrams | ||||
| 8602 | ||||

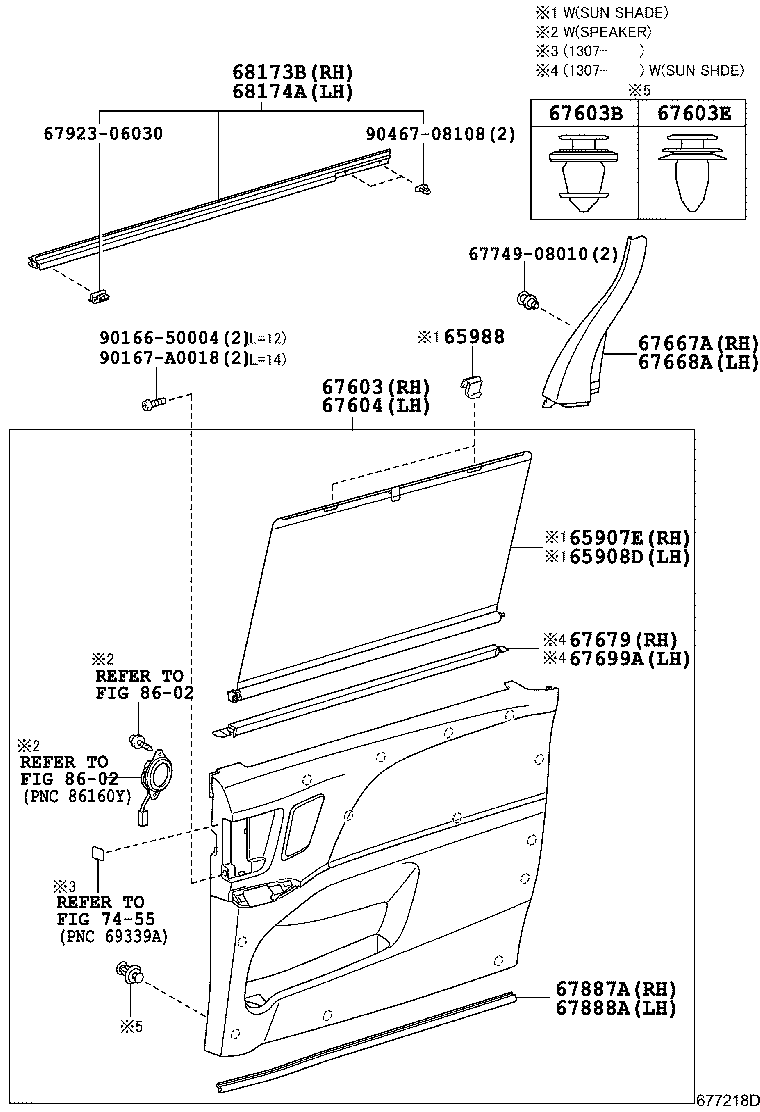

ILLUST NO. 2 OF 2(1110-1310)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
1 | ||
| 65988 - HOOK, SUNSHADE | ||||
| 65988-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
4 | ||
| 65988-08021 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-08200B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08200E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08220B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67680-08220E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08201E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08202B0 |
GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08221E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08202E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08201B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08221B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67680-08222E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08222B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67773-0E020 |
GSL30,33;GSL35..LE,XLE |
22 | ||
| 67773-0E020 |
ASL30,GSL3# |
26 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-A0005 |
GSL30,33;GSL35..LE,XLE |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-08200E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08200B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08220B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67690-08220E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08201B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08201E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08202B0 |
GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08221B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67690-08221E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08222E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08202E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08222B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67679 - BEZEL, SUNSHADE, RH | ||||
| 67679-08020E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67679-08020B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67699A - BEZEL, SUNSHADE, LH | ||||
| 67699-08020E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67699-08020B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 67749-08010 | ||||
| 67923-06030 | ||||
| 90166-50004 | ||||
| 90167-A0018 | ||||
| 90467-08108 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8602 | ||||

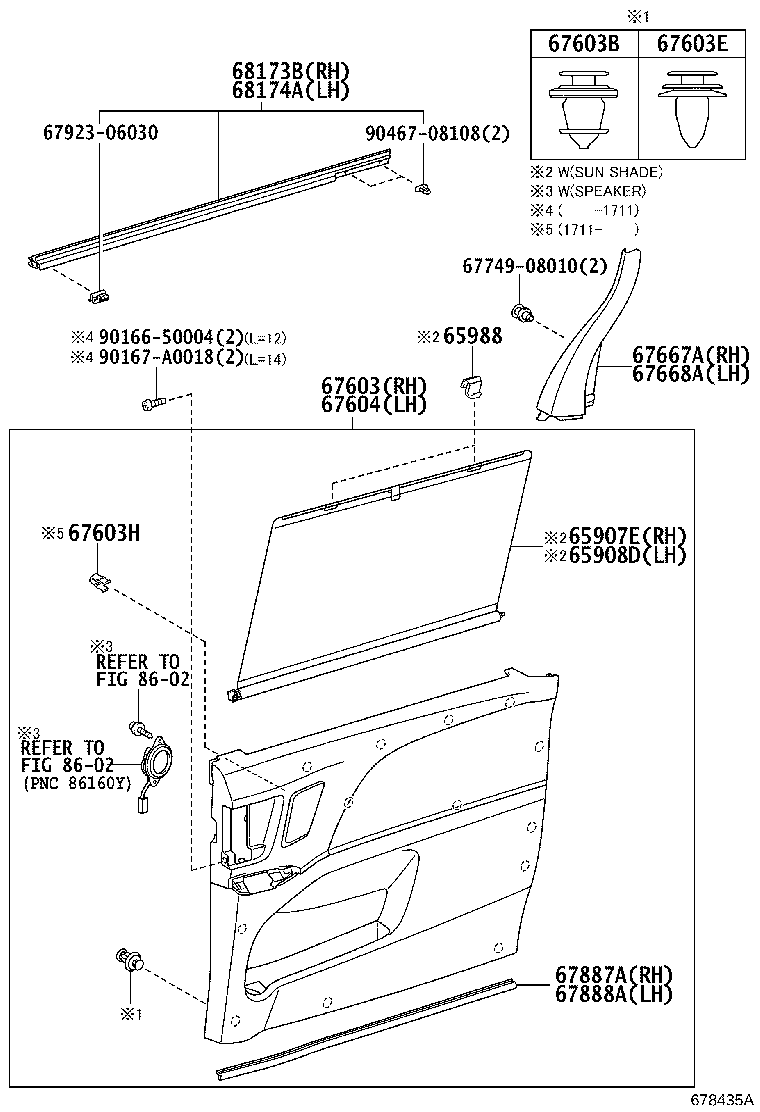

ILLUST NO. 2 OF 2(1310- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
1 | ||
| 65988 - HOOK, SUNSHADE | ||||
| 65988-08020 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
4 | ||
| 65988-08021 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER) |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-08200B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08200E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08220B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67680-08220E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08201E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08202B0 |
GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08221E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08202E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67680-08201B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67680-08221B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67680-08222E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67680-08222B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67773-0E020 |
GSL30,33;GSL35..LE,XLE |
22 | ||
| 67773-0E020 |
ASL30,GSL3# |
26 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-A0005 |
GSL30,33;GSL35..LE,XLE |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-08200E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08200B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08220B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67690-08220E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08201B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08201E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08202B0 |
GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 67690-08221B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67690-08221E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08222E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 67690-08202E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 67690-08222B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 67749-08010 | ||||
| 67923-06030 | ||||
| 90166-50004 | ||||
| 90167-A0018 | ||||
| 90467-08108 | ||||
| Linked diagrams | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
