GSL33L-SBTDKA (2014)

Toyota Sienna

Production Sep 2014 - Aug 2016
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1409-1608)

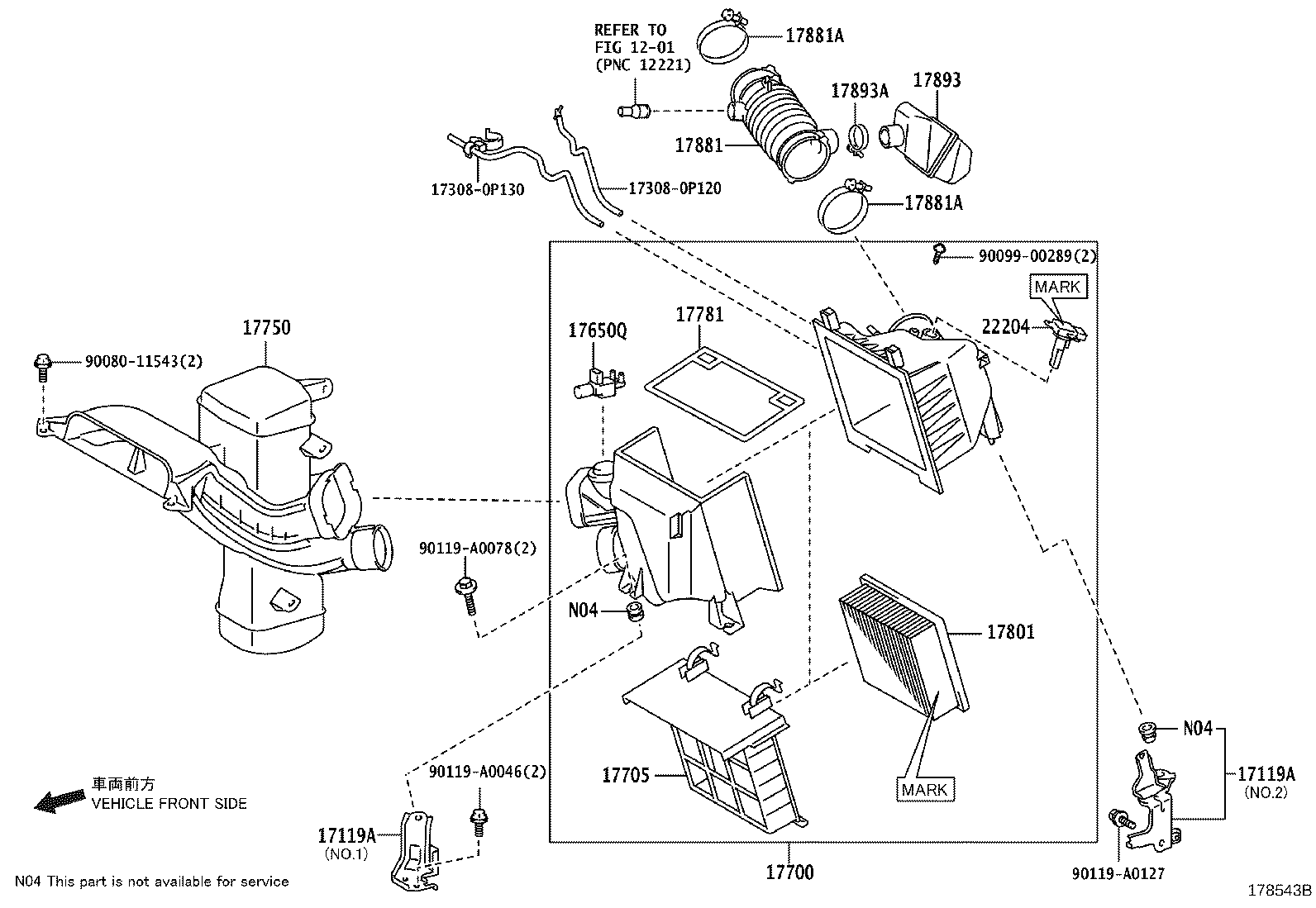

Click highlighted areas on diagram

diagram 1201 17119A 17119A 173080P120 173080P130 17650Q 17700 17705 17750 17781 17801 17881 17881A 17881A 17893 17893A 22204 9008011543 9009900289 90119A0046 90119A0078 90119A0127
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0P080

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

NO.1

 1
17119-0P090

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

NO.2

 1
17119-0P080

2GRFE..GSL3#

NO.1

 1
17119-0P090

2GRFE..GSL3#

NO.2

 1
17119A - BRACKET, AIR CLEANER
17119-0P080

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

NO.1

 1
17119-0P090

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

NO.2

 1
17119-0P080

2GRFE..GSL3#

NO.1

 1
17119-0P090

2GRFE..GSL3#

NO.2

 1
17650Q - VALVE, VACUUM SWITCHING
90910-AC002

2GRFE..GSL3#

 1
90910-AC002

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
17700 - CLEANER ASSY, AIR
17700-0P096

2GRFE..GSL3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P090

2GRFE..GSL3#

 1
17705-0P091

2GRFE..GSL3#

 1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17750-0P010

2GRFE..GSL3#

 1
17750-0P010

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
17781 - SEAL, AIR CLEANER INLET
17781-0P010

2GRFE..GSL3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31130

2GRFE..GSL3#

 1
17801-0P051

2GRFE..GSL3#

MARK = MADE IN USA

 1
17801-31131

2GRFE..GSL3#

MARK = MADE IN JAPAN

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P080

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
17881-0P080

2GRFE..GSL3#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-93002

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 2
90460-93002

2GRFE..GSL3#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-93002

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 2
90460-93002

2GRFE..GSL3#

 2
17893 - RESONATOR, INTAKE AIR
17893-0P090

2GRFE..GSL3#

 1
17893-0P090

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
17893A - CLAMP, HOSE
96111-10380

2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE

 1
96111-10380

2GRFE..GSL3#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T020

2GRFE..GSL3#

 1
22204-0V010

2GRFE..GSL3#

MARK 22204-0V010

 1
22204-0V020

2GRFE..GSL3#

MARK 22204-0V020

 1
22204-28010

2GRFE..GSL3#

MARK 22204-28010

 1
Common parts
17308-0P120
17308-0P130
90080-11543
90099-00289
90119-A0046
90119-A0078
90119-A0127
Linked diagrams
1201
