GSL30L-PRTSKA (2014)

Toyota Sienna

Production Sep 2014 - Aug 2016
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

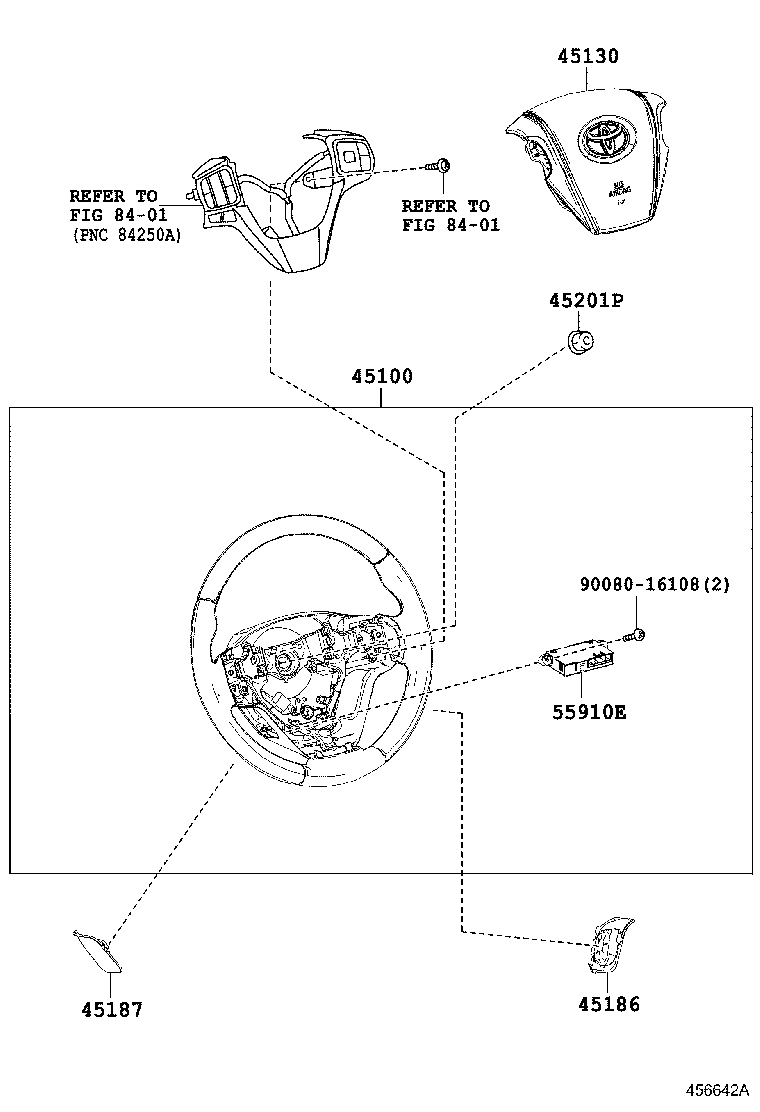

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45201P 55910E 8401 8401 9008016108
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-08210B0

GSL30,35..SE,XLE

4-SPOKE,LEATHER,LT.GRAY,TRIM1#

 1
45100-08240C0

GSL30..SE

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-08070B0

ASL30,GSL3#

LT.GRAY,TRIM1#

 1
45130-08100C0

GSL30..SE

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-08010B0

GSL30,35..LE,SE,XLE

LT.GRAY,TRIM1#

 1
45186-0E060C0

GSL30..SE

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-08010B0

GSL30,33;GSL35..LE,XLE

LT.GRAY,TRIM1#

 1
45187-0E050C0

GSL30..SE

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90080-17234

GSL3#

 1
90080-17234

GSL30,33;GSL35..LE,XLE

 1
Common parts
90080-16108
Linked diagrams
8401
