GSL30L-PRTQKA (2014)
Toyota Sienna
ILLUST NO. 2 OF 2(1001-1608)
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51454E - SILENCER, FRONT FLOOR COVER | ||||
| 51454-08010 |
GSL3# |
8 | ||
| 51454-08010 |
GSL30,33;GSL35..LE,XLE |
8 | ||
| 51454E - SILENCER, FRONT FLOOR COVER | ||||
| 51454-08010 |
GSL3# |
8 | ||
| 51454-08010 |
GSL30,33;GSL35..LE,XLE |
8 | ||
| 55229A - PLATE, FRONT FLOOR FOOTREST, NO.1 | ||||
| 55229-48010 |
GSL3# |
6 | ||
| 55229-48010 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 55229A - PLATE, FRONT FLOOR FOOTREST, NO.1 | ||||
| 55229-48010 |
GSL3# |
6 | ||
| 55229-48010 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 55229A - PLATE, FRONT FLOOR FOOTREST, NO.1 | ||||
| 55229-48010 |
GSL3# |
6 | ||
| 55229-48010 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 55239B - PLATE, FRONT FLOOR FOOTREST, NO.2 | ||||
| 55239-48020 |
GSL3# |
6 | ||
| 55239-48020 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 55239B - PLATE, FRONT FLOOR FOOTREST, NO.2 | ||||
| 55239-48020 |
GSL3# |
6 | ||
| 55239-48020 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 55239B - PLATE, FRONT FLOOR FOOTREST, NO.2 | ||||
| 55239-48020 |
GSL3# |
6 | ||
| 55239-48020 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-08031 |
GSL3# |
1 | ||
| 57104-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-08020 |
GSL3# |
1 | ||
| 57427-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57428-08020 |
GSL3# |
1 | ||
| 57450 - MEMBER ASSY, FRONT FLOOR CROSS | ||||
| 57450-08010 |
GSL3# |
1 | ||
| 57450-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57656F - MEMBER REAR FLOOR CROSS, NO.5 | ||||
| 57609-08030 |
GSL3# |
1 | ||
| 57609-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57841B - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT | ||||
| 57841-08030 |
GSL30,33;GSL35..LE,XLE |
4 | ||
| 57841-08030 |
GSL3# |
4 | ||
| 58013B - PANEL SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 58013-08011 |
GSL3# |
1 | ||
| 58013-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-08080 |
GSL30..08S |
1 | ||
| 58111-08060 |
GSL30..08S |
1 | ||
| 58115A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58115-08010 |
GSL3# |
1 | ||
| 58115-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-08010 |
GSL3# |
1 | ||
| 58165-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-08020 |
GSL3# |
1 | ||
| 58166-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-48010 |
ASL30,GSL3# |
2 | ||
| 58169-0E010 |
GSL3# |
2 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-48010 |
ASL30,GSL3# |
2 | ||
| 58169-0E010 |
GSL3# |
2 | ||
| 58191A - FOOTREST, FRONT FLOOR, RH | ||||
| 58193-08030 |
GSL3# |
1 | ||
| 58193-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58192A - FOOTREST, FRONT FLOOR, LH | ||||
| 58191-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58191-08010 |
GSL3# |
1 | ||
| 58192D - FOOTREST, FRONT FLOOR, LH | ||||
| 58192-08030 |
GSL3# |
1 | ||
| 58192-08040 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-11368 | ||||
| 90080-11433 | ||||
| Linked diagrams | ||||
| 5752 | ||||

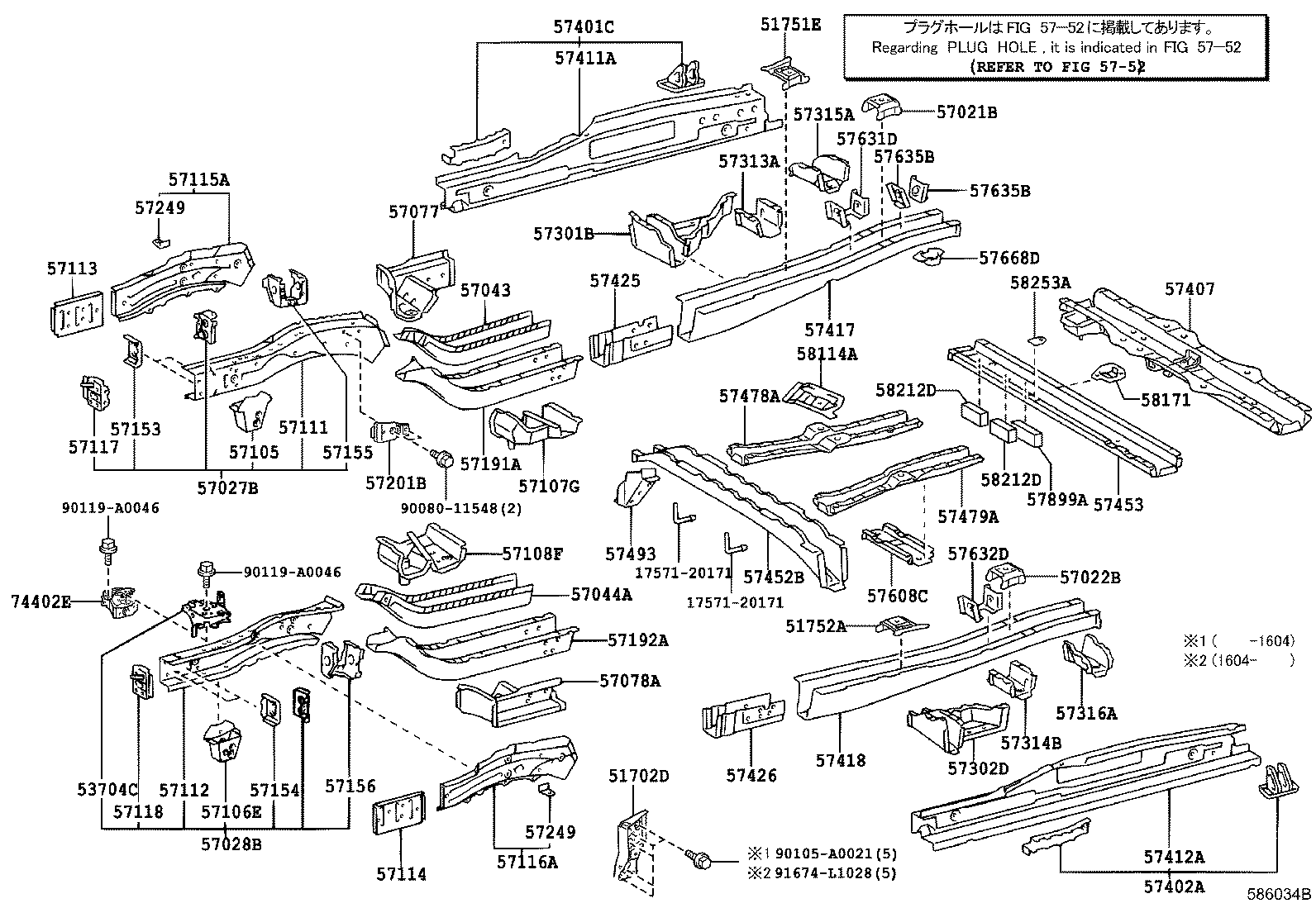

ILLUST NO. 1 OF 2(1409-1608)GSL30,33
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51702D - BRACKET SUB-ASSY, BODY SUPPORT, LH | ||||
| 51702-08010 |
GSL3# |
1 | ||
| 51751E - BRACKET, BODY SUPPORT, NO.1 RH | ||||
| 51751-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 51751-08010 |
GSL3# |
1 | ||
| 51752A - BRACKET, BODY SUPPORT, NO.1 LH | ||||
| 51752-08010 |
GSL3# |
1 | ||
| 51752-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 53704C - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-08030 |
GSL3# |
1 | ||
| 53704-08021 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57021B - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57021-08010 |
GSL3# |
1 | ||
| 57022B - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-08010 |
GSL3# |
1 | ||
| 57022-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-08010 |
ASL30,GSL3# |
1 | ||
| 57027-08011 |
GSL3# |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-08010 |
ASL30,GSL3# |
1 | ||
| 57028-08020 |
GSL3# |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57043-08010 |
GSL3# |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-08010 |
GSL3# |
1 | ||
| 57044-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-08022 |
GSL3# |
1 | ||
| 57077-08022 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-08030 |
GSL3# |
1 | ||
| 57078-08022 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-06010 |
GSL3# |
1 | ||
| 57105-06010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-08010 |
GSL3# |
1 | ||
| 57106-06010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-08021 |
GSL3# |
1 | ||
| 57107-08021 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-08021 |
GSL3# |
1 | ||
| 57108-08021 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-06021 |
GSL3# |
1 | ||
| 57111-06020 |
ASL30,GSL3# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-08020 |
ASL30,GSL3# |
1 | ||
| 57112-08021 |
GSL3# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-08020 |
GSL3# |
1 | ||
| 57113-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57114-08020 |
GSL3# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57025-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57025-08010 |
GSL3# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57026-08020 |
GSL3# |
1 | ||
| 57026-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57117-08020 |
GSL3# |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57118-08020 |
GSL3# |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-08020 |
GSL3# |
2 | ||
| 57153-08020 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-08020 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 57154-08020 |
GSL3# |
2 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-08020 |
GSL3# |
1 | ||
| 57155-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57156-08020 |
GSL3# |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-08010 |
GSL3# |
1 | ||
| 57191-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57192-08010 |
GSL3# |
1 | ||
| 57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57203-08010 |
GSL3# |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-06010 |
GSL3# |
1 | ||
| 57249-06010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-06010 |
GSL3# |
1 | ||
| 57249-06010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57301B - OUTRIGGER SUB-ASSY, NO.1 RH | ||||
| 57301-08011 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57301-08011 |
GSL3# |
1 | ||
| 57302D - OUTRIGGER SUB-ASSY, NO.1 LH | ||||
| 57302-08011 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57302-08011 |
GSL3# |
1 | ||
| 57313A - OUTRIGGER, NO.2 RH | ||||
| 57313-08010 |
GSL3# |
1 | ||
| 57313-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57314B - OUTRIGGER, NO.2 LH | ||||
| 57304-08010 |
GSL3# |
1 | ||
| 57304-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57315A - OUTRIGGER SUB-ASSY, NO.3 RH | ||||
| 57315-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57315-08010 |
GSL3# |
1 | ||
| 57316A - OUTRIGGER SUB-ASSY, NO.3 LH | ||||
| 57306-08010 |
GSL3# |
1 | ||
| 57306-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57306-08011 |
GSL3# |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-08021 |
GSL3# |
1 | ||
| 57401-08021 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-08040 |
GSL3# |
1 | ||
| 57402-08031 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-08040 |
GSL30,33 |
1 | ||
| 57407-08040 |
GSL30,33 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-08021 |
GSL3# |
1 | ||
| 57411-08021 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-08040 |
GSL3# |
1 | ||
| 57412-08031 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-08020 |
GSL3# |
1 | ||
| 57417-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-08021 |
GSL3# |
1 | ||
| 57418-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57418-08020 |
GSL3# |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-08020 |
GSL3# |
1 | ||
| 57425-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57404-08030 |
GSL3# |
1 | ||
| 57404-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-08021 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57452-08021 |
GSL3# |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-08021 |
GSL30,33 |
1 | ||
| 57453-08021 |
GSL30,33 |
1 | ||
| 57478A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH | ||||
| 57478-08010 |
GSL3# |
1 | ||
| 57478-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57479A - REINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH | ||||
| 57479-08010 |
GSL3# |
1 | ||
| 57479-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57493 - BRACE, FRONT FLOOR CROSS, NO.2 RH | ||||
| 57493-08010 |
GSL3# |
1 | ||
| 57493-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57608C - BRACKET SUB-ASSY, FUEL TANK MOUNTING | ||||
| 57608-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57608-08021 |
GSL3# |
1 | ||
| 57631D - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH | ||||
| 57631-08010 |
GSL3# |
1 | ||
| 57631-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57632D - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH | ||||
| 57632-08020 |
GSL3# |
1 | ||
| 57632-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57635B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57635-08030 |
GSL3# |
2 | ||
| 57635-08030 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 57635B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57635-08030 |
GSL3# |
2 | ||
| 57635-08030 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 57668D - BRACKET, SPARE WHEEL CARRIER, FRONT | ||||
| 57668-08020 |
GSL3# |
1 | ||
| 57668-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 57899A - SEAL, REAR FLOOR, REAR | ||||
| 57899-08010 |
GSL30,33 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-08010 |
GSL3# |
1 | ||
| 58114-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-08020 |
GSL3# |
1 | ||
| 58171-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58212D - SEAL, CENTER FLOOR | ||||
| 58212-08010 |
GSL30,33 |
2 | ||
| 58212D - SEAL, CENTER FLOOR | ||||
| 58212-08010 |
GSL30,33 |
2 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 58253-08020 |
GSL3# |
1 | ||
| 74402E - BRACKET SUB-ASSY, BATTERY CARRIER, REAR | ||||
| 74402-08010 |
GSL3# |
1 | ||
| Common parts | ||||
| 17571-20171 | ||||
| 90080-11548 | ||||
| 90105-A0021 | ||||
| 90119-A0046 | ||||
| 91674-L1028 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
