GSL30L-PRTEKA (2014)
Toyota Sienna

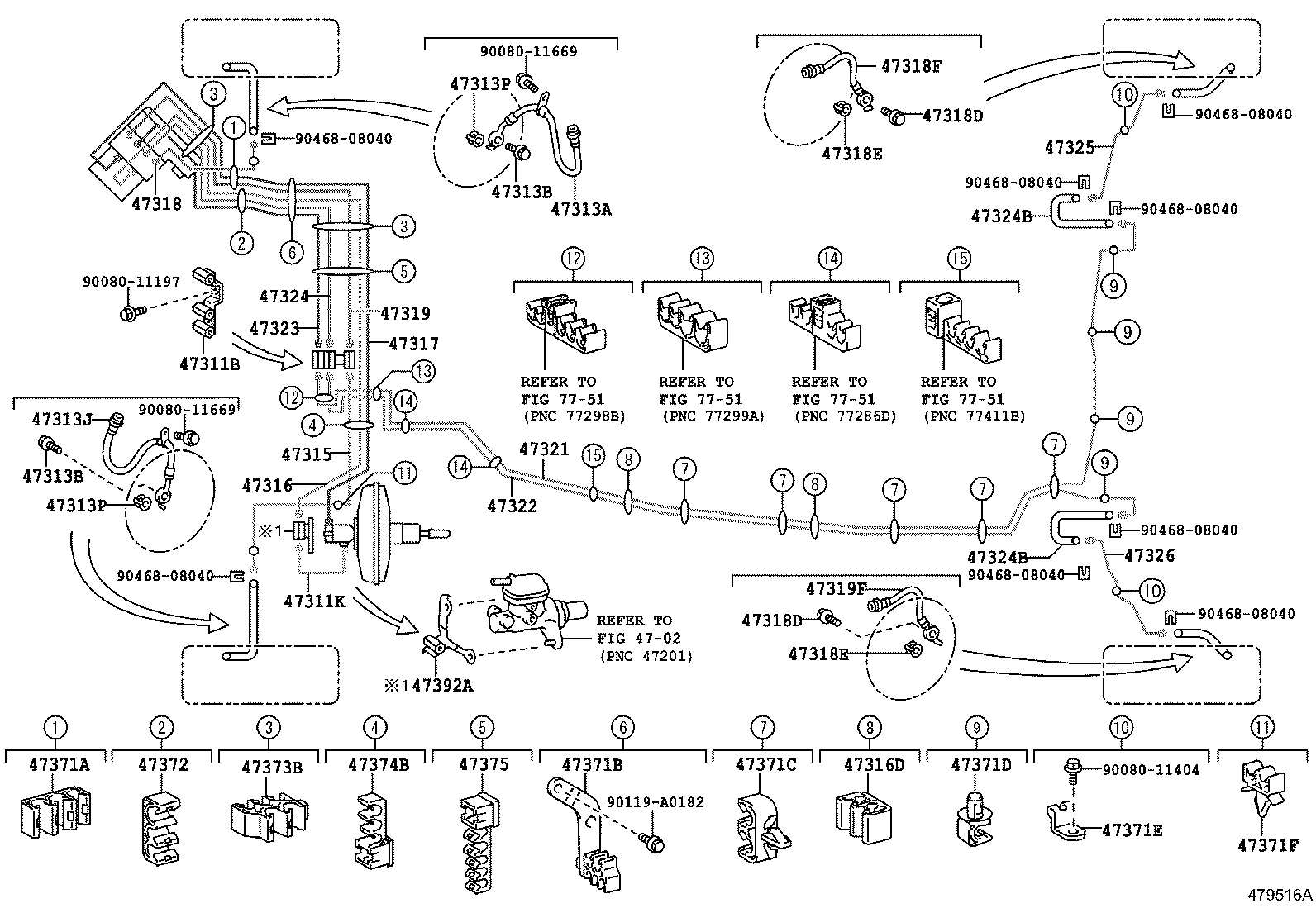

ILLUST NO. 1 OF 2(1409-1608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10284 |
GSL3# |
1 | ||
| 90412-10284 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY | ||||
| 47311-48040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47311-48040 |
GSL3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-A2056 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 90947-A2096 |
GSL3# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSL3# |
2 | ||
| 90401-10058 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSL3# |
2 | ||
| 90401-10058 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-A2097 |
GSL3# |
1 | ||
| 90947-A2057 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GSL3# |
2 | ||
| 47389-50021 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GSL3# |
2 | ||
| 47389-50021 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47315-08020 |
GSL3# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-08010 |
GSL3# |
1 | ||
| 47316-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47316D - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-01621 |
GSL3# |
2 | ||
| 90480-01621 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-08010 |
GSL3# |
1 | ||
| 47317-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47318-08020 |
GSL3# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSL3# |
2 | ||
| 90401-10058 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GSL3# |
2 | ||
| 90401-10058 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
GSL3# |
2 | ||
| 47389-50021 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
GSL3# |
2 | ||
| 47389-50021 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-A2055 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 90947-A2101 |
GSL3# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47319-08010 |
GSL3# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-A2101 |
GSL3# |
1 | ||
| 90947-A2055 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-08070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47321-08080 |
GSL3# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-08070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47322-08080 |
GSL3# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47323-08030 |
GSL3# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-08030 |
GSL3# |
1 | ||
| 47324-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-A2058 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 90947-A2098 |
GSL3# |
2 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-A2058 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 90947-A2098 |
GSL3# |
2 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-08030 |
GSL3# |
1 | ||
| 47325-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47326-08030 |
GSL3# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-A0006 |
GSL3# |
1 | ||
| 90464-A0006 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-A4013 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 90949-A4013 |
GSL3# |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90469-07012 |
GSL30,33;GSL35..LE,XLE |
5 | ||
| 90469-07012 |
GSL3# |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01C74 |
GSL30,33;GSL35..LE,XLE |
4 | ||
| 90949-01D17 |
GSL3# |
4 | ||
| 90949-01C74 |
GSL3# |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90080-46342 |
GSL3# |
2 | ||
| 90080-46342 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01C00 |
GSL3# |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-A0007 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 90464-A0007 |
GSL3# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-A1015 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 90949-A1015 |
GSL3# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-A1018 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 90949-A1018 |
GSL3# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-A1019 |
GSL3# |
1 | ||
| 90949-A1019 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-48010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 47392-48010 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-11197 | ||||
| 90080-11404 | ||||
| 90080-11669 | ||||
| 90119-A0182 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
