Toyota Sienna GSL30 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
US
SIENNA
GSL30L-PRTEKA (2010)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GSL30L-PRTEKA (2010)

Toyota Sienna

Production Jan 2010 - Sep 2014

Engine 2GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1001- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90069-08007
90069-08009
90069-08011
90099-14120

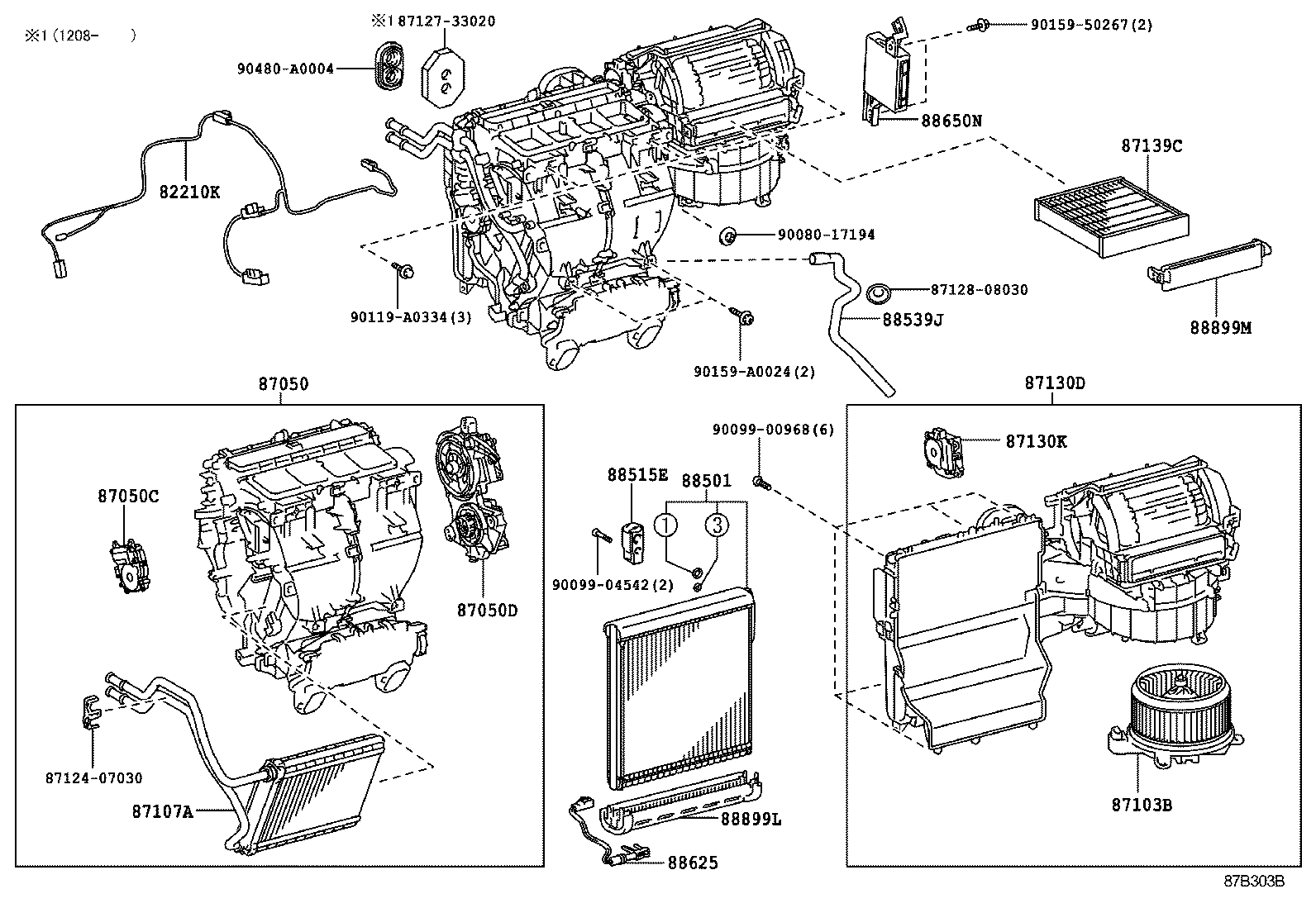

ILLUST NO. 1 OF 3(1001-1608)GSL3#

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-06121	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-08070	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-07120	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-08100	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0C051	GSL30,33;GSL35..LE,XLE	01/2011 - 09/2014	1
87103-0C050	ASL30,GSL3#	01/2010 - 12/2010	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-07030	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87130D - BLOWER ASSY
87130-08110	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-07140	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87139C - FILTER, CLEAN AIR
87139-07020	GSL3# POLLEN FILTER	08/2013 - 09/2014	1
87139-07010	ASL30,GSL3# POLLEN FILTER	01/2010 - 08/2013	1
87139-50060	ASL30,GSL3# DEODORANT FILTER	01/2010 - 08/2013	1
87139-50100	GSL3# DEODORANT FILTER	08/2013 - 09/2014	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-06112	ASL30,GSL3#	01/2010 - 10/2010	1
88501-06113	GSL30,33;GSL35..LE,XLE	10/2011 - 09/2014	1
88501-48311	ASL30,GSL3#	10/2010 - 10/2011	1
88515E - VALVE, COOLER EXPANSION, W/PACKING
88515-08140	GSL30,33;GSL35..LE,XLE	01/2013 - 09/2014	1
88515-08130	ASL30,GSL3#	01/2010 - 12/2012	1
88539J - HOSE, DRAIN COOLER
88539-08070	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88625 - THERMISTOR, COOLER, NO.1
88620-06020	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-08100	GSL3#..LE,SE,STD	01/2010 - 06/2012	1
88650-08101	GSL30,35..LE	07/2012 - 08/2012	1
88650-08190	GSL30,35..LE DE-CONTENT PACKAGE	08/2013 - 09/2014	1
88650-08101	GSL30,35..LE DE-CONTENT PACKAGE	08/2012 - 08/2013	1
88650-08180	GSL30,35..LE,XLE	08/2013 - 09/2014	1
88650-08151	GSL30,35..LE	08/2012 - 08/2013	1
88899L - PARTS, COOLING UNIT
88899-06100	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-07010	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
Common parts
87124-07030
87127-33020
87128-08030
90080-17194
90099-00968
90099-04542
90119-A0334
90159-50267
90159-A0024
90480-A0004

ILLUST NO. 2 OF 3(1001-1608)

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82210-0C030	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87030A - UNIT ASSY, COOLING, REAR
87030-08130	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-0C120	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-0C130	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0C061	GSL30,33;GSL35..LE,XLE	11/2010 - 09/2014	1
87103-0C060	ASL30,GSL3#	01/2010 - 10/2010	1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-08070	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
87165C - CONTROL, BLOWER MOTOR
87165-28020	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0C080	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-08120	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88539K - HOSE, DRAIN COOLER
88539-08080	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88578B - PACKING, COOLING UNIT, NO.1
88578-0C140	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88578C - PACKING, COOLING UNIT, NO.2
88578-0E060	GSL30,33;GSL35..LE,XLE	09/2011 - 09/2014	1
88578-0C130	ASL30,GSL3#	01/2010 - 09/2011	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-08080	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88891S - COVER, COOLER, NO.1
88891-20240	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
88892Q - PLATE, COOLER
88892-0C030	GSL30,33;GSL35..LE,XLE	01/2010 - 09/2014	1
Common parts
87124-0C030
87128-08030
90080-11433
90099-00968
90099-04542
96134-42100
