GSL30L-PRTEKA (2010)

Toyota Sienna

Production Jan 2010 - Sep 2014
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1001-1608)

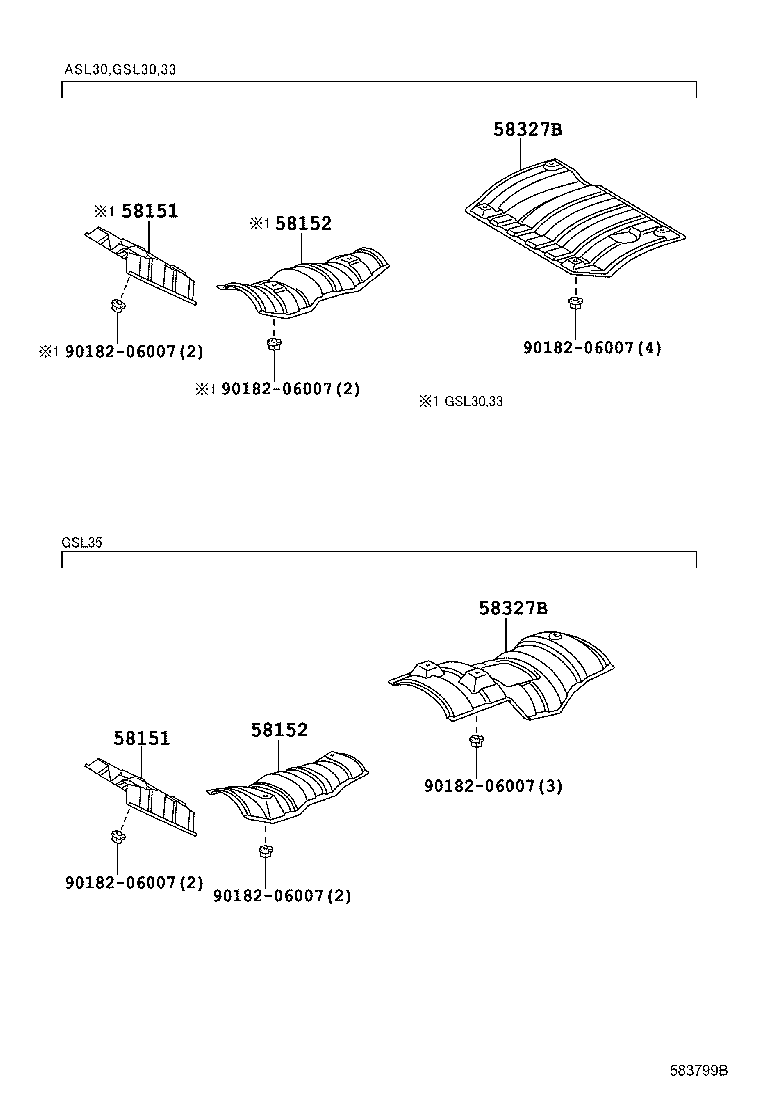

Click highlighted areas on diagram

diagram 58151 58151 58152 58152 58327B 58327B 9018206007 9018206007 9018206007 9018206007 9018206007 9018206007
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-08030

GSL30,33;GSL35..LE,XLE

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-08030

GSL30,33;GSL35..LE,XLE

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-08050

GSL30,33

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-08050

GSL30,33

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-08020

GSL30,33

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-08020

GSL30,33

 1
Common parts
90182-06007
