GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1001- )

Click highlighted areas on diagram

O-RING

diagram 9006908007 9006908009 9006908011 9009914120
Part # Description Qty Price
Common parts
90069-08007
90069-08009
90069-08011
90099-14120

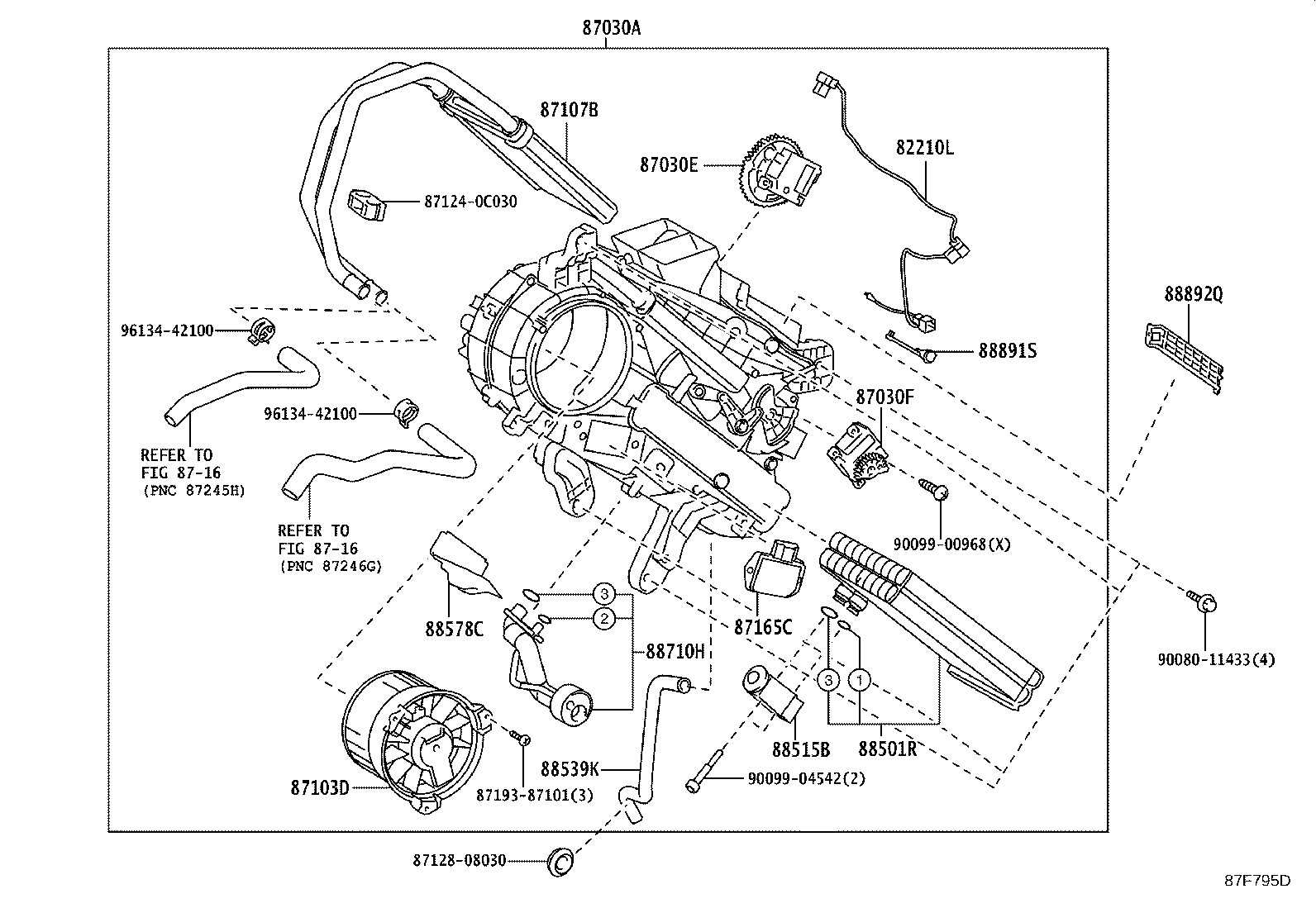

ILLUST NO. 2 OF 3(1608- )

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87030E 87030F 87103D 87107B 871240C030 8712808030 8716 8716 87165C 8719387101 88501R 88515B 88539K 88578C 88710H 88891S 88892Q 9008011433 9009900968 9009904542 9613442100 9613442100
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82210-0C030

GSL3#

 1
82210-0C030

GSL30,33;GSL35..LE,XLE

 1
87030A - UNIT ASSY, COOLING, REAR
87030-08130

GSL30,33;GSL35..LE,XLE

 1
87030-08131

GSL3#

 1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-0C120

GSL30,33;GSL35..LE,XLE

 1
87106-0C120

GSL3#

 1
87106-0E160

GSL3#

 1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-0C130

GSL3#

 1
87106-0C130

GSL30,33;GSL35..LE,XLE

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0C060

ASL30,GSL3#

 1
87103-0C061

GSL3#

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-08070

GSL3#

 1
87107-08070

GSL30,33;GSL35..LE,XLE

 1
87165C - CONTROL, BLOWER MOTOR
87165-28020

GSL30,33;GSL35..LE,XLE

 1
87165-28020

GSL3#

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0C080

GSL3#

 1
88501-0C080

GSL30,33;GSL35..LE,XLE

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-0E110

GSL3#

 1
88515-08120

GSL30,33;GSL35..LE,XLE

 1
88539K - HOSE, DRAIN COOLER
88539-08080

GSL30,33;GSL35..LE,XLE

 1
88539-08080

GSL3#

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-0E060

GSL3#

 1
88578-0C130

ASL30,GSL3#

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-08081

GSL3#

 1
88710-08080

GSL30,33;GSL35..LE,XLE

 1
88891S - COVER, COOLER, NO.1
88891-20240

GSL3#

 1
88891-20240

GSL30,33;GSL35..LE,XLE

 1
88892Q - PLATE, COOLER
88892-0C030

GSL30,33;GSL35..LE,XLE

 1
88892-0C030

GSL3#

 1
Common parts
87124-0C030
87128-08030
87193-87101
90080-11433
90099-00968
90099-04542
96134-42100
Linked diagrams
8716

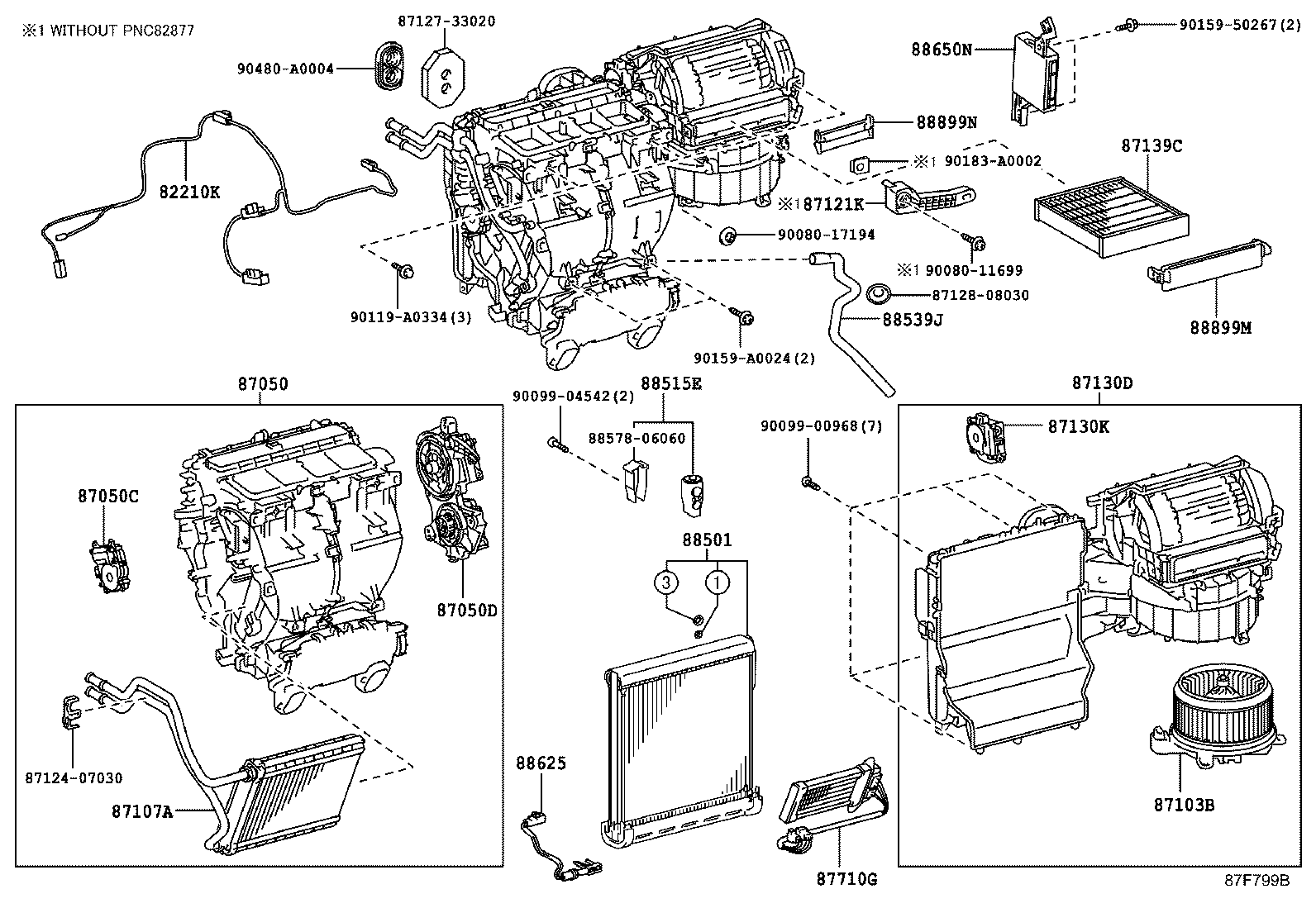

ILLUST NO. 1 OF 3(1608- )

Click highlighted areas on diagram

FRONT

diagram 82210K 87050 87050C 87050D 87103B 87107A 87121K 8712407030 8712733020 8712808030 87130D 87130K 87139C 87710G 88501 88515E 88539J 8857806060 88625 88650N 88899M 88899N 9008011699 9008017194 9009900968 9009904542 90119A0334 9015950267 90159A0024 90183A0002 90480A0004
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-06121

GSL30,33;GSL35..LE,XLE

 1
82212-06121

GSL3#

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-08080

GSL3#

 1
87050-08070

GSL30,33;GSL35..LE,XLE

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-0E150

GSL3#

 1
87106-07120

GSL30,33;GSL35..LE,XLE

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-08101

GSL3#

 1
87106-08100

GSL30,33;GSL35..LE,XLE

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0C050

ASL30,GSL3#

 1
87103-0C051

GSL3#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-07030

GSL3#

 1
87107-07030

GSL30,33;GSL35..LE,XLE

 1
87121K - BRACKET, HEATER
87121-08040

GSL3#..LE,SE,STD

 1
87130D - BLOWER ASSY
87130-08111

GSL3#

 1
87130-08110

GSL30,33;GSL35..LE,XLE

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-07140

GSL3#

 1
87106-07140

GSL30,33;GSL35..LE,XLE

 1
87139C - FILTER, CLEAN AIR
87139-07010

ASL30,GSL3#

POLLEN FILTER

 1
87139-07020

GSL3#

POLLEN FILTER,POLLEN FILTER

 1
87139-50060

ASL30,GSL3#

DEODORANT FILTER

 1
87710G - QUICK HEATER ASSY
87710-08010

GSL3#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-06112

ASL30,GSL3#

 1
88501-06230

GSL3#

 1
88515E - VALVE, COOLER EXPANSION, W/PACKING
88515-08170

GSL3#

 1
88515-08130

ASL30,GSL3#

 1
88539J - HOSE, DRAIN COOLER
88539-08070

GSL3#

 1
88539-08070

GSL30,33;GSL35..LE,XLE

 1
88625 - THERMISTOR, COOLER, NO.1
88620-06020

GSL3#

 1
88620-06020

GSL30,33;GSL35..LE,XLE

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-08100

GSL3#..LE,SE,STD

 1
88650-08210

GSL3#

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-07010

GSL3#

 1
88899-07010

GSL30,33;GSL35..LE,XLE

 1
88899N - PLATE, COVER
88899-08020

GSL3#

 1
Common parts
87124-07030
87127-33020
87128-08030
88578-06060
90080-11699
90080-17194
90099-00968
90099-04542
90119-A0334
90159-50267
90159-A0024
90183-A0002
90480-A0004
