GSL30L-PFZEHA (2016)
Toyota Sienna
Production
Aug 2016
-
Nov 2017
Engine
2GRFKS
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1608- )

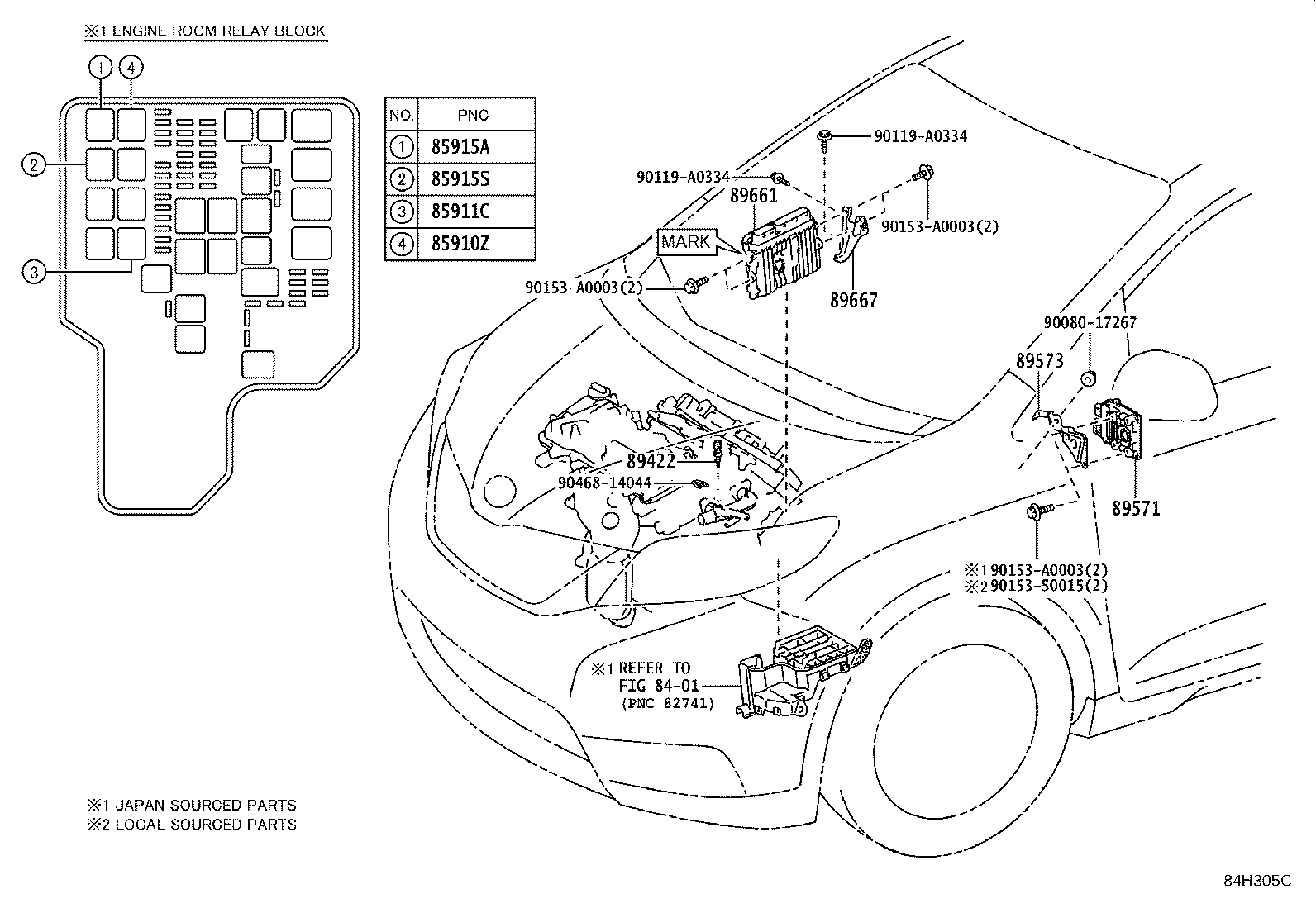

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910Z - RELAY, INJECTION (FOR EFI) | ||||
| 90080-87026 |
GSL3# |
1 | ||
| 85911C - RELAY, EFI 2 | ||||
| 90080-87026 |
GSL3# |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90080-87026 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 90080-87026 |
GSL3# |
1 | ||
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90080-87026 |
GSL3# |
1 | ||
| 90080-87026 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 89422-47010 |
GSL3# |
1 | ||
| 89571 - COMPUTER, FUEL PUMP CONTROL | ||||
| 89571-06020 |
GSL3# (L) |
1 | ||
| 89571-58010 |
GSL3# (J) |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-45010 |
GSL3# (L) |
1 | ||
| 89573-45010 |
GSL3# (J) |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-08320 |
GSL30..LE,STD,XLE MEXICO SPEC |
1 | ||
| 89661-08300 |
GSL30,33 P/N LABEL=8966108300 |
1 | ||
| 89661-08450 |
GSL30..LE,STD,XLE MEXICO SPEC |
1 | ||
| 89661-08160 |
GSL30,33 |
1 | ||
| 89661-08165 |
GSL30,33 DENSO |
1 | ||
| 89661-08163 |
GSL30,33 |
1 | ||
| 89661-08164 |
GSL30,33 DENSO |
1 | ||
| 89661-08451 |
GSL30..LE,STD,XLE DENSO,MEXICO SPEC |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 89667-08050 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-17267 | ||||
| 90119-A0334 | ||||
| 90153-50015 | ||||
| 90153-A0003 | ||||
| 90468-14044 | ||||
| Linked diagrams | ||||
| 8401 | ||||
