GSL30L-PFZEHA (2016)
Toyota Sienna
ILLUST NO. 7 OF 8(1001- )LE,SE,XLE
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-D1080 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| 84290-D1080 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
2 | ||
| 84920-D1040E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
2 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
2 | ||
| 84920-D1040E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
2 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-08010B0 |
GSL30,35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 84920-08010E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 84920-08010E0 |
GSL30,35..LE DE-CONTENT PACKAGE,GREGE,TRIM4# |
1 | ||
| 84920-08010B0 |
GSL30,35..LE DE-CONTENT PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 84920-08010E0 |
GSL30,35..07S..LE;GSL30..08S..(LE,XLE) GREGE,TRIM4# |
1 | ||
| 84920-08010B2 |
GSL30,35..07S..LE;GSL30..08S..(LE,XLE) GRAY,TRIM1# |
1 | ||
| 84920-0E010B4 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1# |
1 | ||
| 84920-0E010E1 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4# |
1 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
3 | ||
| 84920-D1050B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
3 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
3 | ||
| 84920-D1050B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
3 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
3 | ||
| 84920-D1050B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
3 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010B0 |
GSL30,35..LE DE-CONTENT PACKAGE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08010E0 |
GSL30,35..LE DE-CONTENT PACKAGE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08010B0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08010E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08010E0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08010B0 |
GSL30,35..LE,XLE LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08010B2 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1#,LH |
1 | ||
| 84921-08010B2 |
GSL30,35..LE,XLE GRAY,TRIM1#,LH |
1 | ||
| 84921-08010E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08010E0 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4#,LH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-08010B0 |
GSL30,35..LE DE-CONTENT PACKAGE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08010E0 |
GSL30,35..LE DE-CONTENT PACKAGE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08010B0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08010E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08010E0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08010B0 |
GSL30,35..LE,XLE LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08010B2 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1#,LH |
1 | ||
| 84921-08010B2 |
GSL30,35..LE,XLE GRAY,TRIM1#,LH |
1 | ||
| 84921-08010E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08010E0 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08020B0 |
GSL30,35..LE,XLE LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08020E0 |
GSL30,35..LE DE-CONTENT PACKAGE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08020B0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08020B0 |
GSL30,35..LE DE-CONTENT PACKAGE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08020B2 |
GSL30,35..LE,XLE GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08020B2 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4#,LH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-08020B0 |
GSL30,35..LE,XLE LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08020E0 |
GSL30,35..LE DE-CONTENT PACKAGE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08020B0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08020B0 |
GSL30,35..LE DE-CONTENT PACKAGE,LT.GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30,35..LE,XLE GREGE,TRIM4#,LH |
1 | ||
| 84921-08020B2 |
GSL30,35..LE,XLE GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE,GREGE,TRIM4#,LH |
1 | ||
| 84921-08020B2 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1#,LH |
1 | ||
| 84921-08020E0 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4#,LH |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-08020 |
GSL30,35..LE,SE,XLE |
1 | ||
| 84922-08020 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 84922-08020 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT) |
1 | ||
| 84922-08020 |
GSL30,35..LE,SE,XLE |
1 | ||
| 84922-08020 |
GSL30..07S..(LE,XLE) MOBILITY BASE VEHICLE |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-45010 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| 89710-45011 |
GSL30..07S..LE WITH(LIFT UP SEAT)&WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| Common parts | ||||
| 90080-16099 | ||||
| 93269-63016 | ||||
| 93530-54010 | ||||
ILLUST NO. 2 OF 8(1001- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
GSL3# |
1 | ||
| 89257-30080 |
GSL30;GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 89257-30070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90119-A0105 | ||||
| 90182-A0022 | ||||

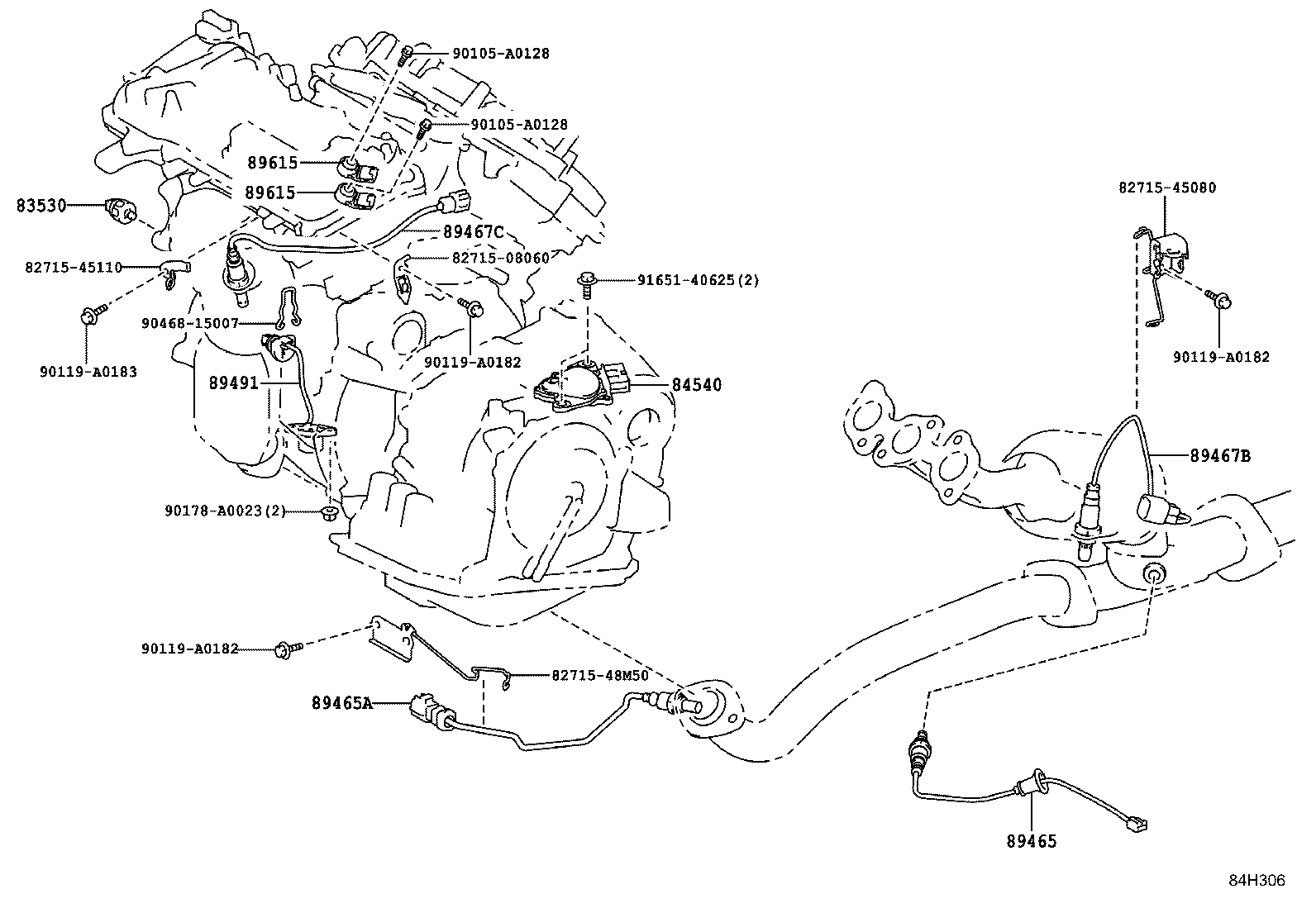

ILLUST NO. 1 OF 8(1608- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-0E010 |
GSL30,33;GSL35..LE,XLE (L) |
1 | ||
| 83530-28020 |
GSL3# (J) |
1 | ||
| 83530-0E010 |
GSL3# (L) |
1 | ||
| 83530-28020 |
GSL30,33;GSL35..LE,XLE (J) |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-07010 |
GSL30,33 |
1 | ||
| 84540-33020 |
GSL3# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-08060 |
GSL30,33 |
1 | ||
| 89465-08160 |
GSL3# |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-0E040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 89465-0E210 |
GSL3# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0E040 |
GSL3# |
1 | ||
| 89467-0E250 |
GSL3# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0E240 |
GSL3# |
1 | ||
| 89467-07030 |
GSL3# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48020 |
GSL3# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GSL30,33;GSL35..LE,XLE (L) |
2 | ||
| 89615-20090 |
GSL30,33;GSL35..LE,XLE (J) |
2 | ||
| 89615-06010 |
GSL3# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GSL30,33;GSL35..LE,XLE (L) |
2 | ||
| 89615-20090 |
GSL30,33;GSL35..LE,XLE (J) |
2 | ||
| 89615-06010 |
GSL3# |
2 | ||
| Common parts | ||||
| 82715-08060 | ||||
| 82715-45080 | ||||
| 82715-45110 | ||||
| 82715-48M50 | ||||
| 90105-A0128 | ||||
| 90119-A0182 | ||||
| 90119-A0183 | ||||
| 90178-A0023 | ||||
| 90468-15007 | ||||
| 91651-40625 | ||||

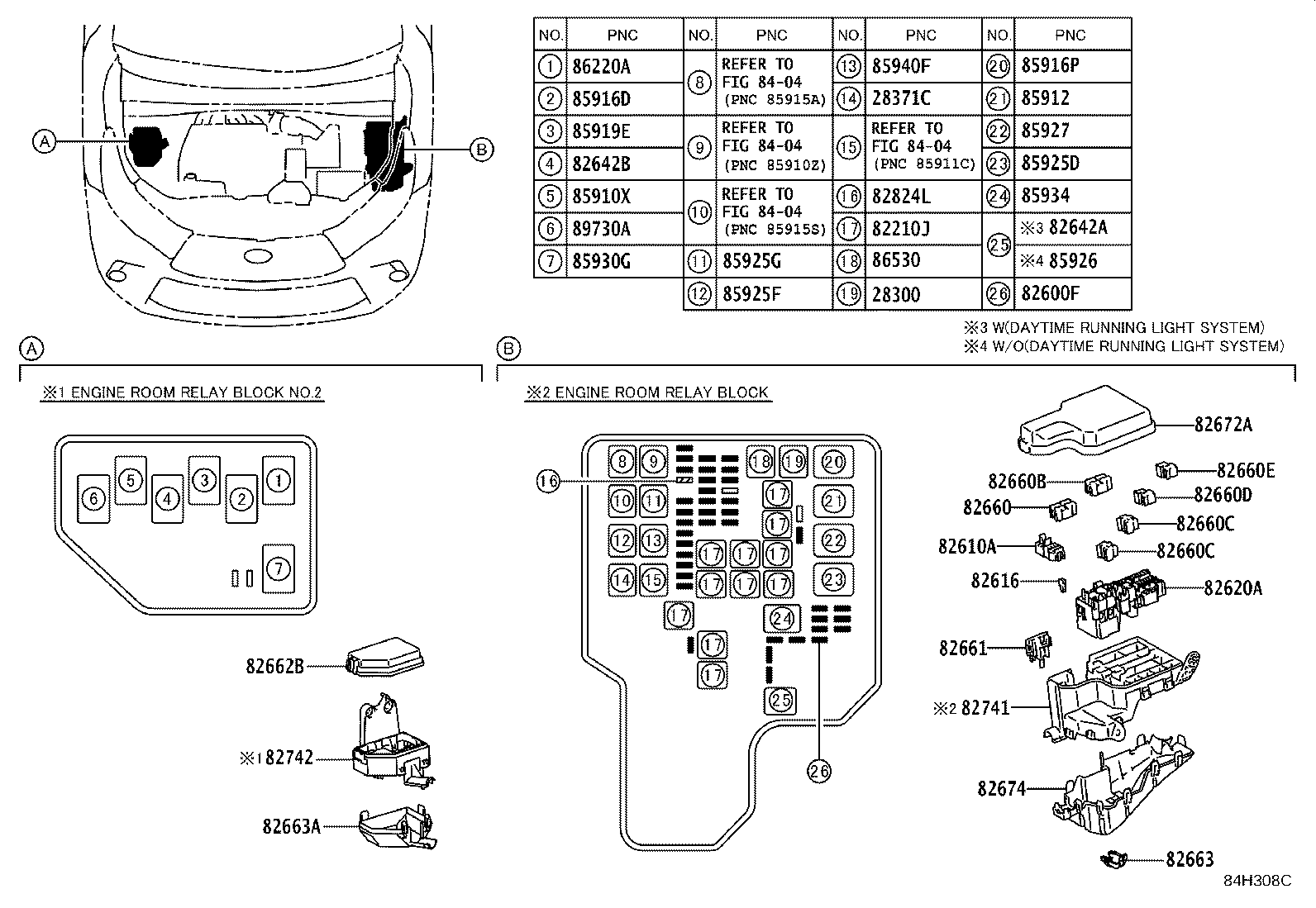

ILLUST NO. 3 OF 8(1608- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
2GRFKS..GSL3# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87026 |
2GRFKS..GSL3# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
GSL30,33;GSL35..LE,XLE 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
GSL30,33;GSL35..LE,XLE 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08308 |
GSL30,33;GSL35..LE,XLE 40A-30A-30A,FEMALE |
1 | ||
| 90982-08304 |
GSL30,33;GSL35..LE,XLE 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08300 |
GSL30,33;GSL35..LE,XLE 50A-30A-30A,FEMALE |
1 | ||
| 90982-08305 |
GSL3# 80A,TERM.:FEMALE,BLK |
1 | ||
| 82620-08050 |
GSL3# 180A,TERMINAL:MALE |
1 | ||
| 90982-08300 |
GSL3# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08306 |
GSL30,33;GSL35..LE,XLE 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08295 |
GSL3# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08304 |
GSL3# 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08294 |
GSL3# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08306 |
GSL3# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08308 |
GSL3# 40A-30A-30A,FEMALE |
1 | ||
| 90982-08286 |
GSL3# 140A,TERM.:MALE,RBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
GSL30,33;GSL35..LE,XLE 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GSL30,33;GSL35..LE,XLE 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GSL30,33;GSL35..LE,XLE 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GSL30,33;GSL35..LE,XLE 25A,MINI FUSE |
1 | ||
| 90982-09025 |
GSL30,33;GSL35..LE,XLE 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GSL30,33;GSL35..LE,XLE 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
GSL30,33;GSL35..LE,XLE 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GSL3#..LE,STD 7.5A,MINI FUSE,BROWN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09020 |
GSL3# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
GSL3# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GSL3# 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GSL3#..LE,STD 15A,MINI FUSE,BLUE,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09021 |
GSL3#..LE,STD 10A,MINI FUSE,RED,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09022 |
GSL3# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GSL3# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GSL3# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09024 |
GSL3# 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GSL3#..LE,STD 20A,MINI FUSE,YELLOW,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09025 |
GSL3#..LE,STD 30A,MINI FUSE,GRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82610-08010 |
GSL3# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GSL3# |
1 | ||
| 82616-58010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-08060 |
GSL3# |
1 | ||
| 82620-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-47020 |
GSL35..LE;GSL30,33..LE,SE,STD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82642-47020 |
GSL3#..LE,STD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82660-08010 |
GSL3# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82660-08020 |
GSL3# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
GSL3# |
2 | ||
| 82660-0H070 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
GSL3# |
2 | ||
| 82660-0H070 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
GSL3# |
1 | ||
| 82660-42030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82660-52010 |
GSL3# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82661-42030 |
GSL3# |
1 | ||
| 82661-08010 |
GSL3# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82672-08130 |
GSL3# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-08060 |
GSL3# |
1 | ||
| 82663-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82674-08030 |
GSL3# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-08080 |
ASL30,GSL3# |
1 | ||
| 82672-08161 |
GSL3# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-08040 |
GSL3# |
1 | ||
| 82674-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82741-08060 |
GSL3# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-08050 |
GSL3# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GSL3# |
1 | ||
| 82824-41010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90080-87026 |
GSL30,35..LE,SE,XLE DENSO USA |
1 | ||
| 90987-02027 |
GSL30,35..LE,SE,XLE DENSO JAPAN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87025 |
GSL3# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
GSL3# |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 90080-87024 |
GSL3# |
1 | ||
| 85925F - RELAY, PTC HEATER NO.2 | ||||
| 90080-87026 |
GSL3# |
1 | ||
| 85925G - RELAY, PTC HEATER NO.3 | ||||
| 90080-87026 |
GSL3# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87024 |
GSL35..LE;GSL30,33..LE,SE,STD |
1 | ||
| 90080-87024 |
GSL3#..LE,STD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90080-87024 |
GSL3#..LE,SE,STD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87024 |
GSL3# DENSO USA |
1 | ||
| 90987-02025 |
GSL3# DENSO JAPAN |
1 | ||
| 90080-87024 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GSL3# |
1 | ||
| 85940F - RELAY ASSY, WINDSHIELD DEICER | ||||
| 90987-02027 |
GSL3# DENSO JAPAN |
1 | ||
| 90080-87026 |
GSL3# DENSO USA |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GSL3# DENSO JAPAN |
1 | ||
| 90080-87026 |
GSL3# DENSO USA |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
GSL30,35..LE,SE ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(CANADA),DENSO USA |
1 | ||
| 90987-02027 |
GSL30,35..LE,STD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,DENSO JAPAN |
1 | ||
| 90987-02027 |
GSL30,35..LE,SE ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(CANADA),DENSO JAPAN |
1 | ||
| 90080-87026 |
GSL30,35..LE,STD ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM,DENSO USA |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
