GSL30L-PFZEHA (2016)
Toyota Sienna
ILLUST NO. 5 OF14(1001- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-08110 |
ASL30,GSL30,35..LE,SE |
1 | ||
| 82151-08180 |
GSL30,35..LE,SE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-08150 |
ASL30,GSL30,35..LE,SE |
1 | ||
| 82152-08220 |
GSL30,35..LE,SE |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82053-08090 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82053-08060 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82053-08050 |
GSL30,35..LE,SE,XLE |
1 | ||
| 82053-08041 |
GSL30,35..LE,SE |
1 | ||
| 82053-08111 |
GSL30..07S..LE WITHOUT(POWER SLIDE DOOR) |
1 | ||
| 82053-08131 |
GSL30..07S..LE WITH(LIFT UP SEAT)&WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82054-08080 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82054-08070 |
GSL30,35..LE,SE,XLE |
1 | ||
| 82054-08051 |
GSL30,35..LE,SE |
1 | ||
| 82054-08061 |
GSL30..07S..LE WITHOUT(POWER SLIDE DOOR) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-08200 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82184-08200 |
GSL30..07S..LE MOBILITY BASE VEHICLE |
1 | ||
| 82184-08190 |
GSL30,35..LE,SE |
1 | ||
| 82184-08180 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82184-08330 |
GSL3#..LE,STD |
1 | ||
| 82184-08340 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60030 |
GSL3# |
1 | ||
| 82666-60030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-08250 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82817-08250 |
GSL3# |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
GSL3# |
1 | ||
| 82824-50350 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-73040 |
GSL3# |
1 | ||
| 82824-73040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 67773-0E020 | ||||
| 90080-11545 | ||||
| 90080-11646 | ||||
| 90109-06196 | ||||
| 90109-A0029 | ||||
ILLUST NO. 6 OF14(1001- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-08520 |
GSL30..LE,SE |
1 | ||
| 82161-08510 |
GSL30..LE DE-CONTENT PACKAGE |
1 | ||
| 82161-08610 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82161-08600 |
GSL30..07S..LE MOBILITY BASE VEHICLE |
1 | ||
| 82161-08A61 |
GSL30..LE |
1 | ||
| 82161-08B41 |
GSL30..07S..LE WITH(LIFT UP SEAT)&WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 82161-08B31 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 82161-08B51 |
GSL30..07S..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&WITHOUT(POWER SLIDE DOOR) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-08450 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82162-08480 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82162-08861 |
GSL30,35..LE |
1 | ||
| 82162-08881 |
GSL30..07S..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&WITHOUT(POWER SLIDE DOOR) |
1 | ||
| 82162-08871 |
GSL30..07S..LE WITH(LIFT UP SEAT)&WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-08040 |
GSL30,35..LE,SE MOON ROOF-WITH(FRONT ONLY) |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-08030 |
GSL30,35..LE,SE MOON ROOF-WITH(FRONT ONLY) |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-08050 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82412-08070 |
GSL3# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-08150 |
GSL3# |
1 | ||
| 82666-08150 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-08170 |
GSL3# |
1 | ||
| 82666-08170 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-08180 |
GSL3# |
1 | ||
| 82666-08180 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-08190 |
GSL3# |
1 | ||
| 82666-08190 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60220 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82666-60220 |
GSL3# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-08140 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82666-08140 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82666-08140 |
GSL3# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-08150 |
GSL3# |
1 | ||
| 82666-08150 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82666-08150 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-0T100 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82666-0T100 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82666-0T100 |
GSL3# |
1 | ||
| 82819 - GROMMET, WIRING HARNESS | ||||
| 82819-28640 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82819-28640 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-17267 | ||||
| 90119-A0255 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 7 OF14(1001- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-08040 |
GSL30,35 |
1 | ||
| 82191-08010 |
GSL30;GSL35..LE,XLE |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-08040 |
GSL30,35 |
1 | ||
| 82191-08010 |
GSL30;GSL35..LE,XLE |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-08050 |
GSL30,35..LE,SE |
1 | ||
| 82192-08050 |
GSL30,35..LE |
1 | ||
| 82192-08080 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT) |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-08010 |
GSL30,35..LE,SE,XLE |
1 | ||
| 8219B-08030 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT) |
1 | ||
| 8219B-08010 |
GSL30,35..LE,SE,XLE |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-48080 |
GSL3# |
1 | ||
| 82824-48100 |
GSL30..07S..LE MOBILITY BASE VEHICLE |
1 | ||
| 82824-48100 |
GSL30,35..LE,STD |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||

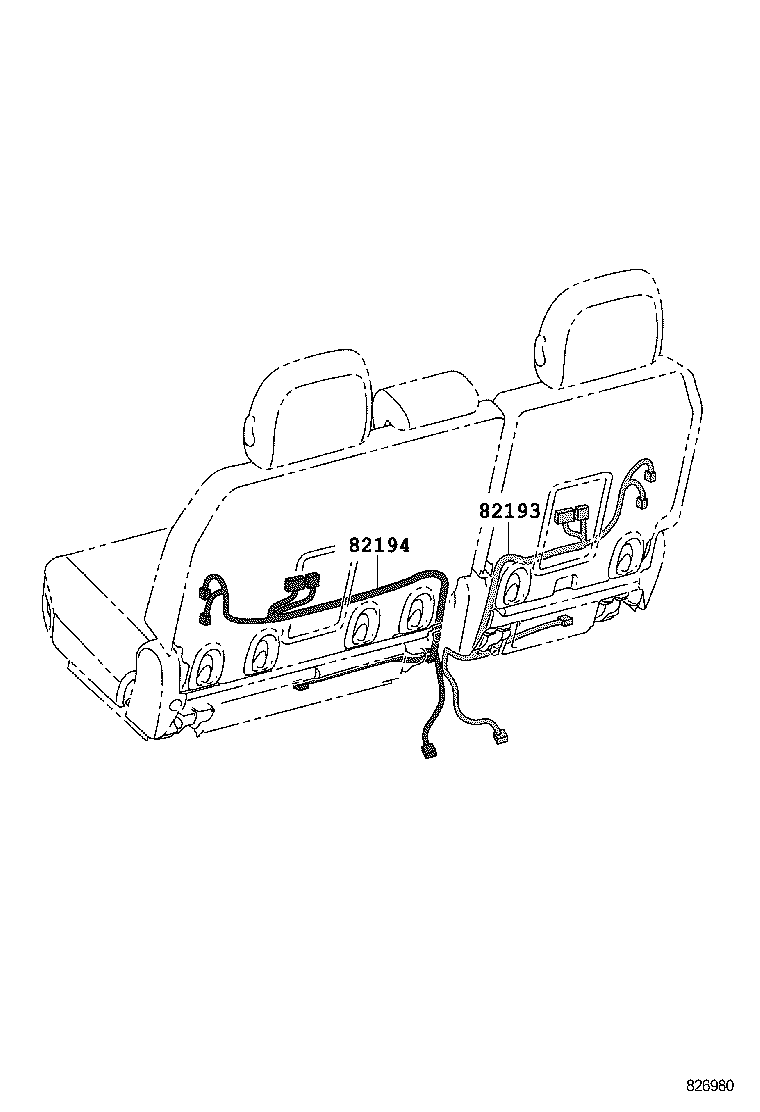

ILLUST NO. 8 OF14(1001- )ASL30,GSL30,33 ; (1001- )GSL35..LE,STD,XLE
REAR SEAT
| Part # | Description | Qty | Price |
|---|

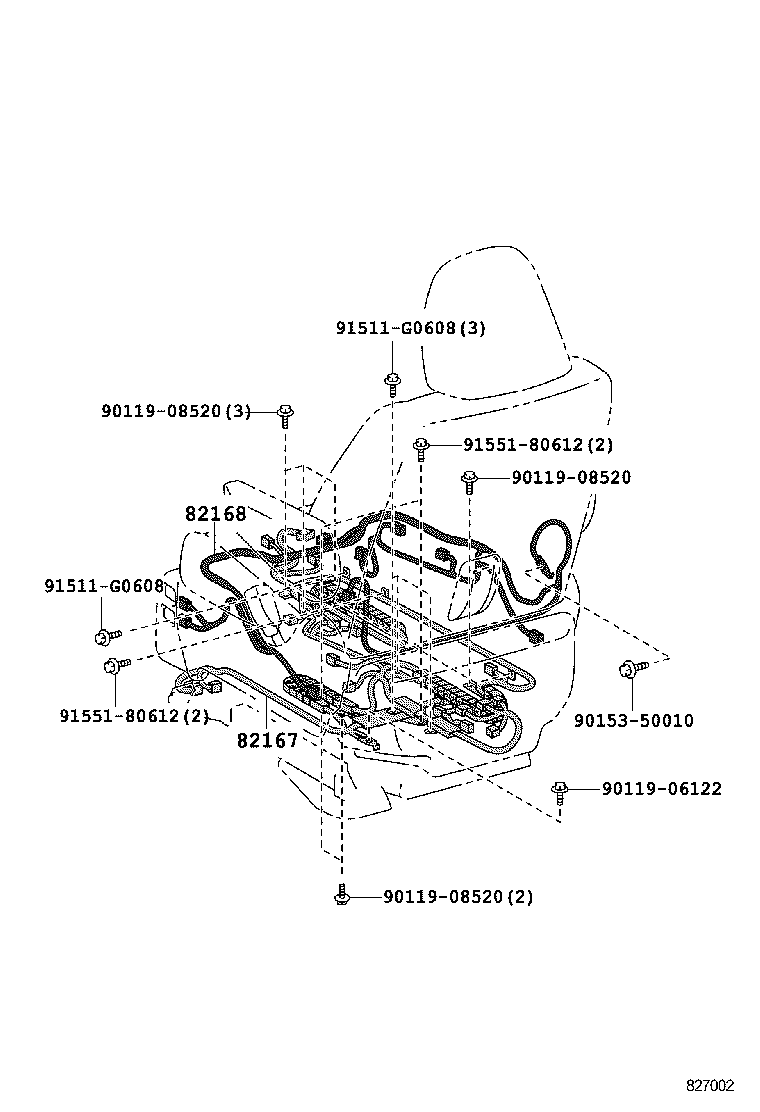

ILLUST NO. 9 OF14(1001- )GSL30..07S..LE,XLE
SIDE LIFT UP SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-45010 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| 82167-45010 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-45020 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| 82168-45020 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT) |
1 | ||
| Common parts | ||||
| 90119-06122 | ||||
| 90119-08520 | ||||
| 90153-50010 | ||||
| 91511-G0608 | ||||
| 91551-80612 | ||||
ILLUST NO.12 OF14(1001- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-11016 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11292 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-11950 | ||||
| 90980-AA017 | ||||
ILLUST NO.13 OF14(1001- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12416 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12686 | ||||
| 90980-12699 | ||||
| 90980-12710 | ||||
ILLUST NO. 4 OF14(1001- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-08690 |
GSL30,35..LE AUDIO-AVN 6SPEAKER |
1 | ||
| 82141-08850 |
GSL30,35..LE DE-CONTENT PACKAGE&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82141-08850 |
GSL30,35..LE,SE MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82141-08850 |
GSL30,35..LE AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82141-08850 |
GSL30,35..LE AUDIO-AVN 6SPEAKER&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82141-08850 |
GSL30,35..LE,SE |
1 | ||
| 82141-08A40 |
GSL30,35..LE AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH |
1 | ||
| 82141-08A60 |
GSL30,35..LE DE-CONTENT PACKAGE |
1 | ||
| 82141-08F91 |
GSL30,35..LE,SE |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82140-08020 |
GSL3# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-08030 |
GSL30,35..LE,SE FRONT CONSOLE BOX-FIXED(BLACK) |
1 | ||
| 82166-08030 |
GSL30,35..LE FRONT CONSOLE BOX-FIXED TYPE(BLACK) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-08120 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 82666-08120 |
GSL30,35..LE DE-CONTENT PACKAGE&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
3 | ||
| 82666-08120 |
GSL30,35..LE AUDIO-AVN 6SPEAKER&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
3 | ||
| 82666-08120 |
GSL30,35..LE AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
3 | ||
| 82666-08120 |
GSL3# |
3 | ||
| 82666-08120 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
3 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-08130 |
GSL30,35..LE DE-CONTENT PACKAGE&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82666-08130 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82666-08130 |
GSL30,35..LE AUDIO-AVN 6SPEAKER&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82666-08130 |
GSL30,35..LE AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82666-08130 |
GSL3# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-08200 |
GSL3# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GSL30,35..LE DE-CONTENT PACKAGE&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824-48110 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82824-48110 |
GSL30,35..LE AUDIO-AVN 6SPEAKER&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824-48110 |
GSL30,35..LE AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824-48110 |
GSL3# |
1 | ||
| 82824-48110 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48360 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82824-48360 |
GSL30,35..LE DE-CONTENT PACKAGE&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824-48360 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824-48360 |
GSL30,35..LE AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| 82824-48360 |
GSL3# |
1 | ||
| 82824-48360 |
GSL30,35..LE AUDIO-AVN 6SPEAKER&MAYDAY SYSTEM-WITH(AIR BAG BEACON) |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
ILLUST NO.14 OF14(1001- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12211 | ||||
| 90980-12404 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12912 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||

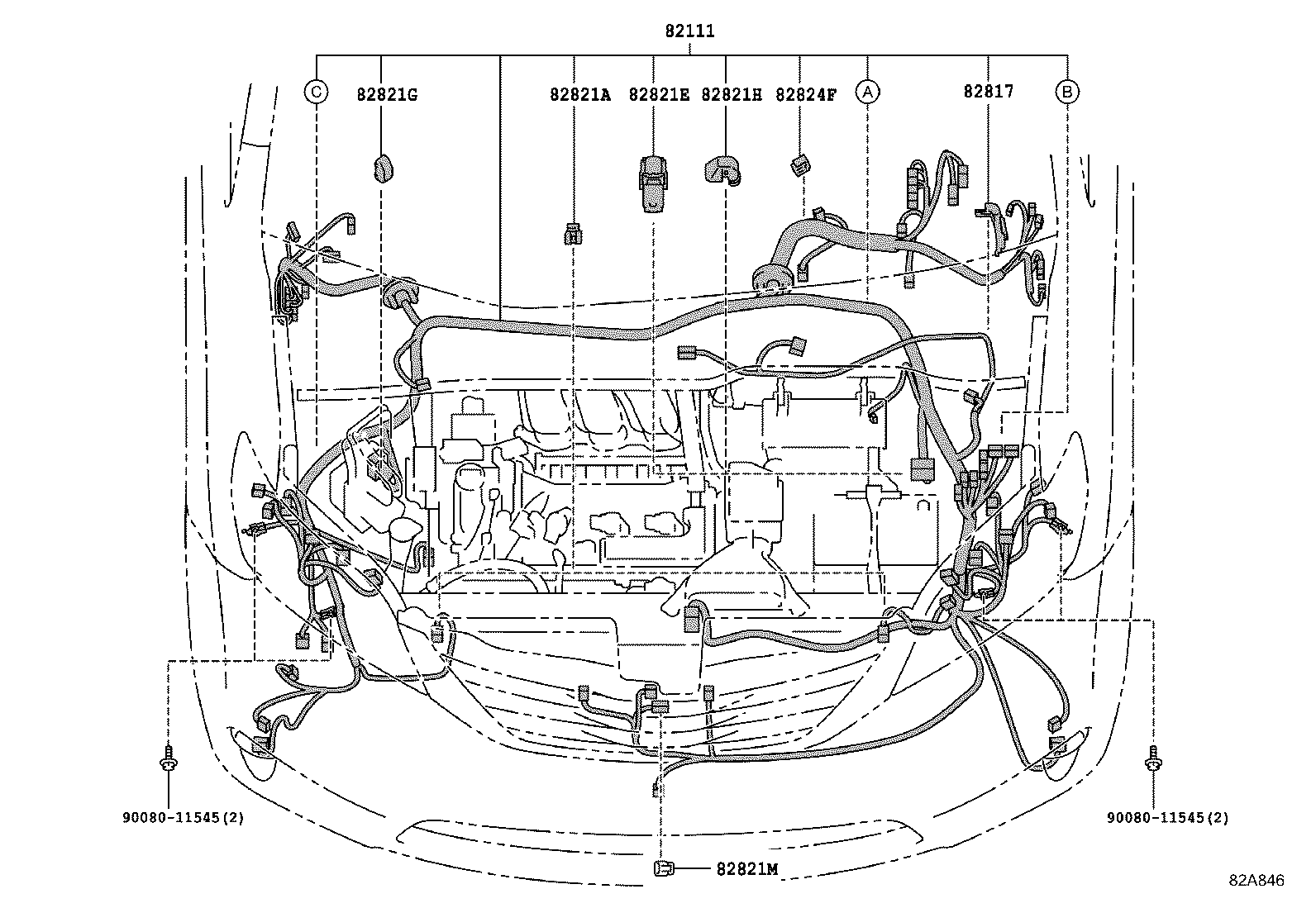

ILLUST NO. 1 OF14(1608- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-08760 |
GSL30..07S..LE WITH(LIFT UP SEAT)&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-08860 |
GSL30,35..LE |
1 | ||
| 82111-08740 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 82111-08870 |
GSL30,35..LE DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-08F01 |
GSL3#..LE,STD |
1 | ||
| 82111-08F31 |
GSL3#..LE,STD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-08240 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82817-08240 |
GSL3# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-30650 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 82821-30650 |
GSL3# |
2 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-08030 |
GSL3# |
1 | ||
| 82821G - COVER, CONNECTOR(FOR DIAGNOSIS) | ||||
| 82821-12570 |
GSL3# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-33240 |
GSL3# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-0E040 |
GSL3#..LE,SE,STD |
1 | ||
| 82821-0E040 |
GSL30,35..LE,SE,STD WINDSHIELD DEICER-WITH |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-73040 |
GSL3# |
2 | ||
| 82824-73040 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| Common parts | ||||
| 90080-11545 | ||||

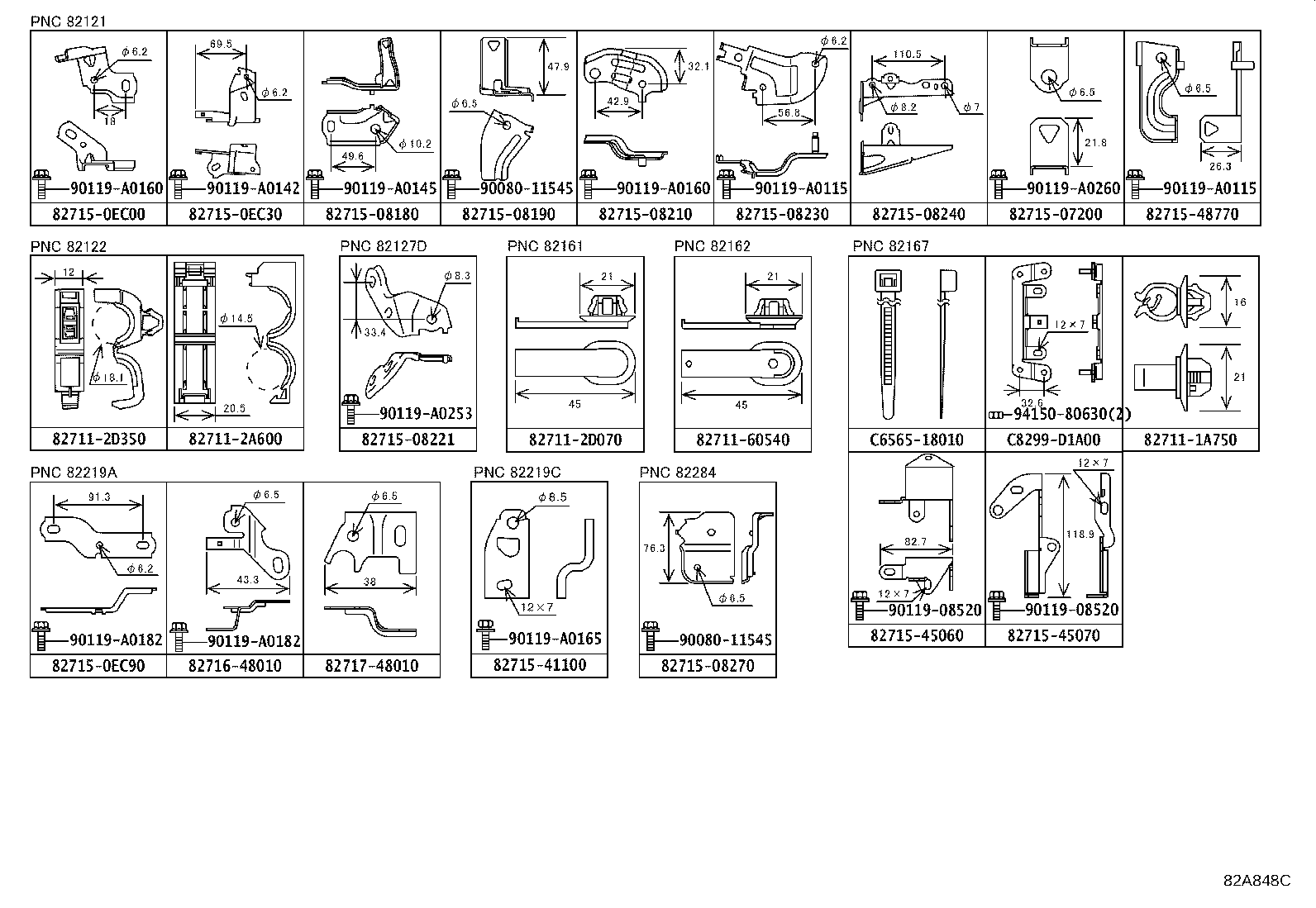

ILLUST NO.10 OF14(1608- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-2A600 | ||||
| 82711-2D070 | ||||
| 82711-2D350 | ||||
| 82711-60540 | ||||
| 82715-07200 | ||||
| 82715-08180 | ||||
| 82715-08190 | ||||
| 82715-08210 | ||||
| 82715-08221 | ||||
| 82715-08230 | ||||
| 82715-08240 | ||||
| 82715-08270 | ||||
| 82715-0EC00 | ||||
| 82715-0EC30 | ||||
| 82715-0EC90 | ||||
| 82715-41100 | ||||
| 82715-45060 | ||||
| 82715-45070 | ||||
| 82715-48770 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 90080-11545 | ||||
| 90119-08520 | ||||
| 90119-A0115 | ||||
| 90119-A0142 | ||||
| 90119-A0145 | ||||
| 90119-A0160 | ||||
| 90119-A0165 | ||||
| 90119-A0182 | ||||
| 90119-A0253 | ||||
| 90119-A0260 | ||||
| 94150-80630 | ||||
| C6565-18010 | ||||
| C8299-D1A00 | ||||

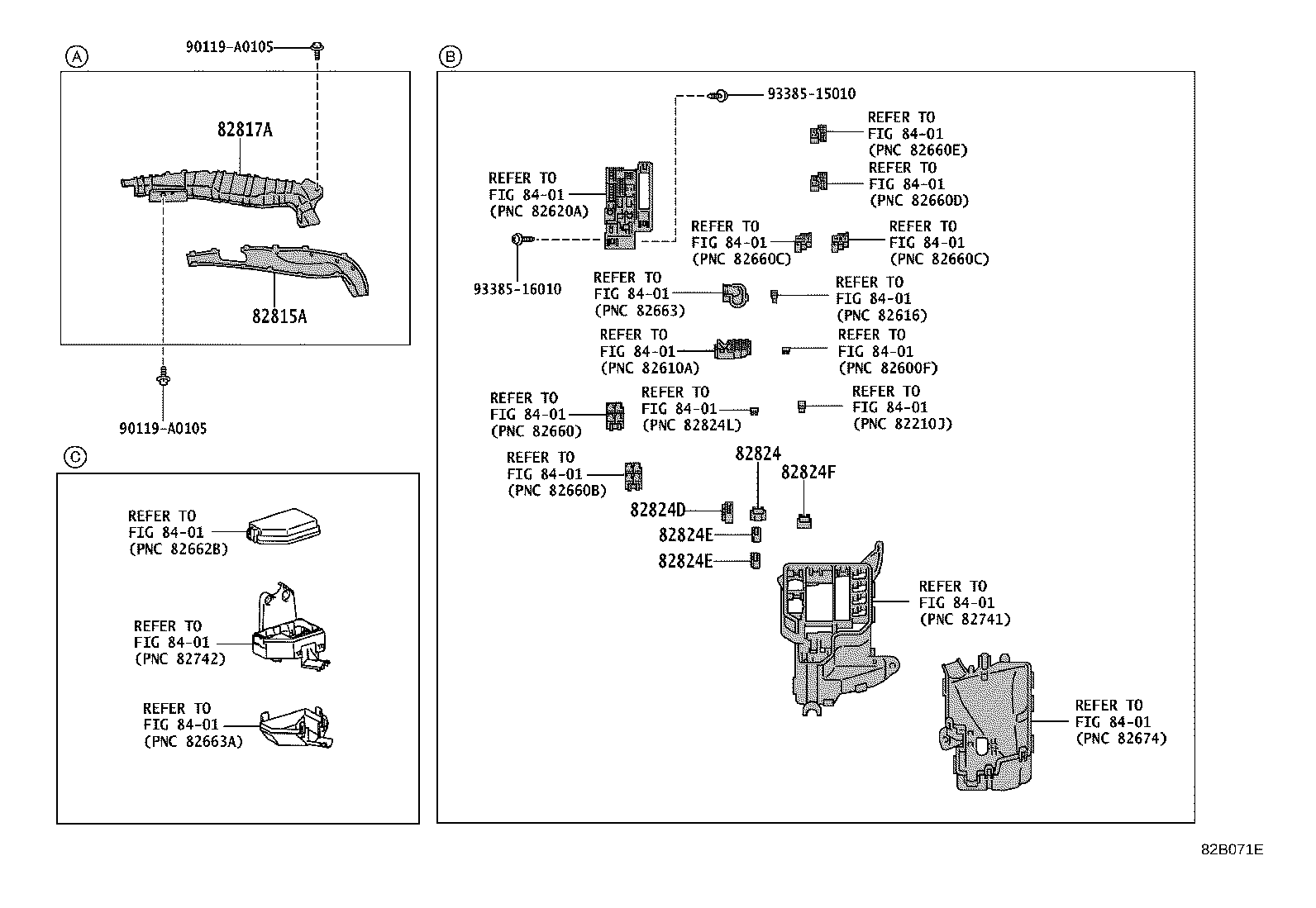

ILLUST NO. 2 OF14(1608- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-08050 |
GSL3# |
1 | ||
| 82815-08050 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-08230 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82817-08230 |
GSL3# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
GSL3# |
1 | ||
| 82824-50360 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
GSL3# |
1 | ||
| 82824-52280 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-73030 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 82824-73030 |
GSL3# |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-73030 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 82824-73030 |
GSL3# |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-73040 |
GSL3# |
2 | ||
| 82824-73040 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| Common parts | ||||
| 90119-A0105 | ||||
| 93385-15010 | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

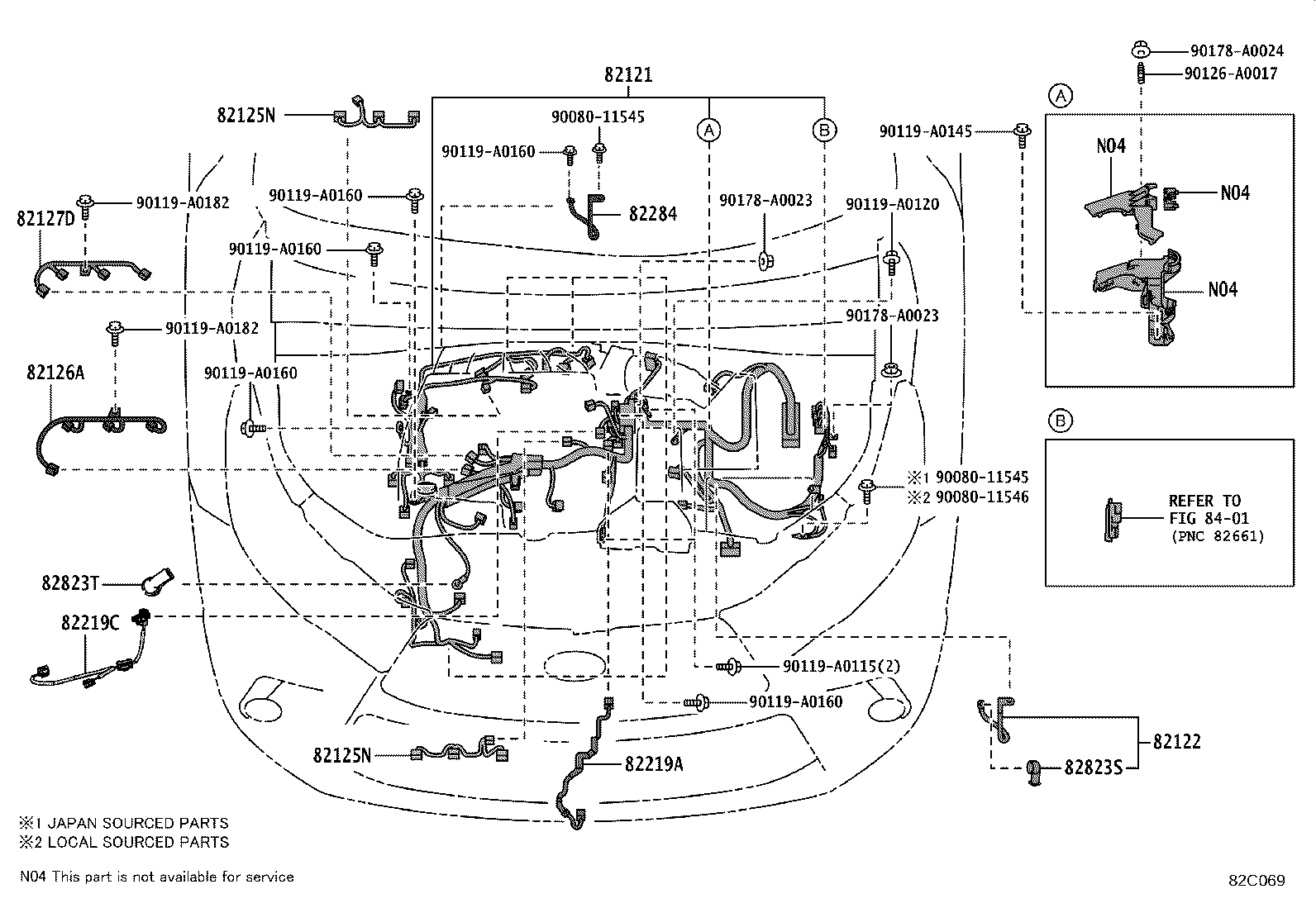

ILLUST NO. 3 OF14(1608- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-08180 |
GSL30,33 |
1 | ||
| 82121-08100 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82121-08110 |
GSL30;GSL35..LE,XLE TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82122-08040 |
GSL3# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E020 |
GSL3# |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-0E020 |
GSL3# |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-08021 |
GSL3# |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-08021 |
GSL3# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-06010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82219-0E060 |
GSL3# |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-0E050 |
GSL3# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82284-08040 |
GSL3# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-0E010 |
GSL3# |
1 | ||
| 82823-12090 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-34010 |
GSL3# |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-11546 | ||||
| 90119-A0115 | ||||
| 90119-A0120 | ||||
| 90119-A0145 | ||||
| 90119-A0160 | ||||
| 90119-A0182 | ||||
| 90126-A0017 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
