GSL30L-PFZEHA (2016)
Toyota Sienna
Production
Aug 2016
-
Nov 2017
Engine
2GRFKS
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1001- )

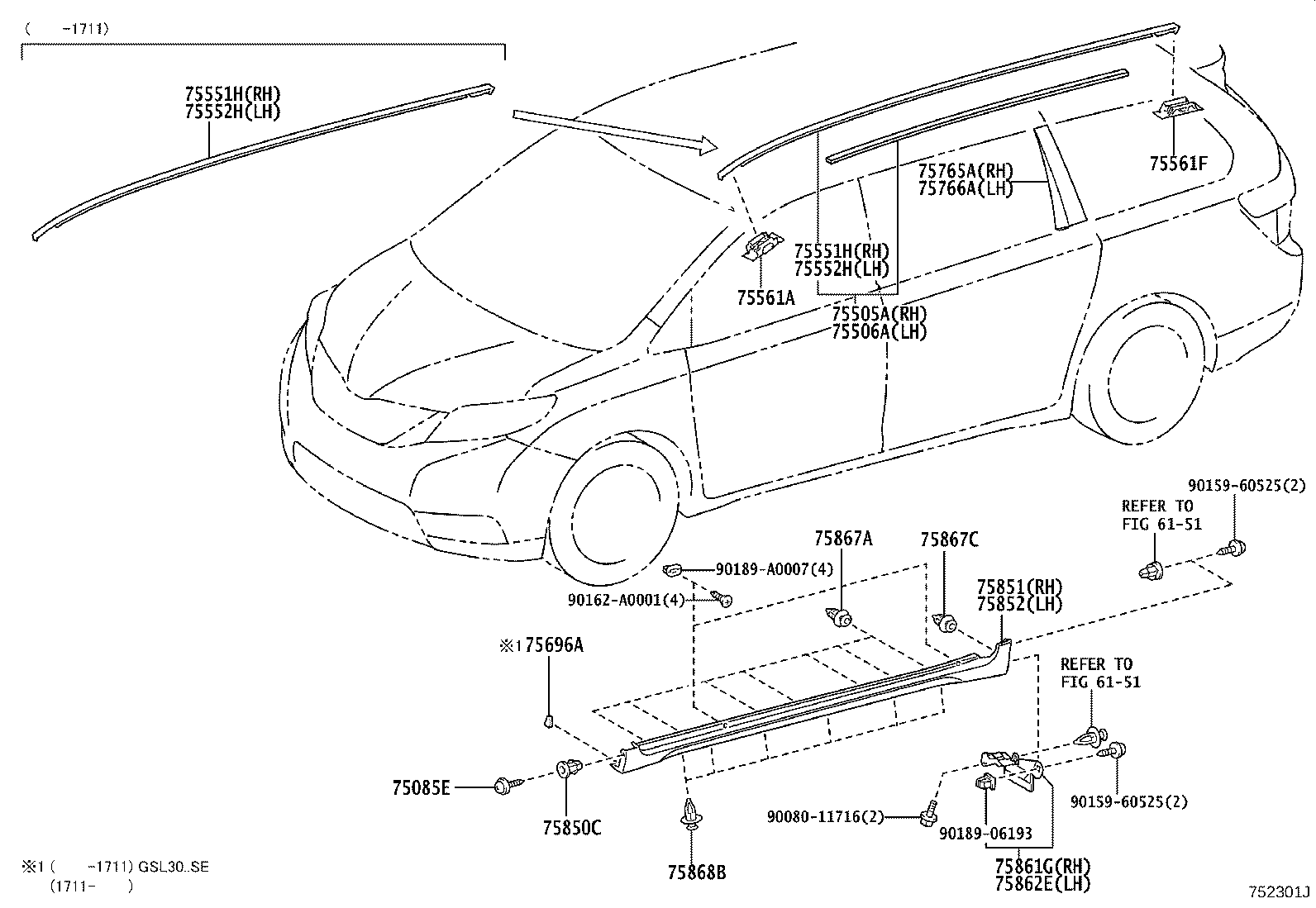

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75085E - SCREW, NO.1 | ||||
| 90168-A0003 |
GSL3# |
2 | ||
| 90168-A0003 |
ASL30,GSL3# |
2 | ||
| 75551H - MOULDING, ROOF DRIP SIDE, RH | ||||
| 75551-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75551-08020 |
GSL3# |
1 | ||
| 75551H - MOULDING, ROOF DRIP SIDE, RH | ||||
| 75551-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75551-08020 |
GSL3# |
1 | ||
| 75552H - MOULDING, ROOF DRIP SIDE, LH | ||||
| 75552-08020 |
GSL3# |
1 | ||
| 75552-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75552H - MOULDING, ROOF DRIP SIDE, LH | ||||
| 75552-08020 |
GSL3# |
1 | ||
| 75552-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52040 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 75561-08040 |
GSL3# |
2 | ||
| 75561F - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-08020 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 75561-08020 |
GSL3# |
2 | ||
| 75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH | ||||
| 75765-08020 |
GSL3# |
1 | ||
| 75765-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH | ||||
| 75766-08020 |
GSL3# |
1 | ||
| 75766-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75850C - GROMMET, NO.1 | ||||
| 90189-06145 |
ASL30,GSL3# |
2 | ||
| 90189-A0008 |
GSL3# |
2 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-08900 |
ASL30,GSL3#..LE,STD,XLE |
1 | ||
| 75851-08900 |
GSL3#..LE,STD,XLE |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-08901 |
ASL30,GSL3#..LE,STD,XLE |
1 | ||
| 75852-08901 |
GSL3#..LE,STD,XLE |
1 | ||
| 75861G - COVER, ROCKER PANEL MOULDING END, FRONT RH | ||||
| 75861-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75861-08010 |
GSL3# |
1 | ||
| 75862E - COVER, ROCKER PANEL MOULDING END, FRONT LH | ||||
| 75862-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 75862-08010 |
GSL3# |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-AA010 |
GSL3# |
14 | ||
| 75867-AA010 |
GSL30,33;GSL35..LE,XLE |
14 | ||
| 75867C - CLIP, ROCKER PANEL MOULDING | ||||
| 90467-A0007 |
GSL3# |
2 | ||
| 90467-A0007 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 75868B - CLIP, ROCKER PANEL MOULDING, NO.2 | ||||
| 75867-30120 |
GSL30,33;GSL35..LE,XLE |
12 | ||
| 75867-30120 |
GSL3# |
12 | ||
| Common parts | ||||
| 90080-11716 | ||||
| 90159-60525 | ||||
| 90162-A0001 | ||||
| 90189-06193 | ||||
| 90189-A0007 | ||||
| Linked diagrams | ||||
| 6151 | ||||
