GSL30L-PFZEHA (2016)
Toyota Sienna
(1001- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73023-06030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73023-06030E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73023-06030B0 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73023-06030B1 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73024-06030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73024-06030B1 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 73024-06030E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73024-06030B0 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
GSL3# |
2 | ||
| 73200-08010 |
ASL30,GSL3# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
GSL3# |
2 | ||
| 73200-08010 |
ASL30,GSL3# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-08040B1 |
ASL30,GSL3# GRAY,TRIM1# |
1 | ||
| 73210-08040E0 |
ASL30,GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73210-08083E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73210-08083B0 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
GSL3# BEIGE |
1 | ||
| 73219-02020 |
GSL3# GRAY |
1 | ||
| 73219-02010 |
GSL3# BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-08040E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73220-08040B1 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73220-08061B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73220-08061E1 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-08030B0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE LT.GRAY,TRIM1# |
1 | ||
| 73230-08030E0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73230-08040B0 |
GSL30,35..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73230-08040E0 |
GSL30,35..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0C010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73233-08010E1 |
GSL3#..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 73233-0C010E2 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 73233-08010B1 |
GSL3#..LE,STD,XLE MD.GRAY,TRIM1# |
1 | ||
| 73233C - COVER, LAP BELT OUTER ANCHOR, LH | ||||
| 73233-0C010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73233-0C010E2 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 73233-08010B1 |
GSL3#..LE,STD,XLE MD.GRAY,TRIM1# |
1 | ||
| 73233-08010E1 |
GSL3#..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-08020B0 |
GSL30,35..LE DE-CONTENT PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 73240-08030B0 |
GSL30,35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 73240-08020E0 |
GSL30,35..LE DE-CONTENT PACKAGE,GREGE,TRIM4# |
1 | ||
| 73240-08030E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| 73240-08060B0 |
GSL30,35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73240-08050E0 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4# |
1 | ||
| 73240-08050B0 |
GSL30..LE W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1# |
1 | ||
| 73240-08060E0 |
GSL30,35..LE,XLE GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-0E010 | ||||
| 73214-75010 | ||||
| 90080-17195 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
| 90109-A0025 | ||||
(1001- )07S

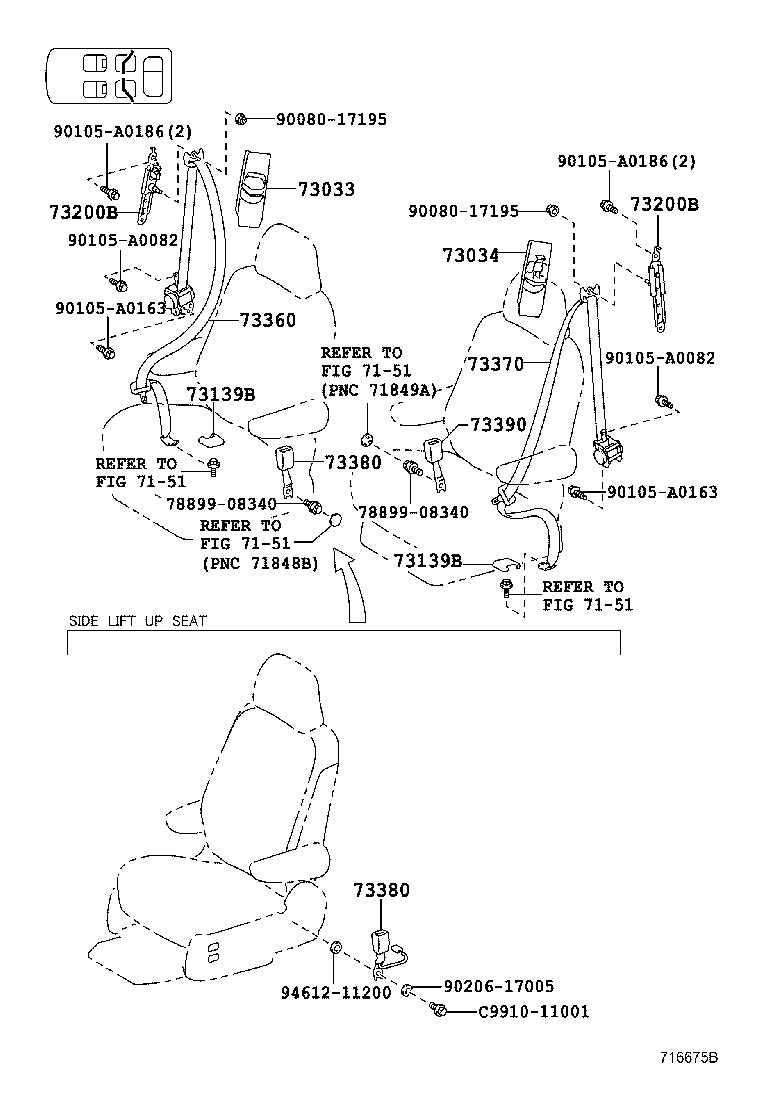

REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73033 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, RH | ||||
| 73033-08010E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73033-08010E0 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73033-08010B1 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73033-08010B0 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73034 - PLATE SUB-ASSY, REAR SHOULDER BELT ANCHOR, LH | ||||
| 73034-08010E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73034-08010E0 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73034-08010B0 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73034-08010B1 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-08010B0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
2 | ||
| 73139-08010B2 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) MD.GRAY,TRIM1# |
2 | ||
| 73139-08010E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) ASH BROWN,TRIM4# |
2 | ||
| 73139-08010E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) ASH BROWN,TRIM4# |
2 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-08010B0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
2 | ||
| 73139-08010B2 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) MD.GRAY,TRIM1# |
2 | ||
| 73139-08010E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) ASH BROWN,TRIM4# |
2 | ||
| 73139-08010E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) ASH BROWN,TRIM4# |
2 | ||
| 73200B - ADJUSTER ASSY, REAR SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
GSL35;GSL30..08S;GSL30..07S..(LE,STD) |
2 | ||
| 73200-08010 |
GSL30..08S;ASL30,GSL35..LE,STD;GSL30..07S..(LE,STD) |
2 | ||
| 73200B - ADJUSTER ASSY, REAR SHOULDER BELT ANCHOR | ||||
| 73200-0C020 |
GSL35;GSL30..08S;GSL30..07S..(LE,STD) |
2 | ||
| 73200-08010 |
GSL30..08S;ASL30,GSL35..LE,STD;GSL30..07S..(LE,STD) |
2 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-08050B1 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73360-08050E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73360-08050E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73360-08050B1 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GRAY,TRIM1# |
1 | ||
| 73360-08051B3 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73360-08051E2 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-08040E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73370-08040B1 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GRAY,TRIM1# |
1 | ||
| 73370-08040B1 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73370-08040E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73370-08041E2 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73370-08041B3 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-08020B0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73380-08020B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-45010B1 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
1 | ||
| 73380-45010E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 73380-08020B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-45010B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GRAY,TRIM1# |
1 | ||
| 73380-45010E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-08020B0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73380-08020B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-45010B1 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
1 | ||
| 73380-45010E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 73380-08020B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-45010B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GRAY,TRIM1# |
1 | ||
| 73380-45010E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-08020B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 73380-08020B0 |
GSL35..LE;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL35..LE;GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-08020E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73380-08020B3 |
GSL35;GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 78899-08340 | ||||
| 90080-17195 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90105-A0186 | ||||
| 90206-17005 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1001- )07S
REAR NO.1 SEAT, W(OTTOMAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-08050B1 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73360-08050E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73360-08050E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73360-08050B1 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GRAY,TRIM1# |
1 | ||
| 73360-08051B3 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73360-08051E2 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-08040E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73370-08040B1 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GRAY,TRIM1# |
1 | ||
| 73370-08040B1 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73370-08040E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73370-08041E2 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73370-08041B3 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-08020B0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73380-08020B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-45010B1 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
1 | ||
| 73380-45010E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 73380-08020B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-45010B2 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GRAY,TRIM1# |
1 | ||
| 73380-45010E0 |
GSL30..07S..(LE,XLE) WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-08020B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 73380-08020B0 |
GSL35..LE;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL35..LE;GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73380-08020E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 73380-08020B3 |
GSL35;GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73380-08020E0 |
GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 78899-08340 | ||||
| 90080-17195 | ||||
| 90105-11038 | ||||
| 90105-A0063 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1001- )ASL30,GSL30,35
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-08010 |
GSL30;GSL35..LE,XLE |
1 | ||
| 73015-08010 |
GSL30,35 |
1 | ||
| 73016A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-08010 |
GSL30;GSL35..LE,XLE |
1 | ||
| 73016-08010 |
GSL30,35 |
1 | ||
| 73060 - BELT ASSY, REAR NO.2 SEAT LAP, CENTER W/INNER LH | ||||
| 73060-08030B0 |
ASL30,GSL30,35..LE,STD,XLE LT.GRAY,TRIM1# |
1 | ||
| 73060-08030E0 |
ASL30,GSL30,35..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73060-08031B3 |
GSL30,35..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73060-08031E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02030 |
GSL3# BEIGE |
1 | ||
| 73219-02020 |
GSL3# GRAY |
1 | ||
| 73219-02010 |
GSL3# BLACK |
1 | ||
| 73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT | ||||
| 73233-0C010B0 |
GSL30;GSL35..LE,XLE GRAY,TRIM1# |
2 | ||
| 73233-08010B1 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) MD.GRAY,TRIM1# |
2 | ||
| 73233-0C010E2 |
GSL35..LE,XLE;GSL30..LE,STD,XLE ASH BROWN,TRIM4# |
2 | ||
| 73233-08010E1 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) ASH BROWN,TRIM4# |
2 | ||
| 73233B - COVER, LAP BELT OUTER ANCHOR, REAR NO.2 SEAT | ||||
| 73233-0C010B0 |
GSL30;GSL35..LE,XLE GRAY,TRIM1# |
2 | ||
| 73233-08010B1 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) MD.GRAY,TRIM1# |
2 | ||
| 73233-0C010E2 |
GSL35..LE,XLE;GSL30..LE,STD,XLE ASH BROWN,TRIM4# |
2 | ||
| 73233-08010E1 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) ASH BROWN,TRIM4# |
2 | ||
| 73373C - COVER, REAR NO.2 SEAT SHOULDER BELT | ||||
| 73373-08100E0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73373-08100B0 |
GSL30;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 73373-08100B1 |
GSL30,35..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73373-08100E0 |
GSL30,35..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-08010E0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73510-08010B2 |
GSL30;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73510-08010B4 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73510-08010E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-08030B2 |
GSL30;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73560-08030E1 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73560-08032B4 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY/MD.GRAY,TRIM1# |
1 | ||
| 73560-08032E3 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE/ASH BROWN,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-08030E1 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73570-08030B2 |
GSL30;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 73570-08032E3 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE/ASH BROWN,TRIM4# |
1 | ||
| 73570-08032B4 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY/MD.GRAY,TRIM1# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-08030E0 |
ASL30,GSL30,35..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73580-08030B0 |
ASL30,GSL30,35..LE,STD,XLE LT.GRAY,TRIM1# |
1 | ||
| 73580-08031E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73580-08031B3 |
GSL30,35..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73590-08030E0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73590-08030B0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73590-08030E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 73590-08030B6 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73590-08040E0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 73590-08040B6 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 73590-08040B0 |
GSL35..LE,XLE;GSL30..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 73590-08040E0 |
GSL30..08S..(LE,XLE);GSL30,35..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-10177 | ||||
| 90080-10344 | ||||
| 90080-17195 | ||||
| 90105-A0082 | ||||
| 90105-A0163 | ||||
| 90109-A0033 | ||||
| 90182-A0008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
