GSL30L-PFZEHA (2016)
Toyota Sienna

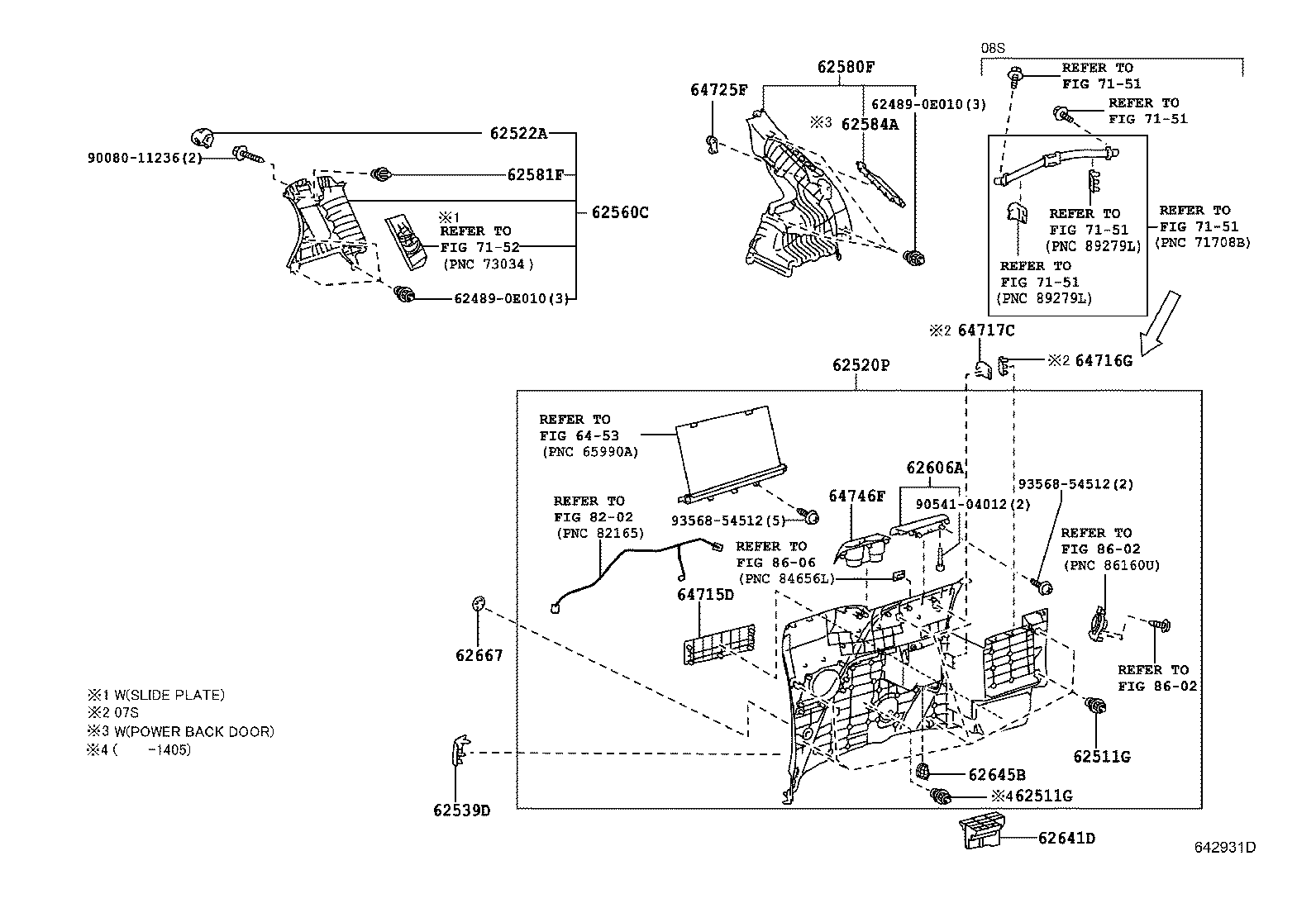

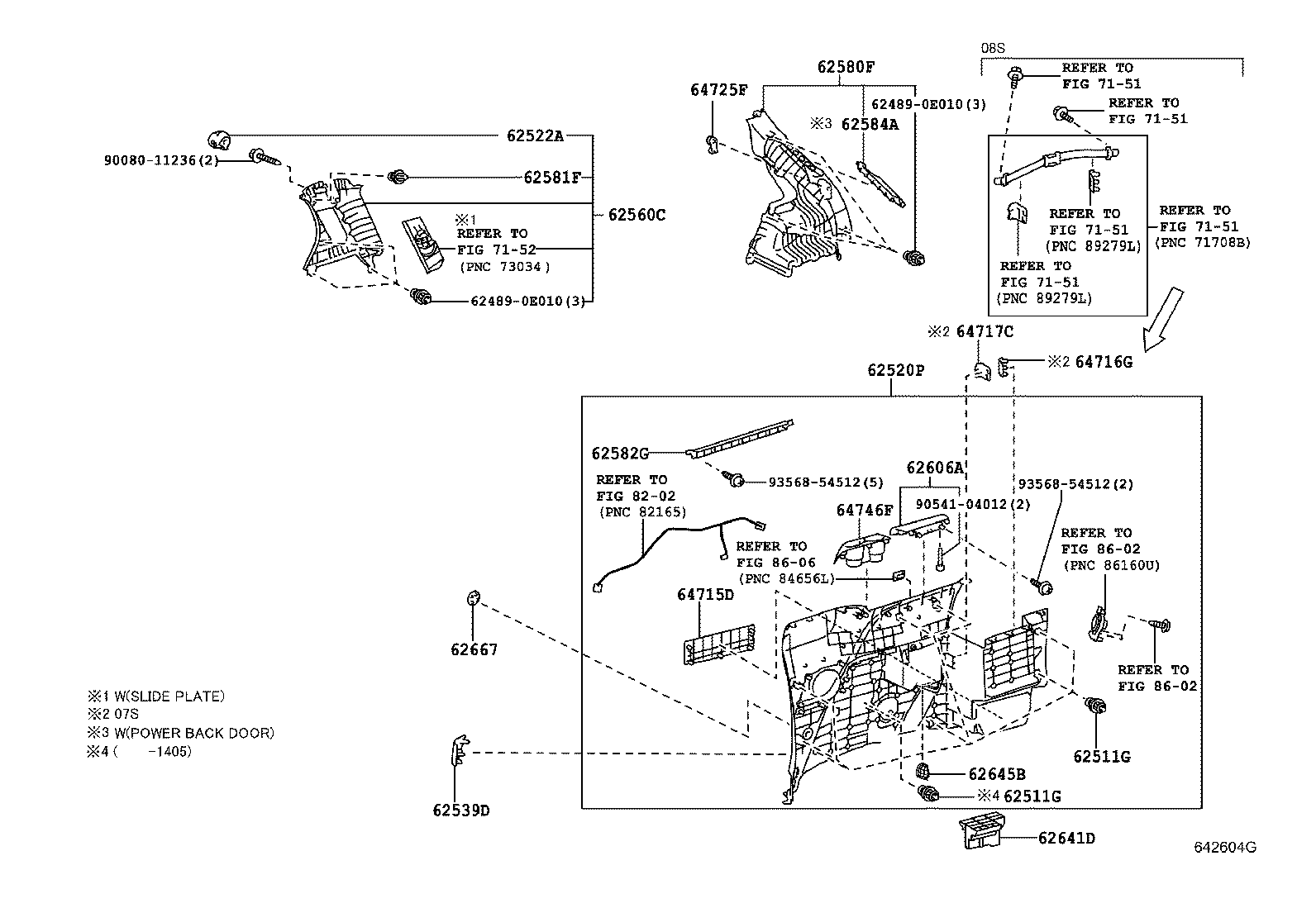

ILLUST NO. 2 OF 2(1001- )LE,SE,STD
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL3# |
8 | ||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL3# |
8 | ||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-08050E0 |
GSL30,35..07S..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 62520-08060E0 |
GSL30,35..07S..LE GREGE,TRIM4# |
1 | ||
| 62520-08050B0 |
GSL30,35..07S..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 62520-08060B0 |
GSL30,35..07S..LE LT.GRAY,TRIM1# |
1 | ||
| 62520-08252E1 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE/ASH BROWN,TRIM4# |
1 | ||
| 62520-08252B1 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GRAY/MD.GRAY,TRIM1# |
1 | ||
| 62520-08332E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62520-08332B1 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62522-08020B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62522-08020E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62522-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62539D - COVER, QUARTER TRIM, LOWER FRONT LH | ||||
| 62539-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62539-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62539-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62539-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 62560C - GARNISH ASSY, REAR WINDOW SIDE, LH | ||||
| 62560-08050B0 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 62560-08050E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62560-08050E0 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62560-08050B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 62580F - GARNISH ASSY, REAR WINDOW SIDE, NO.2 LH | ||||
| 62580-08030B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 62580-08040B0 |
GSL30..07S..LE WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
1 | ||
| 62580-08030E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 62580-08040B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 62580-08040E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 62580-08040E0 |
GSL30..07S..LE WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 62580-08030E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62580-08030B1 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62580-08040E0 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR),GREGE,TRIM4# |
1 | ||
| 62580-08040B1 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR),GRAY,TRIM1# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 62217-13010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 62217-13010 |
GSL3# |
2 | ||
| 62582G - COVER, QUARTER PILLAR, LH | ||||
| 62582-08030B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 62582-08030E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 62582-08030E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62582-08030B1 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62584A - COVER, QUARTER PILLAR, UPPER LH | ||||
| 62584-08010 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 62584-08010 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 62584-08010 |
GSL30..07S..LE MOBILITY BASE VEHICLE |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62606-08010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62606-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62606-08010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62606-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62641D - PAD, QUARTER TRIM, REAR | ||||
| 62641-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 62641-08010 |
GSL3# |
1 | ||
| 62645B - COVER, SHOCK ABSORBER HEAD, LH | ||||
| 62646-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62646-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62646-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62646-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 62667 - COVER, QUARTER TRIM, LH | ||||
| 62667-08010E0 |
GSL30,35..LE ASH BROWN,TRIM4# |
1 | ||
| 62667-08010B0 |
GSL30,35..LE GRAY,TRIM1# |
1 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-08030B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64715-08030B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64715-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64715-08030E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-08010B0 |
GSL35..LE,XLE;GSL30,33..01S,07S GRAY,TRIM1# |
1 | ||
| 64716-08010B1 |
GSL3#..01S,07S MD.GRAY,TRIM1# |
1 | ||
| 64716-08010E0 |
GSL3#..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64716-08010E0 |
GSL35..LE,XLE;GSL30,33..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64717C - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-08010E0 |
GSL35..LE,XLE;GSL30,33..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64717-08010B0 |
GSL35..LE,XLE;GSL30,33..01S,07S GRAY,TRIM1# |
1 | ||
| 64717-08010E0 |
GSL3#..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64717-08010B1 |
GSL3#..01S,07S MD.GRAY,TRIM1# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-0T010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64725-0T010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
2 | ||
| 64725-0T010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
2 | ||
| 64725-0T010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64746F - HOLDER, DECK SIDE TRIM CUP, LH | ||||
| 64746-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 64746-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 64746-08010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 64746-08010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 62489-0E010 | ||||
| 90080-11236 | ||||
| 90541-04012 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 7151 | ||||
| 7152 | ||||
| 8202 | ||||
| 8602 | ||||
| 8606 | ||||

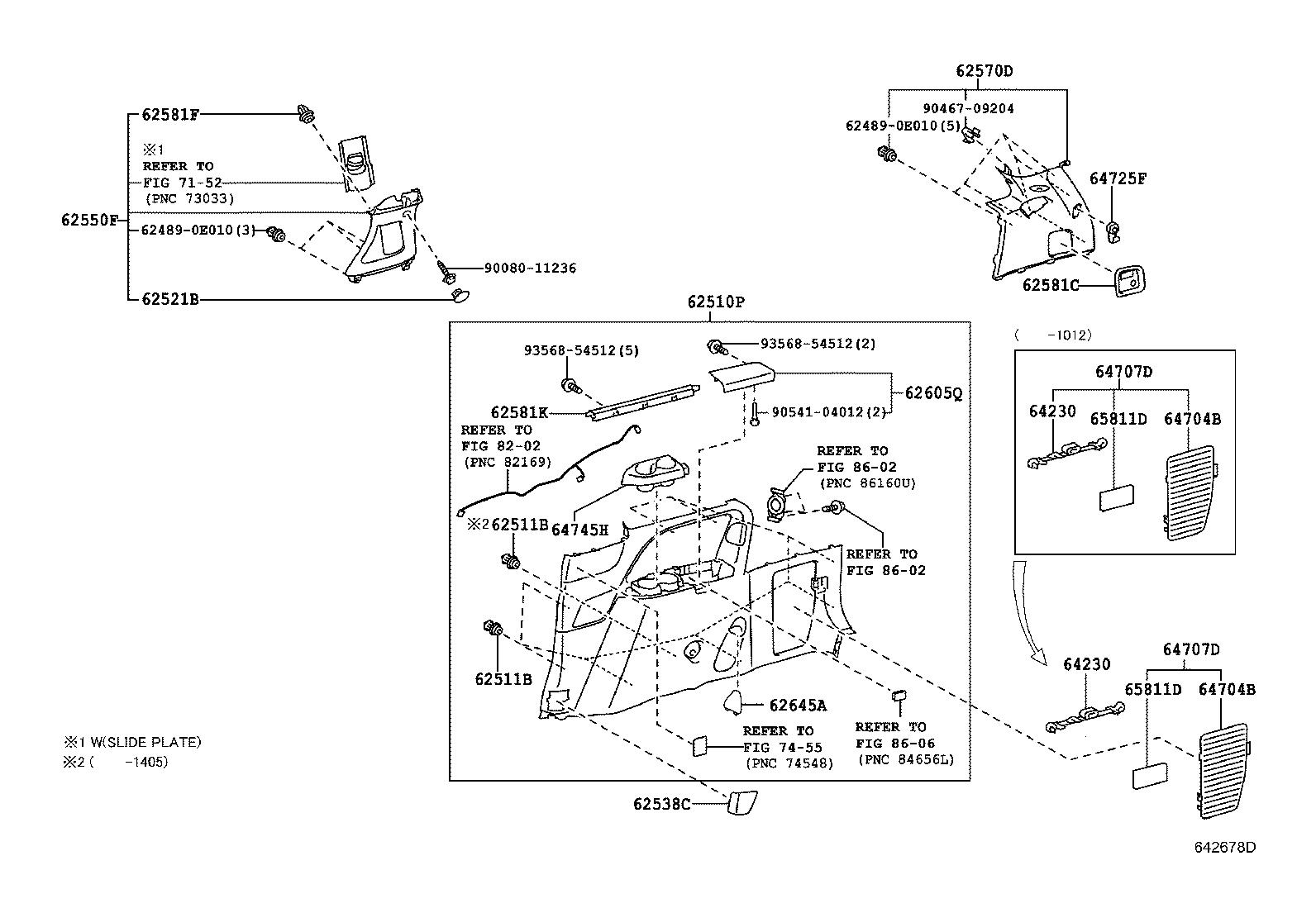

ILLUST NO. 2 OF 2(1001- )LE,SE,STD
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-08170B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 62510-08170E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62510-08180E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 62510-08180B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 62510-08172E1 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62510-08172B2 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62510-08182B1 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GRAY/MD.GRAY,TRIM1# |
1 | ||
| 62510-08182E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE/ASH BROWN,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62489-0E010 |
GSL3# |
8 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62489-0E010 |
GSL3# |
8 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62521-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62521-08020E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62521-08020B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62538-08020E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 62538-08020B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62538-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62550F - GARNISH ASSY, REAR WINDOW SIDE, RH | ||||
| 62550-08050E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62550-08050B0 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 62550-08050E0 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62550-08050B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 62570D - GARNISH ASSY, REAR WINDOW SIDE, NO.2 RH | ||||
| 62570-08040E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62570-08040E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62570-08040B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62570-08040B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62581C - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-08050E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62581-08050B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62581-08050B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62581-08050E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 62217-13010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 62217-13010 |
GSL3# |
2 | ||
| 62581K - GARNISH, REAR WINDOW SIDE | ||||
| 62581-08040B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 62581-08040E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62581-08040B1 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62581-08040E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-08030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62605-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62605-08030E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62605-08030B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62645A - COVER, SHOCK ABSORBER HEAD, RH | ||||
| 62645-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62645-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62645-08020B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62645-08020E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-08010 |
ASL30,GSL3# |
1 | ||
| 64230-08011 |
GSL3# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-08010 |
ASL30,GSL3# |
1 | ||
| 64230-08011 |
GSL3# |
1 | ||
| 64704B - BOARD SUB-ASSY, QUARTER TRIM JACK | ||||
| 64704-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64704-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64704-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64704-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64704B - BOARD SUB-ASSY, QUARTER TRIM JACK | ||||
| 64704-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64704-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64704-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64704-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64707-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64707-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64707-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64707-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64707-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64707-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-0T010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64725-0T010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
2 | ||
| 64725-0T010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
2 | ||
| 64725-0T010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64745H - HOLDER, DECK SIDE TRIM CUP, RH | ||||
| 64745-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 64745-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 64745-08010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 64745-08010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 65811D - COVER, TOP | ||||
| 65811-AE010 |
GSL3# |
1 | ||
| 65811-AE010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 65811D - COVER, TOP | ||||
| 65811-AE010 |
GSL3# |
1 | ||
| 65811-AE010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 62489-0E010 | ||||
| 90080-11236 | ||||
| 90467-09204 | ||||
| 90541-04012 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8202 | ||||
| 8602 | ||||
| 8606 | ||||
ILLUST NO. 2 OF 2(1001- )
LH W(REAR SUNSHADE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL3# |
8 | ||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL3# |
8 | ||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-08050E0 |
GSL30,35..07S..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 62520-08060E0 |
GSL30,35..07S..LE GREGE,TRIM4# |
1 | ||
| 62520-08050B0 |
GSL30,35..07S..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 62520-08060B0 |
GSL30,35..07S..LE LT.GRAY,TRIM1# |
1 | ||
| 62520-08252E1 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE/ASH BROWN,TRIM4# |
1 | ||
| 62520-08252B1 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GRAY/MD.GRAY,TRIM1# |
1 | ||
| 62520-08332E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62520-08332B1 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62522-08020B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62522-08020E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62522-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62539D - COVER, QUARTER TRIM, LOWER FRONT LH | ||||
| 62539-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62539-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62539-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62539-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 62560C - GARNISH ASSY, REAR WINDOW SIDE, LH | ||||
| 62560-08050B0 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 62560-08050E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62560-08050E0 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62560-08050B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 62580F - GARNISH ASSY, REAR WINDOW SIDE, NO.2 LH | ||||
| 62580-08030B0 |
GSL35..LE;GSL30,33..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 62580-08040B0 |
GSL30..07S..LE WITH(LIFT UP SEAT),LT.GRAY,TRIM1# |
1 | ||
| 62580-08030E0 |
GSL35..LE;GSL30,33..LE,STD GREGE,TRIM4# |
1 | ||
| 62580-08040B0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,LT.GRAY,TRIM1# |
1 | ||
| 62580-08040E0 |
GSL30..07S..LE MOBILITY BASE VEHICLE,GREGE,TRIM4# |
1 | ||
| 62580-08040E0 |
GSL30..07S..LE WITH(LIFT UP SEAT),GREGE,TRIM4# |
1 | ||
| 62580-08030E0 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62580-08030B1 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62580-08040E0 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR),GREGE,TRIM4# |
1 | ||
| 62580-08040B1 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR),GRAY,TRIM1# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 62217-13010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 62217-13010 |
GSL3# |
2 | ||
| 62584A - COVER, QUARTER PILLAR, UPPER LH | ||||
| 62584-08010 |
GSL30..07S..LE WITH(LIFT UP SEAT) |
1 | ||
| 62584-08010 |
GSL30..07S..LE WITH(POWER SLIDE DOOR & POWER BACK DOOR) |
1 | ||
| 62584-08010 |
GSL30..07S..LE MOBILITY BASE VEHICLE |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62606-08010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62606-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62606-08010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62606-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62641D - PAD, QUARTER TRIM, REAR | ||||
| 62641-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 62641-08010 |
GSL3# |
1 | ||
| 62645B - COVER, SHOCK ABSORBER HEAD, LH | ||||
| 62646-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62646-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62646-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62646-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 62667 - COVER, QUARTER TRIM, LH | ||||
| 62667-08010E0 |
GSL30,35..LE ASH BROWN,TRIM4# |
1 | ||
| 62667-08010B0 |
GSL30,35..LE GRAY,TRIM1# |
1 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-08030B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64715-08030B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64715-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64715-08030E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-08010B0 |
GSL35..LE,XLE;GSL30,33..01S,07S GRAY,TRIM1# |
1 | ||
| 64716-08010B1 |
GSL3#..01S,07S MD.GRAY,TRIM1# |
1 | ||
| 64716-08010E0 |
GSL3#..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64716-08010E0 |
GSL35..LE,XLE;GSL30,33..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64717C - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-08010E0 |
GSL35..LE,XLE;GSL30,33..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64717-08010B0 |
GSL35..LE,XLE;GSL30,33..01S,07S GRAY,TRIM1# |
1 | ||
| 64717-08010E0 |
GSL3#..01S,07S ASH BROWN,TRIM4# |
1 | ||
| 64717-08010B1 |
GSL3#..01S,07S MD.GRAY,TRIM1# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-0T010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64725-0T010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
2 | ||
| 64725-0T010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
2 | ||
| 64725-0T010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64746F - HOLDER, DECK SIDE TRIM CUP, LH | ||||
| 64746-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 64746-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 64746-08010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 64746-08010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 62489-0E010 | ||||
| 90080-11236 | ||||
| 90541-04012 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 6453 | ||||
| 7151 | ||||
| 7152 | ||||
| 8202 | ||||
| 8602 | ||||
| 8606 | ||||
ILLUST NO. 2 OF 2(1001- )
RH W(REAR SUNSHADE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-08170B0 |
ASL30,GSL3#..LE,SE,STD LT.GRAY,TRIM1# |
1 | ||
| 62510-08170E0 |
ASL30,GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62510-08180E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE,TRIM4# |
1 | ||
| 62510-08180B0 |
GSL30,35..LE,SE SUN SHADE-WITH(SLIDE DOOR & QUARTER),LT.GRAY,TRIM1# |
1 | ||
| 62510-08172E1 |
GSL3#..LE,STD GREGE,TRIM4# |
1 | ||
| 62510-08172B2 |
GSL3#..LE,STD GRAY,TRIM1# |
1 | ||
| 62510-08182B1 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GRAY/MD.GRAY,TRIM1# |
1 | ||
| 62510-08182E0 |
GSL30,35..LE SUN SHADE-WITH(SLIDE DOOR & QUARTER),GREGE/ASH BROWN,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62489-0E010 |
GSL3# |
8 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 62489-0E010 |
GSL30,33;GSL35..LE,XLE |
9 | ||
| 62489-0E010 |
GSL3# |
8 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62521-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62521-08020E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62521-08020B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62538-08020E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 62538-08020B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62538-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62550F - GARNISH ASSY, REAR WINDOW SIDE, RH | ||||
| 62550-08050E0 |
GSL35..LE;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62550-08050B0 |
GSL35..LE;GSL30..08S;GSL30..07S..(LE,STD) LT.GRAY,TRIM1# |
1 | ||
| 62550-08050E0 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GREGE,TRIM4# |
1 | ||
| 62550-08050B3 |
GSL35;GSL30..08S..(LE,XLE);GSL30..07S..(LE,STD) GRAY,TRIM1# |
1 | ||
| 62570D - GARNISH ASSY, REAR WINDOW SIDE, NO.2 RH | ||||
| 62570-08040E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62570-08040E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62570-08040B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62570-08040B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62581C - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-08050E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62581-08050B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62581-08050B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62581-08050E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 62217-13010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 62217-13010 |
GSL3# |
2 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-08030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 62605-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62605-08030E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 62605-08030B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 62645A - COVER, SHOCK ABSORBER HEAD, RH | ||||
| 62645-08020B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 62645-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 62645-08020B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 62645-08020E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-08010 |
ASL30,GSL3# |
1 | ||
| 64230-08011 |
GSL3# |
1 | ||
| 64230 - NET ASSY, ROOM PARTITION | ||||
| 64230-08010 |
ASL30,GSL3# |
1 | ||
| 64230-08011 |
GSL3# |
1 | ||
| 64704B - BOARD SUB-ASSY, QUARTER TRIM JACK | ||||
| 64704-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64704-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64704-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64704-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64704B - BOARD SUB-ASSY, QUARTER TRIM JACK | ||||
| 64704-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64704-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64704-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64704-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64707-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64707-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64707-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-08010B1 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) MD.GRAY,TRIM1# |
1 | ||
| 64707-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 64707-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 64707-08010E0 |
GSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD) ASH BROWN,TRIM4# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-0T010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64725-0T010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
2 | ||
| 64725-0T010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
2 | ||
| 64725-0T010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 64745H - HOLDER, DECK SIDE TRIM CUP, RH | ||||
| 64745-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 64745-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 64745-08010B1 |
GSL3#..LE,STD,XLE GRAY,TRIM1# |
1 | ||
| 64745-08010E0 |
GSL3#..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 65811D - COVER, TOP | ||||
| 65811-AE010 |
GSL3# |
1 | ||
| 65811-AE010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 65811D - COVER, TOP | ||||
| 65811-AE010 |
GSL3# |
1 | ||
| 65811-AE010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 62489-0E010 | ||||
| 90080-11236 | ||||
| 90467-09204 | ||||
| 90541-04012 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 6453 | ||||
| 7152 | ||||
| 7455 | ||||
| 8202 | ||||
| 8602 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
