GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1001-1711)LE,STD,XLE

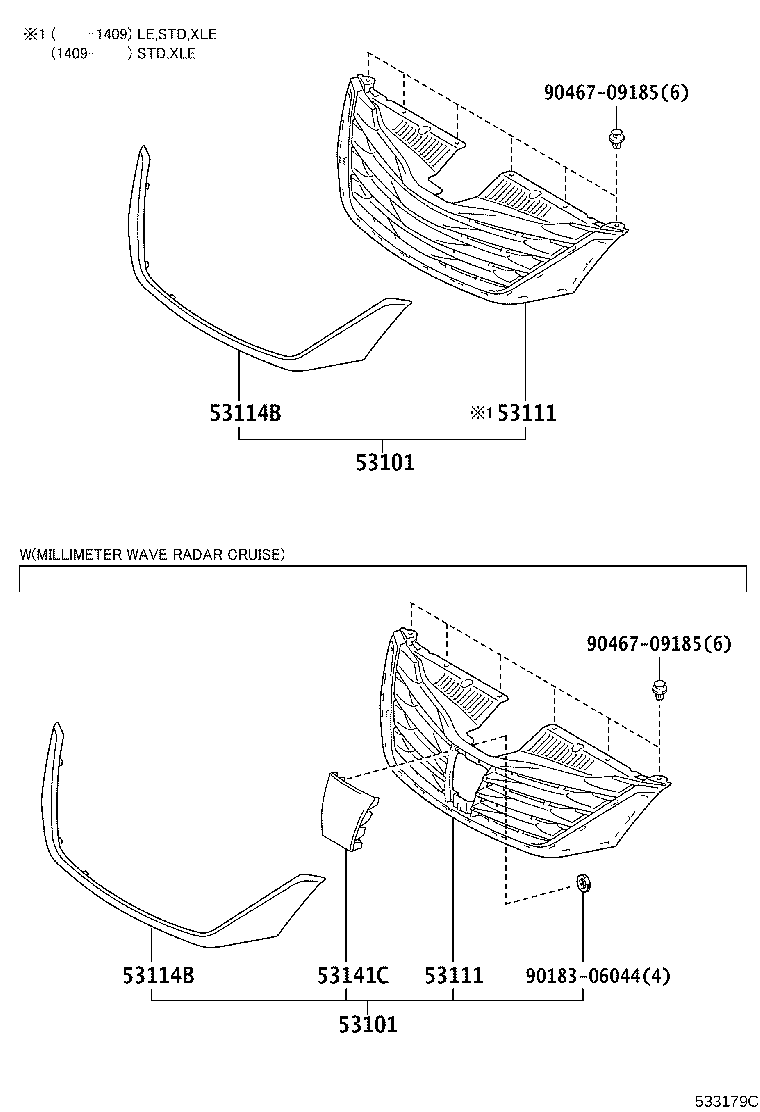

Click highlighted areas on diagram

diagram 53101 53101 53111 53111 53114B 53114B 53141C 9018306044 9046709185 9046709185
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-08080

ASL30,GSL30,35..LE

PLATED

 1
53101-08020A1

GSL30,35..LE

SUPER WHITE 2,040

 1
53101-08020C0

GSL30,35..LE

ATTITUDE BLACK MC.,218

 1
53101-08020F0

GSL30,35..LE

LT.YELLOW M.M.,5B2

 1
53101-08020B1

GSL30,35..LE

GRAY M.M.,1H1

 1
53101-08020B0

GSL30,35..LE

SILVER ME.,1D6

 1
53101-08020J0

GSL30,35..LE

LT.BLUE ME.,8S4

 1
53101-08020D0

GSL30,35..LE

DK. RED M.M.,3Q3

 1
53101-08020J1

GSL30,35..LE

GRAYISH BLUE M.M.,8V5

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-08080

ASL30,GSL30,35..LE

PLATED

 1
53101-08020A1

GSL30,35..LE

SUPER WHITE 2,040

 1
53101-08020C0

GSL30,35..LE

ATTITUDE BLACK MC.,218

 1
53101-08020F0

GSL30,35..LE

LT.YELLOW M.M.,5B2

 1
53101-08020B1

GSL30,35..LE

GRAY M.M.,1H1

 1
53101-08020B0

GSL30,35..LE

SILVER ME.,1D6

 1
53101-08020J0

GSL30,35..LE

LT.BLUE ME.,8S4

 1
53101-08020D0

GSL30,35..LE

DK. RED M.M.,3Q3

 1
53101-08020J1

GSL30,35..LE

GRAYISH BLUE M.M.,8V5

 1
53111 - GRILLE, RADIATOR
53111-08030

ASL30,GSL3#..LE,STD

NO PAINT REQ.

 1
53111 - GRILLE, RADIATOR
53111-08030

ASL30,GSL3#..LE,STD

NO PAINT REQ.

 1
53114B - GRILLE, RADIATOR, UPPER
53114-08020

GSL30,35..LE,XLE

 1
53114-08020

GSL30,35..LE,XLE

 1
53114B - GRILLE, RADIATOR, UPPER
53114-08020

GSL30,35..LE,XLE

 1
53114-08020

GSL30,35..LE,XLE

 1
Common parts
90183-06044
90467-09185
