GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

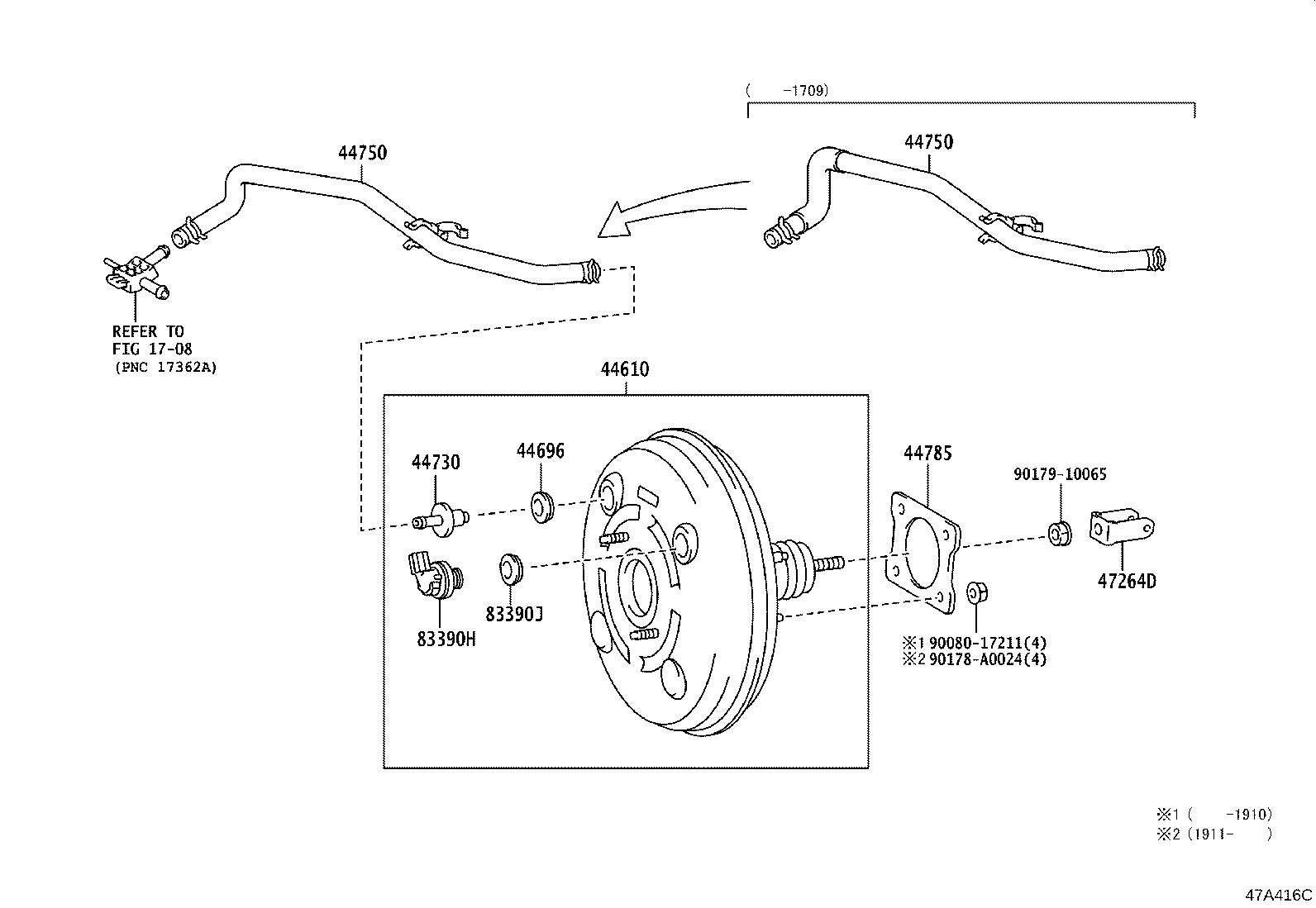

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44750 44750 44785 47264D 83390H 83390J 9008017211 90178A0024 9017910065
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-08070

GSL3#

 1
44610-08090

GSL3#

 1
44696 - GROMMET, CHECK VALVE
90080-48071

GSL30,33;GSL35..LE,XLE

 1
90080-48071

GSL3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

GSL3#

 1
44730-60070

GSL3#

 1
44750 - HOSE ASSY, VACUUM
44750-08090

GSL3#

 1
44750-08060

GSL3#

 1
44750 - HOSE ASSY, VACUUM
44750-08090

GSL3#

 1
44750-08060

GSL3#

 1
44785 - GASKET, BRAKE BOOSTER
44785-02060

GSL30,33;GSL35..LE,XLE

 1
44785-02060

GSL3#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-48020

GSL3#

 1
47264-06040

GSL3#

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

GSL3#

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90080-48071

GSL3#

 1
Common parts
90080-17211
90178-A0024
90179-10065
Linked diagrams
1708
