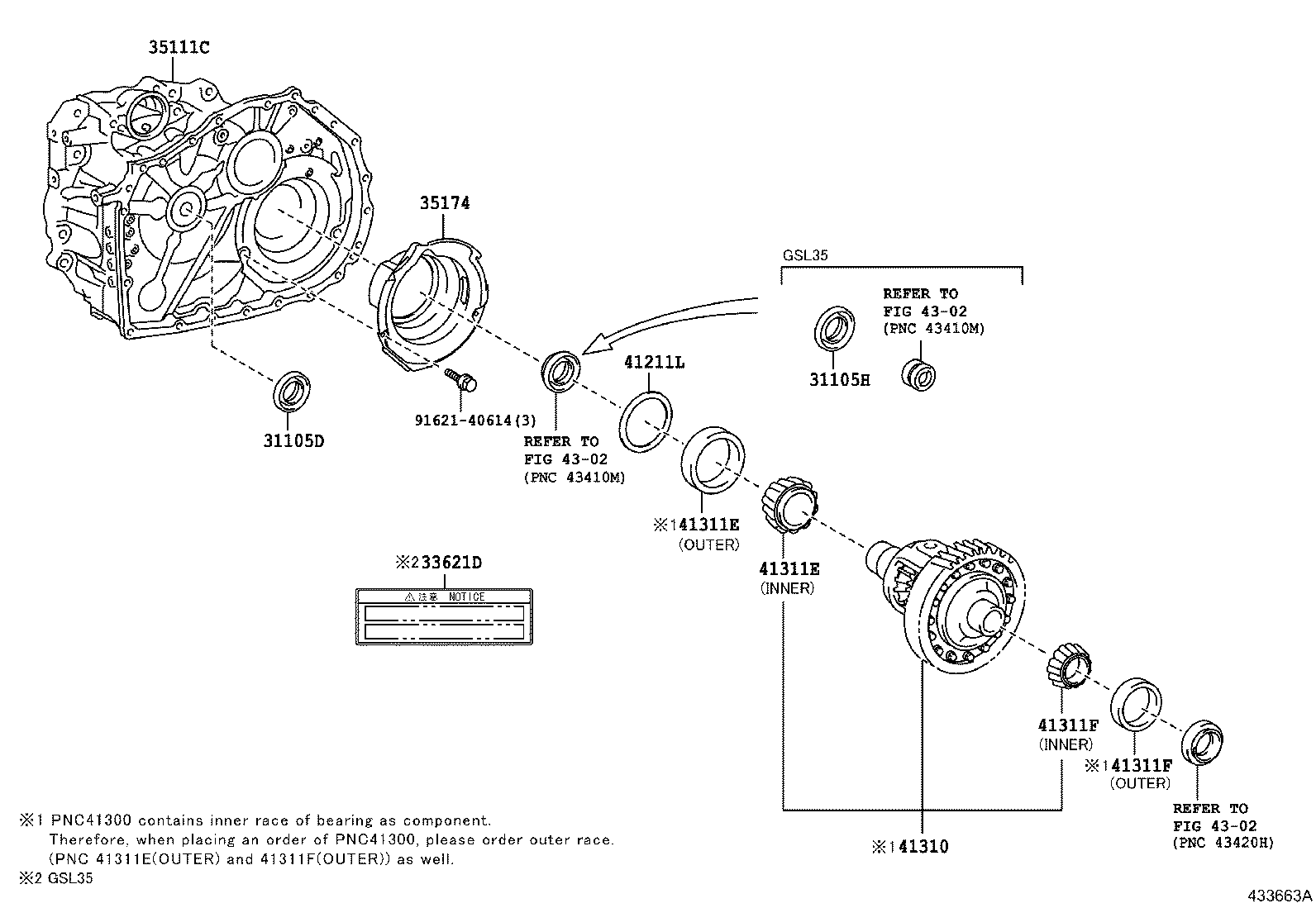

GSL30L-PFZEHA (2016)
Toyota Sienna
(1608- )
UA80E,UA80F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-51013 |
GSL3# |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-48090 |
GSL30,33 TOYOTA:REFER 35-01 |
1 | ||
| 35105-48110 |
GSL30,33 AISIN:REFER 35-01 |
1 | ||
| 35105-08020 |
GSL30,33 |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-48050 |
GSL30,33 TOYOTA:REFER 35-01 |
1 | ||
| 35174-48040 |
GSL3# AISIN:REFER 35-01 |
1 | ||
| 35174-48030 |
GSL30,33 TOYOTA:REFER 35-01 |
1 | ||
| 35174-48060 |
GSL3# AISIN:REFER 35-01 |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-A0143 |
GSL30,33 T=2.025 |
1 | ||
| 90564-A0145 |
GSL30,33 T=2.075 |
1 | ||
| 90564-A0148 |
GSL30,33 T=2.150 |
1 | ||
| 90564-A0149 |
GSL30,33 T=2.175 |
1 | ||
| 90564-A0142 |
GSL30,33 T=2.000 |
1 | ||
| 90564-A0152 |
GSL30,33 T=2.250 |
1 | ||
| 90564-A0153 |
GSL30,33 T=2.275 |
1 | ||
| 90564-A0151 |
GSL30,33 T=2.225 |
1 | ||
| 90564-A0146 |
GSL30,33 T=2.100 |
1 | ||
| 90564-A0155 |
GSL30,33 T=2.325 |
1 | ||
| 90564-A0156 |
GSL30,33 T=2.350 |
1 | ||
| 90564-A0144 |
GSL30,33 T=2.050 |
1 | ||
| 90564-A0157 |
GSL30,33 T=2.375 |
1 | ||
| 90564-A0158 |
GSL30,33 T=2.400 |
1 | ||
| 90564-A0160 |
GSL30,33 T=2.450 |
1 | ||
| 90564-A0168 |
GSL30,33 T=2.650 |
1 | ||
| 90564-A0154 |
GSL30,33 T=2.300 |
1 | ||
| 90564-A0150 |
GSL30,33 T=2.200 |
1 | ||
| 90564-A0159 |
GSL30,33 T=2.425 |
1 | ||
| 90564-A0165 |
GSL30,33 T=2.575 |
1 | ||
| 90564-A0166 |
GSL30,33 T=2.600 |
1 | ||
| 90564-A0167 |
GSL30,33 T=2.625 |
1 | ||
| 90564-A0172 |
GSL30,33 T=2.750 |
1 | ||
| 90564-A0163 |
GSL30,33 T=2.525 |
1 | ||
| 90564-A0162 |
GSL30,33 T=2.500 |
1 | ||
| 90564-A0174 |
GSL30,33 T=2.800 |
1 | ||
| 90564-A0161 |
GSL30,33 T=2.475 |
1 | ||
| 90564-A0173 |
GSL30,33 T=2.775 |
1 | ||
| 90564-A0175 |
GSL30,33 T=2.825 |
1 | ||
| 90564-A0180 |
GSL30,33 T=2.950 |
1 | ||
| 90564-A0176 |
GSL30,33 T=2.850 |
1 | ||
| 90564-A0171 |
GSL30,33 T=2.725 |
1 | ||
| 90564-A0170 |
GSL30,33 T=2.700 |
1 | ||
| 90564-A0164 |
GSL30,33 T=2.550 |
1 | ||
| 90564-A0179 |
GSL30,33 T=2.925 |
1 | ||
| 90564-A0181 |
GSL30,33 T=2.975 |
1 | ||
| 90564-A0178 |
GSL30,33 T=2.900 |
1 | ||
| 90564-A0169 |
GSL30,33 T=2.675 |
1 | ||
| 90564-A0147 |
GSL30,33 T=2.125 |
1 | ||
| 90564-A0177 |
GSL30,33 T=2.875 |
1 | ||
| 90564-A0182 |
GSL30,33 T=3.000 |
1 | ||
| 90564-75003 |
GSL3# T=1.13,MARK 51 |
1 | ||
| 90564-75007 |
GSL3# T=1.25,MARK 55 |
1 | ||
| 90564-75004 |
GSL3# T=1.16,MARK 52 |
1 | ||
| 90564-75006 |
GSL3# T=1.22,MARK 54 |
1 | ||
| 90564-75009 |
GSL3# T=1.31,MARK 57 |
1 | ||
| 90564-75010 |
GSL3# T=1.34,MARK 58 |
1 | ||
| 90564-75016 |
GSL3# T=1.52,MARK 64 |
1 | ||
| 90564-75002 |
GSL3# T=1.10,MARK 50 |
1 | ||
| 90564-75014 |
GSL3# T=1.46,MARK 62 |
1 | ||
| 90564-75011 |
GSL3# T=1.37,MARK 59 |
1 | ||
| 90564-75018 |
GSL3# T=1.58,MARK 66 |
1 | ||
| 90564-75017 |
GSL3# T=1.55,MARK 65 |
1 | ||
| 90564-75023 |
GSL3# T=1.64,MARK 68 |
1 | ||
| 90564-75019 |
GSL3# T=1.61,MARK 67 |
1 | ||
| 90564-75008 |
GSL3# T=1.28,MARK 56 |
1 | ||
| 90564-75025 |
GSL3# T=1.70,MARK 70 |
1 | ||
| 90564-75005 |
GSL3# T=1.19,MARK 53 |
1 | ||
| 90564-75012 |
GSL3# T=1.40,MARK 60 |
1 | ||
| 90564-75015 |
GSL3# T=1.49,MARK 63 |
1 | ||
| 90564-75013 |
GSL3# T=1.43,MARK 61 |
1 | ||
| 90564-75024 |
GSL3# T=1.67,MARK 69 |
1 | ||
| 90564-75029 |
GSL3# T=1.82,MARK 74 |
1 | ||
| 90564-75031 |
GSL3# T=1.88,MARK 76 |
1 | ||
| 90564-75027 |
GSL3# T=1.76,MARK 72 |
1 | ||
| 90564-75030 |
GSL3# T=1.85,MARK 75 |
1 | ||
| 90564-75034 |
GSL3# T=1.97,MARK 79 |
1 | ||
| 90564-75026 |
GSL3# T=1.73,MARK 71 |
1 | ||
| 90564-75032 |
GSL3# T=1.91,MARK 77 |
1 | ||
| 90564-75033 |
GSL3# T=1.94,MARK 78 |
1 | ||
| 90564-75028 |
GSL3# T=1.79,MARK 73 |
1 | ||
| 90564-75035 |
GSL3# T=2.00,MARK 80 |
1 | ||
| 41310 - CASE ASSY, DIFFERENTIAL | ||||
| 41300-48010 |
GSL30,33 TOYOTA:REFER 35-01 |
1 | ||
| 41300-48030 |
GSL30,33 AISIN:REFER 35-01 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57039 |
GSL3# OUTER |
1 | ||
| 90366-A0041 |
GSL30,33 |
1 | ||
| 90366-57038 |
GSL3# INNER |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57039 |
GSL3# OUTER |
1 | ||
| 90366-A0041 |
GSL30,33 |
1 | ||
| 90366-57038 |
GSL3# INNER |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-A0044 |
GSL30,33 |
1 | ||
| 90366-55081 |
GSL3# OUTER |
1 | ||
| 90366-55080 |
GSL3# INNER |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-A0044 |
GSL30,33 |
1 | ||
| 90366-55081 |
GSL3# OUTER |
1 | ||
| 90366-55080 |
GSL3# INNER |
1 | ||
| Common parts | ||||
| 91621-40614 | ||||
| Linked diagrams | ||||
| 4302 | ||||
