GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

Click highlighted areas on diagram

UA80E,UA80F

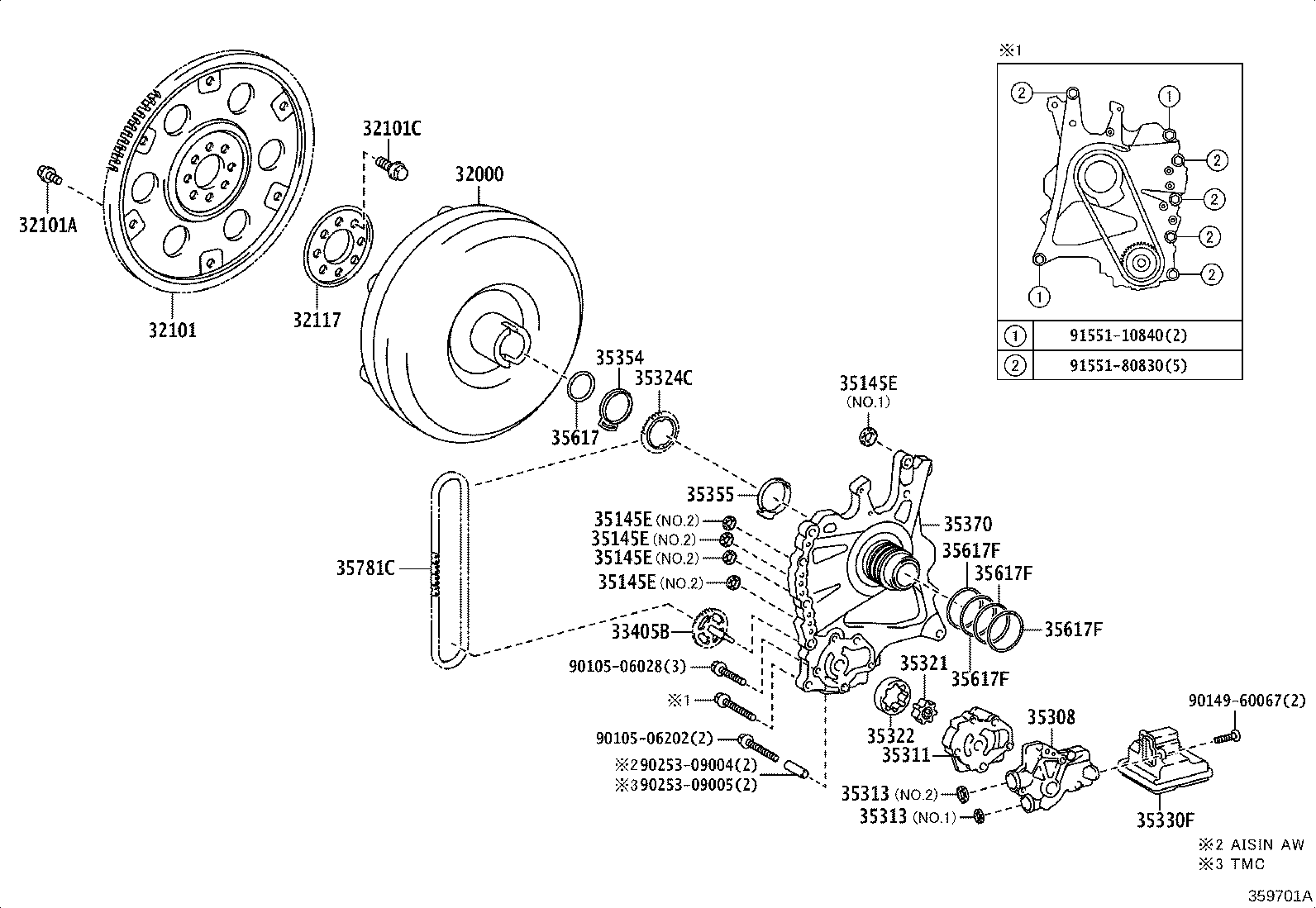

diagram 32000 32101 32101A 32101C 32117 33405B 35145E 35145E 35145E 35145E 35145E 35308 35311 35313 35313 35321 35322 35324C 35330F 35354 35355 35370 35617 35617F 35617F 35617F 35617F 35781C 9010506028 9010506202 9014960067 9025309004 9025309005 9155110840 9155180830
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-48060

GSL3#

 1
32000-07022

GSL30,33

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-48010

GSL30,33;GSL35..LE,XLE

 1
32101-0E010

GSL3#

(L)

 1
32101-48010

GSL3#

(J)

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

GSL30,33;GSL35..LE,XLE

*9-1.25PX12.4-7.3,BLACK

 1
90119-09025

GSL30,33;GSL35..LE,XLE

*9-1.25PX12.4-8.4,SILVER WHITE

 5
90109-09001

GSL3#

*9-1.25PX12.4-7.3,BLACK

 1
90119-09025

GSL3#

*9-1.25PX12.4-8.4,SILVER WHITE

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-A0022

GSL3#

*10-1.25PX18-13,(L)

 8
90105-10048

GSL30,33;GSL35..LE,XLE

*10-1.25PX18-13,(J)

 8
90105-10048

GSL3#

*10-1.25PX18-13

 8
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

GSL3#

 1
32117-32020

GSL30,33;GSL35..LE,XLE

 1
33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE
33405-48010

GSL3#

 1
35145E - GASKET, TRANSAXLE CASE
35145-48030

GSL3#

NO.2

 4
35145-33010

GSL3#

NO.1

 1
35145E - GASKET, TRANSAXLE CASE
35145-48030

GSL3#

NO.2

 4
35145-33010

GSL3#

NO.1

 1
35145E - GASKET, TRANSAXLE CASE
35145-48030

GSL3#

NO.2

 4
35145-33010

GSL3#

NO.1

 1
35145E - GASKET, TRANSAXLE CASE
35145-48030

GSL3#

NO.2

 4
35145-33010

GSL3#

NO.1

 1
35145E - GASKET, TRANSAXLE CASE
35145-48030

GSL3#

NO.2

 4
35145-33010

GSL3#

NO.1

 1
35308 - COVER SUB-ASSY, FRONT OIL PUMP
35308-48110

GSL3#

AISIN AW:REFER 35-01

 1
35308-48100

GSL30,33

TOYOTA:REFER 35-01

 1
35311 - BODY, FRONT OIL PUMP
35311-48030

GSL30,33

TOYOTA:REFER 35-01

 1
35311-48040

GSL3#

AISIN AW:REFER 35-01

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-48020

GSL3#

NO.1

 1
35313-48030

GSL3#

NO.2

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-48020

GSL3#

NO.1

 1
35313-48030

GSL3#

NO.2

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-07010

GSL30,33

T=11.567,MARK 1

 1
35321-07020

GSL30,33

T=11.567,MARK 2

 1
35321-07050

GSL30,33

T=11.567,MARK 5

 1
35321-07030

GSL30,33

T=11.567,MARK 3

 1
35321-07040

GSL30,33

T=11.567,MARK 4

 1
35321-48110

GSL3#

T=16.66

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-07020

GSL30,33

T=11.567,MARK 2

 1
35322-07050

GSL30,33

T=11.567,MARK 5

 1
35322-07010

GSL30,33

T=11.567,MARK 1

 1
35322-07030

GSL30,33

T=11.567,MARK 3

 1
35322-07040

GSL30,33

T=11.567,MARK 4

 1
35322-48110

GSL3#

T=16.66

 1
35324C - SPROCKET, TRANSMISSION OIL PUMP DRIVE
35324-48030

GSL30,33

TOYOTA:REFER 35-01

 1
35324-48040

GSL3#

AISIN AW:REFER 35-01

 1
35330F - STRAINER ASSY, OIL
35330-48040

GSL3#

 1
35354 - WASHER, OIL PUMP SPROCKET THRUST, FRONT
35354-48010

GSL3#

 1
35355 - WASHER, OIL PUMP SPROCKET THRUST, REAR
35355-48010

GSL3#

 1
35370 - SHAFT ASSY, STATOR
35370-07010

GSL30,33

 1
35370-48030

GSL30,33

TOYOTA:REFER 35-01

 1
35370-48040

GSL3#

AISIN AW:REFER 35-01

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-48050

GSL3#

 1
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GSL3#

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GSL3#

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GSL3#

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GSL3#

 4
35781C - CHAIN, TRANSMISSION DRIVE
35781-48020

GSL3#

 1
Common parts
90105-06028
90105-06202
90149-60067
90253-09004
90253-09005
91551-10840
91551-80830
