GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

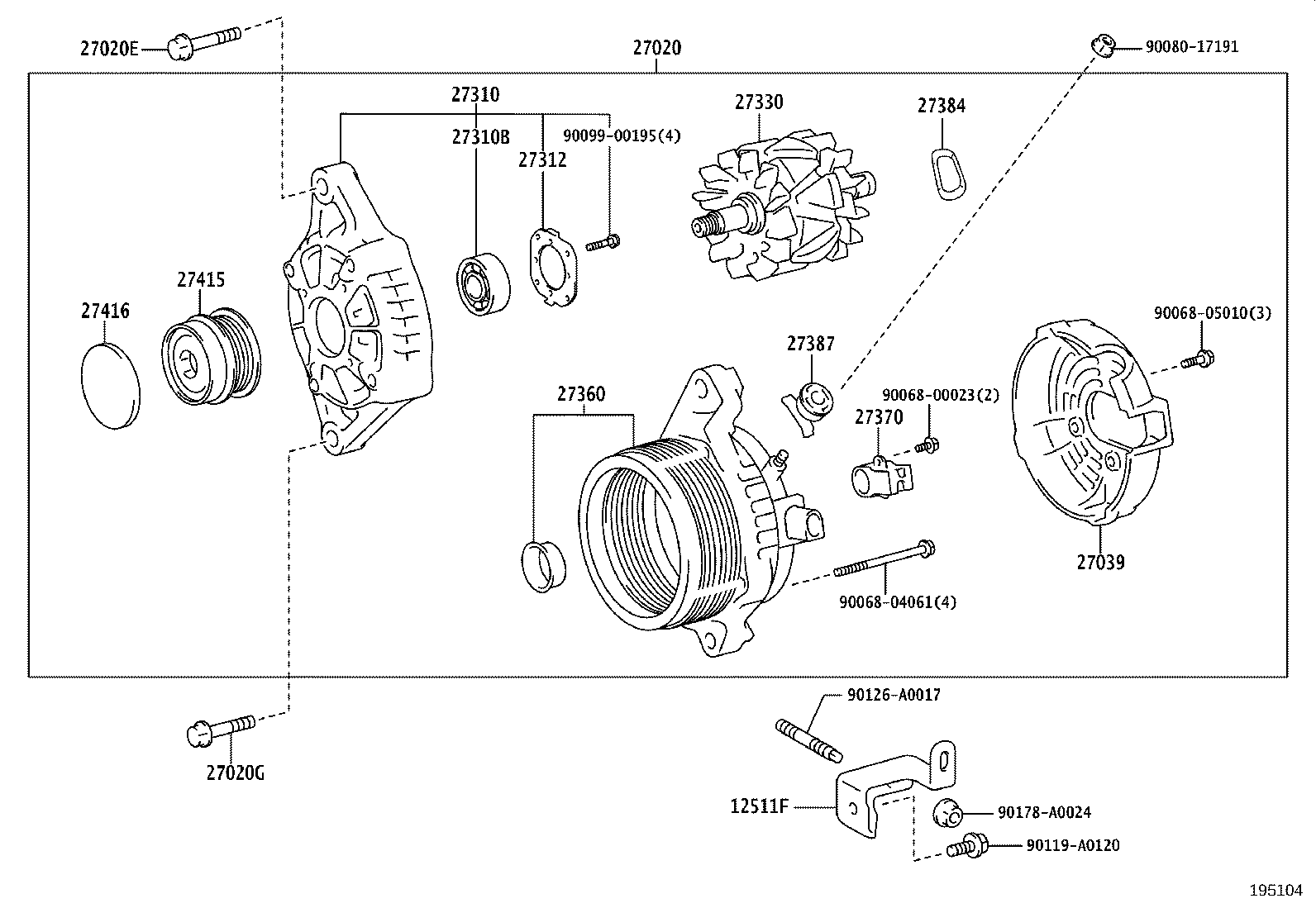

Click highlighted areas on diagram

12V 180A

diagram 12511F 27020 27020E 27020G 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27415 27416 9006800023 9006804061 9006805010 9008017191 9009900195 90119A0120 90126A0017 90178A0024
Part # Description Qty Price
12511F - BRACKET, ALTERNATOR, NO.1
12511-0P070

2GRFKS..GSL3#

 1
27020 - ALTERNATOR ASSY
27060-0P420

2GRFKS..GSL3#

12V 180A

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81095

2GRFKS..GSL3#

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90105-A0107

2GRFKS..GSL3#

 1
27039 - COVER, ALTERNATOR REAR END
27039-0P470

2GRFKS..GSL3#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0P470

2GRFKS..GSL3#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10241

2GRFKS..GSL3#

 1
27312 - PLATE, RETAINER
27312-42010

2GRFKS..GSL3#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0P470

2GRFKS..GSL3#

 1
27360 - COIL ASSY, ALTERNATOR
27360-0P470

2GRFKS..GSL3#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0V160

2GRFKS..GSL3#

 1
27384 - WASHER
27384-38130

2GRFKS..GSL3#

 1
27387 - INSULATOR, TERMINAL
27387-38130

2GRFKS..GSL3#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0P030

2GRFKS..GSL3#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2GRFKS..GSL3#

 1
Common parts
90068-00023
90068-04061
90068-05010
90080-17191
90099-00195
90119-A0120
90126-A0017
90178-A0024
