GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

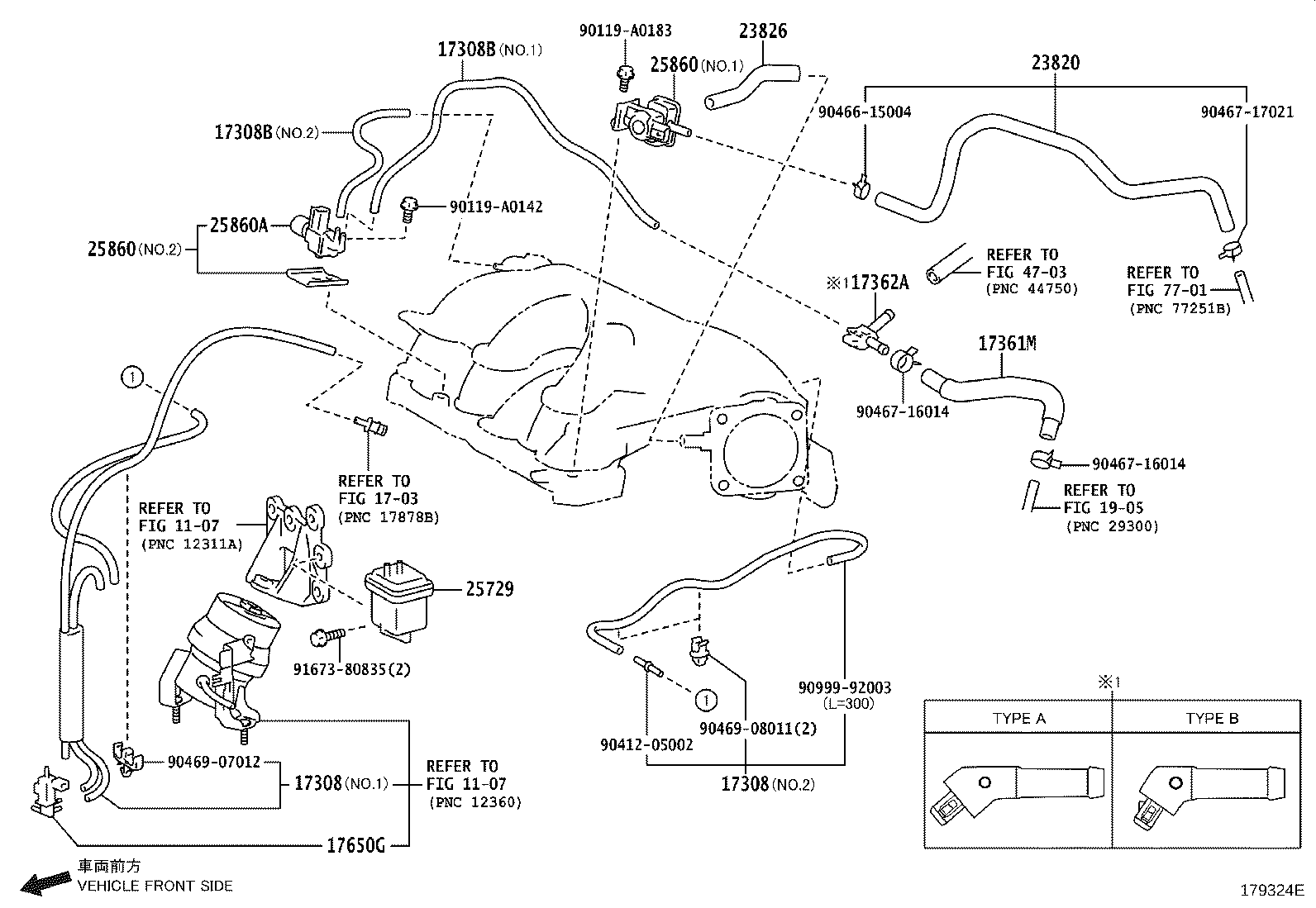

Click highlighted areas on diagram

diagram 1107 1107 1703 17308 17308 17308B 17308B 17361M 17362A 17650G 1905 23820 23826 25729 25860 25860 25860A 4703 7701 90119A0142 90119A0183 9041205002 9046615004 9046716014 9046716014 9046717021 9046907012 9046908011 9099992003 9167380835
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-0P160

2GRFKS..GSL3#

NO.2

 1
17308-0P210

2GRFKS..GSL3#

NO.1

 1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-0P160

2GRFKS..GSL3#

NO.2

 1
17308-0P210

2GRFKS..GSL3#

NO.1

 1
17308B - HOSE SUB-ASSY, VACUUM
25760-31020

2GRFKS..GSL3#

NO.1

 1
90999-92002

2GRFKS..GSL3#

NO.2

 1
17308B - HOSE SUB-ASSY, VACUUM
25760-31020

2GRFKS..GSL3#

NO.1

 1
90999-92002

2GRFKS..GSL3#

NO.2

 1
17361M - TUBE, AIR
17361-0P020

2GRFKS..GSL3#

 1
17362A - TUBE, AIR, NO.2
22281-0P020

2GRFKS..GSL3#

TYPE B:REFER ILLUST.

 1
17362-0P010

2GRFKS..GSL3#

TYPE A:REFER ILLUST.

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12204

2GRFKS..GSL3#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0P280

2GRFKS..GSL3#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0P220

2GRFKS..GSL3#

 1
25729 - TANK, VACUUM SURGE W/BRACKET
25729-31010

2GRFKS..GSL3#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110

2GRFKS..GSL3#

NO.1

 1
25860-31120

2GRFKS..GSL3#

NO.2

 1
25860-31110

2GRFKS..GSL3#

(J),NO.1

 1
25860-0P090

2GRFKS..GSL3#

(L),NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31110

2GRFKS..GSL3#

NO.1

 1
25860-31120

2GRFKS..GSL3#

NO.2

 1
25860-31110

2GRFKS..GSL3#

(J),NO.1

 1
25860-0P090

2GRFKS..GSL3#

(L),NO.1

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-46010

2GRFKS..GSL3#

 1
Common parts
90119-A0142
90119-A0183
90412-05002
90466-15004
90467-16014
90467-17021
90469-07012
90469-08011
90999-92003
91673-80835
Linked diagrams
1107
1703
1905
4703
7701
