GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )

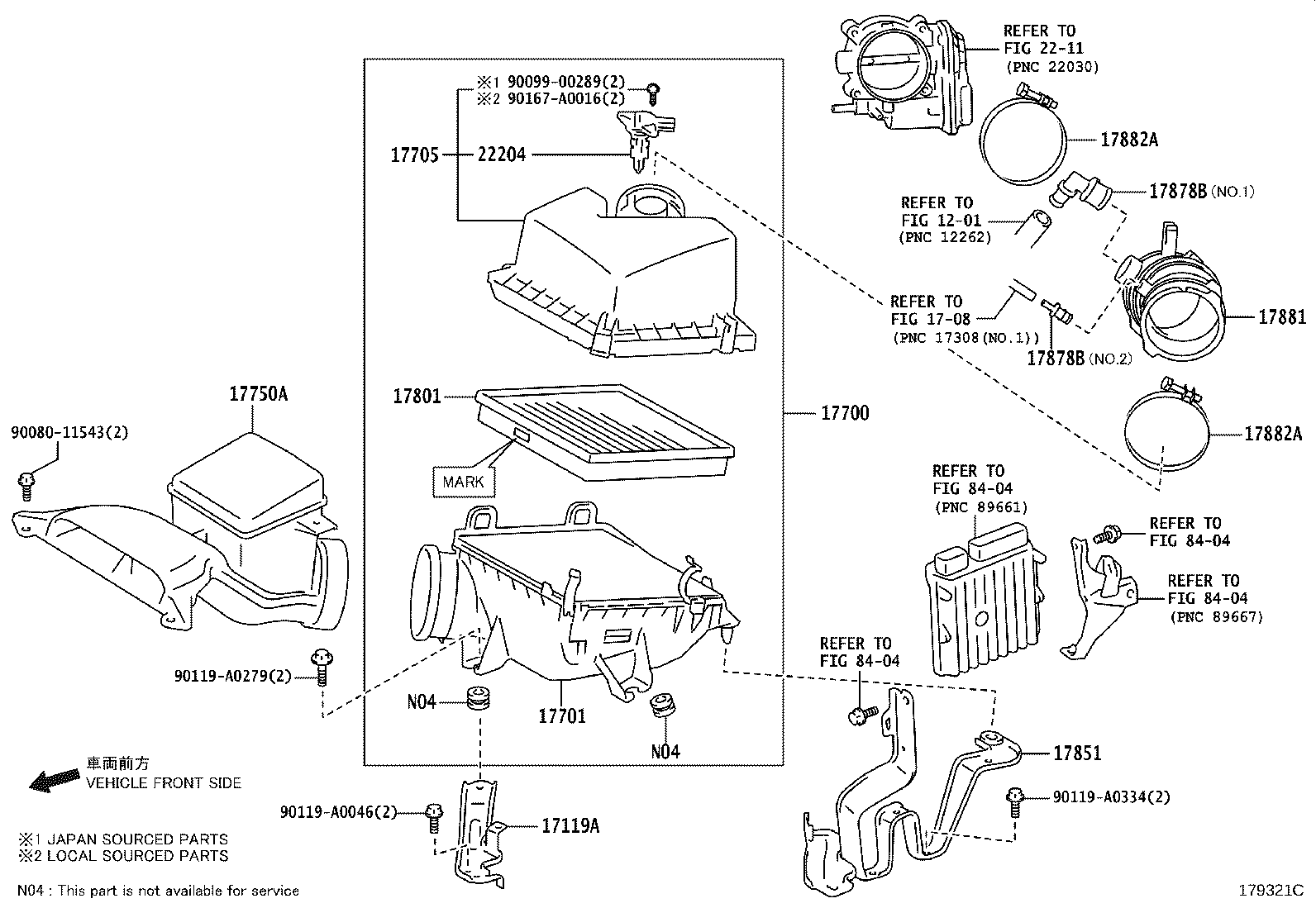

Click highlighted areas on diagram

diagram 1201 1708 17119A 17700 17701 17705 17750A 17801 17851 17878B 17878B 17881 17882A 17882A 2211 22204 8404 8404 8404 8404 9008011543 9009900289 90119A0046 90119A0279 90119A0334 90167A0016
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-0P110

2GRFKS..GSL3#

 1
17700 - CLEANER ASSY, AIR
17700-0P240

2GRFKS..GSL3#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0P150

2GRFKS..GSL3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0P230

2GRFKS..GSL3#

 1
17750A - INLET ASSY, AIR CLEANER
17750-0P100

2GRFKS..GSL3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31131

2GRFKS..GSL3#

MARK 17801-31131

 1
17801-0P051

2GRFKS..GSL3#

MARK 17801-0P051

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17850-0P040

2GRFKS..GSL3#

 1
17878B - TUBE, VENTILATION
17878-0P060

2GRFKS..GSL3#

NO.2

 1
17878-0P040

2GRFKS..GSL3#

NO.1

 1
17878B - TUBE, VENTILATION
17878-0P060

2GRFKS..GSL3#

NO.2

 1
17878-0P040

2GRFKS..GSL3#

NO.1

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P250

2GRFKS..GSL3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-93002

2GRFKS..GSL3#

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-93002

2GRFKS..GSL3#

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

2GRFKS..GSL3#

 1
Common parts
90080-11543
90099-00289
90119-A0046
90119-A0279
90119-A0334
90167-A0016
Linked diagrams
1201
1708
2211
8404
