GSL30L-PFZEHA (2016)

Toyota Sienna

Production Aug 2016 - Nov 2017
Engine 2GRFKS
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1608- )2GRFKS..01S,07S,08S

Click highlighted areas on diagram

W/(OIL COOELER)

diagram 1503 16031 16261 16261A 16261A 16264 16264A 16264E 16267 16267A 16267B 16281 16281A 16281A 16282 16282A 16282A 16322 16326 16326 16326 16331 16581 2211 8404 8404 8716 8716 90105A0079 90105A0214 90119A0142 90178A0023 90178A0023 90178A0023 90178A0023
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-31030

2GRFKS..GSL3#

 1
16261 - HOSE, WATER BY-PASS
16261-0P020

2GRFKS..GSL3#

 1
16261-0P020

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-27001

2GRFKS..GSL3#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-27001

2GRFKS..GSL3#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0P020

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16264-0P020

2GRFKS..GSL3#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-A0017

2GRFKS..GSL3#

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-A0017

2GRFKS..GSL3#

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-0P050

2GRFKS..GSL3#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-A0017

2GRFKS..GSL3#

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0017

2GRFKS..GSL3#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-0P080

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42101

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-42101

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 2
16282 - HOSE, WATER BY-PASS, NO.5
16282-0P030

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42101

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42101

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 2
16322 - PIPE, WATER INLET
16322-0P030

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16322-0P040

2GRFKS..GSL3#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31050

2GRFKS..GSL3#

NO.1

 1
16326-31040

2GRFKS..GSL3#

NO.2

 2
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31050

2GRFKS..GSL3#

NO.1

 1
16326-31040

2GRFKS..GSL3#

NO.2

 2
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31050

2GRFKS..GSL3#

NO.1

 1
16326-31040

2GRFKS..GSL3#

NO.2

 2
16331 - OUTLET, WATER
16331-31230

2GRFKS..GSL3#

 1
16331-31220

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-31100

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
Common parts
90105-A0079
90105-A0214
90119-A0142
90178-A0023
Linked diagrams
1503
2211
8404
8716

ILLUST NO. 2 OF 2(1608- )

Click highlighted areas on diagram

W/O (OIL COOELER)

diagram 16031 16261 16261A 16261A 16264 16264A 16264E 16267 16267A 16267B 16322 16326 16326 16326 16331 2211 8404 8404 8716 8716 90105A0079 90105A0214 90119A0142 90178A0023 90178A0023 90178A0023
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-31030

2GRFKS..GSL3#

 1
16261 - HOSE, WATER BY-PASS
16261-0P020

2GRFKS..GSL3#

 1
16261-0P020

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-27001

2GRFKS..GSL3#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-27001

2GRFKS..GSL3#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0P020

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16264-0P020

2GRFKS..GSL3#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-A0017

2GRFKS..GSL3#

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-A0017

2GRFKS..GSL3#

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-0P050

2GRFKS..GSL3#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-A0017

2GRFKS..GSL3#

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0017

2GRFKS..GSL3#

 1
16322 - PIPE, WATER INLET
16322-0P030

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
16322-0P040

2GRFKS..GSL3#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31050

2GRFKS..GSL3#

NO.1

 1
16326-31040

2GRFKS..GSL3#

NO.2

 2
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31050

2GRFKS..GSL3#

NO.1

 1
16326-31040

2GRFKS..GSL3#

NO.2

 2
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31050

2GRFKS..GSL3#

NO.1

 1
16326-31040

2GRFKS..GSL3#

NO.2

 2
16331 - OUTLET, WATER
16331-31230

2GRFKS..GSL3#

 1
16331-31220

2GRFKS..GSL30;2GRFKS..GSL35..LE

TOWING PACKAGE-FOR 3500LBS

 1
Common parts
90105-A0079
90105-A0214
90119-A0142
90178-A0023
Linked diagrams
2211
8404
8716

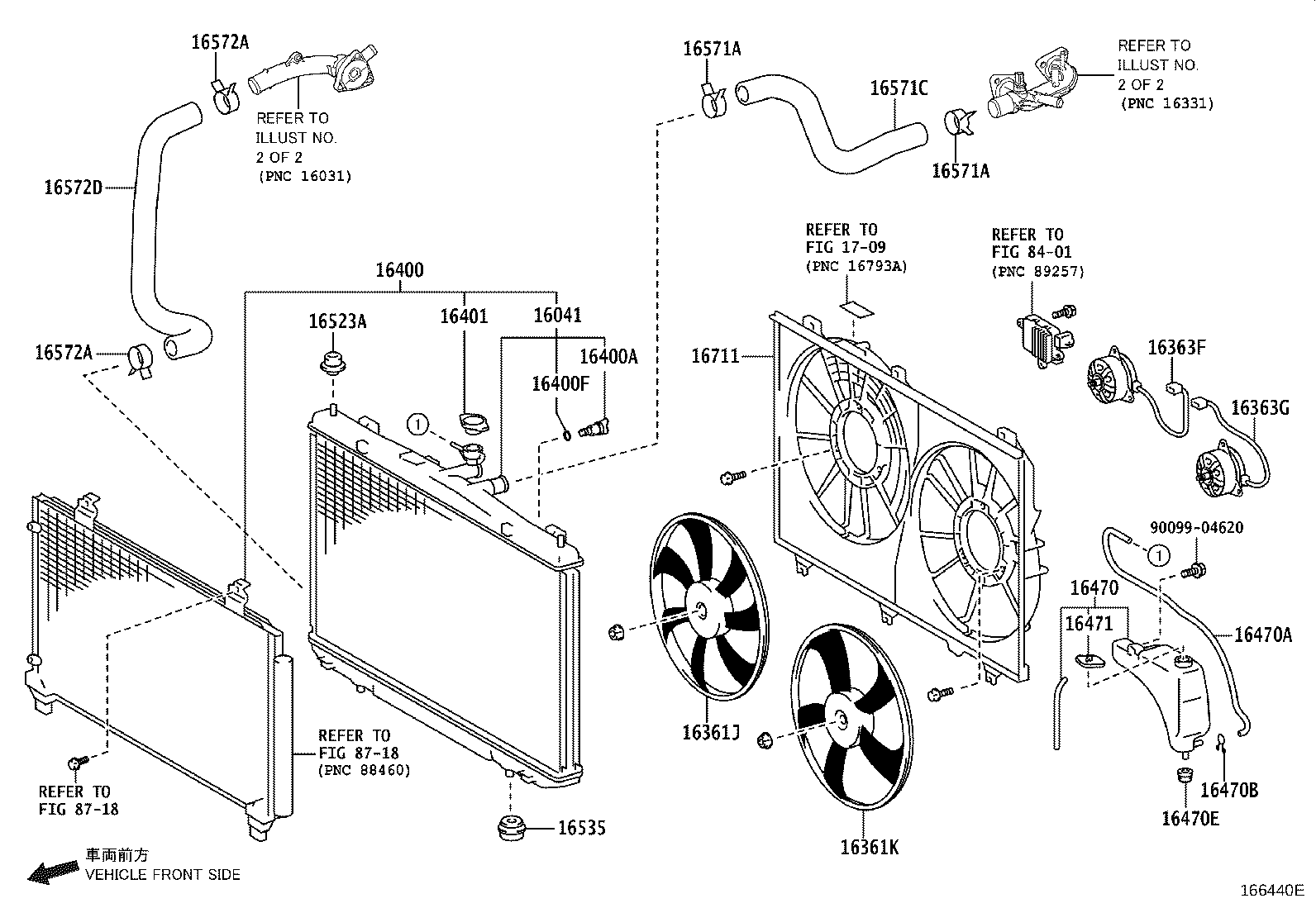

ILLUST NO. 1 OF 2(1608- )

Click highlighted areas on diagram

diagram 16041 16361J 16361K 16363F 16363G 16400 16400A 16400F 16401 16470 16470A 16470B 16470E 16471 16523A 16535 16571A 16571A 16571C 16572A 16572A 16572D 16711 1709 8401 8718 8718 9009904620
Part # Description Qty Price
16041 - RADIATOR ASSY, NO.2
16041-0P280

2GRFKS..GSL3#

 1
16361J - FAN, RH
16361-0P180

2GRFKS..GSL3#

 1
16361K - FAN, LH
16361-0P440

2GRFKS..GSL3#

 1
16363F - MOTOR, COOLING FAN, RH
16363-0P380

2GRFKS..GSL3#

 1
16363G - MOTOR, COOLING FAN, LH
16363-0P370

2GRFKS..GSL3#

 1
16400 - RADIATOR ASSY
16400-0P370

2GRFKS..GSL3#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-31830

2GRFKS..GSL3#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0P040

2GRFKS..GSL3#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0P090

2GRFKS..GSL3#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90068-35004

2GRFKS..GSL3#

 1
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-17028

2GRFKS..GSL3#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-0P040

2GRFKS..GSL3#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-AD010

2GRFKS..GSL3#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-20030

2GRFKS..GSL3#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0020

2GRFKS..GSL3#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-A0020

2GRFKS..GSL3#

 2
16571C - HOSE, RADIATOR, NO.1
16571-0P400

2GRFKS..GSL3#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0020

2GRFKS..GSL3#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-A0020

2GRFKS..GSL3#

 2
16572D - HOSE, RADIATOR, NO.2
16572-0P400

2GRFKS..GSL3#

 1
16711 - SHROUD, FAN
16711-0P400

2GRFKS..GSL3#

 1
Common parts
90099-04620
Linked diagrams
1709
8401
8718
