GSL30L-PFTQKA (2010)
Toyota Sienna

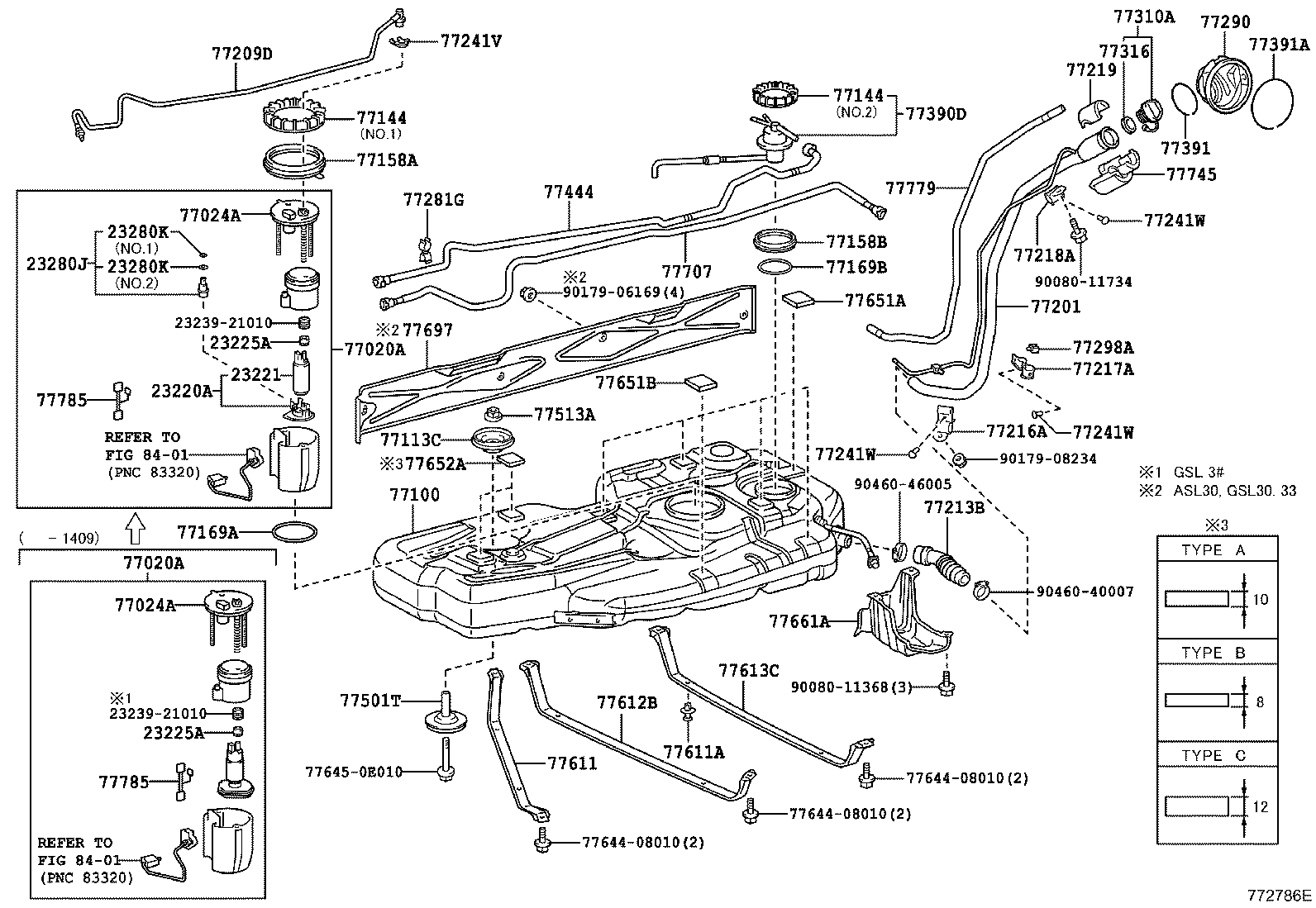

ILLUST NO. 1 OF 3(1001-1608)
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-08050 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-08050 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-08080 |
GSL30,33 |
1 | ||
| 77113C - PLATE, FUEL TANK SIDE | ||||
| 77103-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
GSL30,33;GSL35..LE,XLE NO.1 |
1 | ||
| 77144-08020 |
GSL30,33;GSL35..LE,XLE NO.2 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-08010 |
GSL30,33;GSL35..LE,XLE NO.1 |
1 | ||
| 77144-08020 |
GSL30,33;GSL35..LE,XLE NO.2 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77158B - SUPPORT, TANK SUCTION TUBE, NO.1 | ||||
| 77158-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48040 |
ASL30,GSL3# |
1 | ||
| 77169-48060 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-48030 |
ASL30,GSL3# |
1 | ||
| 77169-48070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-08050 |
ASL30,GSL3# |
1 | ||
| 77201-08051 |
GSL3# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-45030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77216-45040 |
GSL3# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77217-08050 |
GSL3# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-08060 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-06020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-35470 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-35470 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-35470 |
GSL30,33;GSL35..LE,XLE |
3 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-08050 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-08010 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06040 |
ASL30,GSL3# |
1 | ||
| 77300-07030 |
GSL3# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
ASL30,GSL3# |
1 | ||
| 77316-06070 |
GSL3# |
2 | ||
| 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK | ||||
| 77390-08012 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-08010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77513A - RETAINER, TANK BRACKET | ||||
| 77513-0E010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77611-08011 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-08020 |
GSL30,33;GSL35..LE,XLE |
6 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77612-08011 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77613C - BAND, FUEL TANK, NO.3 | ||||
| 77613-08011 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77651-08020 |
ASL30,GSL3# |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-08020 |
GSL30,33;GSL35..LE,XLE |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45030 |
GSL30,33;GSL35..LE,XLE TYPE C:REFER ILLUST. |
2 | ||
| 77652-45010 |
GSL30,33;GSL35..LE,XLE TYPE A:REFER ILLUST. |
2 | ||
| 77652-45020 |
GSL30,33;GSL35..LE,XLE TYPE B:REFER ILLUST. |
2 | ||
| 77661A - COVER, FUEL TANK FILLER HOSE | ||||
| 77661-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-08011 |
GSL30,33 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-0E010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0E030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0E030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 23239-21010 | ||||
| 77644-08010 | ||||
| 77645-0E010 | ||||
| 90080-11368 | ||||
| 90080-11734 | ||||
| 90179-06169 | ||||
| 90179-08234 | ||||
| 90460-40007 | ||||
| 90460-46005 | ||||
| Linked diagrams | ||||
| 8401 | ||||

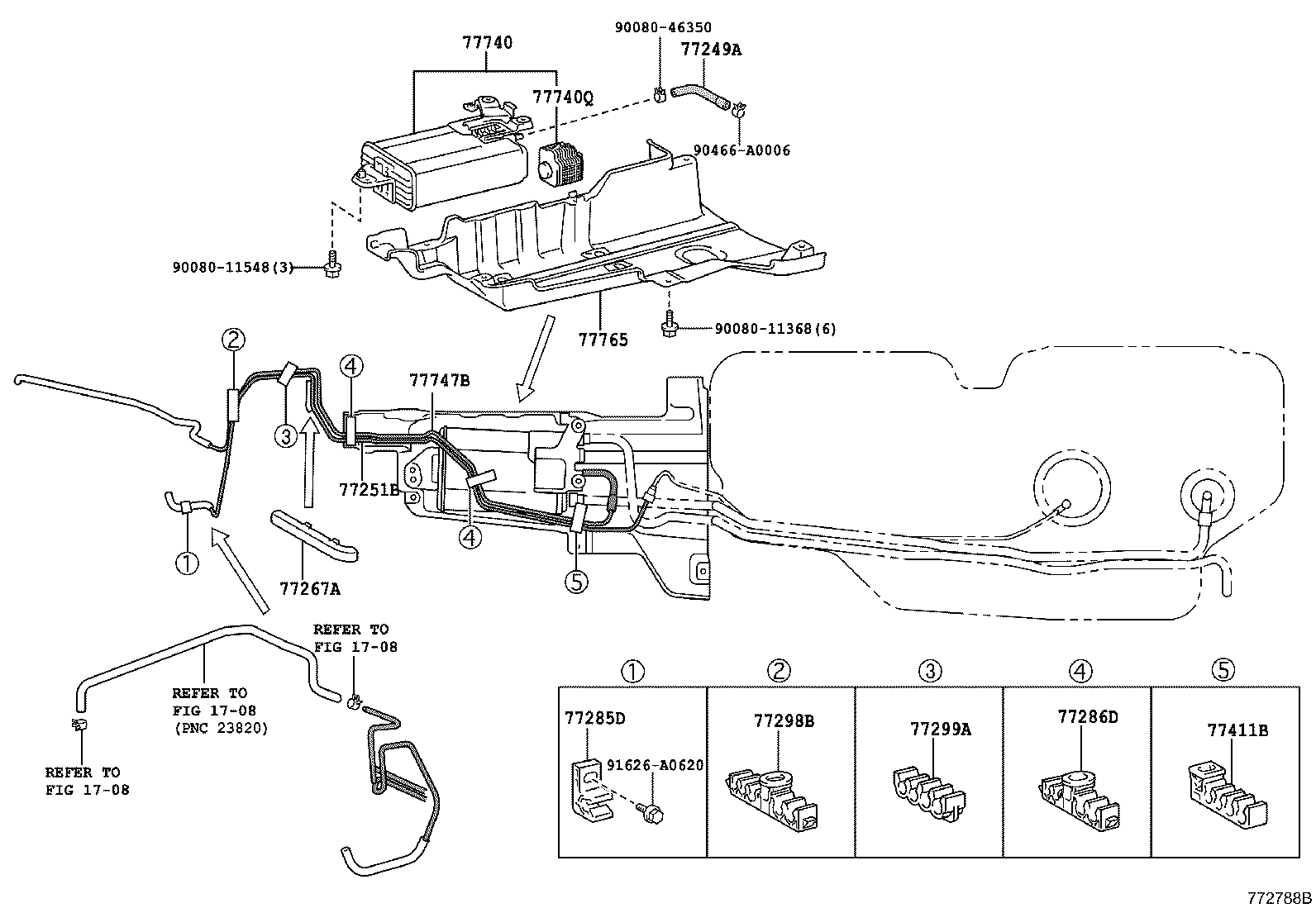

ILLUST NO. 2 OF 3(1001-1608)GSL3#
FULE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-08040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-08050 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30080 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-08200 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-08090 |
GSL30,33;GSL35..LE,XLE |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48040 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48010 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-08070 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-AF003 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77747B - TUBE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-08030 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 90080-11368 | ||||
| 90080-11548 | ||||
| 90080-46350 | ||||
| 90466-A0006 | ||||
| 91626-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 3 OF 3(1001- )
FULE LID LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 77306-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE ASH BROWN,TRIM4# |
1 | ||
| 77306-08010B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-08020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-AA020 |
GSL30,33;GSL35..LE,XLE |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90080-50330 | ||||
| 90269-A0005 | ||||
