GSL30L-PFTQKA (2010)
Toyota Sienna

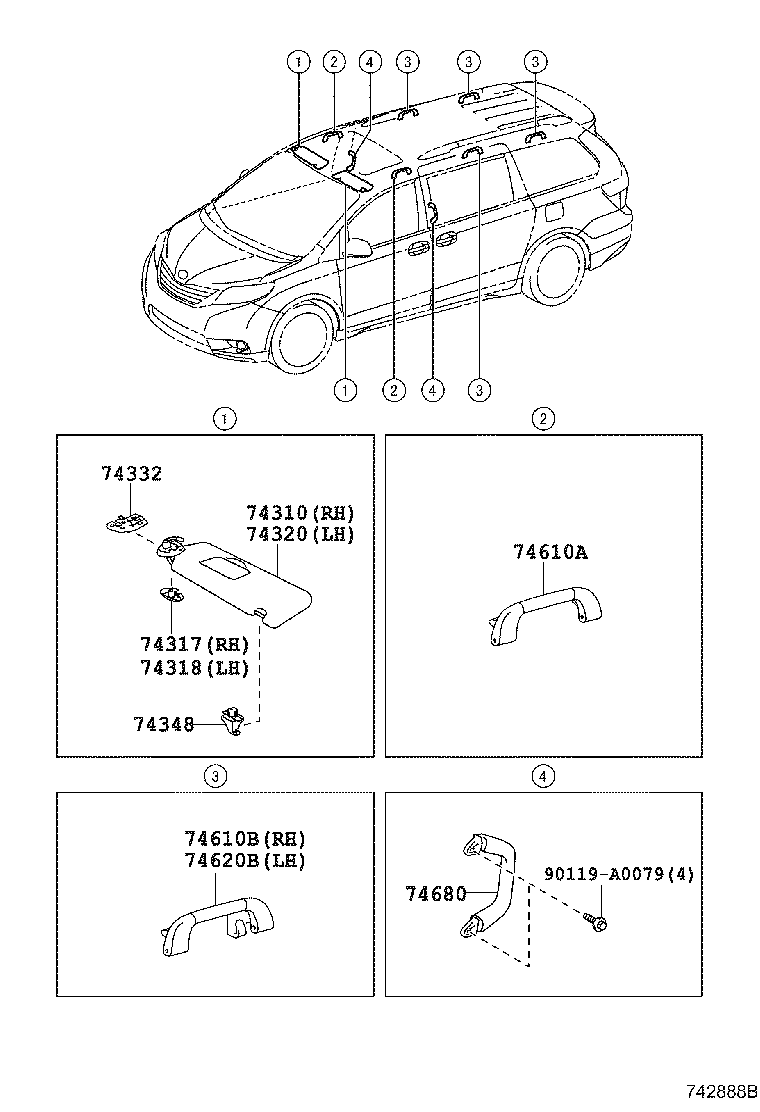

ILLUST NO. 2 OF 2(1001-1409)
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-08030B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 74310-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-08050E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 74317-08050B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-08040B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
1 | ||
| 74318-08040E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-08030B0 |
GSL30,33;GSL35..LE,XLE GRAY,TRIM1# |
1 | ||
| 74320-08030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
1 | ||
| 74332 - REINFORCEMENT, VISOR | ||||
| 74333-08010 |
GSL30,33;GSL35..LE,XLE LH |
1 | ||
| 74332-08010 |
GSL30,33;GSL35..LE,XLE RH |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 74348-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-0T010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4# |
2 | ||
| 74610-0T010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1# |
2 | ||
| 74610B - GRIP ASSY, ASSIST, NO.2 RH | ||||
| 74610-0T020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4#,RH |
2 | ||
| 74610-0T020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1#,RH |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-0T030E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4#,LH |
2 | ||
| 74610-0T030B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1#,LH |
2 | ||
| 74680 - GRIP ASSY, PILLAR ASSIST | ||||
| 74680-08020E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4#,LH |
1 | ||
| 74680-08010E0 |
GSL35..LE,XLE;GSL30,33..LE,STD,XLE GREGE,TRIM4#,RH |
1 | ||
| 74680-08010B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1#,RH |
1 | ||
| 74680-08020B0 |
GSL30,33;GSL35..LE,XLE LT.GRAY,TRIM1#,LH |
1 | ||
| Common parts | ||||
| 90119-A0079 | ||||

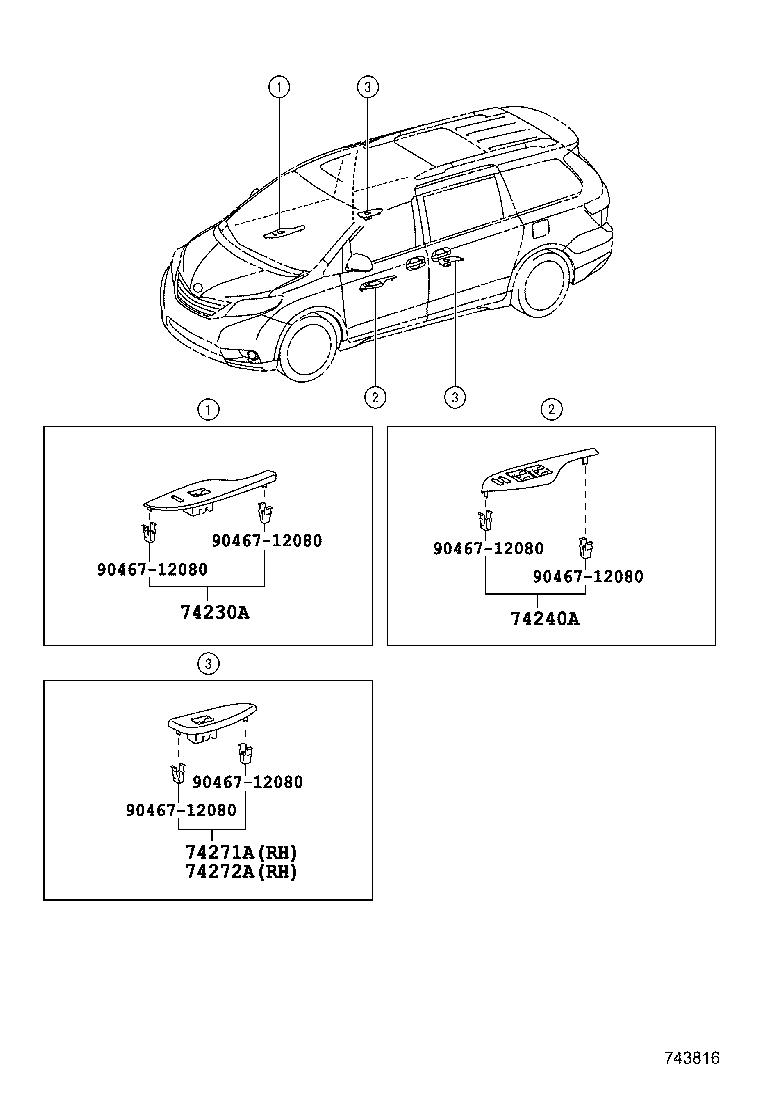

ILLUST NO. 1 OF 2(1001-1409)
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-08010 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74230-08020 |
GSL30,35..XLE |
1 | ||
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74230-08010 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74230-08020 |
GSL30,35..XLE |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-08020 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74240-08010 |
GSL30,35..XLE |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74240-08020 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74240-08010 |
GSL30,35..XLE |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-08010 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74271-08020 |
GSL30,35..XLE |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-08010 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74271-08020 |
GSL30,35..XLE |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-08010 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74272-08020 |
GSL30,35..XLE |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-08010 |
GSL35..LE;GSL30,33..LE,STD |
1 | ||
| 74272-08020 |
GSL30,35..XLE |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
