GSL30L-PFTEKA (2014)

Toyota Sienna

Production Sep 2014 - Aug 2016
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1001-1608)GSL30,33

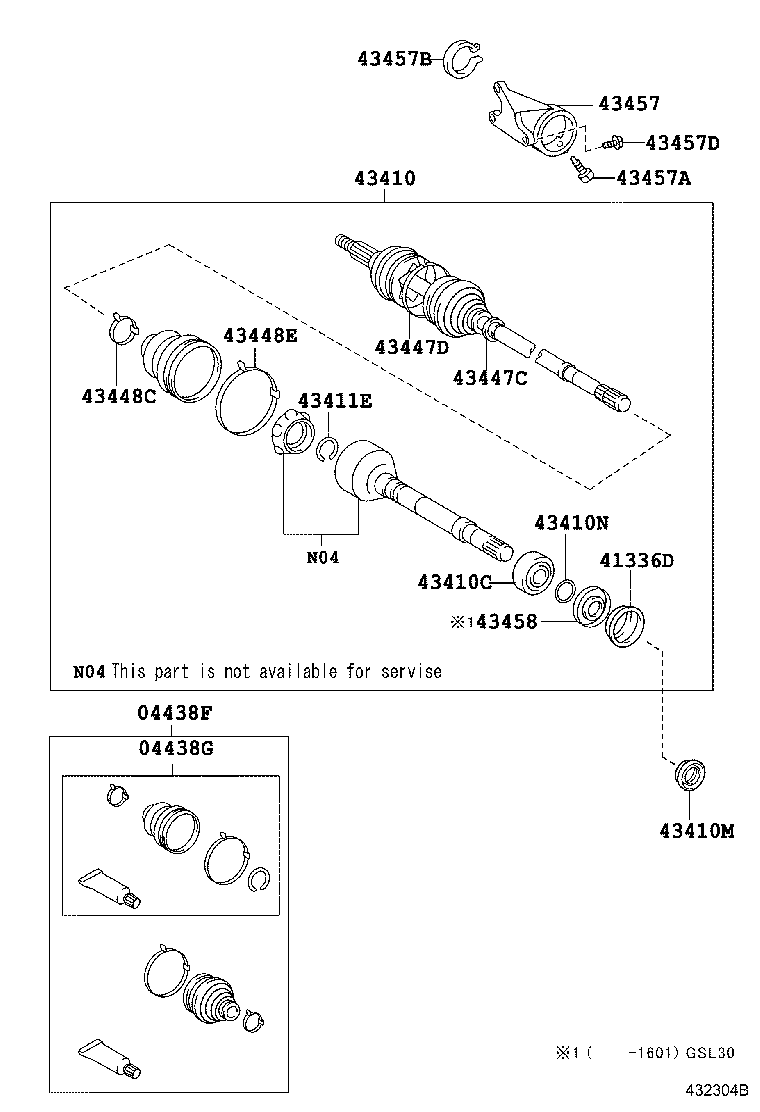

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43458
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-08110

GSL30,33

 1
04428-0W060

GSL30,33;GSL35..LE,XLE

 1
04427-08111

GSL30,33

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-08130

GSL30,33;GSL35..LE,XLE

 1
04437-08050

GSL30,33

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-06020

GSL30,33

 1
41336-06020

GSL30,33

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-08120

GSL30,33

 1
43410-08201

GSL30,33

 1
43410-08200

GSL30,33

 1
43410-08050

GSL30,33

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90080-36133

GSL30,33

 1
90080-36133

GSL30,33

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-A0029

GSL30,33

 1
90311-A0012

GSL30,33

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90080-52013

GSL30,33

 1
90080-52013

GSL30,33

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-08040

GSL3#

 1
43425-08040

GSL30,33;GSL35..LE,XLE

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030

GSL30,33;GSL35..LE,XLE

 1
42345-08090

GSL3#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06250

GSL30,33;GSL35..LE,XLE

 1
42345-08100

GSL3#

 1
42345-08120

GSL3#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-08070

GSL3#

 1
42345-08070

GSL30,33;GSL35..LE,XLE

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06240

GSL3#

 1
42345-06240

GSL30,33;GSL35..LE,XLE

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-07010

GSL30,33

 1
43457-07010

GSL30,33

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

GSL30,33

*10-1.25PX19.8-8.3

 1
90119-10461

GSL30,33

*10-1.25PX19.8-8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

GSL30,33

 1
90521-78002

GSL30,33

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90080-10087

GSL30,33

 3
90080-10087

GSL30,33

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-06020

GSL30,33

 1
43458-06020

GSL30,33

 1
