GSL20L-PRAQKA (2006)

Toyota Sienna

Production Dec 2006 - Jan 2010
Engine 2GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

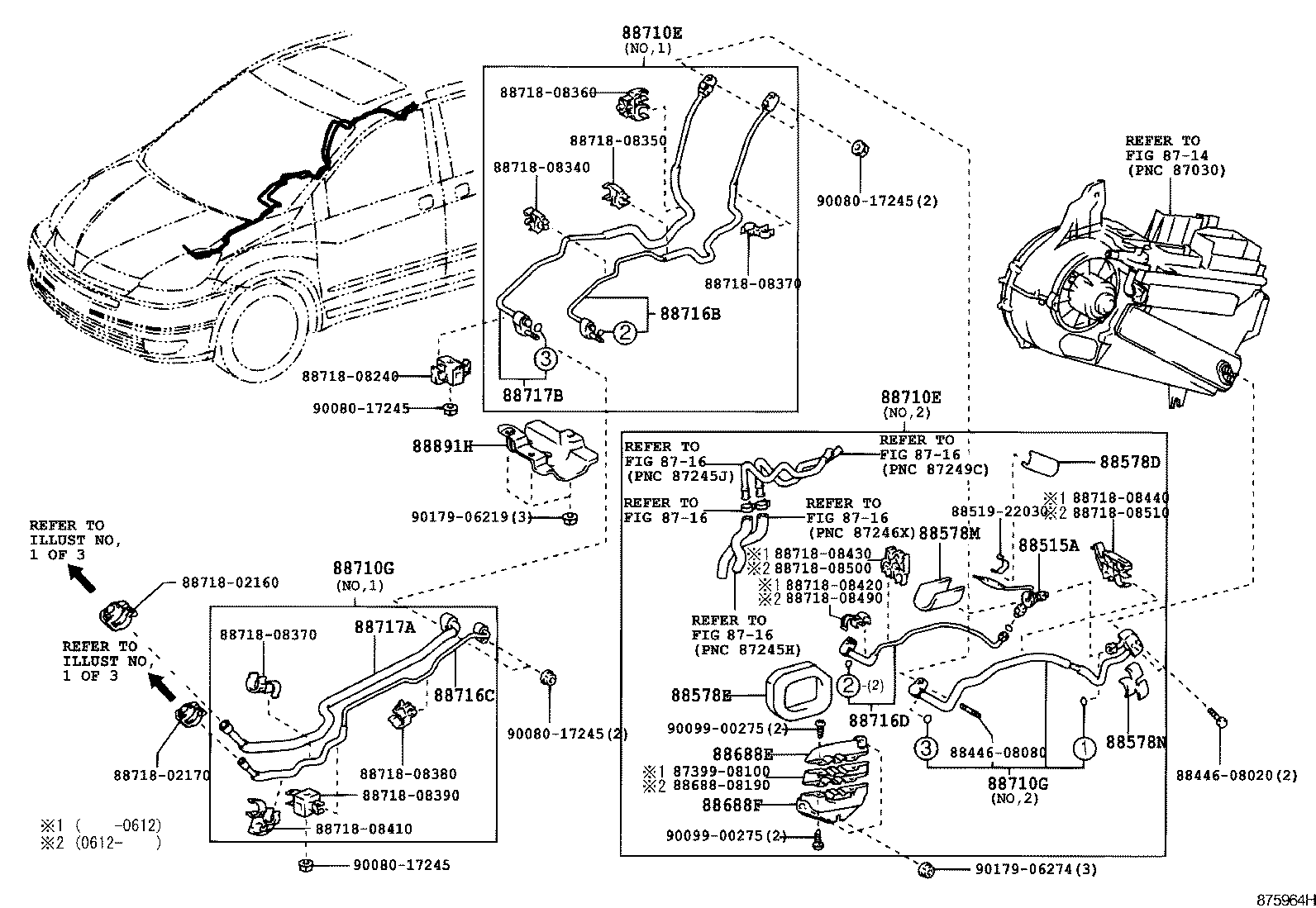

ILLUST NO. 2 OF 3(0301- )

Click highlighted areas on diagram

REAR

diagram 8714 8716 8716 8716 8716 8716 8739908100 8844608020 8844608080 88515A 8851922030 88578D 88578E 88578M 88578N 8868808190 88688E 88688F 88710E 88710E 88710G 88710G 88716B 88716C 88716D 88717A 88717B 8871802160 8871802170 8871808240 8871808340 8871808350 8871808360 8871808370 8871808370 8871808380 8871808390 8871808410 8871808420 8871808430 8871808440 8871808490 8871808500 8871808510 88891H 9008017245 9008017245 9008017245 9008017245 9009900275 9009900275 9017906219 9017906274
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-08110

GSL2#

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-08120

GSL2#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-08230

GSL2#

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-08240

GSL2#

 1
88578N - PACKING, COOLING PIPE, NO.4
88578-08220

GSL2#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-08180

GSL2#

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-08130

GSL2#

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88840-08140

GSL2#

NO.1

 1
88840-08180

GSL2#

NO.2

 1
88840-08181

GSL2#

NO.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88840-08140

GSL2#

NO.1

 1
88840-08180

GSL2#

NO.2

 1
88840-08181

GSL2#

NO.2

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88840-08190

GSL2#

NO.2

 1
88840-08150

GSL2#

NO.1

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88840-08190

GSL2#

NO.2

 1
88840-08150

GSL2#

NO.1

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-08220

GSL2#

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-08230

GSL2#

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-08280

GSL2#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-08360

GSL2#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-08350

GSL2#

 1
88891H - COVER, COOLER, NO.1
88891-08040

GSL2#

 1
Common parts
87399-08100
88446-08020
88446-08080
88519-22030
88688-08190
88718-02160
88718-02170
88718-08240
88718-08340
88718-08350
88718-08360
88718-08370
88718-08380
88718-08390
88718-08410
88718-08420
88718-08430
88718-08440
88718-08490
88718-08500
88718-08510
90080-17245
90099-00275
90179-06219
90179-06274
Linked diagrams
8714
8716

ILLUST NO. 3 OF 3(0301- )

Click highlighted areas on diagram

O-RING

diagram 9006908007 9006908009 9006908011
Part # Description Qty Price
Common parts
90069-08007
90069-08009
90069-08011

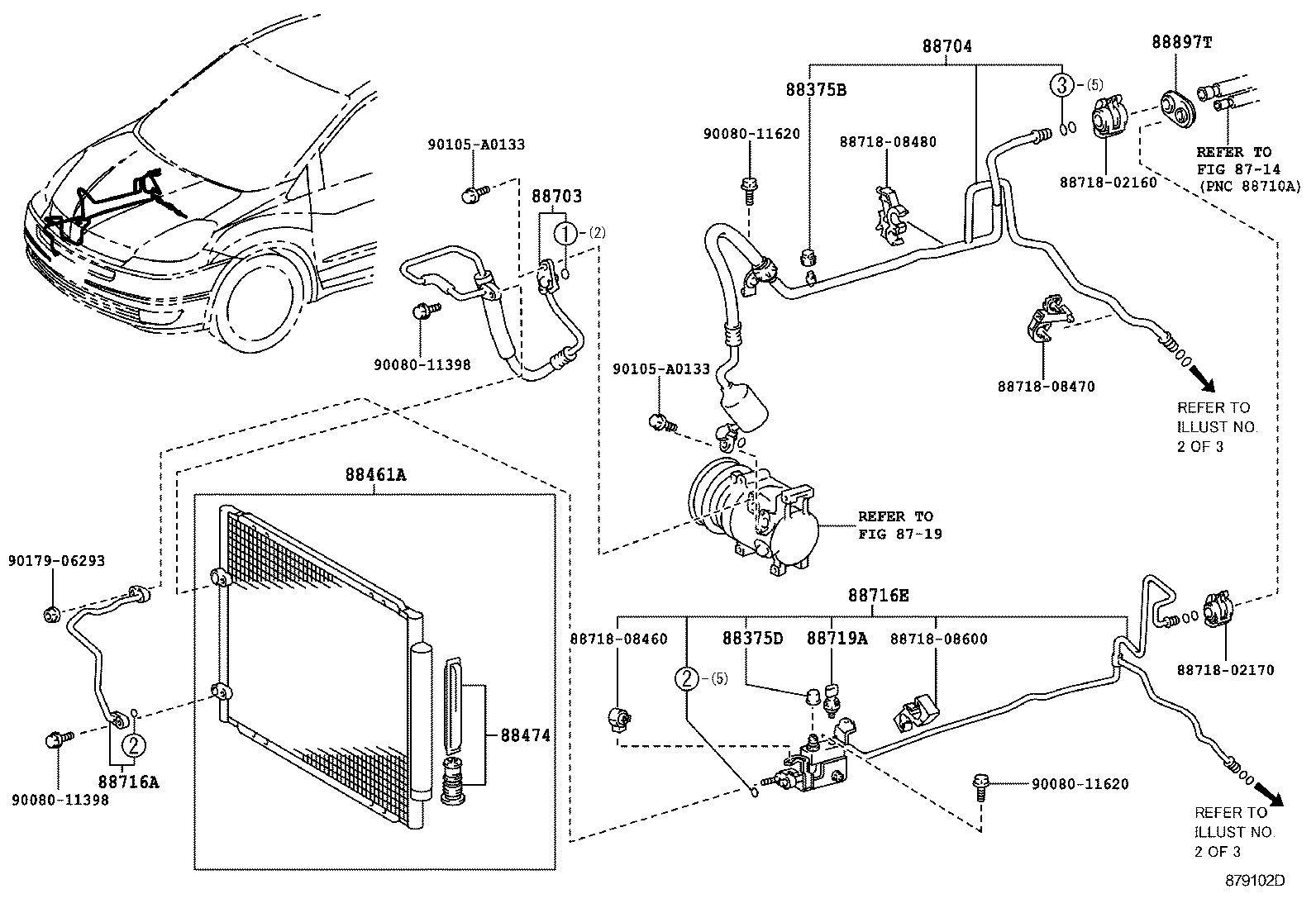

ILLUST NO. 1 OF 3(0612- )

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88375B 88375D 88461A 88474 88703 88704 88716A 88716E 8871802160 8871802170 8871808460 8871808470 8871808480 8871808600 88719A 88897T 9008011398 9008011398 9008011620 9008011620 90105A0133 90105A0133 9017906293
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-02070

GSL2#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GSL2#

 1
88461A - CORE, COOLER CONDENSER
88461-08010

GSL2#

 1
88474 - DRYER, COOLER
88474-17010

GSL2#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-08050

GSL2#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-08150

GSL2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-08270

GSL2#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88706-08150

GSL2#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GSL2#

 1
88897T - GROMMET, COOLER
88897-06010

GSL2#

 1
Common parts
88718-02160
88718-02170
88718-08460
88718-08470
88718-08480
88718-08600
90080-11398
90080-11620
90105-A0133
90179-06293
Linked diagrams
8714
8719
